Asus H110M-K Intel Motherboard
Product Id: 02.01.006.118
Brand
Asus
Special Price
Tk 10,300
Tk 10,300
Regular Price
Tk 11,070
EMI TK 923
Quick Overview
- Chipset - Intel H110
- Sockets Supported - LGA1151
- Supported CPU - 6th/7th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors
- Generation - 6th/7th
- Memory Slot - 2
- Memory Max. - 32GB
- Back-Connect Design - No
Avail EMI Offer
EMI starts from Tk 1,230/months
Brand
Asus
Model
Asus H110M-K
Chipset
Intel H110
Sockets Supported
LGA1151
Built-in Processor
No
Generation
6th/7th
Back-Connect Design
No
Memory Type
DDR4
Memory Slot
2
Memory Max.
32GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Intel HD Graphics support
M.2/SSD Expansion Slot
No
WiFi
No
Bluetooth
No
Form Factor
Micro-ATX
Supported Operating System
Windows 7 / 8.1 / 10
Body Color
Black
Warranty Details
3 Years Replacement Warranty
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus H110M-K Motherboard In Bangladesh

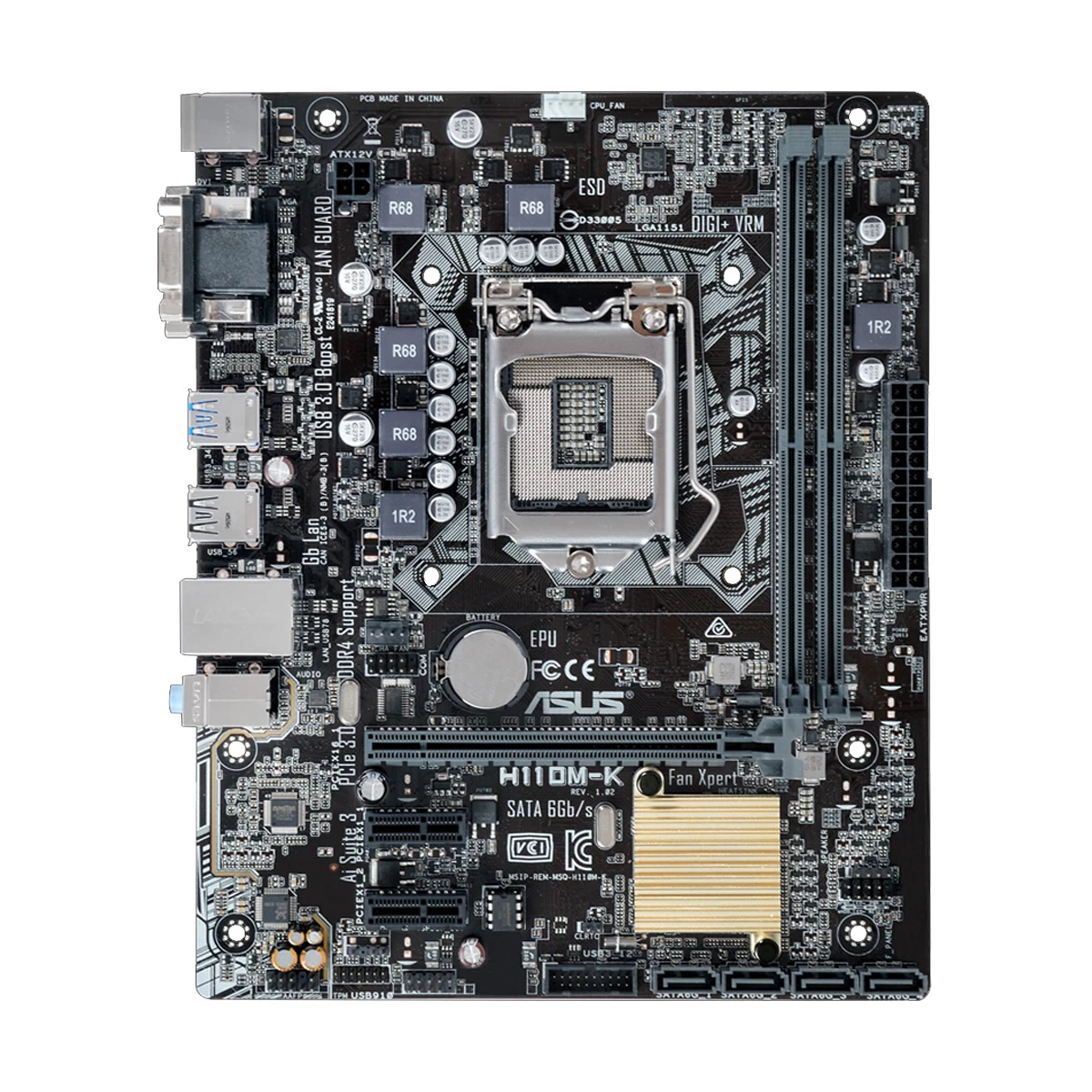

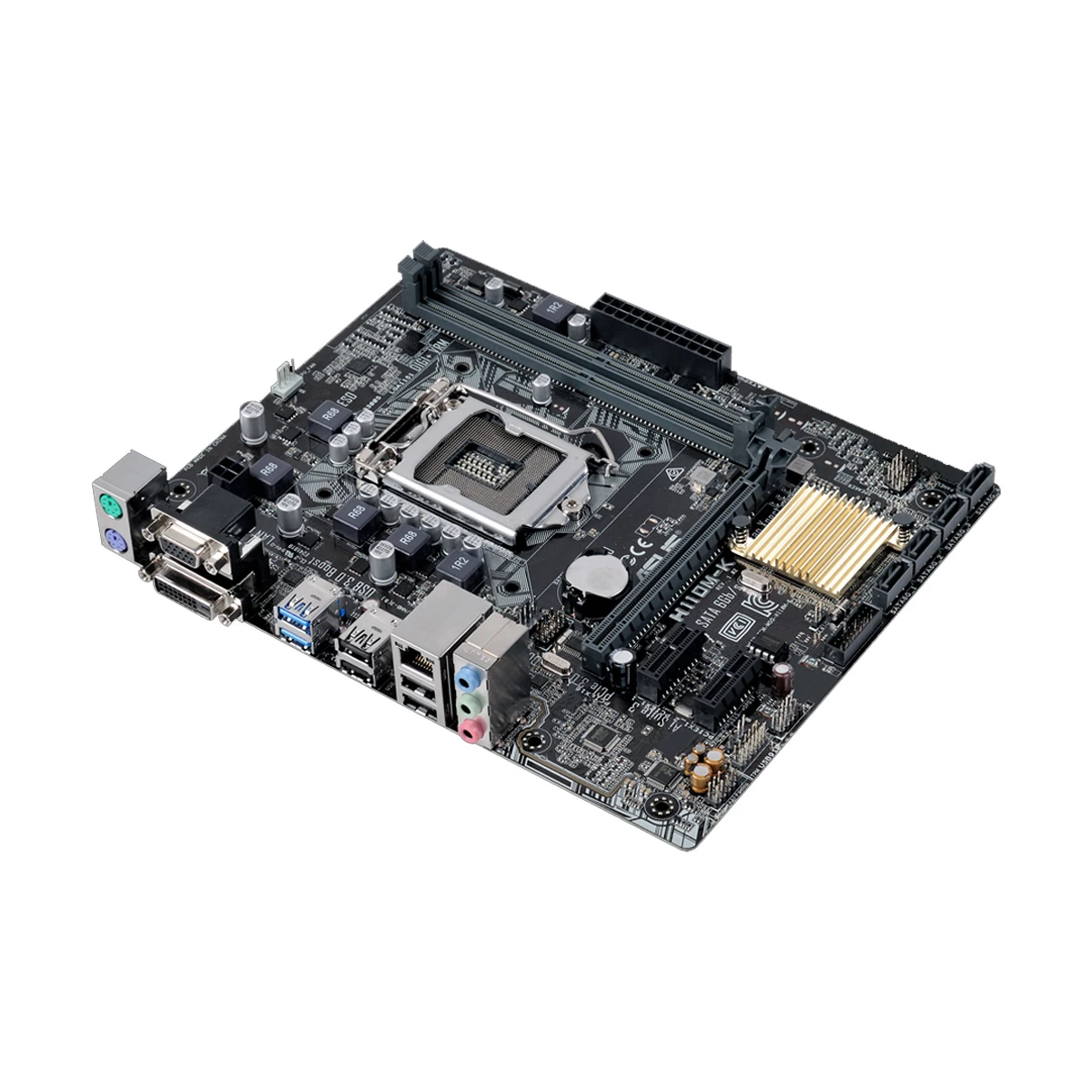

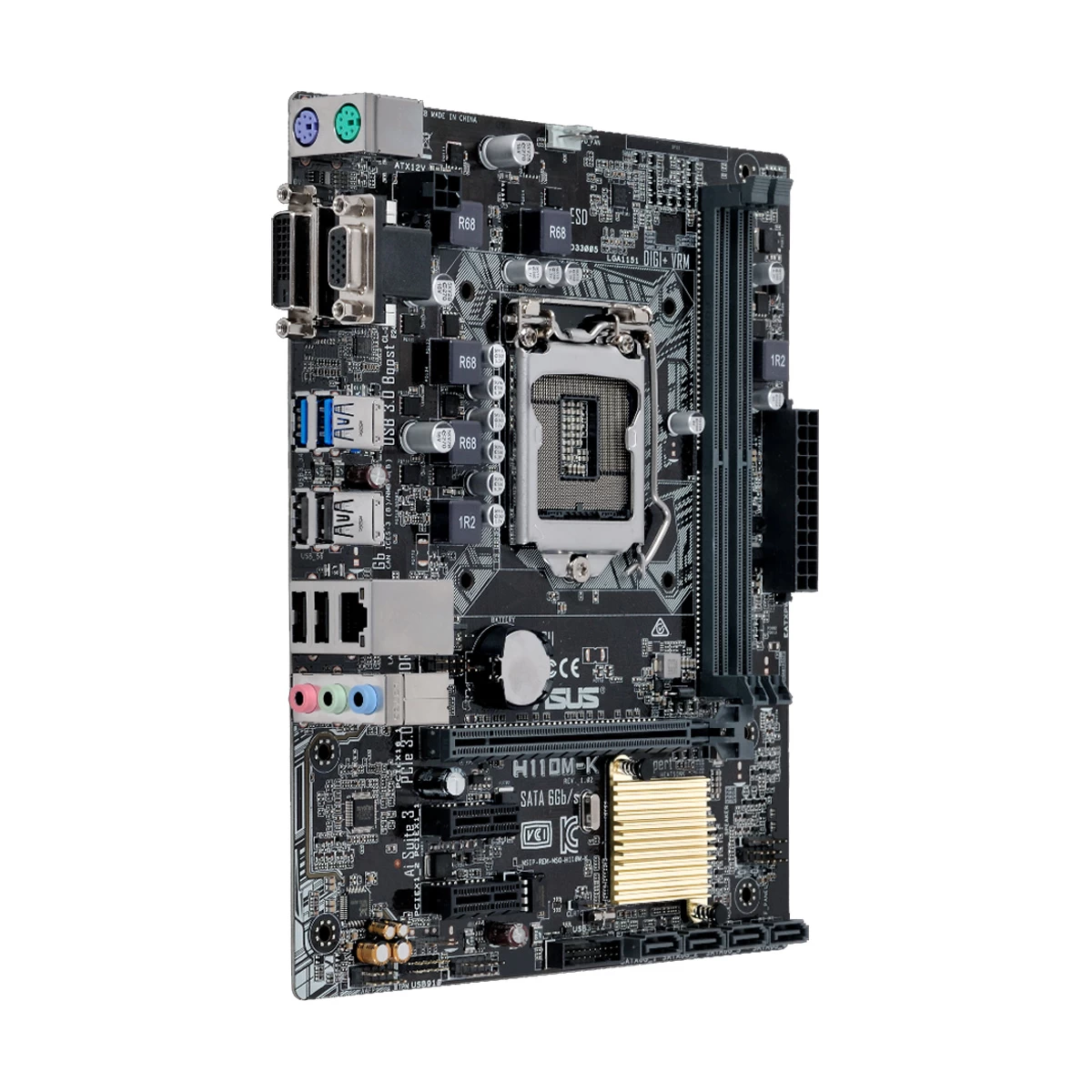

The H110M-K LGA 1151 Micro-ATX Motherboard from ASUS is designed to fit in cases that support a Micro ATX form factor. The 8.9 x 7.2" H110M-K supports 6th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors, the LGA 1151 socket, and the Intel H110 chipset. This motherboard supports Windows 10 (64-bit), 8.1 (64-bit), and 7 (32/64-bit).
The Micro ATX form factor of the H110M-K has 2 x DIMM slots that can support up to 32GB of non-ECC unbuffered DDR4 RAM, as well as memory modules that are compatible with Dual-Channel Memory Architecture and Intel's Extreme Memory Profile (XMP). The supported memory speed is 2133 MHz. This motherboard has a total of 4 x SATA III 6 Gb/s ports, 1 x PCIe 3.0/2.0 x16 slot, 2 x PCIe 2.0 x1 slots, 4 x USB 3.0/2.0 ports (2 at the back panel, 2 at mid-board), and 6 x USB 2.0/1.1 ports (4 at the back panel, 2 at mid-board). Using the Realtek ALC887 8-Channel High Definition audio codec, this motherboard can support 8-channel HD audio.
The H110M-K has integrated graphics support with one DVI-D and one VGA output, with both outputs supporting a maximum resolution of 1920 x 1600 @ 60 Hz. The integrated graphics can use up to 1,024MB of shared memory also supports Intel InTru 3D, Intel Quick Sync Video, Intel Clear Video HD Technology, and Intel Insider.
ASUS has designed the H110M-K with LANGuard, overvoltage protection, DRAM overcurrent protection, DIGI+ VRM, a stainless steel back I/O, ESD guards, Fan Xpert, AI Suite 3, and more. This motherboard is protected by a limited 3-year warranty and includes an I/O Shield, two SATA III 6 Gb/s cables, and a disc with drivers, ASUS Utilities, EZ Update.
Ready for 6th-Generation Intel LGA1151 Core i7, i5, i3, Pentium, and Celeron Processors
This motherboard supports 6th-generation Intel Core i7, i5, i3, Pentium, and Celeron processors in the LGA 1151 package, with graphics, memory, and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, dual-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for strong graphics performance
Intel H110 Express Chipset
The Intel Express chipset is a single-chipset design that supports 6th-generation Intel LGA 1151 Core i7, i5, i3, Pentium, and Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to four USB 3.0 ports for up to ten times faster transfer than USB 2.0. Moreover, the Intel H110 Express chipset also supports iGPU functions, letting users enjoy Intel integrated graphics performance
5X Protection II
LANGuard
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and anti-EMI surface-mounted capacitors that help to ensure a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges
Overvoltage Protection
A circuit design with built-in voltage regulators that help to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies
DRAM Overcurrent Protection
Onboard resettable fuses help prevent overcurrent and short-circuit damage. This extends beyond the I/O ports to DRAM to safeguard the lifespan of both the system and connected devices
DIGI+ VRM
ASUS' DIGI+ VRM delivers power to the processor based on real-time demands, helping to reduce energy waste and improve system stability
Stainless-Steel Back I/O
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's up to three times longer than ordinary panels
ESD Guards
Electrostatic discharge (ESD) can happen suddenly and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to ±10kV for air discharge and ±6kV for contact discharge. ASUS employs an active protective circuit design to help guard systems against electrostatic interference and damage, providing greater component longevity.
Performance

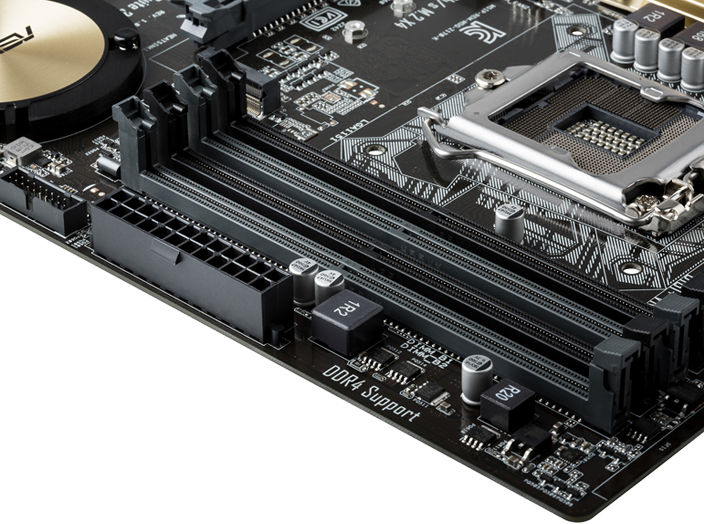

DDR4 Support
With DDR4, memory frequencies can be accelerated up to 2133 MHz
UEFI BIOS
The mouse-controlled graphical BIOS has been improved. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
EZ Flash 3
Update the BIOS via the Internet and from within the BIOS
S.M.A.R.T.
Check up your storage devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability and even determine if they're about to fail
Q-Fan Control
Users can configure the fan's operating speed manually or use the pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes
My Favorites
Quickly find tuning options and add preferred tools to the list
EZ Mode
Intuitive Graphical Fan Control
Fine-tune individual fans simply by dragging a curve with the mouse
EZ XMP
Improve your DRAM performance with a click
SATA Information
View SATA port details for easy device recognition
Fast Clock Adjustment
Use mouse controls to change the time and date
Advanced Mode
Last Modified Log
Track last change and save preferred profiles onto a USB drive
SATA Port Renaming
Rename SATA ports for easy identification
Transfer Speeds
Front-Panel USB 3.0
ASUS has put USB 3.0 right where users need it - two ports on the front panel. Experience data-transfer speeds up to 5 Gb/s with instant plug-and-play connectivity which helps to ease the hunt for hard-to-reach rear ports
Audio
LED-Illuminated Design
Brighten up your build with the illuminated audio trace path

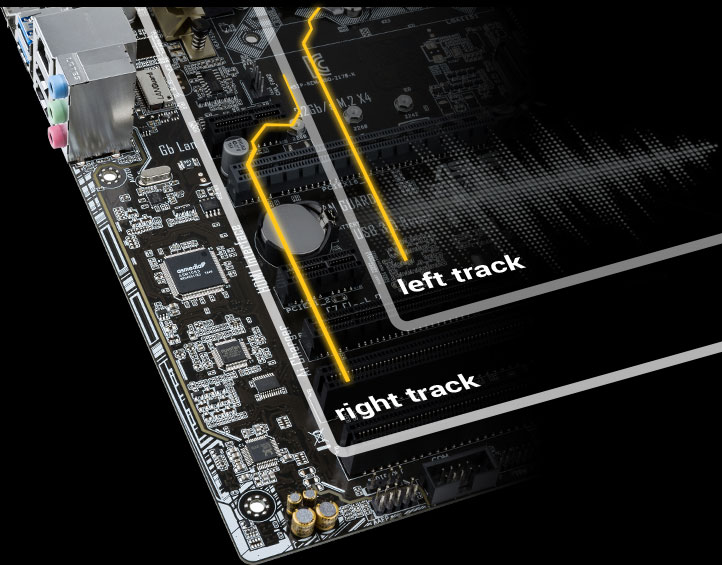

Noise Isolation
Audio shielding helps ensures precision analog/digital separation and reduced multi-lateral interference. Separate layers for left and right tracks also help ensure both channels deliver consistent and equal quality
Audio Enjoyment
Japanese audio capacitors provide warm, natural, and immersive sound with strong clarity and fidelity
PC DIY
Q-Slot (PCI Express Component Removal)
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly and graphics card will pop out
Q-DIMM (Memory Removal)
Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out
Optimized Cooling
Fan Xpert
ASUS Fan Xpert helps ensure every fan achieves the best balance of cooling performance and low noise - and with their 100 series boards and hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets users run their case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization
One-Stop Control
AI Suite 3
ASUS AI Suite 3 offers a user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing users to supervise overclocking, energy consumption, fan speeds, voltages, and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities
What is the price of Asus H110M-K Motherboard In Bangladesh?
The price of Asus H110M-K Motherboard starts from 10,300 . The price may vary due to your customization and product availability. You can buy Asus H110M-K Motherboard from our website or visit our showrooms nearby.
QUESTION & ANSWER
Customer Questions
Q:
Asus H110M-k এর জন্য কোন গ্রাফিক্স কার্ডটি ভালো হবে?
processor : {Intel core i5 6500}
By MD NADIM MOSTOFA
A:
প্রিয় গ্রাহক, আপনি আপনার পছন্দ অনুযায়ী যে কোন গ্রাফিক্স কার্ড ব্যবহার করতে পারবেন,ধন্যবাদ
By Ryans Computers Ltd.
, 04 Jun 2024
Q:
Is this motherboard still available Does it support any SSD at all
By Rafi
A:
Dear customer,this product is available right now and this model has no SSD slot.
Thank you
By Ryans Computers Ltd.
, 23 May 2024
Q:
dose it support m.2 SSD
By fahim
A:
Dear Sir, Asus H110M-K Intel Motherboard will not support M.2 SSD, Thanks for your query!
By Ryans Computers Ltd.
, 24 Apr 2024
Q:
Will this support Intel 9th Gen Coffee Lake Core i5 9400F Processor - (Without GPU)?
By Farhan Ahmed
A:
Dear Sir, this motherboard is not compatible with 9th generation processor, Thanks for your query!
By Ryans Computers Ltd.
, 14 Mar 2024
Q:
Ei motherboard e hdmi port nei..hdmi output kivhabe pete pari?
By sujan
A:
প্রিয় গ্রাহক, Asus H110M-K Intel Motherboard টিতে HDMI পোর্ট নেই, সেহেতু HDMI ক্যাবল ব্যবহার করার কোনো সুযোগ নেই, ধন্যবাদ!
By Ryans Computers Ltd.
, 13 Mar 2024
Q:
Asus H110M-K Intel Motherboard ki uttara branch te ki paoa jabe and last price??
EMI system details pls...
By Ahmed
A:
প্রিয় গ্রাহক, জি! উত্তরা ব্রাঞ্চে এভেইল্যাবল আছে এখন পর্যন্ত এবং প্রাইস ওয়েবসাইট এ উল্লেখিত প্রাইস টি এখন পর্যন্ত এবং রায়ান্স কম্পিউটার্স লিমিটেড থেকে যে কোন পণ্য ইএমআই এর আওতায় কেনা যাবে। এই সুবিধা শুধুমাত্র ব্রাঞ্চ থেকে কেনাকাটার ক্ষেত্রে পাওয়া যাবে, অনলাইন কেনাকাটায় প্রযোজ্য হবে না।
একটি অর্ডারের পরিমাণ ন্যূনতম ৫ হাজার টাকা হতে হবে, ঐ অর্ডার ভুক্ত একেকটি আইটেম মূল্য যাই হোক না কেন।
কিস্তির সময়সীমা ৩, ৬, ৯ এবং ১২ মাস। ০% ইন্টারেস্ট এবং অন্য কোন চার্জ কাটা হয় না। ক্রেডিট কার্ডের মাধ্যমে কেনার ক্ষেত্রে এই সুবিধা পাওয়া যাবে।
ইএমআই এর জন্য রায়ান্সের ওয়েবসাইট বা কোটেশনে উল্লিখিত শুধুমাত্র "Regular Price" প্রযোজ্য।
বিস্তারিত জানতে কল করুন +৮৮০৯৬০৪৪৪২১২১, +৮৮০১৭৫৫৬৬২১২১, ধন্যবাদ!
By Ryans Computers Ltd.
, 04 Feb 2024
Q:
Asus H110M-k এর জন্য কোন গ্রাফিক্স কার্ডটি ভালো হবে?
By MD NADIM MOSTOFA
A:
প্রিয় গ্রাহক, গ্রাফিক্স কার্ড কত জিবির মধ্যে চাচ্ছেন সেটি শেয়ার করুন এবং আপনার প্রসেসর এর মডেল ও শেয়ার করবেন, ধন্যবাদ!
By Ryans Computers Ltd.
, 26 Dec 2023
Q:
LAN Speed (Mbps) = 10/100/1000Mbps WHICH?
By MD NADIM MOSTOFA
A:
Dear Sir, LAN - Realtek® - RTL8111H, 1 x Gigabit LAN Controller(s), Thanks for your query!
By Ryans Computers Ltd.
, 19 Dec 2023
Q:
asus h110m-k motherboard ta ki hbe?
By mehedi
A:
প্রিয় গ্রাহক, এই প্রোডাক্ট টি বর্তমানে স্টক এ নেই, যখন ই স্টক এ আসবে পণ্যের বিবরণ, স্টক এবং প্রাইস আপডেট করে দেওয়া হবে, অনুগ্রহ করে আমাদের অফিসিয়াল ওয়েবসাইট এ চোখ রাখুন, ধন্যবাদ !
By Ryans Computers Ltd.
, 21 Oct 2023
Q:
nedd mother drivars
By md aual
A:
Dear Sir, You can place an order through online for purchasing this one. Thanks for your query!
By Ryans Computers Ltd.
, 29 May 2023
