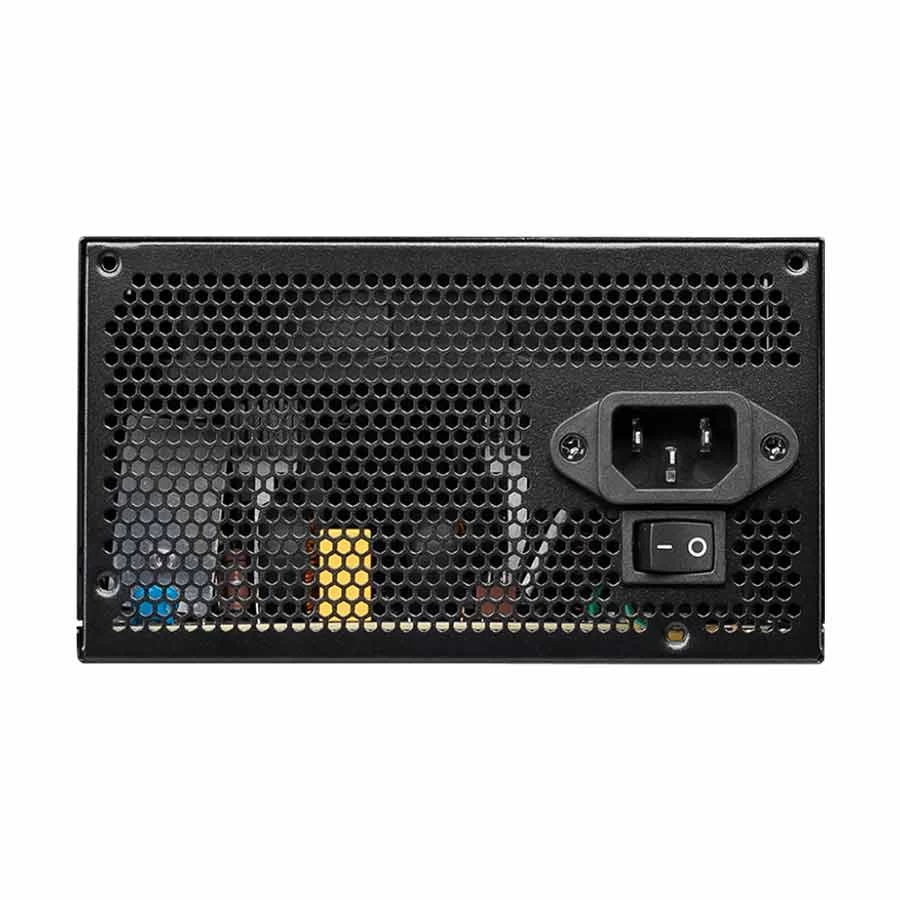

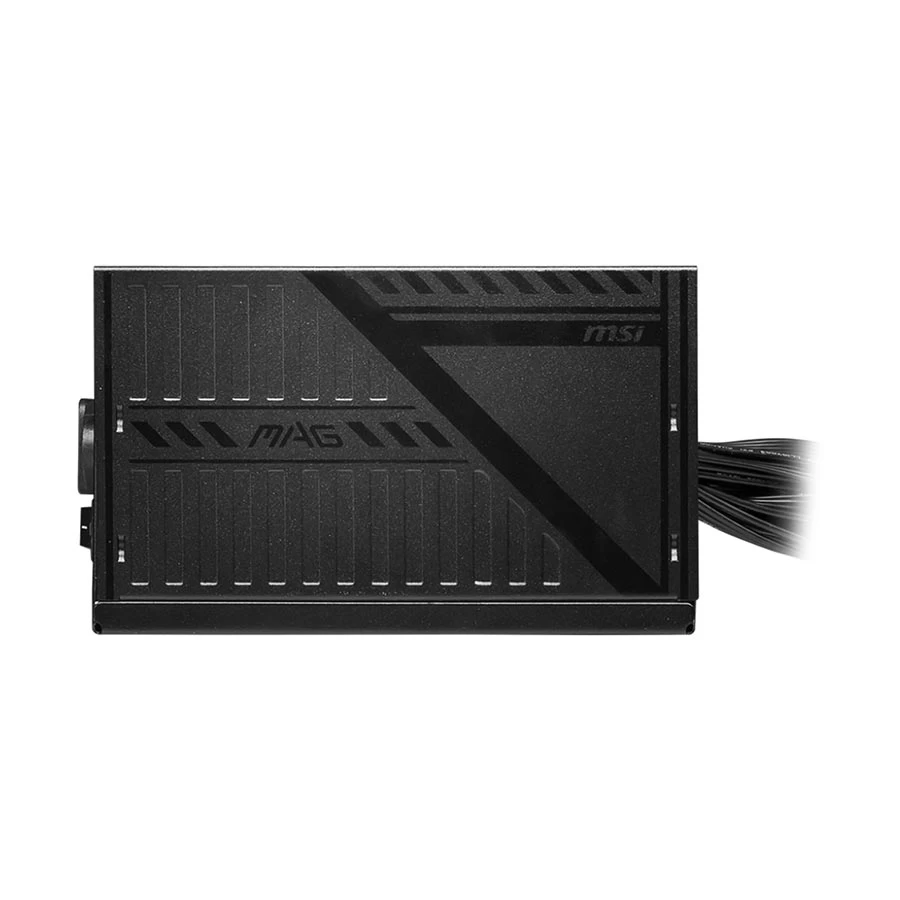

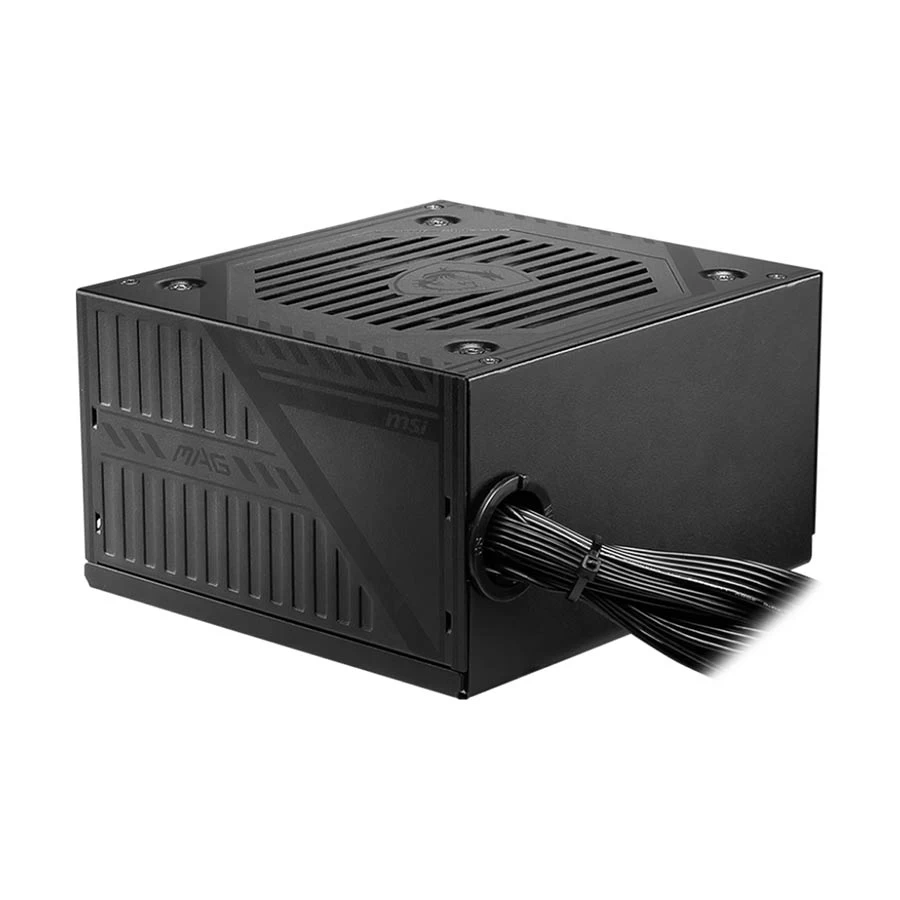

MSI MAG A500DN 500W Non-Modular Power Supply
Product Id: 55.01.033.14
Brand
MSI
Regular Price Tk 4,940
Special Price Tk 4,590
Quick Overview
- PSU Category - Non Modular
- Maximum Power - 500 Watt
- Efficiency - 80% Efficiency
- Efficiency Rating - 80 Plus
- Protection - OCP, OVP, OPP, OTP, SCP, UVP
General
Brand
MSI
Model
MSI MAG A500DN 500W
PSU Category
Non Modular
Cooling & Lighting
Fan Size
120mm
Fan Bearing
Hydro Bearing
Performance
Efficiency
80% Efficiency
Efficiency Rating
80 Plus
PFC (Power Factor Correction)
Active PFC
Protection
Protection
OCP, OVP, OPP, OTP, SCP, UVP
Over Voltage Protection (OVP)
Yes
Over Power Protection (OPP)
Yes
Over Current Protection (OCP)
Yes
Over Temperature Protection (OTP)
Yes
Short Circuit Protection (SCP)
Yes
Under Voltage Protection (UVP)
Yes
Connectors
ATX Main Connectors
1 (24 Pin)
EPS Connectors
1 (4+4 Pin)
PCIe Connectors
2 (6+2 Pin)
SATA Power Connectors
5 (15 Pin)
4-Pin Peripheral Connectors
2
Power
Min. Power (Approx.)
400W
Maximum Power
500 Watt
Input Voltage
100 - 240Vac
Input Frequency Range
50 - 60Hz
Physical Description
Cable Type
Flat Cable Equipment
Form Factor
ATX
Dimensions
150 x 140 x 86mm
Color
Black
Warranty
Warranty Details
3 year
Additional Info
Others
FDD (4 pin): 1.
Specialty
The efficiency of your power supply directly influences your systems performance and your power consumption. The 80 PLUS certification promises lower energy consumption and 80% efficiency. The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of MSI MAG A500DN 500W Power Supply In Bangladesh
80 PLUS STANDARD
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS certification promises lower energy consumption and 80% efficiency.
TEMPERATURE ADAPTATION
Your system can safely operate at maximum load in temperatures up to 40°C. This power supply unit is made to last, regardless of what environment your system is in.
120MM LOW NOISE FAN
The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.
FLAT CABLE EQUIPMENT
The MAG A500DN's cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized.
Brand - MSI, Model - MSI MAG A500DN 500W, PSU Category - Non Modular, Min. Power (Approx.) - 400W, Maximum Power - 500W, Input Voltage - 100 - 240Vac, Input Frequency Range - 50 - 60Hz, Fan Size - 120mm, Fan Bearing - Hydro Bearing, Efficiency - 80% Efficiency, 80 Plus/Efficiency Rating - 80 Plus, Protection - OCP, OVP, OPP, OTP, SCP, UVP, Over Voltage Protection (OVP) - Yes, Over Power Protection (OPP) - Yes, Over Current Protection (OCP) - Yes, Over Temperature Protection (OTP) - Yes, Short Circuit Protection (SCP) - Yes, Under Voltage Protection (UVP) - Yes, ATX Main Connectors - 1 (24 Pin), EPS Connectors - 1 (4+4 Pin), PCIe Connectors - 2 (6+2 Pin), SATA Power Connectors - 5 (15 Pin), 4-Pin Peripheral Connectors - 2, PFC (Power Factor Correction) - Active PFC, Cable Type - Flat Cable Equipment, Form Factor - ATX, Dimension (W/H/D) - 150 x 140 x 86mm, Color - Black, Others - FDD (4 pin): 1., Specialty - The efficiency of your power supply directly influences your systems performance and your power consumption. The 80 PLUS certification promises lower energy consumption and 80% efficiency. The 120mm fan reduces the noise generated while maintaining excellent heat dissipation., Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
