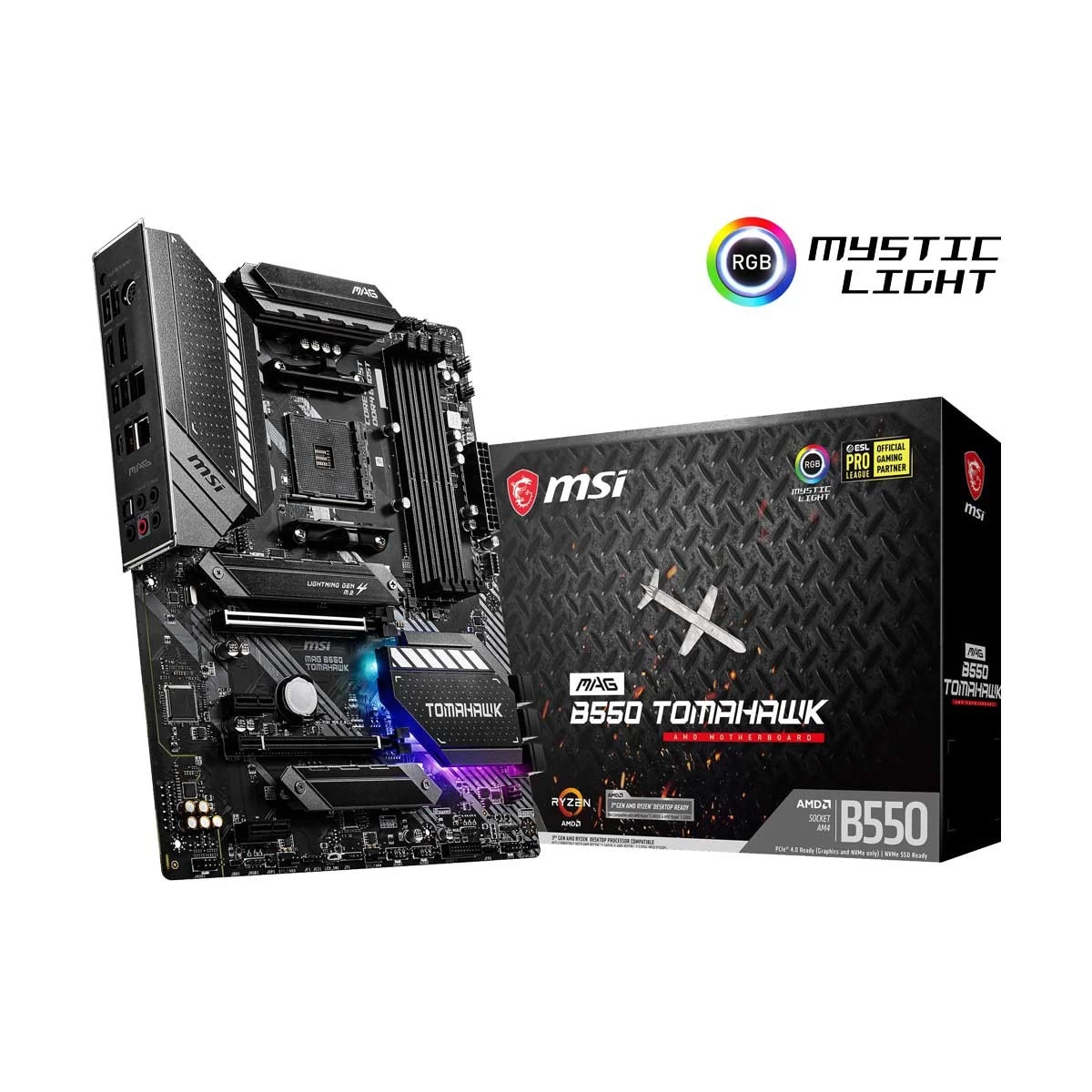

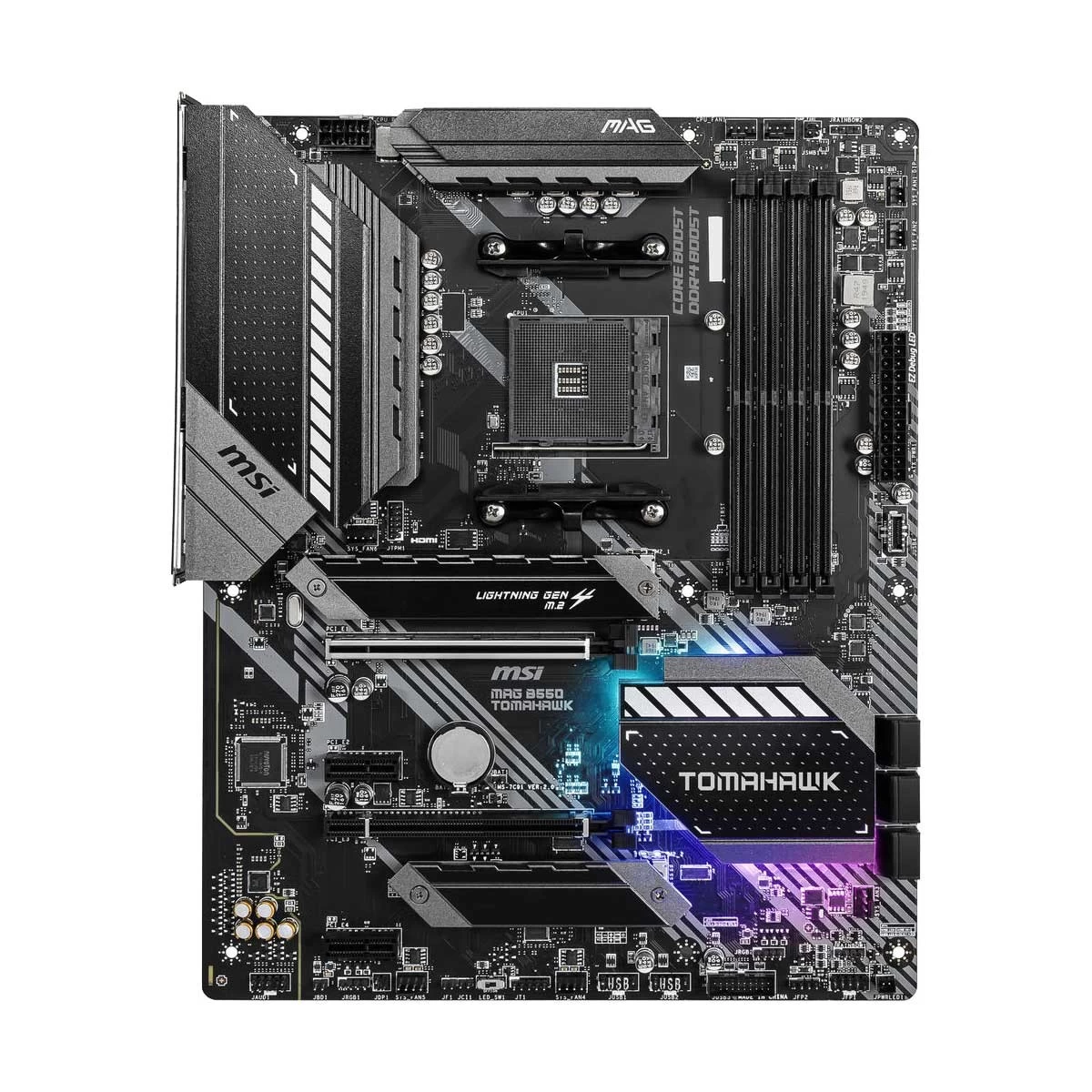

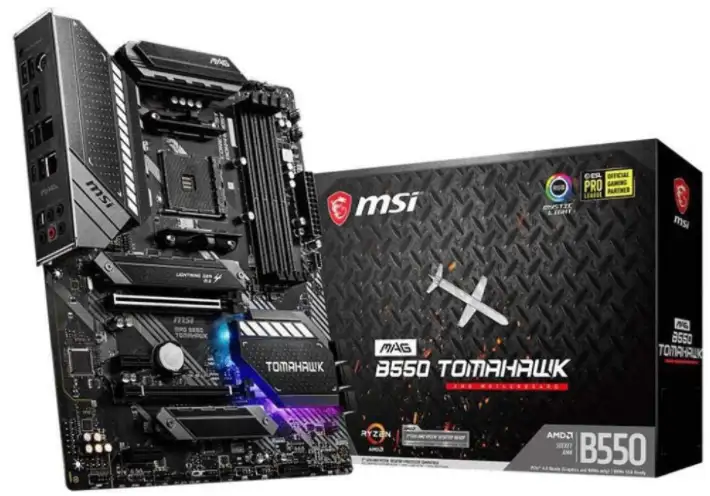

MAG B550 TOMAHAWK

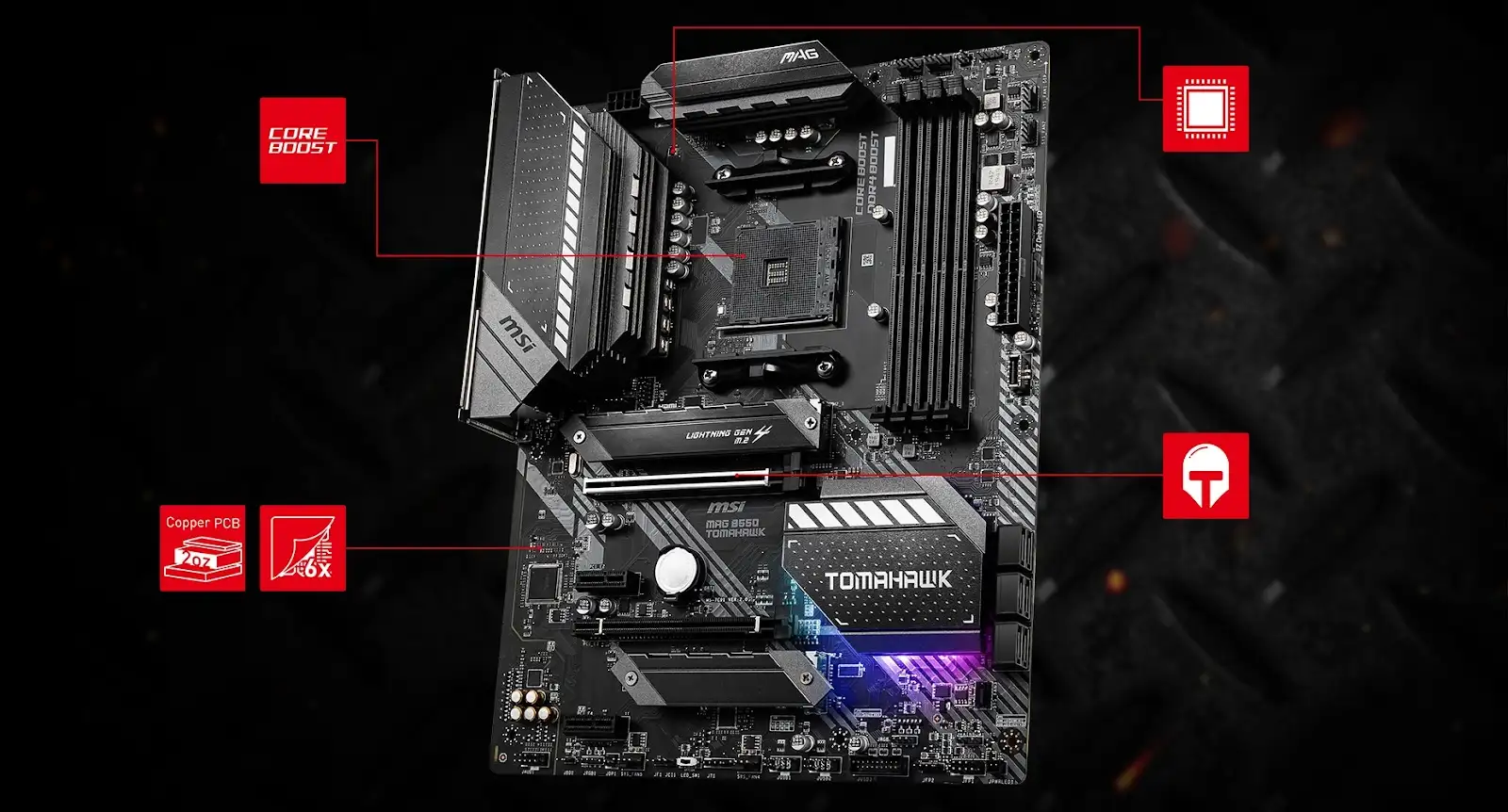

EXCLUSIVE FEATURES
Core Boost Technology
An optimized power circuit layout is ready to unleash maximum performance.
6 layer PCB
6 layer PCB improves signal transmission for high performance capabilities across the motherboard.
2oz Thickened Copper PCB
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation and high-performance reliability.
Digital PWM
A selection of the highest quality power delivery components lets the system run reliably even under extreme conditions.
PCIe Steel Armor
Reinforced and shielded PCIe slots for strength and stability.

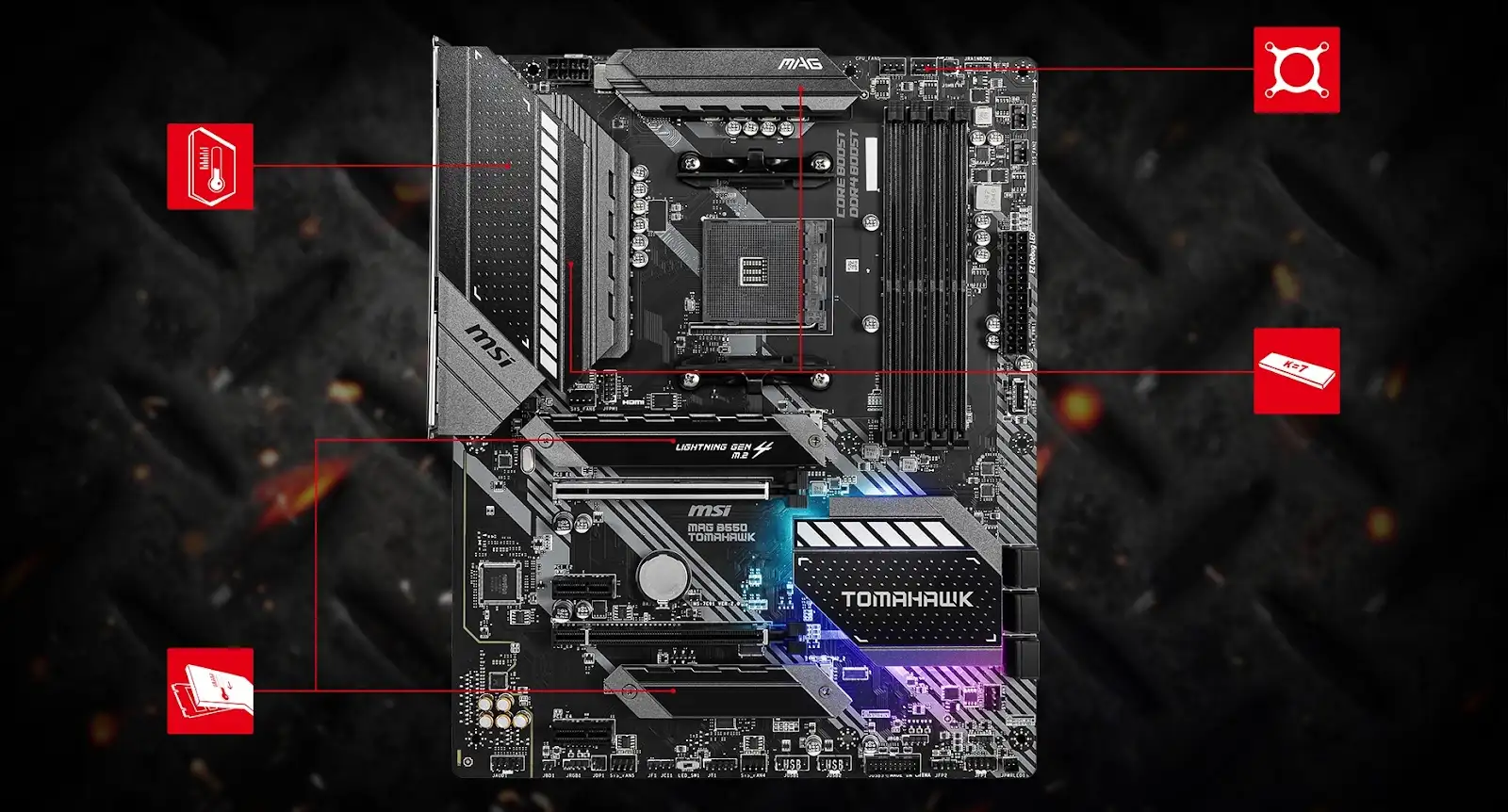

MAG B550 TOMAHAWK
PREMIUM THERMAL SOLUTION
Extended Heatsink
Larger heatsink design for cooling and performance.
M.2 Shield Frozr
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling.
Pump Fan Support
Control watercooling pump speeds for flowrate and noise control.
Heatsinks with 7W/mK Thermal Pad
7W/mK thermal pad provides better heat transfer to the heatsink.

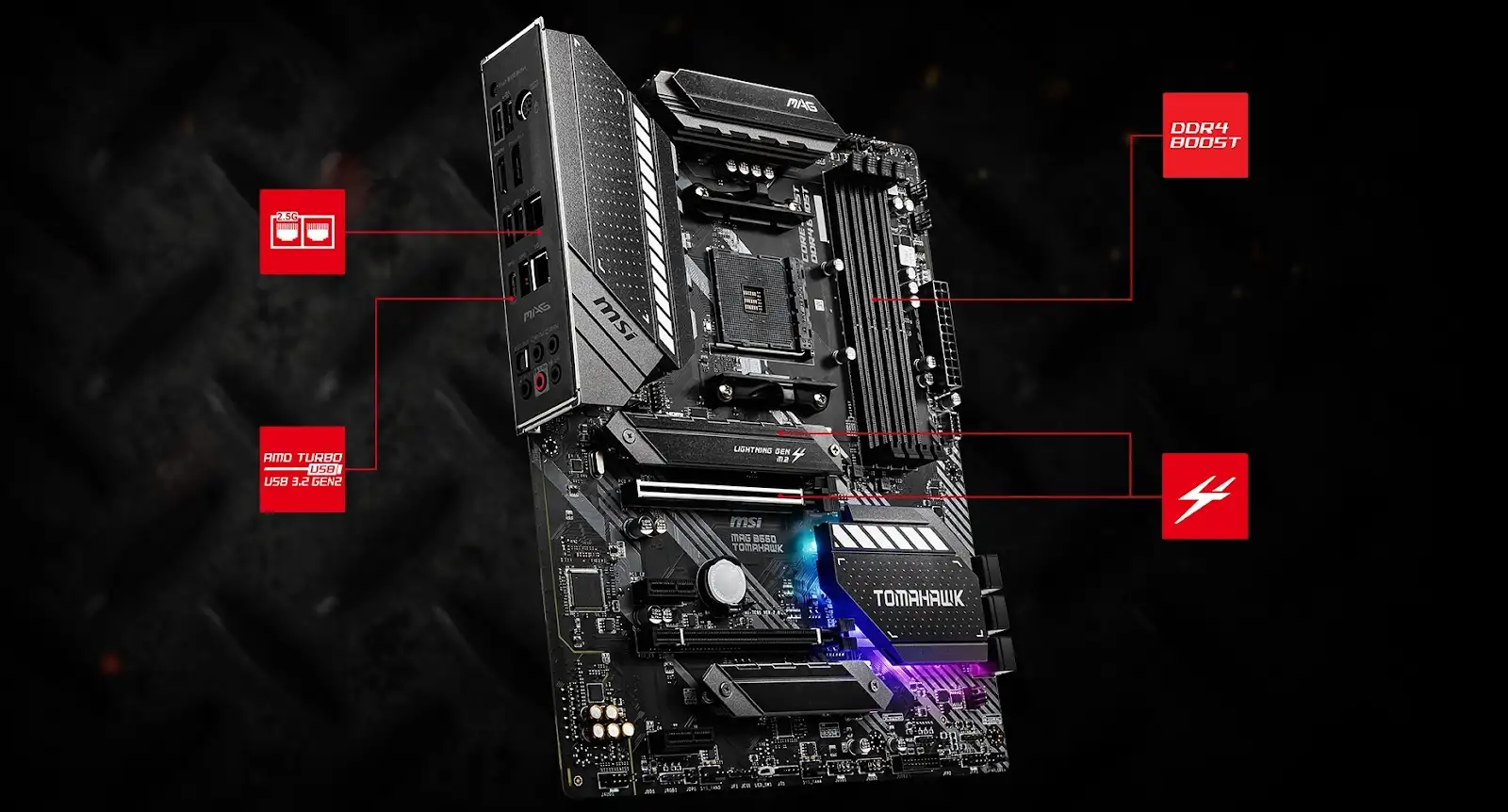

MAG B550 TOMAHAWK
HIGH-SPEED TRANSMISSION
2.5G plus Gigabit LAN
Onboard 2.5G & Gigabit Ethernet LAN with gaming LAN manager.
Turbo USB
Featuring TURBO USB 3.2 GEN2 10Gbps with reversible Type-C connector.
DDR4 Boost
The memory circuit design has been optimized on a reserved section of the motherboard fully isolated from other circuits.
Lightning Gen 4 Solution
Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.
THERMAL SOLUTION FOR HIGH PERFORMANCE MULTI CORE PROCESSORS
An extended PWM heatsink and efficient circuit design keep temperatures in check and let the CPU power delivery system sustain extreme performance.
TWIN TURBO M.2 AND M.2 SHIELD FROZR
Sustain maximum M.2 SSD data transfer with M.2 SHIELD FROZR. Prevent SSD thermal throttling with a heatsink that extends across the motherboard.
10 + 2 + 1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built to supply stable and steady power delivery.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation and high-performance reliability.
LIGHTNING GEN 4 SOLUTION
Strike fast with MSI Lightning Gen 4 PCI-E. Attach ultra fast PCI-E 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth.
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with RGB LED lighting capable of 16.8 million colors with dynamic effects through the Mystic Light APP.
DUAL LAN WITH 2.5G LAN
MAG B550 TOMAHAWK features high-bandwidth and low-latency 2.5G and Gigabit LAN for demanding creators and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
CORE BOOST
Core Boost combines a reserved zone of optimized circuits and premium power delivery components to create a highly efficient power system capable of precise current output to the CPU.
UNMATCHED MEMORY PERFORMANCE
MSI takes memory stability and performance to the extreme. The memory circuit layout has been optimized for reliability and tested extensively in partnership with major memory manufacturers for compatibility.
MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MAG B550 TOMAHAWK supports AMD CrossFire multi GPU technology. PCI-E slot placements provide optimal airflow for graphics card cooling. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage counts, Steel Armor shields the point of contact from electromagnetic interference.
AMPLIFY YOUR GAME WITH AUDIO BOOST
Like a dedicated sound card, Audio Boost offers an HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.
Brand - MSI, Model - MSI MAG B550 TOMAHAWK, Chipset Brand - AMD, Chipset - AMD B550 Chipset, CPU Sockets - AM4, Supported CPU - AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G), Memory Type - DDR4, Memory MHz - 5100(OC)/ 5000(OC)/ 4866(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz, Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - No, Graphics - Integrated, Graphics Chipset - Integrated With Processor, Multi-GPU Support - 2-Way AMD CrossFire, PCI Express Slot - 1 x PCIe 4.0/3.0 x16 slot (PCI_E1), 1 x PCIe 3.0 x16 slot (PCI_E3, supports x4 speed), 2 x PCIe 3.0 x1 slots, Storage Interface - 6Gb/s, M.2 Slot - 2 x M.2 (1 x M.2 slot (Supports PCIe 4.0/ 3.0 x4 or Supports SATA 6Gb/s and Supports 2242/ 2260/ 2280/ 22110 storage devices), 1 x M.2 (Supports PCIe 3.0x4 and Supports 2242/ 2260/ 2280 storage devices)), LAN Chipset - Realtek 8111H, LAN Speed (Mbps) - 10/100/1000Mbps, Audio Chipset - Realtek ALC892, Audio Channel - 7.1-Channel, Wi-Fi - No, Bluetooth - No, USB Port - 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB2.0, VGA Port - No, DVI Port - No, HDMI Port - 1, DisplayPort (DP) - 1, IDE Port - No, SATA Port - 6 x SATA, DirectX Support - 12, FireWire - No, CrossFire Support - Yes, Sli Support - No, RaidSupport - 0, 1, 10, Thunderbolt - No, TPM Port - Yes, COM Port - No, RGB Support - RGB, RGB Sync - Mystic light, RGB Connector - 2 x 4-pin RGB LED connectors, Power Consumption - 70W, Form Factor - ATX, Supported Operating System - Windows 7, 10, Special Features - Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update, Supports DDR4 Memory, up to 4866+(OC) MHz, Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2, Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire,, Others - 1 x M.2 slot, 1 x Display Port, 1 x 4-pin CPU fan connector, 1 x 4-pin water-pump-fan connector, 1 x TPM module connector, 1 x Front panel audio connector, 1 x Serial Port connector, 1 x Clear CMOS jumper, Dimensions (W x L) 30.5 cm x 24.4 cm, Mounting: 9 mounting holes, LED Lighting: RGB, Warranty - 3 Year
The price of MSI MAG B550 TOMAHAWK Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy MSI MAG B550 TOMAHAWK Motherboard from our website or visit our showrooms nearby.
