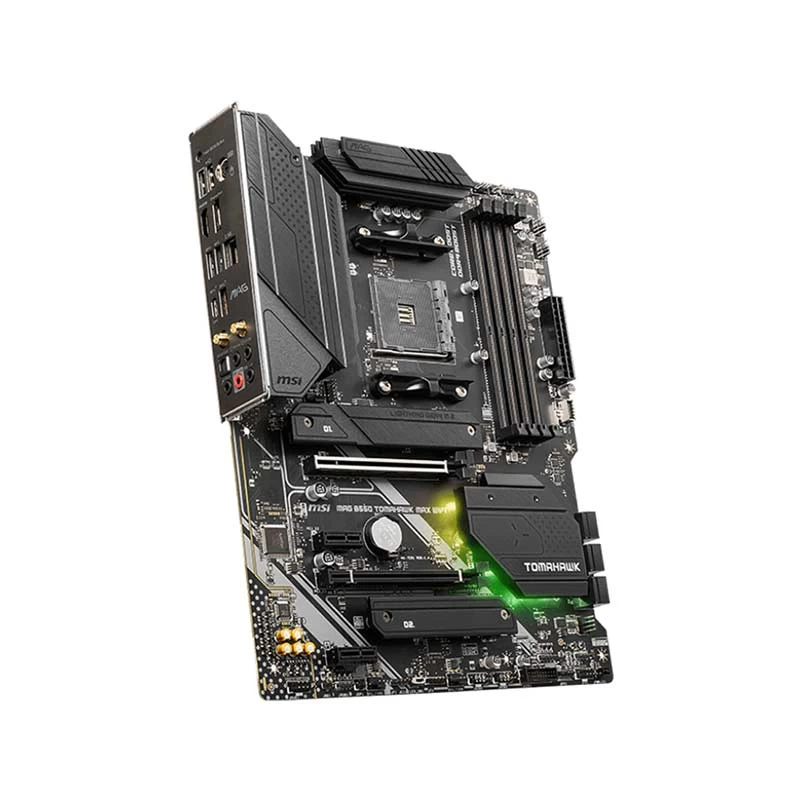

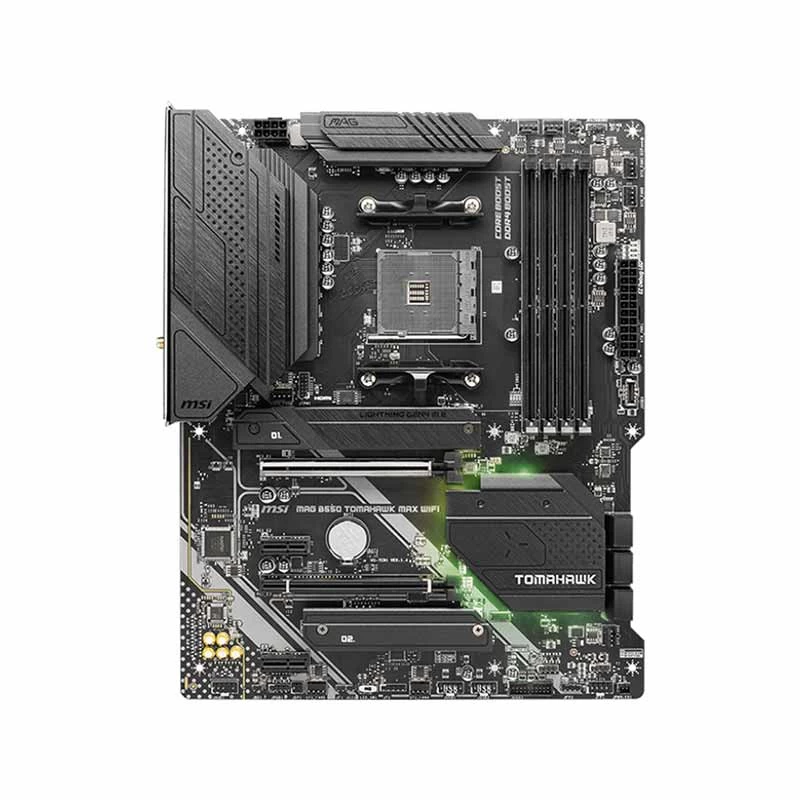

MSI MAG B550 TOMAHAWK MAX (Wi-Fi 6E) DDR4 AMD Gaming Motherboard

Product Id: 02.02.033.395

Brand MSI

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - AMD B550
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
  • Generation - Not Applicable
General
Brand
MSI

Model
MSI MAG B550 TOMAHAWK MAX (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B550

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
5100+/ 5000/ 4866/ 4800/ 4733/ 4600/ 4533/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866MHz ECC, non-ECC & Un-buffered Memory.

Memory Channel
Dual

Memory Slot
4

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 slots (1 slot Key M type 2242/ 2260/ 2280/ 22110 Supports PCIe 4.0/ 3.0 x4 & SATA 6Gb/s, 2 slot Key M type 2242/ 2260/ 2280 Supports PCIe 3.0 x4)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
Supports AMD CrossFire Technology

PCI Express Slot
1 x PCIe 4.0/3.0 x16 slot, 1 x PCIe 3.0 x16 slot, supports x4 speed, 2 x PCIe 3.0 x1 slots


Audio & Video
Audio Chipset
Realtek ALC897 Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8125B 2.5Gbps LAN

LAN Speed (Mbps)
10/100/1000/2500Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6E

Bluetooth
Bluetooth 5.2


Ports
USB Port
2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 2.0 Type-A, 1 x USB 3.2 Gen 2 Type-C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
6 x SATA

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
DirectX Support
12

FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0, 1, 10

RGB Support
RGB

RGB Connector
2 x 4-pin RGB LED connectors

Approx. Power Consumption
70W

Form Factor
ATX


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
Compatible with AM4 sockets AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Others

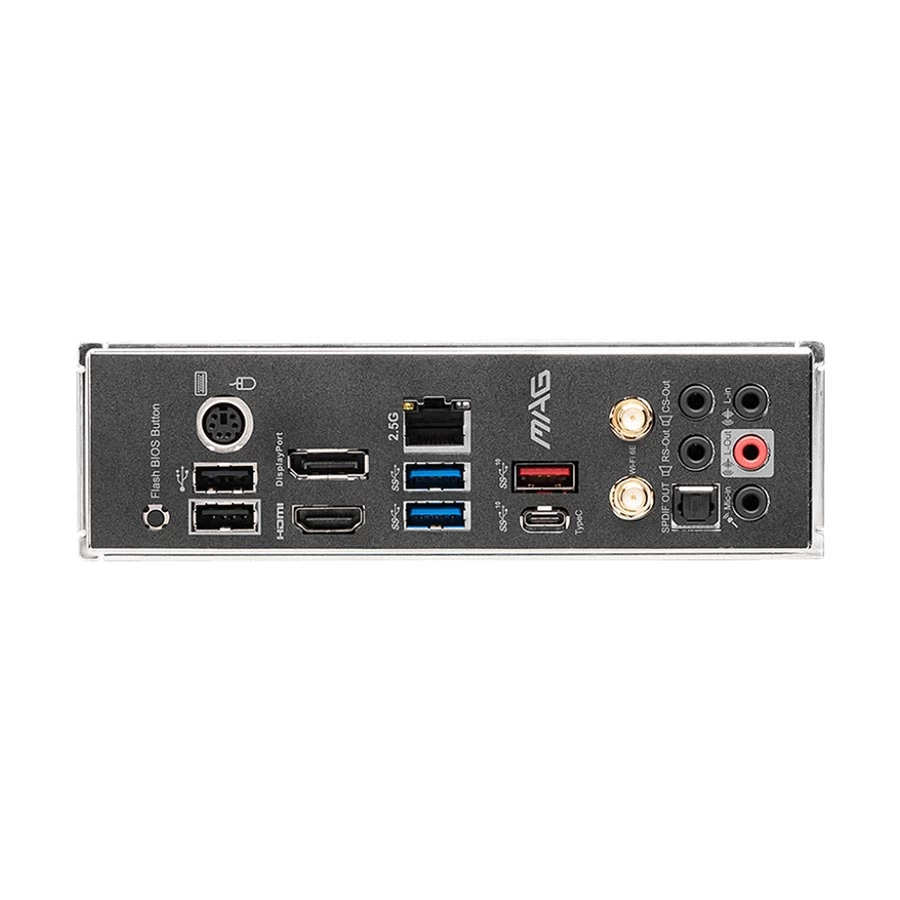

BACK PANEL PORTS: (Keyboard / Mouse Wi-Fi / Bluetooth Antenna Audio Connectors Flash BIOS Button Optical S/PDIF OUT), INTERNAL CONNECTORS: (1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper)

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
