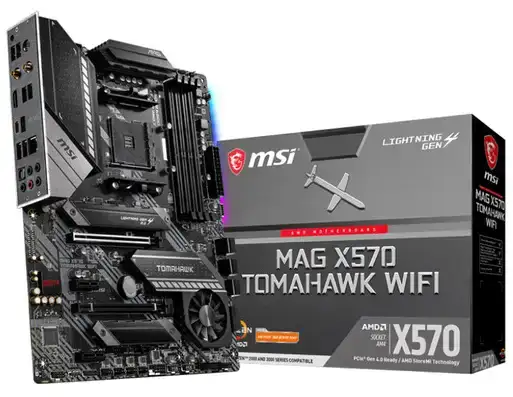

MSI MAG X570 TOMAHAWK (Wi-Fi 6) DDR4 AMD AM4 Socket Gaming Motherboard
Product Id: 02.02.033.246
Brand
MSI
Regular Price
Tk 0
Quick Overview
- Chipset - AMD X570
- Sockets Supported - AM4
- Supported CPU - 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors
- Generation - Not Applicable
- Memory Slot - 4
- Memory Max. - 128GB
- Back-Connect Design - No
Brand
MSI
Model
MSI MAG X570 TOMAHAWK WIFI
Chipset
AMD X570
Sockets Supported
AM4
Built-in Processor
No
Generation
Not Applicable
Back-Connect Design
No
Memory Type
DDR4
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Integrated With Processor
M.2/SSD Expansion Slot
2
WiFi
Yes
Bluetooth
Bluetooth 5.1
Form Factor
ATX
Supported Operating System
Windows 10
Body Color
Black
Warranty Details
3 year
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of MSI MAG X570 TOMAHAWK WIFI Motherboard In Bangladesh
MSI MAG X570 TOMAHAWK WIFI
Take your gaming experience to the next level by including the MSI Mag X570 Tomahawk WIFI AM4 ATX Motherboard in your high-performance computer build. Designed for gamers, enthusiasts, and content creators, this motherboard is powered by the AMD X570 chipset and supports 2nd and 3rd generation AMD Ryzen processors with the AM4 socket. It takes full advantage of the large PCIe 4.0 data bandwidth to deliver high performance for tasks such 3D rendering, video editing, and more. Up to 128GB of dual-channel DDR4 RAM, reaching 4600 MHz when overclocked, can be installed across four memory slots. The ATX motherboard also features advanced cooling and supports up to three M.2 SSDs and six SATA III storage drives, which can be put into RAID 0, 1, or 10 configuration. Its two PCIe 4.0 x16 slots can accommodate the 2-Way AMD CrossFireX configuration to maximize your system's graphical capabilities for high frame rates, connecting 4K monitors, and faster video rendering times. Alternatively, the built-in HDMI port allows you to take advantage of integrated CPU graphics. Two additional PCIe 3.0 x1 slots are available for compatible expansion cards.
Connect compatible peripherals to the USB 3.2 Gen 2 Type-A and Type-C ports to transfer data at up to 10 Gb/s. Play online games and stream video using the fast 2.5 Gigabit Ethernet port or the built-in 802.11ax Wi-Fi, which can reach wireless data speeds of up to 2.4 Gb/s with compatible devices. The X570 Tomahawk WIFI also delivers deep and immersive 5.1-channel surround sound through the Realtek ALC1200 audio codec. You can customize your computing experience using the RGB headers to connect light strips, which can be synced with MSI Mystic Light-compatible peripherals such as mice and keyboards.
AMD X570 Chipset
The AMD X570 chipset is designed around third-generation AMD Ryzen 3000-series processors. Along with multiple noteworthy improvements, the design supports PCIe 4.0, which is designed to deliver up to 64 Gb/s of bandwidth—roughly double the bandwidth of PCIe 3.0. This benefits graphics cards, networking devices, NVMe drives, and more.
Storage and Memory
- Three M.2 slots are available, supporting up to type 22110 SATA and PCIe NVMe SSDs.
- Six SATA III headers are available for hard drives and 2.5" SSDs.
- RAID 0, 1, and 10 configurations are supported.
- Up to 128GB of dual-channel DDR4-4600 (OC) memory can be installed across four slots.
FROZR Cooling
The MSI Mag X570 Tomahawk WIFI motherboard features a heavy duty heatsink with double ball bearing fans on the MOSFETs to efficiently dissipate heat. Additionally, its M.2 SSD slots are covered by a Shield FROZR heatsink to help maintain optimal temperatures and prevent speed throttling.
Performance Features
- Core Boost takes advantage of the fully digital power delivery system and uses an optimized circuit design to efficiently deliver power to high-performance CPUs.
- Load-line calibration options allow you to stabilize CPU voltages under any load.
- Overvoltage protection help to prevent short circuits.
- 8+4-pin connectors deliver power to critical components, including overclocked multi-core processors.
Twin Turbo M.2
Get maximum performance from running two M.2 NVMe SSDs with PCIe 4.0 x4 bandwidth.
Upgrade Friendly
- A pre-installed I/O shield streamlines installation.
- Circuits are routed away from case standoffs to minimize damage from mounting the motherboard.
- Enlarged PCIe clips makes it easier to install and remove expansion cards.
- Onboard EZ Debug LEDs indicate when there are issues with critical components for fast troubleshooting.
- With the Flash BIOS button, you can update the BIOS without having to install a CPU or video card. Simply copy the new BIOS file to a USB flash drive, insert it into the designated port, then press the Q-Flash button.
Durable Design
- The PCIe slots are reinforced with steel armor with extra solder points to support heavy graphics cards.
- The motherboard Double ESD protection around the mounting holes to help prevent damage from electrostatic discharge.
Network Performance
- The 2.5 Gigabit Ethernet port provides a fast network connection with high-speed data transfers using compatible devices.
- Built-in 802.11ax Wi-Fi can transfer up to 2.4 Gb/s with compatible wireless devices.
- Bluetooth 5.1 allows you to connect to compatible devices such as speakers, mice, keyboards, headsets, and other peripherals with strong stability and long range.
USB 3.2 Gen 2
Doubling the speed of its predecessor, USB 3.2 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices.
AMD CrossFireX Support
Installing multiple graphics cards will enhance the computer's performance for demanding tasks such as CAD, 3D rendering, video editing, and more. This motherboard supports the 2-Way AMD CrossFireX configuration.
Immersive Audio
- The Realtek ALC1200 audio codec provides vibrant 7.1-channel surround sound to your speakers.
- Audio components are laid on an electrically isolated section of the motherboard to minimize interference.
- Circuits for audio are laid on separate layers on the PCB to help ensure clean sound on both the right and left channels.
- The dedicated headphone amplifier uses Audio Boost 4 technology to automatically detect impedance and adjusts its output for the best sound quality.
Mystic Light
MSI's Mystic Light technology, you can customize your computer by installing RGB LED lighting strips that sync with compatible components and peripherals for incredible effects. With 29 LED lighting profiles that support up to 16.8 million colors, your system can be tailored to match your personal style.
What is the price of MSI MAG X570 TOMAHAWK WIFI Motherboard In Bangladesh?
The price of MSI MAG X570 TOMAHAWK WIFI Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy MSI MAG X570 TOMAHAWK WIFI Motherboard from our website or visit our showrooms nearby.
