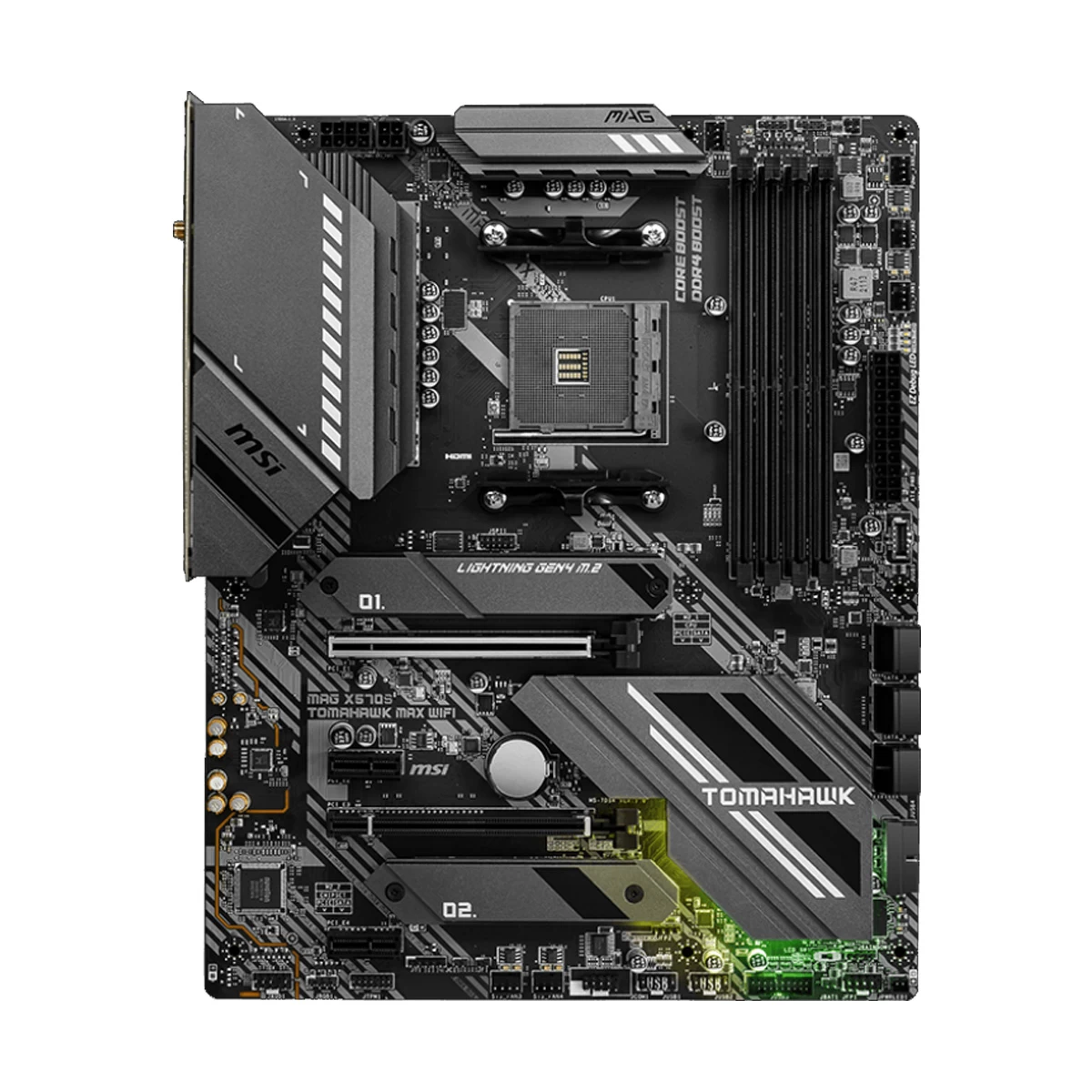

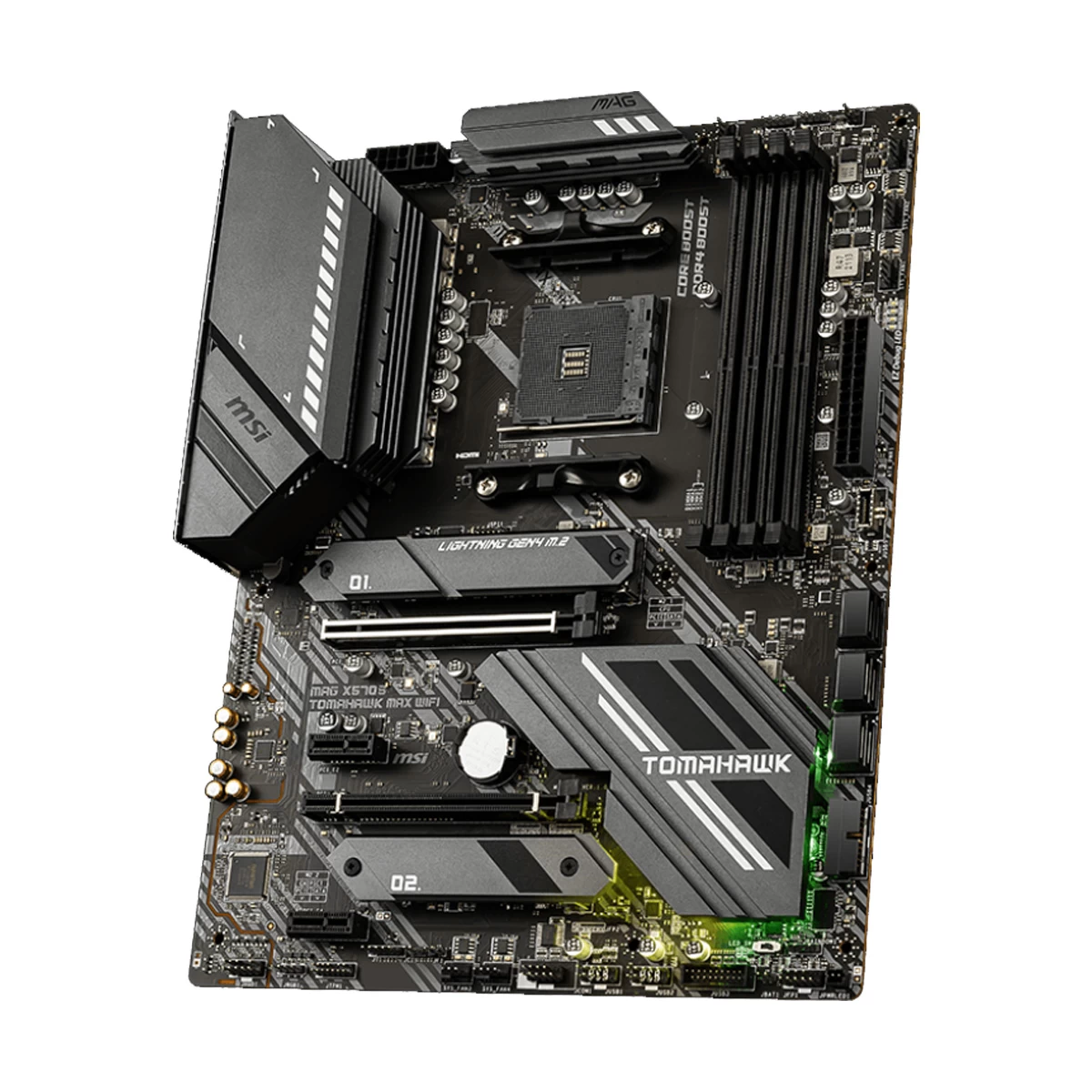

MSI MAG X570S TOMAHAWK MAX (Wi-Fi 6E) Gaming Motherboard

Product Id: 02.02.033.299

Brand MSI

Regular Price Tk 0
Special Price Tk 0

This item is discontinued.

Quick Overview

  • Chipset - AMD X570
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series
  • Generation - Not Applicable
General
Brand
MSI

Model
MSI MAG X570S TOMAHAWK MAX (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD X570

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 /4533 / 4600/ 4733/ 4866/ 5000/ 5100 Mhz by JEDEC and A-XMP OC MODE

Memory Channel
Dual

Memory Slot
4

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 (1 x M.2 (Support up to PCIe 4.0 for AMD Ryzen 5000 Series and 3000 Series desktop processors), (Support up to PCIe 3.0 for AMD Ryzen 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor), (Supports up to SATA 6Gb/s), (Support 2280/22110 storage devices), 1 x M.2 (Supports 2242/ 2260/ 2280 storage devices))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
AMD CrossFire

PCI Express Slot
1x PCIe x16, 1x PCIe x16, 2x PCIe 3.0 x1


Audio & Video
Audio Chipset
Realtek ALC4080

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 8125B

LAN Speed (Mbps)
2.5Gbps

WiFi
Yes

WiFi Technology
Intel Wi-Fi 6E AX210

Bluetooth
Bluetooth 5.2

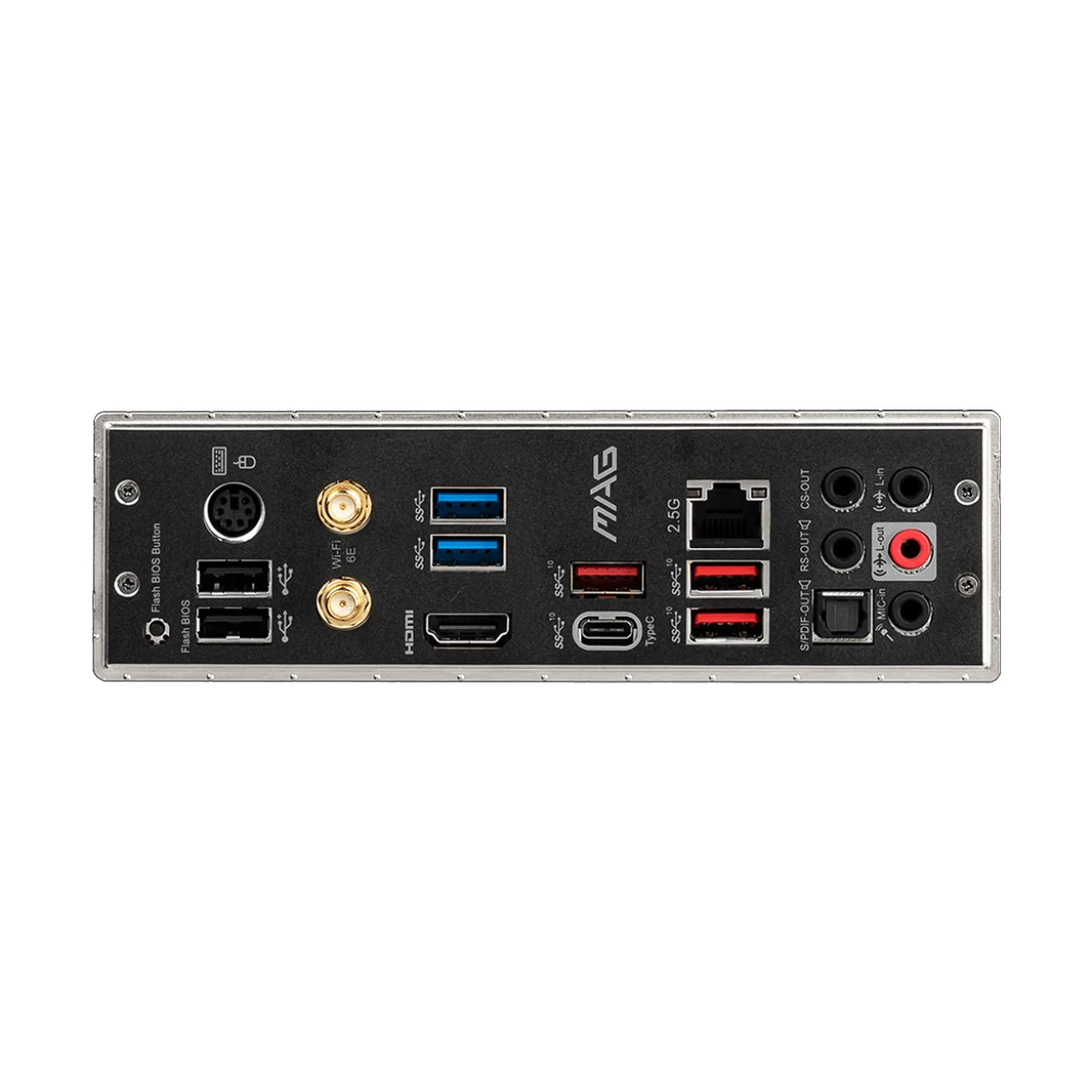

Ports
USB Port
1 x USB 3.2 Gen 2 Type-C 10Gbps, 3 x USB 3.2 Gen 2 Type-A 10Gbps, 2 x USB 3.2 Gen 1 Type-A 5Gbps, 2 x USB 2.0

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

SATA Port
6 x SATA

Thunderbolt
No

TPM Port
1


Technical Info
DirectX Support
12

CrossFire Support
Yes

Sli Support
No

Raid Support
0,1,10

RGB Support
RGB

RGB Sync
Mystic Light

RGB Connector
2 x 4-pin RGB LED connectors

Approx. Power Consumption
90W

Form Factor
ATX


Compatibility
Supported Operating System
Windows 10


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Lightning Gen4 Solution, The latest Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed, Extended Heatsink Design, MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed, M.2 Shield FROZR, M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster, Mystic Light RGB LED, Personalize your PC with 16.8 million colors / 29 effects, controlled in one click, Wi-Fi 6E, The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps, 2.5G Network Solution, Featuring premium 2.5G LAN with LAN manager to deliver better network experience, Core Boost With premium layout and optimized power design to support more cores and provide better performance, 2oz Thickened Copper PCB, An enhanced PCB design improves heat dissipation and performance reliability, DDR4 Boost, Advanced technology to deliver pure data signals for the best gaming performance and stability, Audio Boost 5, Isolated audio with a high quality audio processor & amp for the most immersive gaming experience

Others
1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin water-pump connector, 4x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x Serial port connector, 1x Chassis Intrusion connector, LED FEATURE: 2x 4-pin RGB LED connectors, 2x 3-pin RAINBOW LED connectors, 4x EZ Debug LED, 1X EZ LED Control switch
