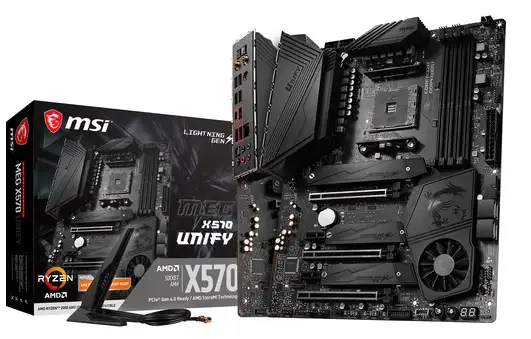

MSI MEG X570 UNIFY (Wi-Fi 6) DDR4 AMD AM4 Socket Gaming Motherboard
Product Id: 02.02.033.249
Brand
MSI
Regular Price
Tk 0
Quick Overview
- Chipset - AMD X570
- Sockets Supported - AM4
- Supported CPU - AMD Ryzen 5000 Series/ 2nd and 3rd Gen AMD Ryzen/ Ryzen 4000 G-Series / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors
- Generation - Not Applicable
- Memory Slot - 4
- Memory Max. - 128GB
- Back-Connect Design - No
Brand
MSI
Model
MSI MEG X570 UNIFY
Chipset
AMD X570
Sockets Supported
AM4
Built-in Processor
No
Generation
Not Applicable
Back-Connect Design
No
Memory Type
DDR4
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Integrated With Processor
M.2/SSD Expansion Slot
3
WiFi
Yes
Bluetooth
Bluetooth 5.1
Form Factor
ATX
Supported Operating System
Windows 10
Body Color
Black
Warranty Details
3 year
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of MSI MEG X570 UNIFY Motherboard In Bangladesh
MSI MEG X570 UNIFY
The MSI MEG X570 UNIFY AM4 ATX Motherboard is built on the AMD X570 chipset, supporting second- and third-generation AMD Ryzen processors with an AM4 socket. It has four memory slots for up to 128GB of dual-channel DDR4 RAM, which can be overclocked to up to 5000 MHz and above. For storage, it's equipped with four SATA III ports and three M.2 slots. Moreover, there are three PCIe 4.0 x16 slots for graphics cards and two PCIe 4.0 x1 slots for other PCI-based hardware. Other integrated features include Realtek RT8125 2.5 GbE, Intel AX200 Wi-Fi 6, Bluetooth 5.1, and Realtek ALC1220 7.1-channel HD audio.
AMD X570 Chipset
The AMD X570 chipset is designed around 3rd generation AMD Ryzen 3000-series processors. Along with multiple improvements, its most noteworthy one is the addition of PCIe 4.0. PCIe 4.0 has roughly double the bandwidth of PCIe 3.0, which is beneficial for graphics cards, networking devices, NVMe drives, and more.
Wi-Fi 6 (802.11ax) & Bluetooth 5.1
The Wi-Fi 6 (802.11ax) standard provides higher network efficiency, faster Wi-Fi speeds, greater coverage, and improved battery life for connected devices. Bluetooth 5.1 also provides users with cable-free device connectivity.
Lightning Gen 4 PCIe
Aside from the increased transfer speeds with PCIe 4.0, MSI's Lightning Gen 4 PCIe slots are reinforced with steel and built with a server grade PCB for additional durability. Please note that PCIe 4.0 is backwards compatible with PCIe 3.0.
Cooling
MSI motherboards utilize heavy-duty heatsinks on the MOSFETs for reliable processor power delivery and on the chipset to ensure the system stays operational under intense workloads. It's also equipped with multiple DC/PWM fan headers for users to connect additional cooling solutions. Users can set their cooling preference (Boost/Balance/Silence) as needed within the Dragon Center software or its UEFI BIOS. Moreover, MSI's M.2 SHIELD FROZR heatsink helps to prevent SSD throttling.
CPU
A combination of an optimized circuit layout and MSI's CoreBoost CPU power delivery system ensures performance and stability for high-end processors. Additional features include load-line calibration, overvoltage protection, a digital power design, and double power connectors.
Memory
MSI motherboards feature an optimized memory circuit layout and extensive compatibility testing with major memory manufacturers. Users can also easily overclock their RAM with A-XMP profiles within BIOS.
Storage
With the addition of PCIe 4.0, M.2 storage solutions can operate at up to 64 Gb/s with an appropriate card. This motherboard is equipped with three M.2 slots and four SATA III ports for traditional hard drives. Additional features include:
- AMD StoreMI - Combines SSD and HDD storage into a hybrid drive to improve read/write speeds with larger capacity
- Storage Boost - Automatically checks and optimizes SSDs to keep them performing at their best
- M.2 Genie - Easily set up your M.2 SSDs in RAID 0 with fewer steps
Audio
This motherboard is built with multiple hardware and software enhancements to improve sound quality including:
- Realtek ALC1220 Audio Processor - Supports DSD Super Audio CD 120 dB SNR/32-bit playback and recording
- Golden Audio Jack & S/PDIF - Ensures a better connection from devices
- Isolated Audio Design & Separated Audio Layers - Audio components and circuits on separate PCB layers are located on a reserved spot on the motherboard and electronically isolated to preserve audio integrity
- Nahamic 3 - Enhances audio playback and provides users with multiple audio adjustments including virtual 7.1-channel surround sound
- VoiceBoost - Lowers game audio when users are speaking for improved clarity
- De-Pop Protection - Prevents loud popping noises when devices are plugged/unplugged or when the system is turned on/off
- Dedicated Headphone Amplifier - Automatically detects impedance up to 600 Ohms for studio-grade sound quality
USB 3.2 Gen 1 & Gen 2
USB 3.2 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.2 Gen 1, USB 3.1 Gen 1, and USB 3.0 are synonymous. Doubling the speed of its predecessor, USB 3.2 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices and is synonymous with USB 3.1 Gen 2.
