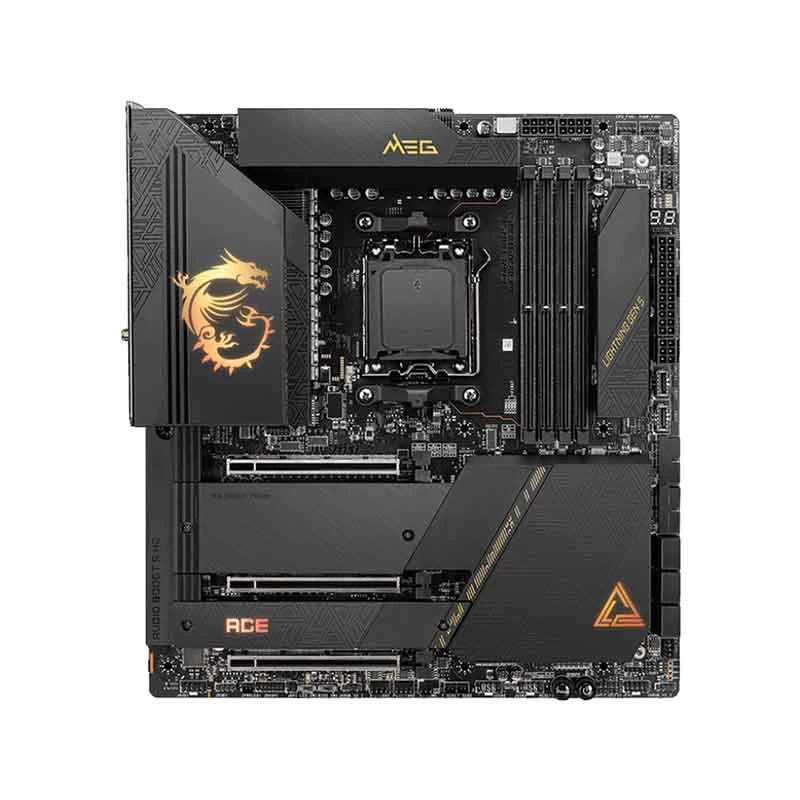

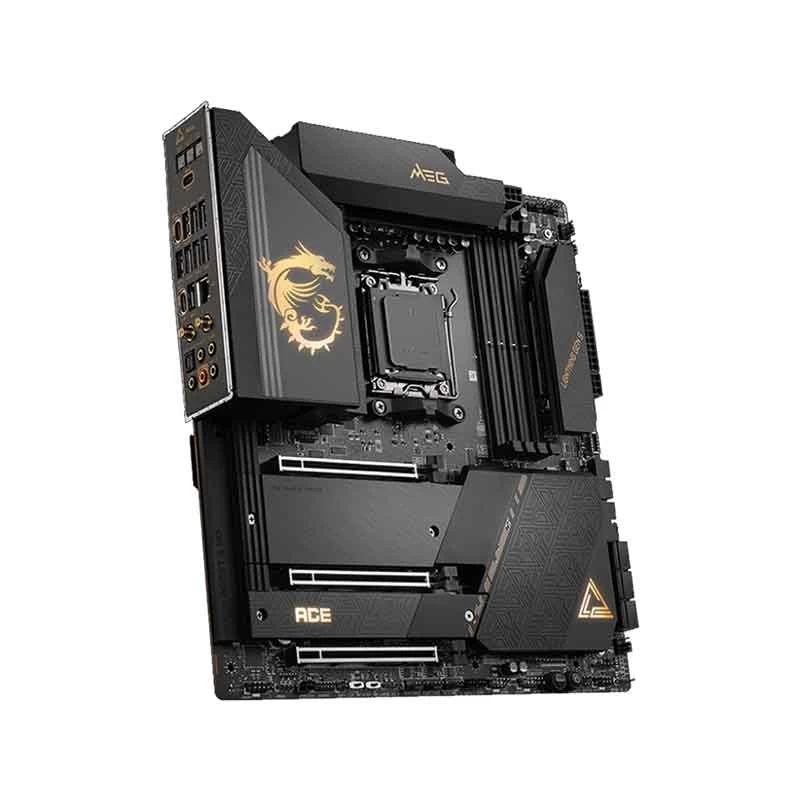

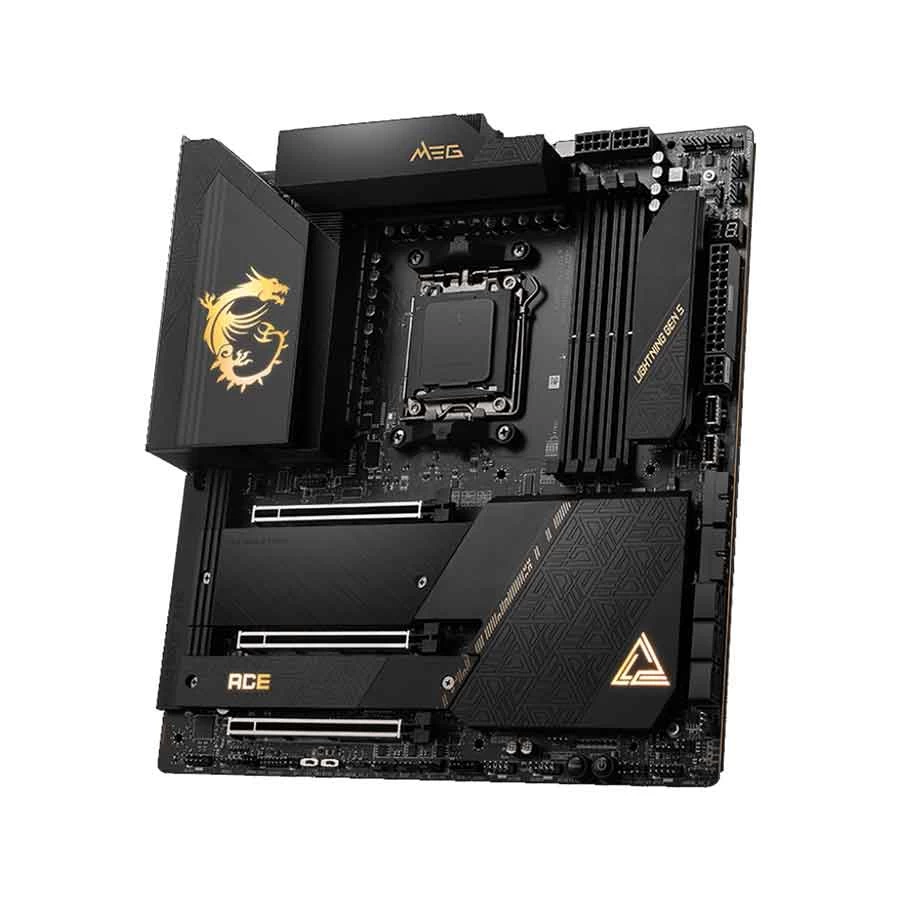

MSI MEG X670E ACE (Wi-Fi 6E) DDR5 AMD AM5 Socket Gaming Motherboard

Product Id: 02.02.033.357

Brand MSI

Regular Price Tk 0
Special Price Tk 0

This item is discontinued.

See similar model

Quick Overview

  • Chipset - AMD X670
  • Sockets Supported - AM5
  • Supported CPU - AMD Ryzen 7000 Series Processors
  • Generation - Not Applicable
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
MSI

Model
MSI MEG X670E ACE (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD X670

Sockets Supported
AM5

Built-in Processor
No

Supported CPU
AMD Ryzen 7000 Series Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR5

Memory MHz
6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC)MHz non-ECC & Un-buffered Memory

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4x DDR5 DIMM

Memory Max.
128GB

Memory Max. (Additional Info)
Maximum Memory Capacity 128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
4

M.2/SSD Expansion Slot Details
4 x M.2 ((1 x M.2 (From CPU) PCIe 5.0 x4 ,2280/2260 devices),(2 x M.2 (From Chipset) PCIe 4.0 x4 , 2280/2260 devices), (1 x M.2 (From Chipset) PCIe 4.0 x4 22110/2280 devices))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
AMD MULTI-GPU

PCI Express Slot
3x PCI-E x16


Audio & Video
Audio Chipset
Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Marvell AQC113CS-B1-C

LAN Speed (Mbps)
100/ 1000/10000Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6E,Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth
Bluetooth 5.2

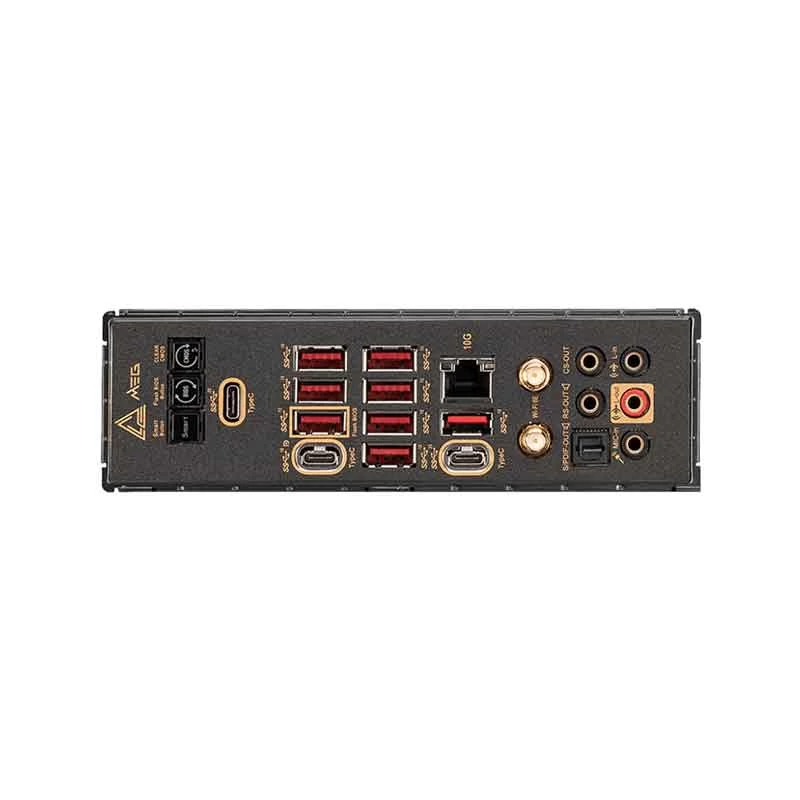

Ports
USB Port
4x USB 2.0, 4x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 Type C, 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2x2 Type C

VGA Port
No

DVI Port
No

HDMI Port
No

DisplayPort (DP)
1

IDE Port
No

SATA Port
6 x SATA

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0 , 1, 10

RGB Support
RGB

RGB Connector
1 x RGB LED connector(JRGB)

Approx. Power Consumption
100W

Form Factor
E-ATX


Compatibility
Supported Operating System
Windows 11/10

Compatible Products
Ryzen 7000 Series Processors


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
22+2+1 Phases Power Design, Premium Thermal Solution, Latest DDR5 Memory, Quadruple M.2 Connectors, Magnetic M.2 Shield Frozr, M.2 XPANDER-Z GEN 5 DUAL

Others
The MEG X670E ACE furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the AMD X670 chipset by combining elite hardware system support and premium durability, the MEG X670E ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking memory, processor, and graphic card at the highest level.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
