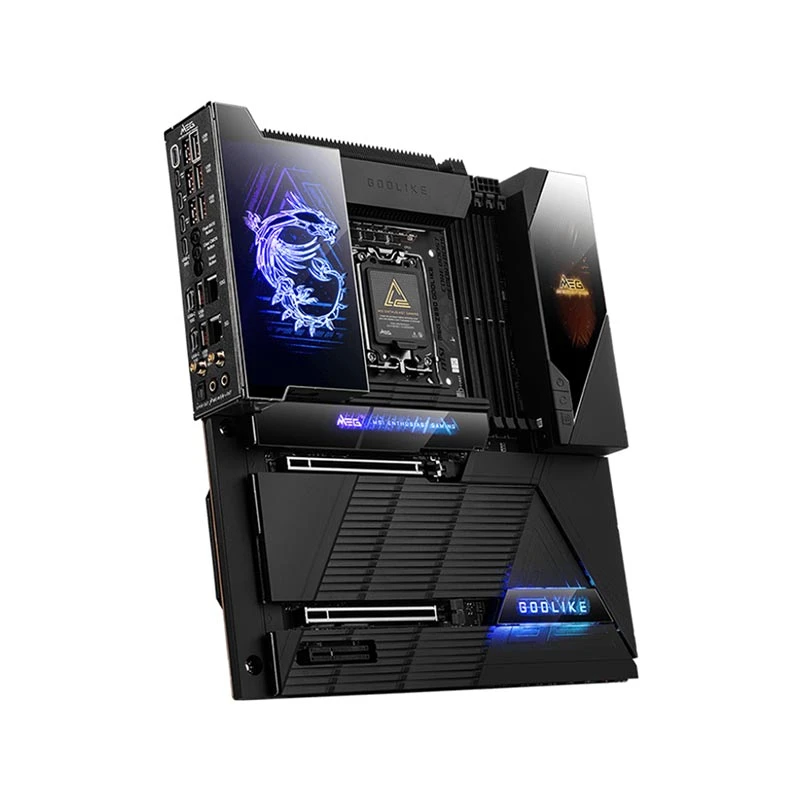

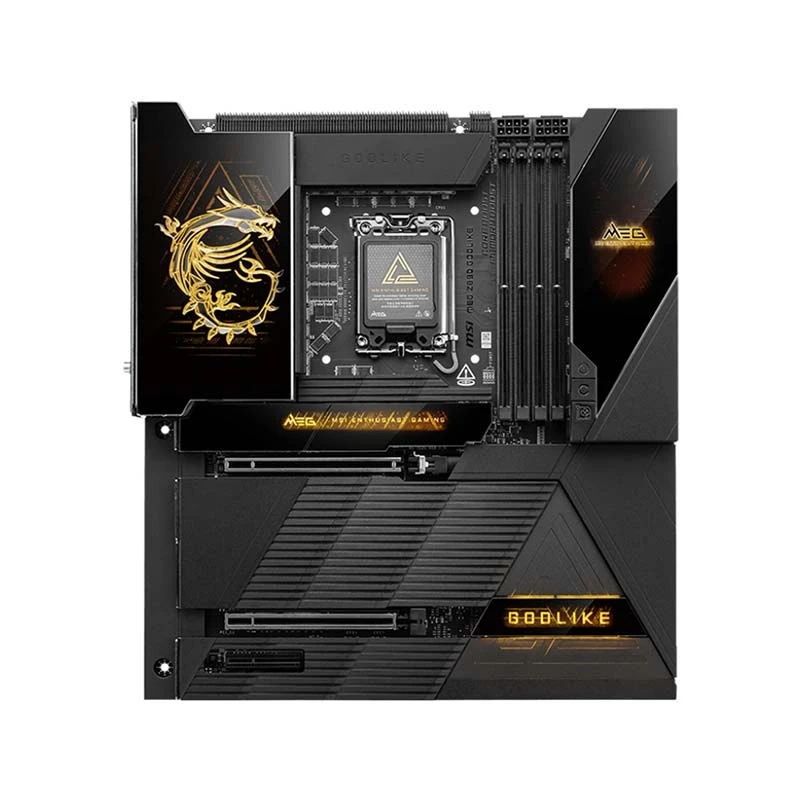

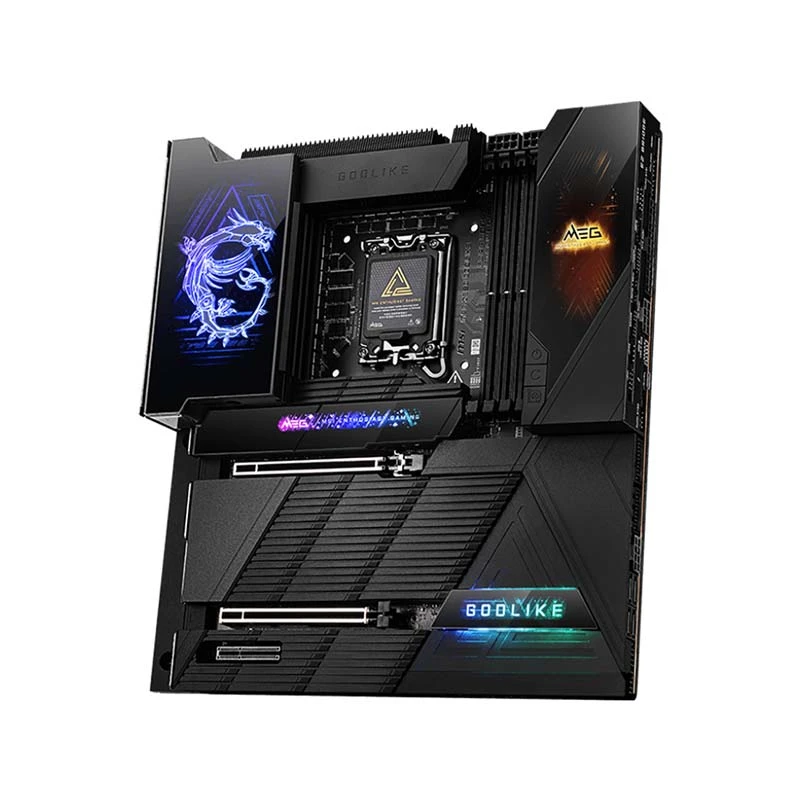

MSI MEG Z890 GODLIKE (Wi-Fi 7) DDR5 (Intel Core Ultra LGA1851 Socket) E-ATX Gaming Motherboard

Item: MSI MEG Z890 GODLIKE (Wi-Fi 7) DDR5 (Intel Core Ultra LGA1851 Socket) E-ATX Gaming Motherboard
Rating: 1
Author: shohan

Product Id: 02.01.033.562

Coming Soon

Quick Overview

Chipset - Intel Z890

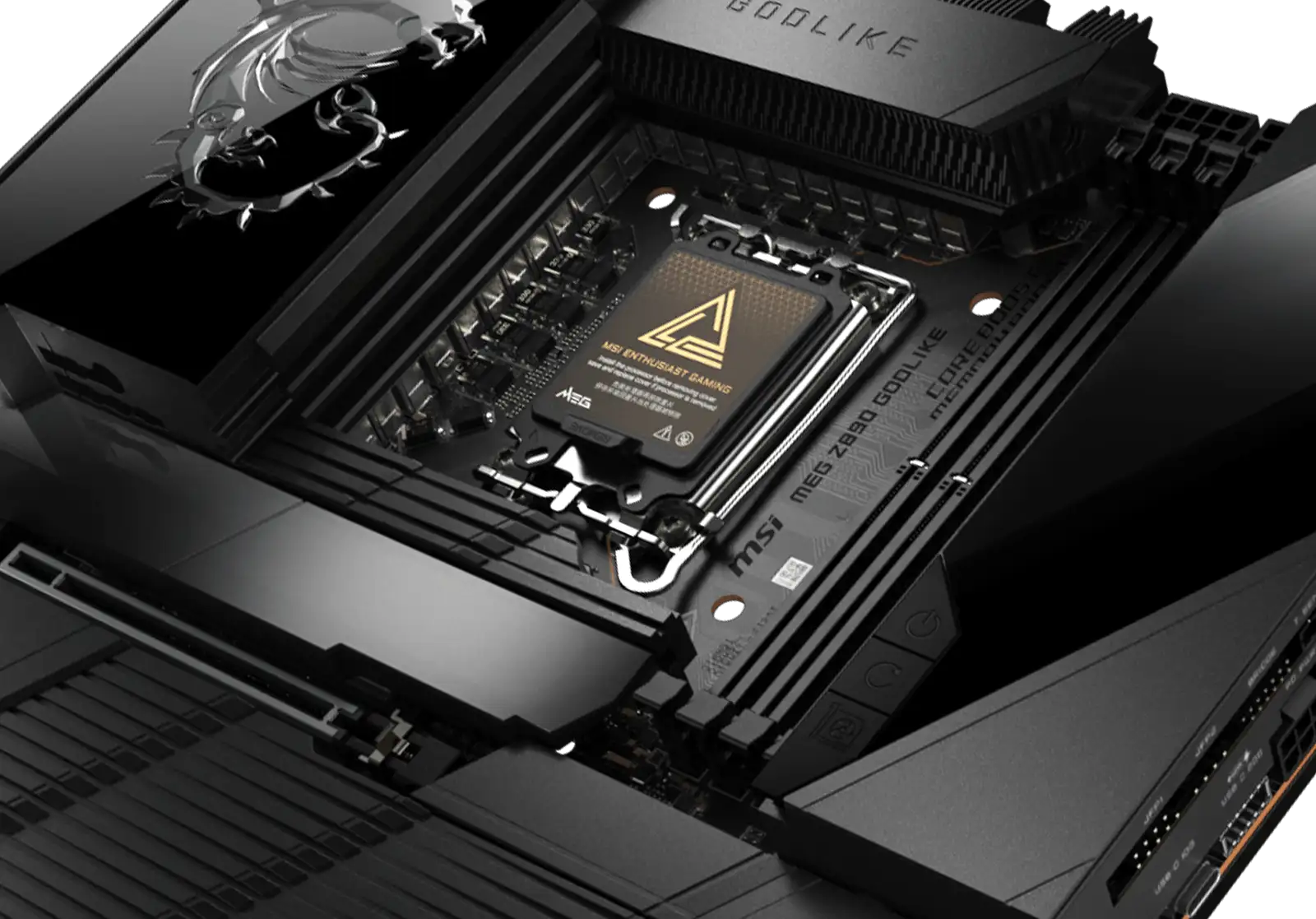

Sockets Supported - LGA1851
Supported CPU - Intel Core Ultra Processors (Series 2)
Generation - Ultra
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No

Brand

MSI

Model

MSI MEG Z890 GODLIKE (Wi-Fi 7)

Chipset

Intel Z890

Sockets Supported

LGA1851

Built-in Processor

Generation

Ultra

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

E-ATX

Supported Operating System

Windows 11

Body Color

Black

Warranty Details

3 year

General

Brand

MSI

Model

MSI MEG Z890 GODLIKE (Wi-Fi 7)

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel Z890

Sockets Supported

LGA1851

Built-in Processor

Supported CPU

Intel Core Ultra Processors (Series 2)

Generation

Ultra

Memory Support

Memory Type

DDR5

Memory MHz

9200(O.C)/ 9066(O.C)/ 8933(O.C)/ 8800(O.C)/ 8600(O.C)/ 8400(O.C)/ 8266(O.C)/ 8200(O.C)/ 8000(O.C)/ 7950(O.C)/ 7900(O.C)/ 7800(O.C)/ 7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400/ 6200/ 6000/ 5800/ 5600/ 4800Mhz non-ECC Un-buffered DIMM.

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

8 x M.2 Slot (1 x M.2 type 2280/2260 supports up to PCIe 5.0 x4, 1 x M.2 type 2280/2260 supports up to PCIe 4.0 x4, 1 x M.2 type 2280/2260 supports up to PCIe 4.0 x4, 1 x M.2 type 22110/2280 supports up to PCIe 4.0 x4, 1 x M.2 type 22110/2280 supports up to PCIe 4.0 x4, 1 x M.2 type 2280/2260 supports up to PCIe 4.0 x4/SATA 1 x M.2 type 2280 supports up to PCIe 5.0 x4 (via M.2 XPANDER-Z SLIDER GEN5), 1 x M.2 type 2280 supports up to PCIe 5.0 x4 (via M.2 XPANDER-Z SLIDER GEN5))

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

2 x PCI-E x16 slot, 1 x PCI-E x4 slot

Audio & Video

Audio Chipset

Realtek ALC4082 Codec + ESS9219Q Combo

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Marvell AQC113CS & Intel Killer E5000B

LAN Speed (Mbps)

0/100/1000/10000Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 7

Bluetooth

Bluetooth 5.4

Ports

USB Port

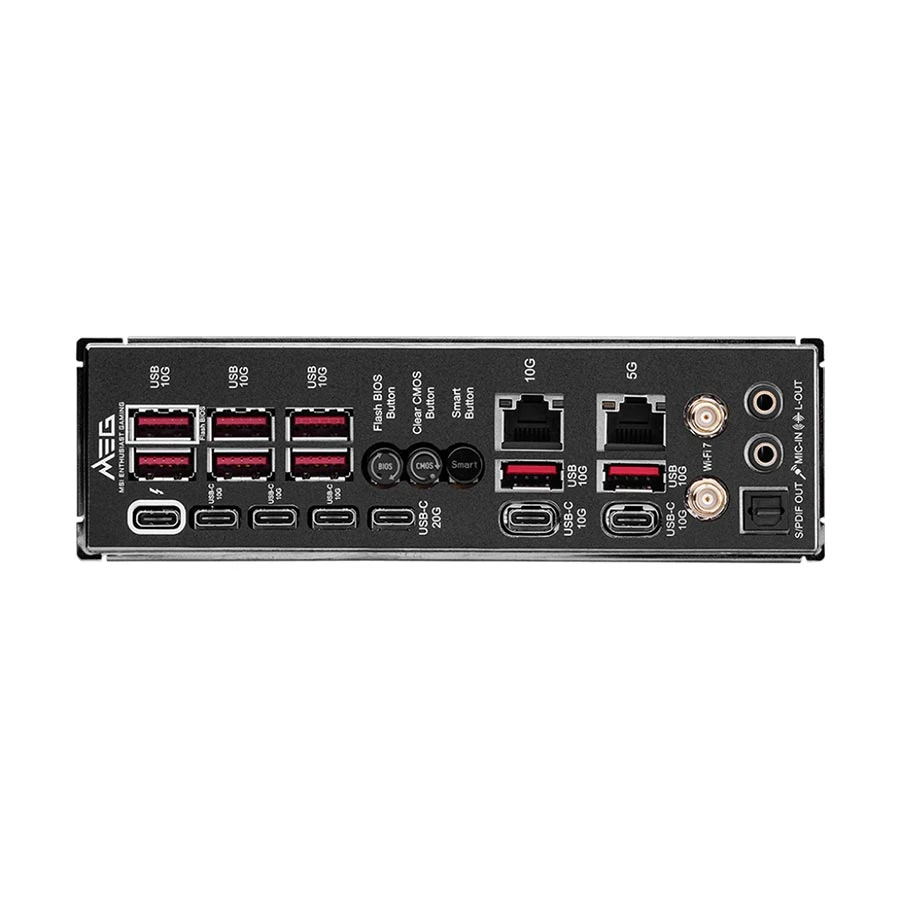

8 x USB 10Gbps Type-A, 5 x USB 10Gbps Type-C, 1 x USB 20Gbps Type-C

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

Yes

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0 , 1 , 5, 10 (SATA), 0 , 1 , 5 , 10 (M.2)

RGB Support

ARGB

RGB Connector

3 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB)

Approx. Power Consumption

100W

Form Factor

E-ATX

Compatibility

Supported Operating System

Windows 11

Compatible Products

Compatible with LGA1851 Core Ultra Processors (Series 2)

Warranty

Warranty Details

3 year

Additional Info

Feature

Dynamic Dashboard III, EZ Link, M.2 XPANDER-Z SLIDER GEN5, THUNDERBOL TM 5 (The Thunderbolt 5 accessory card features dual Thunderbolt 5 ports, delivering up to 160Gbps of total bandwidth and up to 27W of rapid power delivery for charging), The ultimate power solution with 26+2+1+1 DRPS, 110A SPS, and OC Engine unleashes maximum CPU performance, Frozr Design, Dual Thunderbolt 4 ports (Thunderbolt 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant), 10G Super LAN + 5G LAN, Wi-Fi 7, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II.

Others

Thunderbolt 4 ports (Support up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Support up to 8K display), Internal Connector: (1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 7x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 1x TPM pin header(Support TPM 2.0) V-check point).

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI MEG Z890 GODLIKE (Wi-Fi 7) Motherboard In Bangladesh

The MSI MEG Z890 GODLIKE (Wi-Fi 7) DDR5 E-ATX Gaming Motherboard is built for extreme gaming and professional workloads. They are designed to support the latest Intel Core Ultra processors on the LGA1851 socket. This motherboard delivers unmatched power, speed, and stability. They offers a future-proof platform for high-performance gaming and content creation. If you're an overclocking enthusiast or a professional gamer, the MEG Z890 GODLIKE provides next-level performance.

Key Features of MSI MEG Z890 GODLIKE

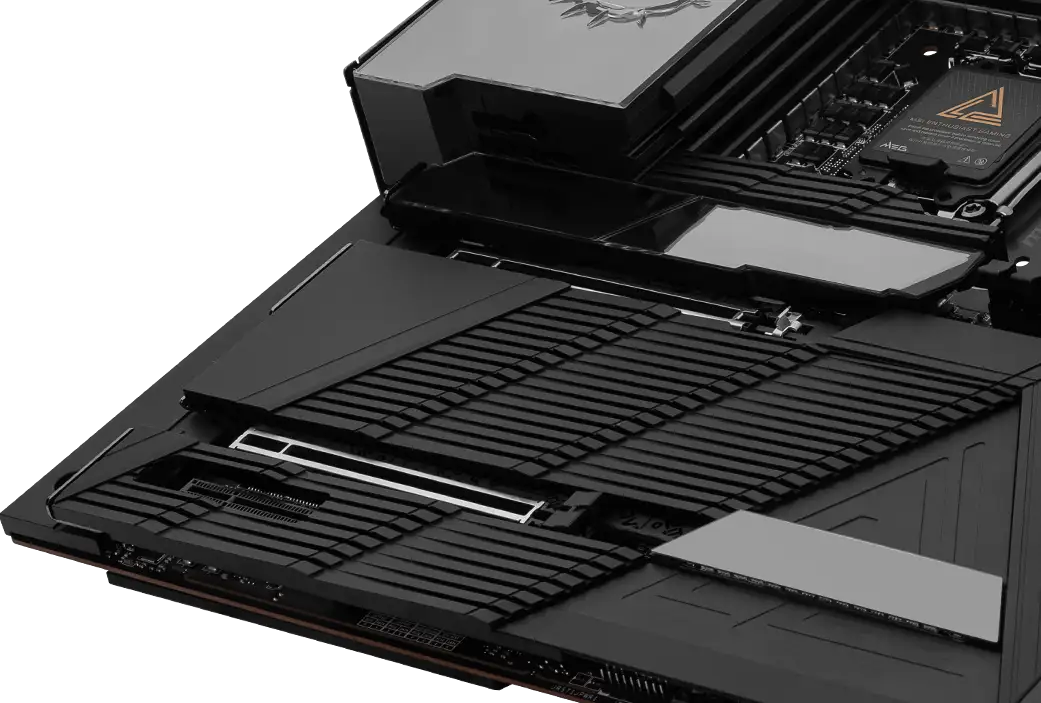

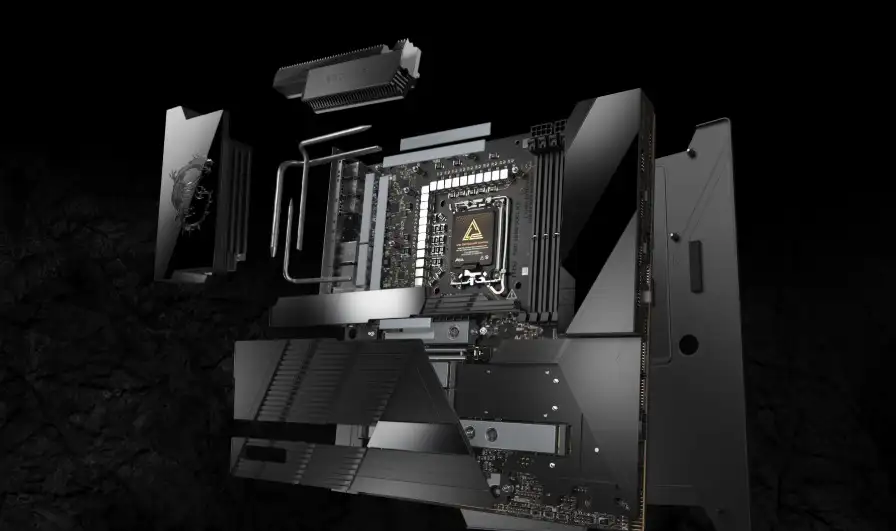

The motherboard is optimized for Intel Core Ultra processors to ensure cutting-edge performance. They also supports high-speed memory modules for enhanced system responsiveness. The motherboard is next-gen connectivity for ultra-fast online gaming and streaming. They are ideal for high-end GPUs and storage drives with maximum bandwidth. You will also get a built-in LCD touchscreen panel for real-time system monitoring. You will get Frozr Heatsink Design, heat pipes, and MOSFET cooling for stability.

Important Features to Consider Before Buying

When selecting the MSI MEG Z890 GODLIKE, consider these key factors. Requires an Intel Core Ultra processor to unlock its full potential. They ensure you have DDR5 RAM for peak performance. Wi-Fi 7 and 10G LAN offer high-speed networking, perfect for online gaming. You should check multiple PCIe 5.0 slots for top-tier GPUs and NVMe storage. Overclockers and power users will benefit from the advanced thermal design.

Order the MSI MEG Z890 GODLIKE from Ryans Computers Today!

Experience the ultimate gaming and computing performance with the MSI MEG Z890 GODLIKE (Wi-Fi 7) DDR5 E-ATX Gaming Motherboard. Buy now from Ryans Computers and build a next-gen gaming PC with the best components. Upgrade today!

What is the price of MSI MEG Z890 GODLIKE (Wi-Fi 7) Motherboard In Bangladesh?

The price of MSI MEG Z890 GODLIKE (Wi-Fi 7) Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy MSI MEG Z890 GODLIKE (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
