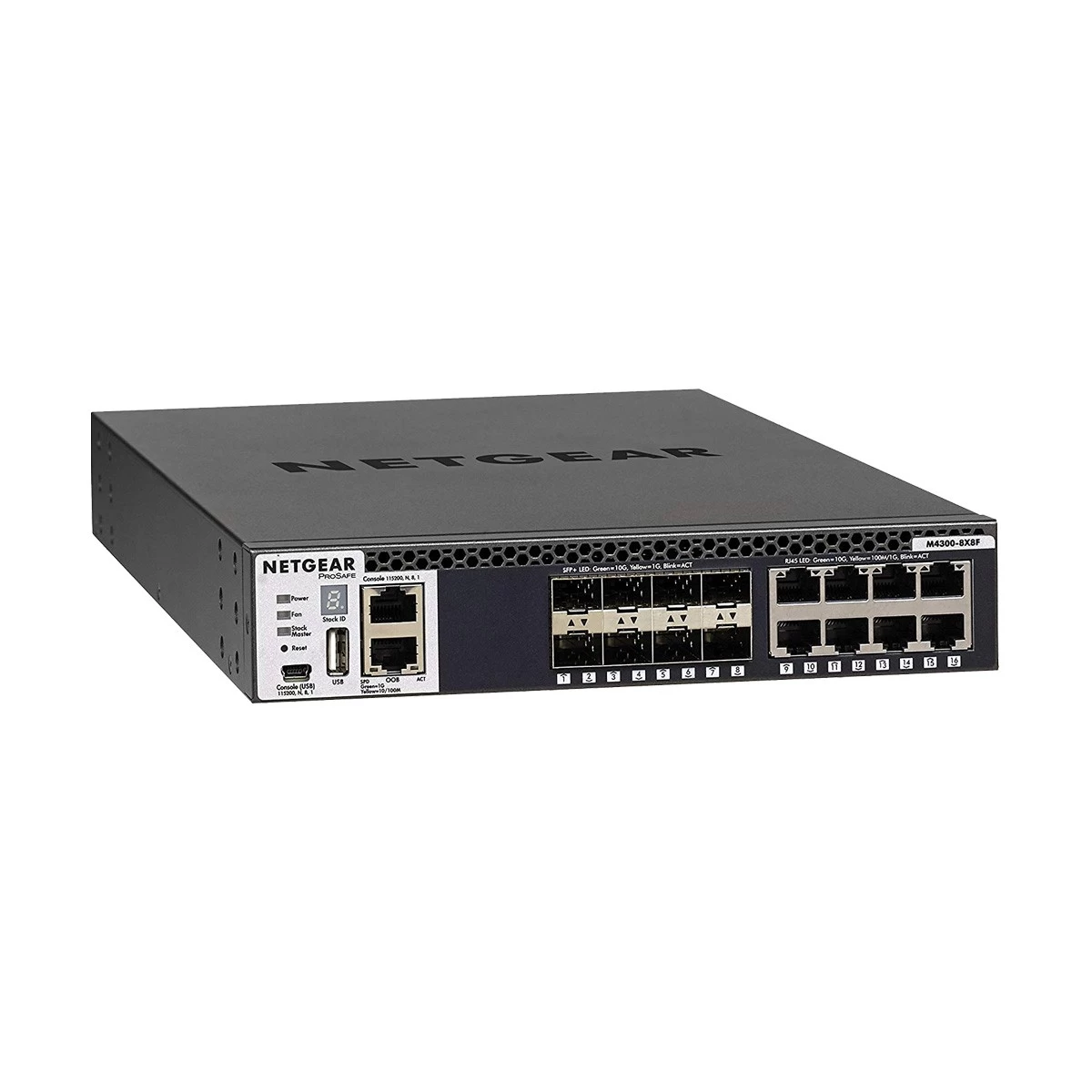

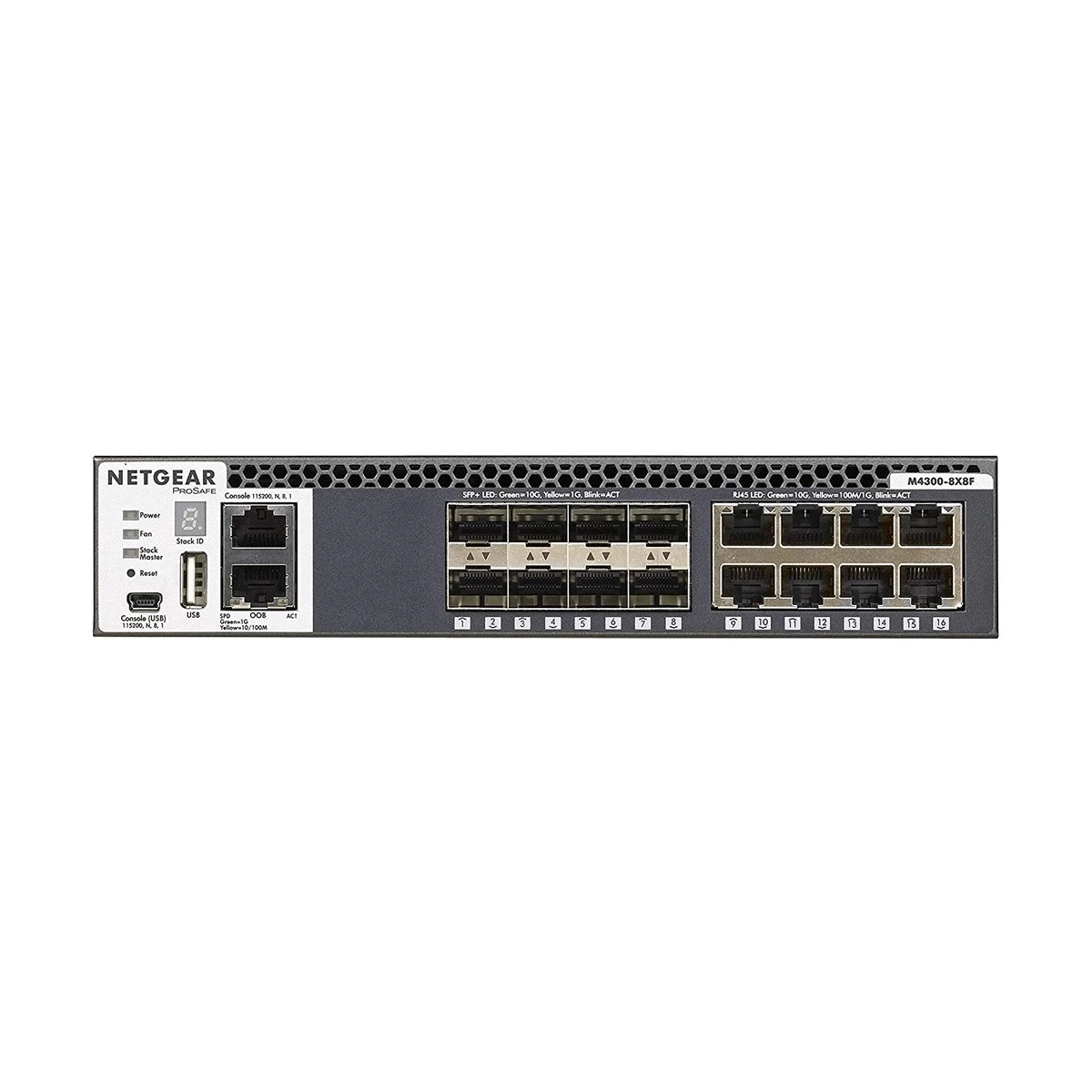

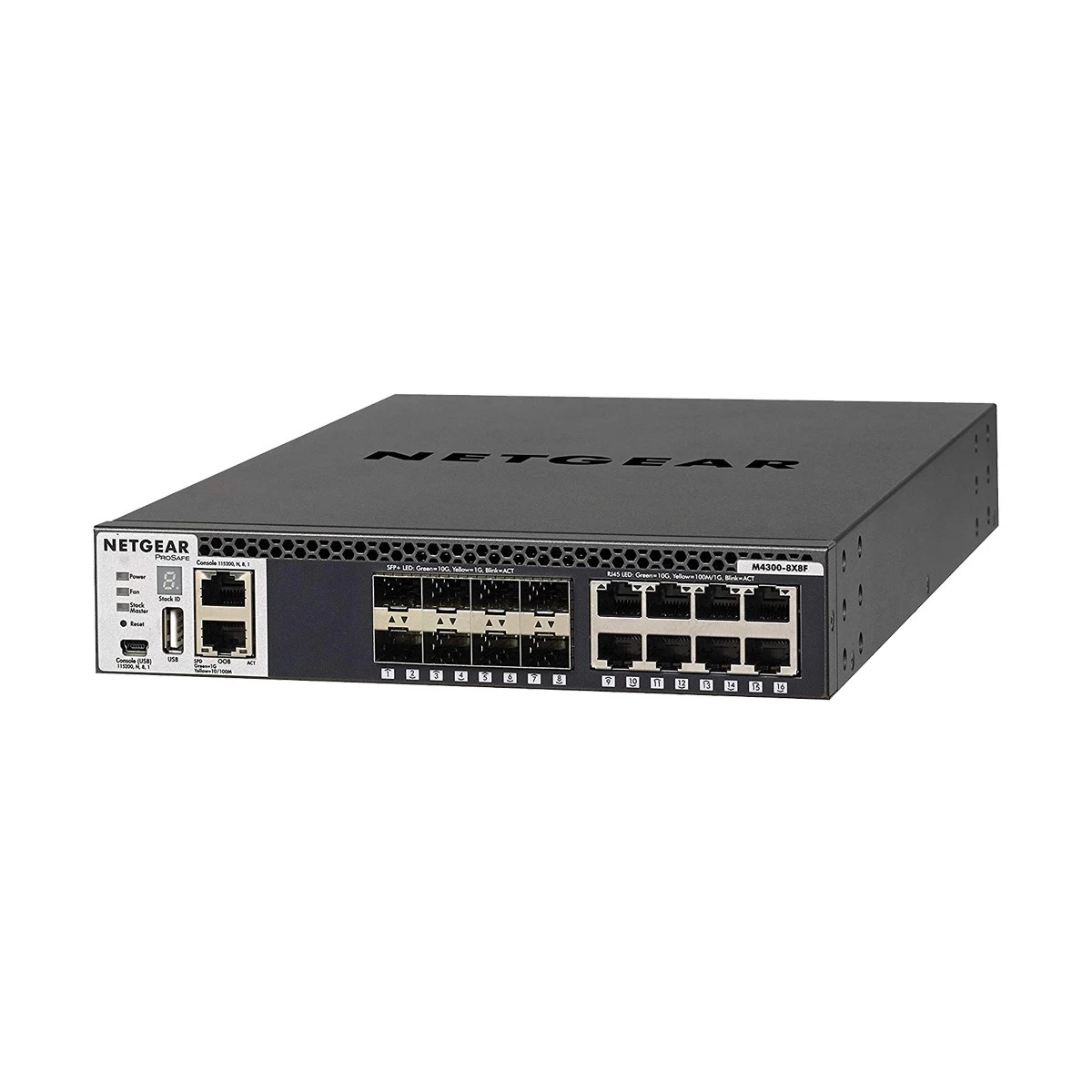

Netgear M4300-8X8F (XSM4316S) 16-Port ProSAFE 10-Gigabit Stackable Managed Switch with 8-Port ProSafe 10-Gigabit Fiber & 8-Port 10-Gigabit L3 SFP+
Product Id: 29.05.034.65
Brand
Netgear
Special Price
Tk 200,000 (Estimated)
Tk 200,000 (Estimated)
Regular Price
Tk 211,580 (Estimated)
EMI TK 17,632
Delivery in 1 days
Quick Overview
- Type - ProSAFE Gigabit Stackable Managed Switch
- Number of Total Port - 16 Port
- PoE - No
- Manageability - Managed
- Network Standards - IEEE 802.3af, 802.3at, 802.3at, 802.3at
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Rackmount
Avail EMI Offer
EMI starts from Tk 23,509/months
General
Brand
Netgear
Model
Netgear M4300-8X8F (XSM4316S)
Type
ProSAFE Gigabit Stackable Managed Switch
Ports & Slots
Number of Total Port
16 Port
Gigabit Port
8
SFP Port
No
SFP+ Port
8
PoE Port
No
PoE+ Port
No
Technical Info
PoE
No
Manageability
Managed
Interface(s)
8 x 10/100/1000/2500/10000 RJ45 port, 8 x 10/100/1000 RJ45 port
Network Standards
IEEE 802.3af, 802.3at, 802.3at, 802.3at
Data Transfer Rate
10/100/1000 Mbps
Memory
32MB
Physical Description
Fan/Fanless
1
Indicators
No
Body Color
Black
Form Factor
Rackmount
Packet Contents
Netgear M4300-8X8F (XSM4316S), Power cord(s), RJ45 straight-through wiring serial console cable to DB9, Mini-USB console cable, Rubber caps for the SFP+ sockets, Rubber footpads for tabletop installation, Installation guide, Resource CD with a link to the following manuals and software: Software setup manual, CLI manual, Software administration guide, Hardware installation guide, The driver for use with The Mini-USB console cable
Warranty
Warranty Details
Product Lifetime (Without Adapter)
Additional Info
Others
Acoustics: 36.9dB 25degree C, Power Consumption (Max): 49 Watts, 10G RJ45 Ports: 8 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds), 10G Fiber SFP+ Ports: 8 x SFP+ (1G and 10G speeds), Feature Set: Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing), Management Ports: 1G Ethernet service port for out-of-band management (OOB, RJ45), RS232 straight-through serial RJ45 for local management console, Mini-USB port for local management console, USB port for local storage, logs, configuration or image files, Switching Fabric: 320 Gps,
Specialty
16-Port ProSAFE 10-Gigabit Stackable Managed Switch with 8-Port ProSafe 10-Gigabit Fiber & 8-Port 10-Gigabit L3 SFP+, Best-in-class stacking, 10G / 40G modular solution, Higher flexibility, Lower complexity, Investment protection, Secure services, Industry standard management, Industry leading warranty, Dual redundant, modular power supplies equipping full width models contribute to business continuity management, Vertical or horizontal flexible stacking with management unit hitless failover and nonstop forwarding across operational stack members
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Netgear M4300-8X8F (XSM4316S) Network Switch In Bangladesh
Netgear M4300-8X8F (XSM4316S)
ProSAFE M4300 Intelligent Edge Series
Stackable Switches with Full PoE+ Provisioning
The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.
Best-in-class stacking
M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables)
High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption
10G / 40G modular solution
The M4300-96X scales from 8 to 96 ports of 10G Ethernet by multiple of 8 ports, and from 2 to 24 ports of 40G Ethernet by multiple of 2 ports
Better than a fixed port solution, the 96X lets you start small with maximum granularity between copper and fiber, including PoE+ over 10G, and grow later in “non-blocking” mode just by adding port expansion cards
Higher flexibility
Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization
10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds
Lower complexity
Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license
DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
Investment protection
Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks
Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection
Secure services
With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs
With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies
Industry standard management
Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Brand - Netgear, Model - Netgear M4300-8X8F (XSM4316S), Type - ProSAFE Gigabit Stackable Managed Switch, Number of Total Port - 16 Port, PoE - No, Manageability - Managed, Gigabit Port - 8, SFP Port - No, SFP+ Port - 8, PoE Port - No, PoE+ Port - No, Interface - 8 x 10/100/1000/2500/10000 RJ45 port, 8 x 10/100/1000 RJ45 port, Network Standards - IEEE 802.3af, 802.3at, 802.3at, 802.3at, Data Transfer Rate (Mbps) - 10/100/1000 Mbps, Memory - 32Mb, Transmission Method - Not Specified, Access Method - Not Specified, Connector Type - Not Specified, Switching Capacity - Not Specified, Fan/Fanless - 1, Indicator - No, MTBF - Not Specified, Body Material - Not Specified, Body Color - Black, Power Supply - Not Specified, Power Consumption - Not Specified, OS Supported - Not Specified, Form Factor - Rackmount, Dimension - Not Specified, Weight - Not Specified, Others - Acoustics: 36.9dB 25degree C, Power Consumption (Max): 49 Watts, 10G RJ45 Ports: 8 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds), 10G Fiber SFP+ Ports: 8 x SFP+ (1G and 10G speeds), Feature Set: Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing), Management Ports: 1G Ethernet service port for out-of-band management (OOB, RJ45), RS232 straight-through serial RJ45 for local management console, Mini-USB port for local management console, USB port for local storage, logs, configuration or image files, Switching Fabric: 320 Gps,, Specialty - 16-Port ProSAFE 10-Gigabit Stackable Managed Switch with 8-Port ProSafe 10-Gigabit Fiber & 8-Port 10-Gigabit L3 SFP+, Best-in-class stacking, 10G / 40G modular solution, Higher flexibility, Lower complexity, Investment protection, Secure services, Industry standard management, Industry leading warranty, Dual redundant, modular power supplies equipping full width models contribute to business continuity management, Vertical or horizontal flexible stacking with management unit hitless failover and nonstop forwarding across operational stack members, Part No - Not Specified, Warranty - Product Lifetime (Without Adapter), Country of Origin - Not Specified, Made in/ Assemble - Not Specified
What is the price of Netgear M4300-8X8F (XSM4316S) Network Switch In Bangladesh?
The price of Netgear M4300-8X8F (XSM4316S) Network Switch starts from 200,000 . The price may vary due to your customization and product availability. You can buy Netgear M4300-8X8F (XSM4316S) Network Switch from our website or visit our showrooms nearby.
