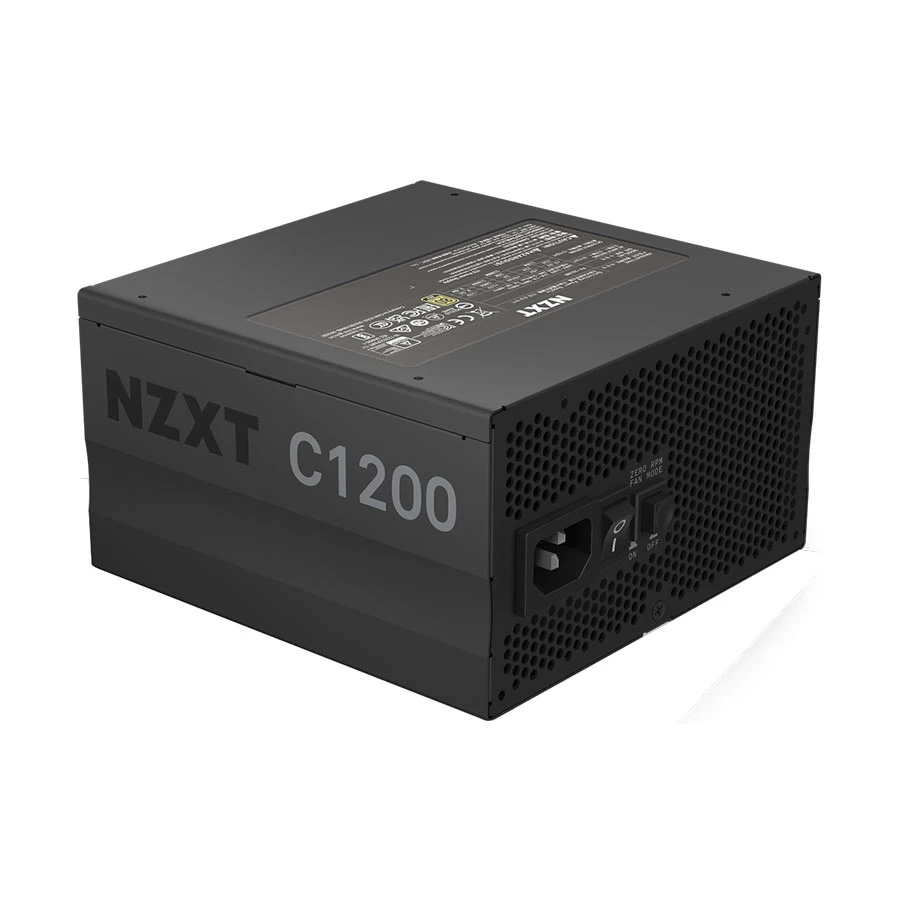

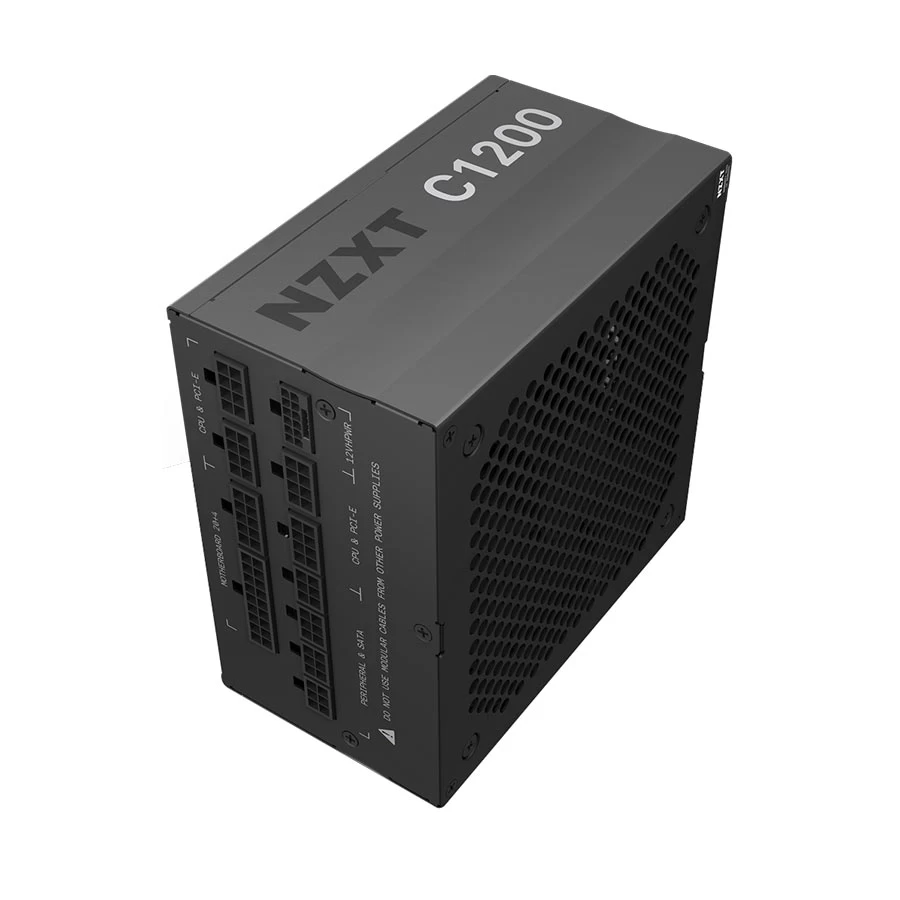

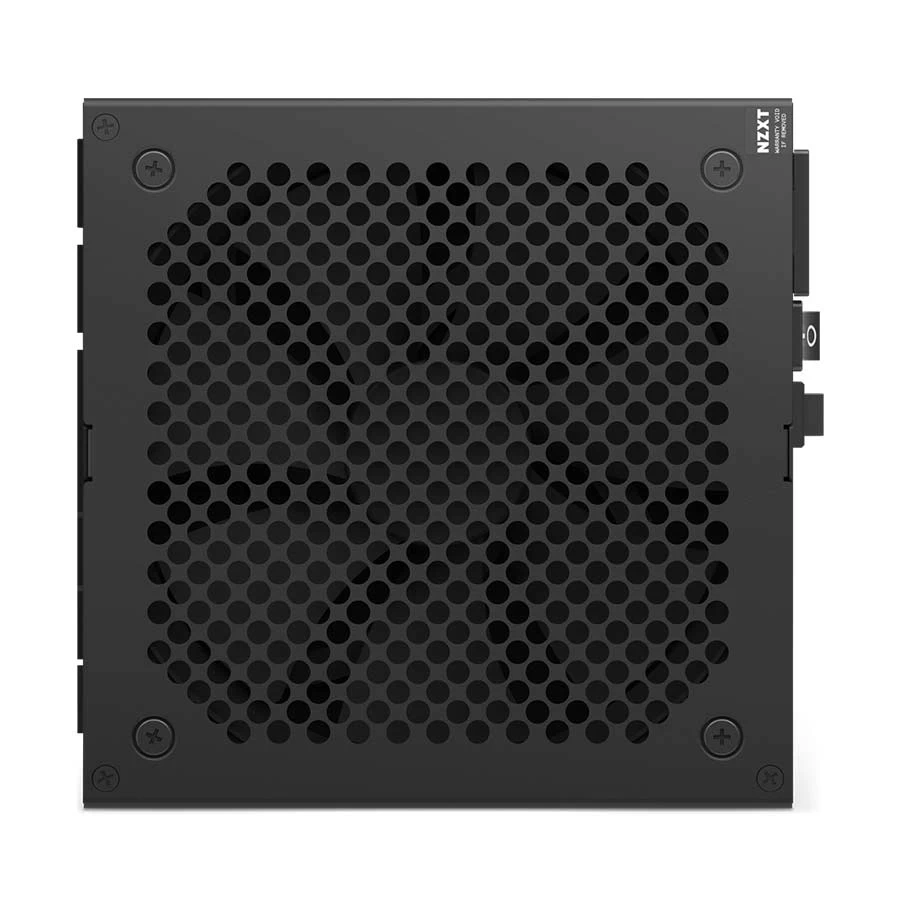

NZXT C1200 1200W ATX Fully-Modular Power Supply #PA-2G1BB-UK

Product Id: 55.01.681.28

Brand Nzxt

Regular Price Tk 26,260 Monthly EMI Tk 2,188
Special Price Tk 24,300

Delivery in 1 days

Quick Overview

  • PSU Category - Full Modular
  • Type - ATX12V v3.0 / EPS12V v2.92
  • Maximum Power - 1200 Watt
  • Fan Speed - 0-2300 -+ 10% RPM
  • Efficiency - 88% Efficiency
  • Efficiency Rating - 80 Plus Gold
General
Brand
NZXT

Model
NZXT C1200

PSU Category
Full Modular

Type
ATX12V v3.0 / EPS12V v2.92

Part No
PA-2G1BB-UK


Cooling & Lighting
Fan Size
135mm

Lighting Effect
No

Zero RPM Fan Mode
Yes

Fan Bearing
Fluid Dynamic Bearing (FDB)

Fan Speed
0-2300 -+ 10% RPM

Noise Level
44.5 dBA max


Performance
Efficiency
88% Efficiency

Efficiency Rating
80 Plus Gold


Protection
Over Voltage Protection (OVP)
Unmentioned

Over Power Protection (OPP)
Unmentioned

Over Current Protection (OCP)
Unmentioned

Over Temperature Protection (OTP)
Unmentioned

Short Circuit Protection (SCP)
Unmentioned

Under Voltage Protection (UVP)
Unmentioned


Connectors
ATX Main Connectors
1

EPS Connectors
1

PCIe Connectors
2

SATA Power Connectors
8

4-Pin Peripheral Connectors
4


Power
Min. Power (Approx.)
1055W

Maximum Power
1200 Watt

Input AC
100 - 240Vac, 50Hz-60Hz 14A-7A

Input Voltage
100 - 240Vac

Input Frequency Range
50Hz-60Hz

Input Current
14A-7A

Operating Temperature
0 - 50 Degree C


Physical Description
MTBF
100000 Hours

Form Factor
ATX

Dimensions
150 x 150 x 86mm

Body Material
Steel, PCB & Plastic

Color
Matt Black


Warranty
Warranty Details
10 year


Additional Info
Regulatory / Safety Approval
cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

Others
Output Connectors : 24-pin ATX power:1, 4+4-pin CPU power:1, 8-pin CPU Cable :1, 6+2-pin PCIe power :2, 16-pin (12+4) 12VHPWR PCIe Cable:1, SATA power :8, Peripherals :4. Fan Airflow:93.02 CFM (Tpy.). Cable Specs : 24-pin ATX power:600 mm, Nylon sleeving, 4+4-pin CPU power:700 mm, Nylon sleeving, 8-Pin CPU Power Cable:700mm, Nylon sleeving, 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving, 16-Pin (12+4) 12VHPWR PCIe Cable:650mm, Nylon sleeving, SATA power:500 + 150 mm, Peripherals:500 + 150 mm. PF Correction:Active @0.96. Energy Efficiency : 20% loading:90.97% @115Vac, 50% loading:91.55% @115Vac, 100% loading:88.51% @115Vac. Inside the Box - C1200 Gold x 1, 24-Pin ATX Power Cable x 1, 4+4-Pin CPU Power Cables x 1, 8-Pin CPU Power Cable x 1, 6+2-pin PCIe Power Cable x 2, 16-Pin (12+4) 12VHPWR PCIe Cable x 1, SATA Cables x 3, Peripherals Cables x 1, 6-32 Screws x 4, AC Power Cord x 1.

Specialty
16-pin PCIe 12VHPWR connector can pump up to 600 watts of power to a graphics card over a single cable. Built and tested with the strictest standards for trouble-free installation and operation. 135mm PWM fan with fluid dynamic bearing operates quietly with a long lifespan. Constructed with high-quality Japanese 105 Degree C capacitors.

Country Of Origin
USA

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
