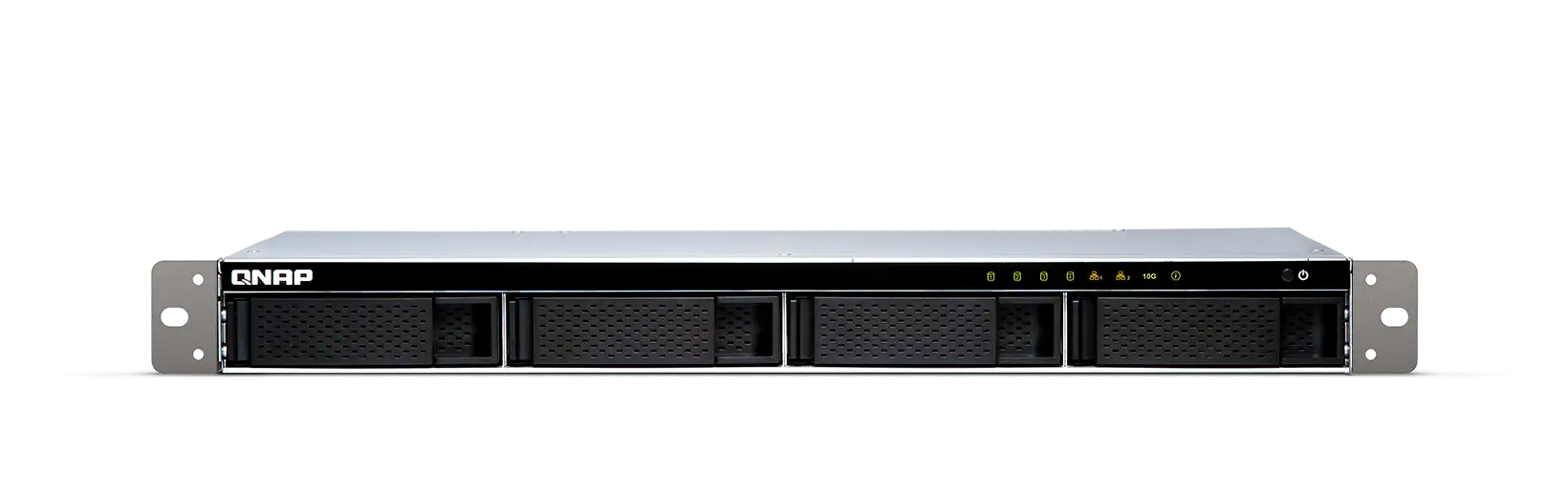

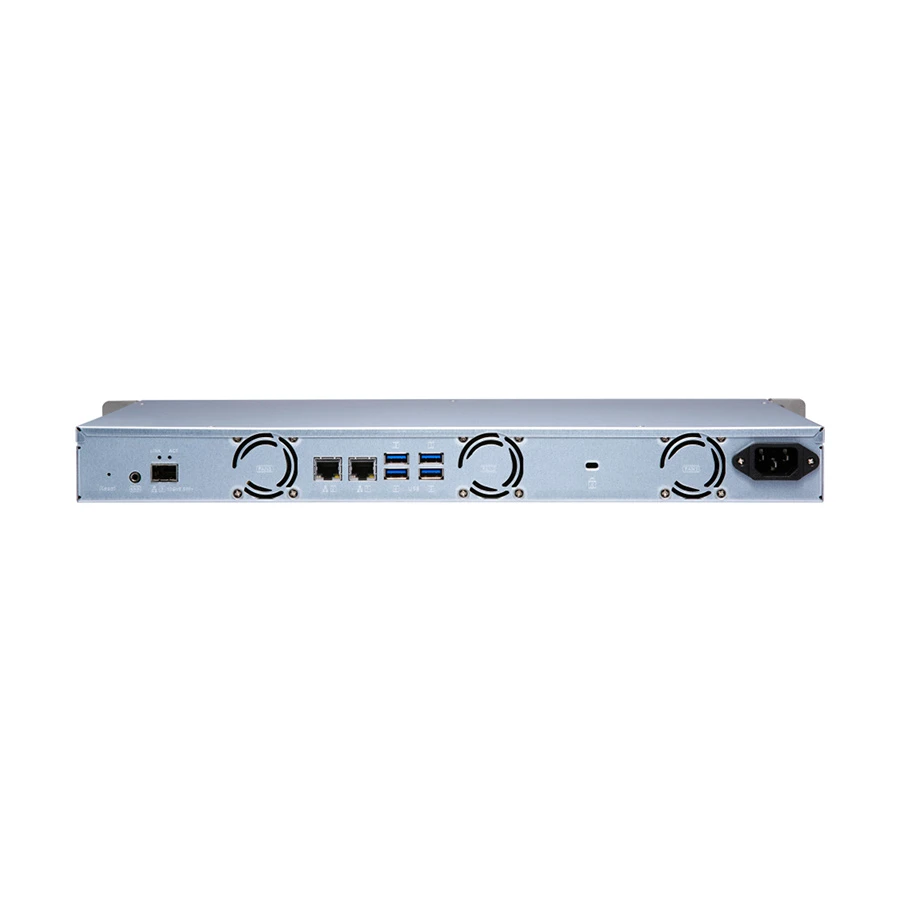

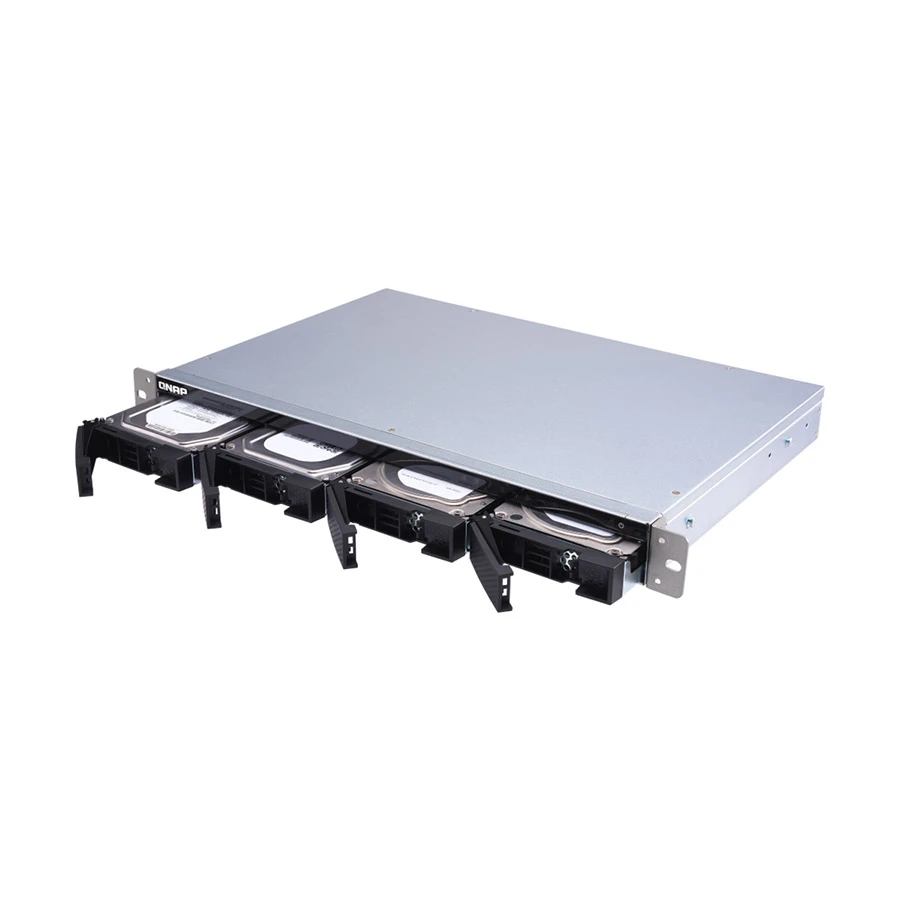

QNAP TS-431XeU-8G 4 Bay Rack AnnapurnaLabs Alpine AL314 ARM Cortex-A15 Network Storage (3 Year Warranty)
AnnapurnaLabs Alpine AL314 ARM Cortex-A15 4-core CPU
RAM
8GB
Bays
4 BAY
Drive Type
3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
eSATA Port
No
Max. Capacity
250TB
Display
No
Lan Port
3 x Gigabit Lan
USB Port
4 x USB 3.2 Gen 1
Dimensions
43.3 x 430 x 291mm
Color
Silver & Black
Warranty
3 year
General
Brand
QNAP
Model
QNAP TS-431XeU-8G
Form-Factor
Rackmount
Processor & RAM Info
Processor Model
AnnapurnaLabs Alpine AL314 ARM Cortex-A15 4-core CPU
RAM
8GB
Technical Info
Bays
4 BAY
Drive Type
3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
eSATA Port
No
Max. Capacity
250TB
Display
No
Connectivity
Lan Port
3 x Gigabit Lan
USB Port
4 x USB 3.2 Gen 1
Physical Description
Dimensions
43.3 x 430 x 291mm
Color
Silver & Black
Warranty
Warranty
3 year
Additional Info
Feature
Floating Point Unit, Encryption Engine, Hot-swappable, SSD Cache Acceleration Support, Wake on LAN (WOL), Jumbo Frame, 0 - 40 Degree C Operating Temperature, -20 - 70 Degree C Storage Temperature, 5-95% RH non-condensing Relative Humidity, Kensington Security Slot, JBOD Expansion, VJBOD / VJBOD Cloud, iSCSI Service, Fibre Channel Service, RAID Level Migration, RAID Group, RAID Expansion (by adding Disk), RAID Expansion (by replacing bigger Disks), Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Self-serve Snapshot Recovery, Domain Security, 2-step verification, Allow/Deny List
Others

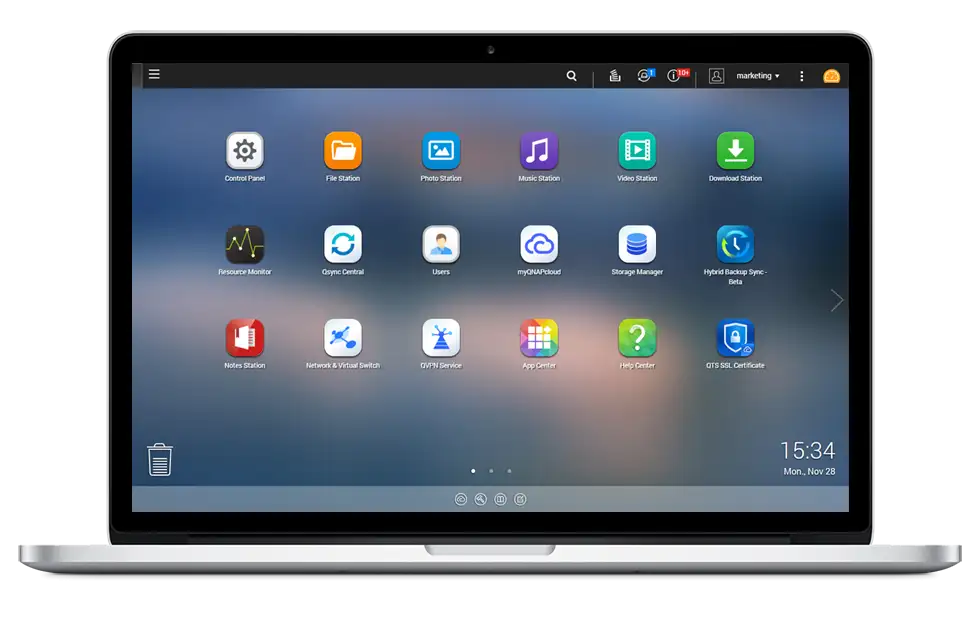

Package Contents: QNAP TS-431XeU-8G, Ethernet Cable, Power Cord, Flat head screw (for 3.5 Inch HDD), Flat head screw (for 2.5 Inch HDD), Quick Installation Guide (QIG), 2 x Hanger, 2 x Holder, CPU Architecture: 32-bit ARM, Flash Memory: 512MB (Dual boot OS protection), Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s, Form Factor: 1U Short Depth Rackmount, LED Indicators: HDD 1-4, Status, USB, LAN1-3, Buttons: Power, Reset, Weight: 5 kg, Power Supply Unit: Open-frame 100W, Input: 100V-240V - / 3.5A, 50Hz-60Hz, Fan: 3 x 40mm, 12VDC, Operating System: QTS 5.1.3, Supported Client Operating Systems: Apple Mac OS 10.10 or later, Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux, IBM AIX 7, Solaris 10 or later UNIX, Microsoft Windows 7, 8, 10 and 11, Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022, SSD Cache RAID: 0, 1, 5, 6, 10, Maximum FTP connection: 1024
Country Of Origin
Taiwan
Made in/ Assemble
Taiwan
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
