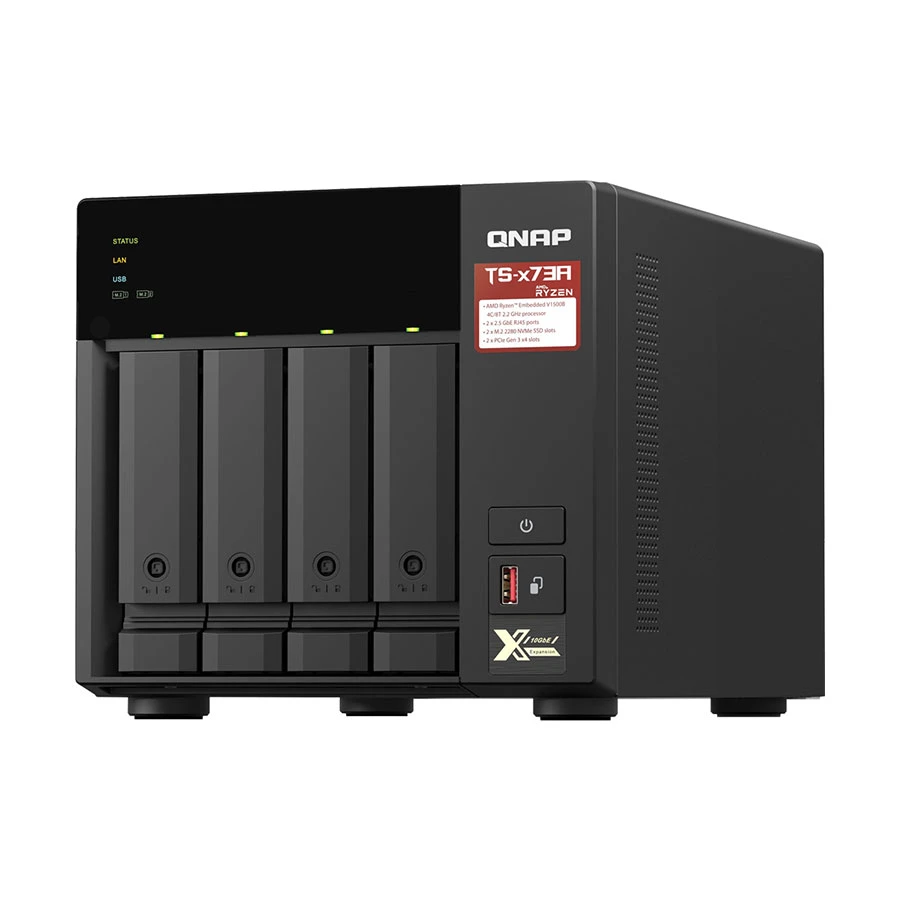

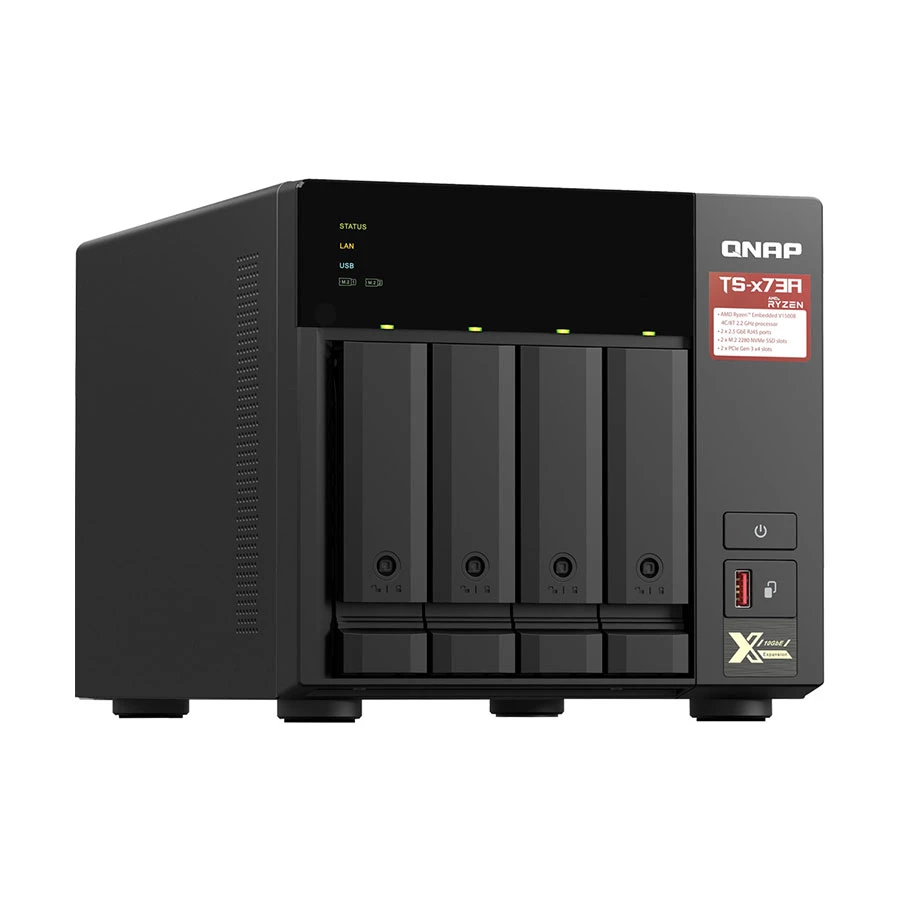

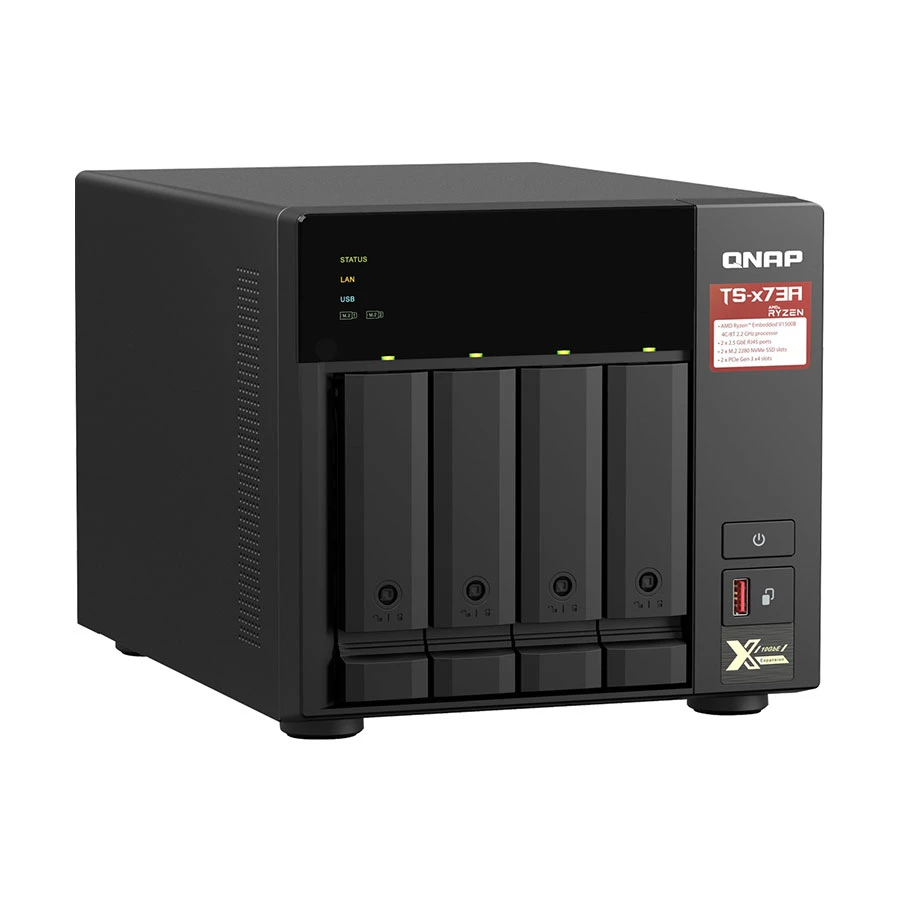

QNAP TS-473A-8G 4 Bay Tower AMD Ryzen Embedded V1500B Network Storage (3 Year Warranty)
3 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-C
Dimensions
280.92 x 199.39 x 188.21mm
Color
Black
Warranty Details
3 year
General
Brand
QNAP
Model
QNAP TS-473A-8G
Form-Factor
Desktop
Processor & RAM Info
Processor Model
AMD Ryzen Embedded V1500B 4-core 2.20GHz CPU
RAM
8GB
Technical Info
Bays
4 BAY
Drive Type
SATA3 HDD/SSD 2.5 or 3.5 Disk & M.2 2280 NVMe SSD
eSATA Port
No
Max. Capacity
250TB
Display
No
Connectivity
Lan Port
2 x Gigabit Lan
USB Port
3 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-C
Physical Description
Dimensions
280.92 x 199.39 x 188.21mm
Color
Black
Warranty
Warranty Details
3 year
Additional Info
Feature

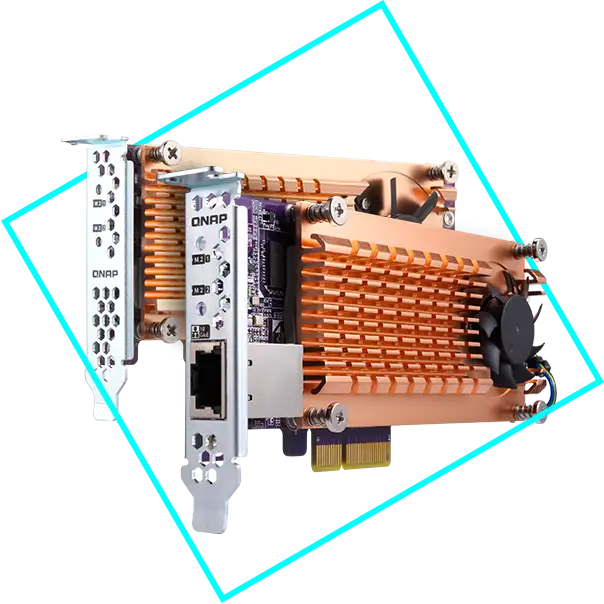

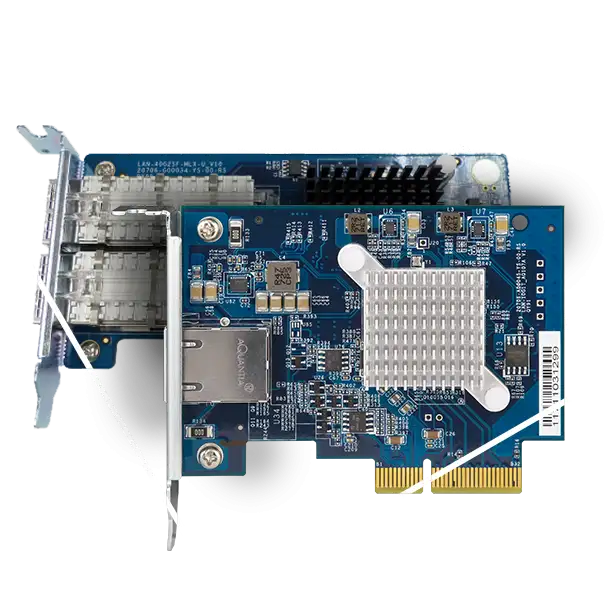

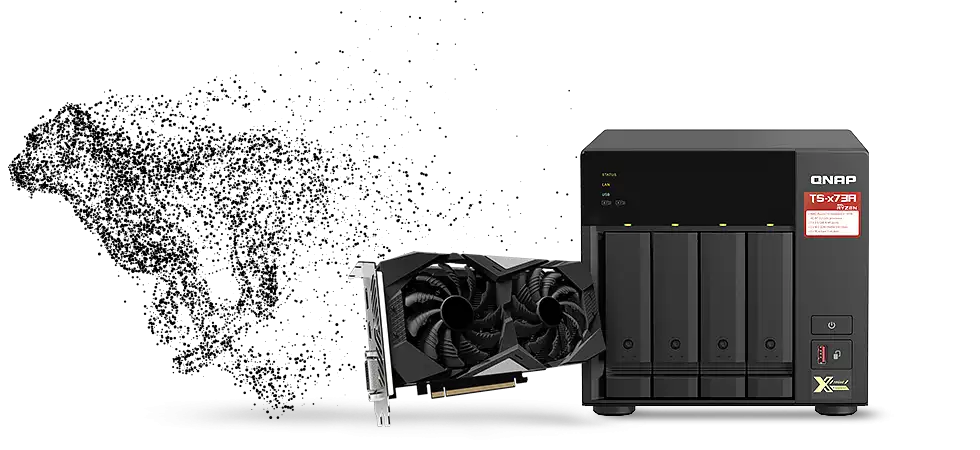

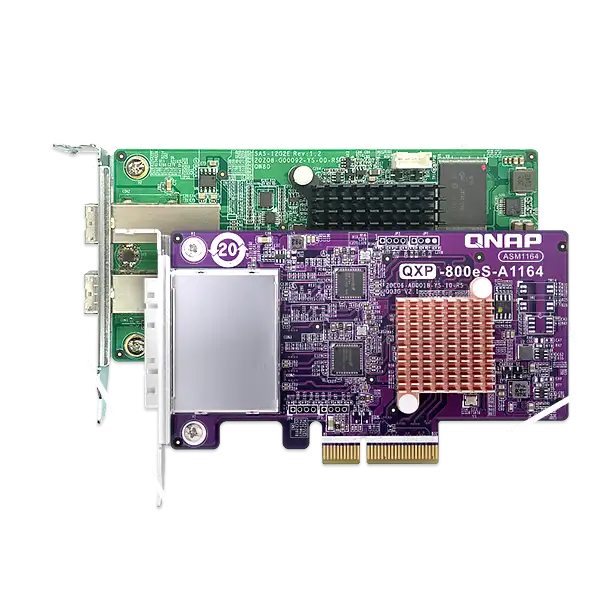

Hot-Swap Support, Wake on LAN, Link Aggregation and Failover Support, Featuring an AMD Ryzen V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz, The TS-473A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks, Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization, The TS-473A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.
Others

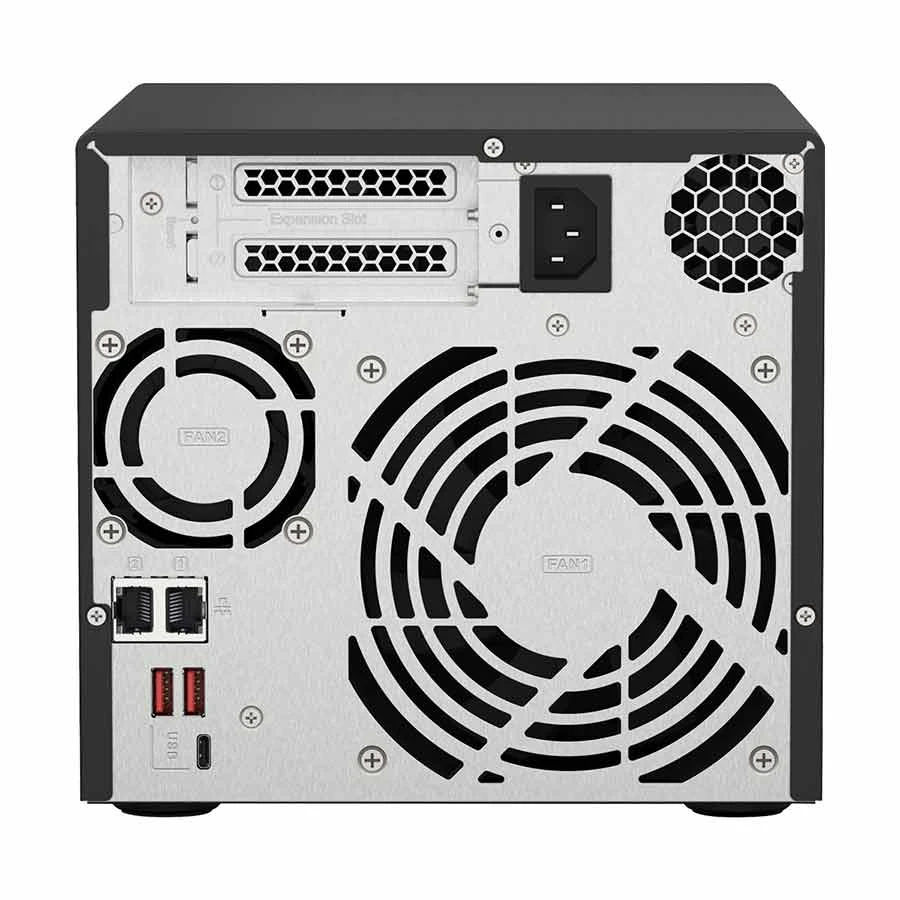

Total Installed Memory: 8GB DDR4, User-Replaceable Memory: 1x 8GB, Total Memory Slots: 2x SO-DIMM, Maximum Memory Capacity: 64GB, Inputs/Outputs: (2x RJ45 2.5GbE 3x USB-A 3.1/3.2 Gen 2 1x USB-C 3.0 / 3.1/3.2 Gen 1), RAID: RAID 0/1/5/6/JBOD, PCI Expansion: 2x PCIe 3.0 (x4 Electrical), Supported Protocols: (AFP CIFS/SMB FTP FTPS HTTP HTTPS IPv4 IPv6 L2TP/IPSec SFTP SMTP SNMP v2 SNMP v3 SSH SSL TFTP Telnet WebDAV iSCSI), Max Groups: 4096, Max Volume Number: 128, Max Cameras Supported: 8, Installed Operating System: QTS 4.5.2, Supported File Systems: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT, Encryption: 256-Bit AES, Security Features: Password Protection, AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 3.5 A, Power Consumption: 29.792W (Typical) 19.576 W (Standby), PSU Wattage: 1 x 250W, Operating Temperature: 0 to 40 degree C, Operating Humidity: 5 to 95%, Status Monitoring: LED Indicator, Audible Alarm: Yes, Cooling: 1x Fan, Noise Level: 21.4 dBA.
