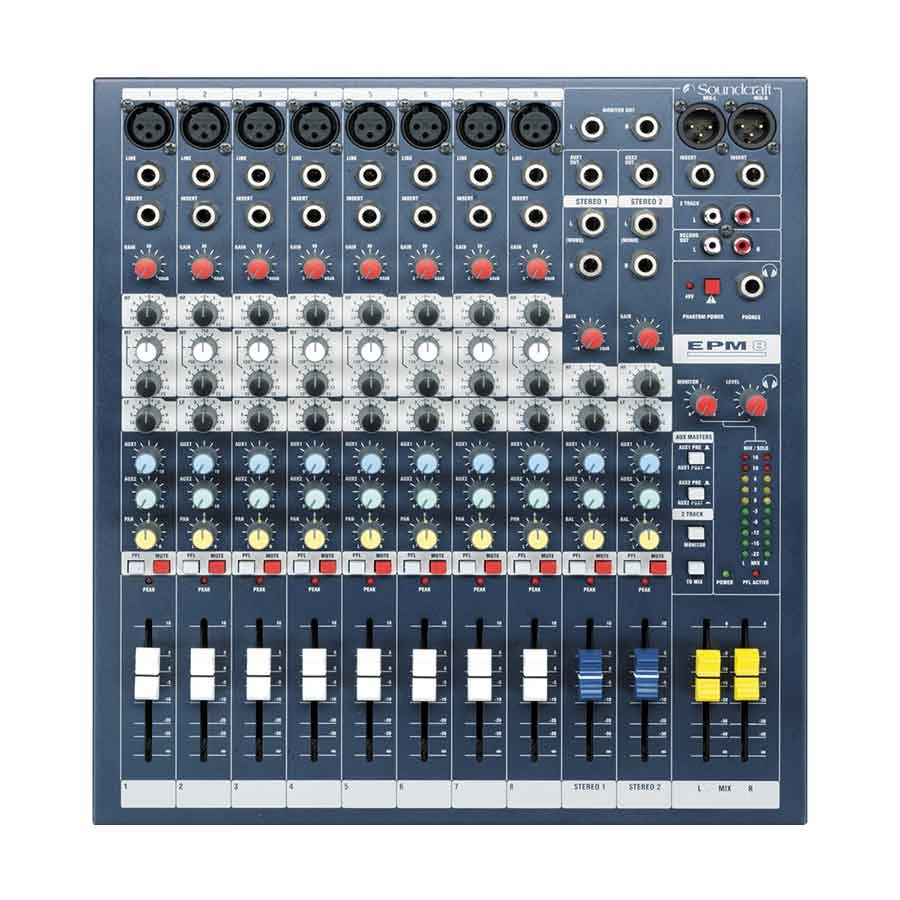

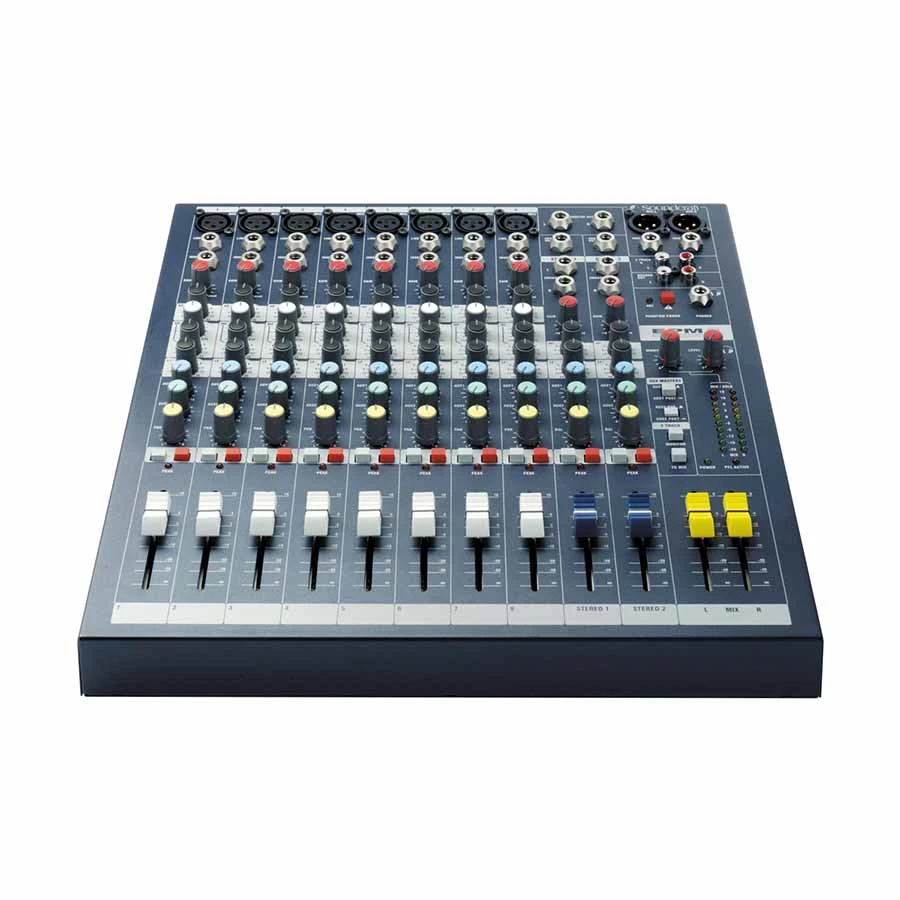

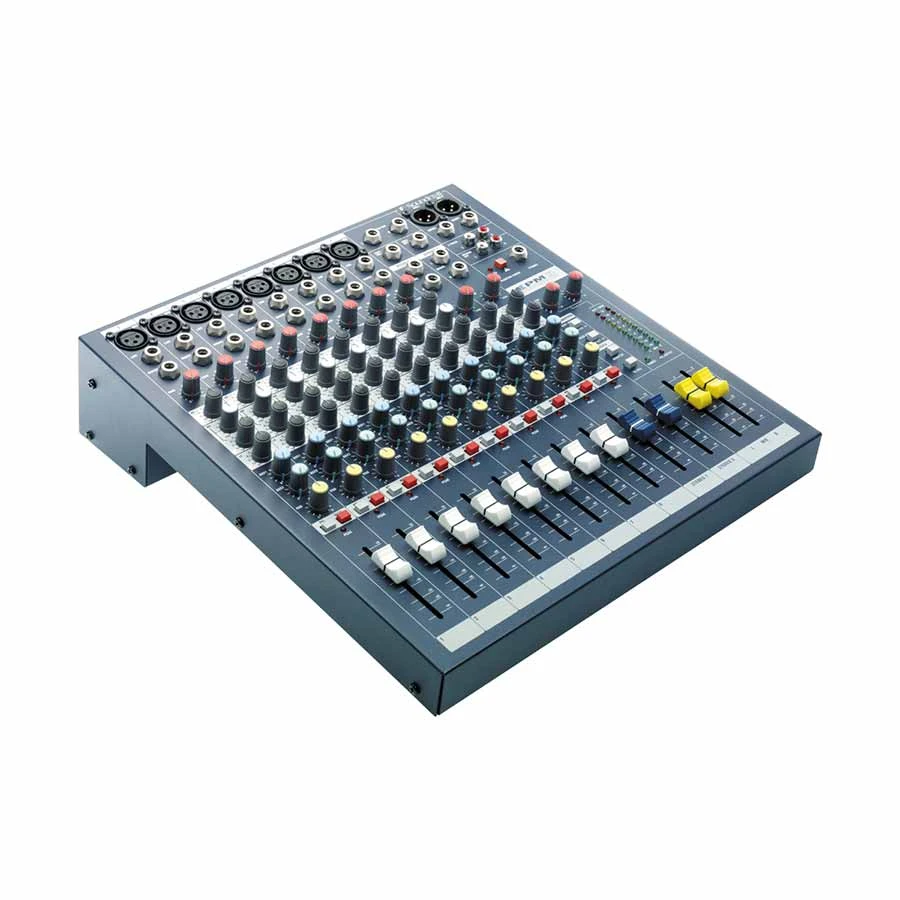

Soundcraft EPM8 8 Channel Mixing Console
Product Id: 10.11.940.02
Brand
Soundcraft
Coming Soon
Quick Overview
- Channel - 8:0
- Connectivity Mode - Wired
- Memory Card Slot - No
- USB Port - No
- Remote Control - No
General
Brand
Soundcraft
Model
Soundcraft EPM8
Type
Mixing Console
Audio Details
Channel
8:0
RMS/Channel (Watt)
Not Applicable
RMS/Subwoofer (Watt)
Not Applicable
Frequency (Hz - KHz)
20Hz - 20kHz +/-1.5dB
Connectivity
Connectivity Mode
Wired
Phantom Power
+48V
USB Port
No
Slots
Memory Card Slot
No
Portable PA System
Number of Input Channel
8
Technical Info
Input Interface
8 x Line Mono: 1/4 inch TRS Phone, 2 x Line Stereo: L/R 1/4 inch TRS Phone, 8 x Microphone: 3-pin XLR
Performance
Waterproof
No
Dustproof
No
Shockproof
No
Power
AC Input Power
85-270 V AC, 50/60 Hz
Approx. Power Consumption
> 20W
Physical Description
Remote Control
No
Dimensions
330 x 90.5 x 362mm
Weight (Kg)
7.2 kg
Color
Navy Blue
Warranty
Warranty Details
No warranty
Additional Info
Feature
2 configurable auxiliary buses, XLR-type and 1/4 inch metal jack connector sockets. RCA phono stereo playback inputs and record outputs, 3-band EQ with a swept mid on mono inputs, 2-band EQ on stereo inputs, TRS insert sockets and inserts on all mono inputs and mix output, Ten-segment LED output metering, Intuitive and comprehensive solo system, Headphone output, Easily rack mountable.
Others
AUX Sends: 2x Aux Sends, BUS (Group) Outputs; Stereo Output Only , 2 Trk Master I/O: Mix L/R: Stereo Paired L/R RCA Phono. Monitor Outputs: Monitor: L/R Stereo Paired 1/4 inch TRS Phone. EQ Section Mono Inputs +/- 15 dB, Lo: 80 Hz, Mid: 150 Hz - 3.5 kHz (swept), Hi: 12 kHz, Q: 1.5, Stereo Inputs +/-15 dB, Lo: 80 Hz, Mid: 720 Hz, Hi: 12 kHz. Solo/Mute: All Input Channels. Channel Level Control: 100 mm Faders. Trim/Gain Control: Rotary Potentiometers. Metering: 10-Segment L/R Peak LEDs, +48 V Phantom Power LED, PFL Active LED, Power Indicator LED. Frequency Response: 20 Hz to 20 kHz +/-1.5 dB. Signal-to-Noise Ratio: Noise (22 Hz - 22 kHz measurement bandwidth). Mic EIN max gain, 150 ohms source impedance -127 dBu. Mix max, faders to down <-85 dBu. Total Harmonic Distortion (THD): Mic sensitivity 30 dB, +14 dBu mix output: <0.02%.
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
