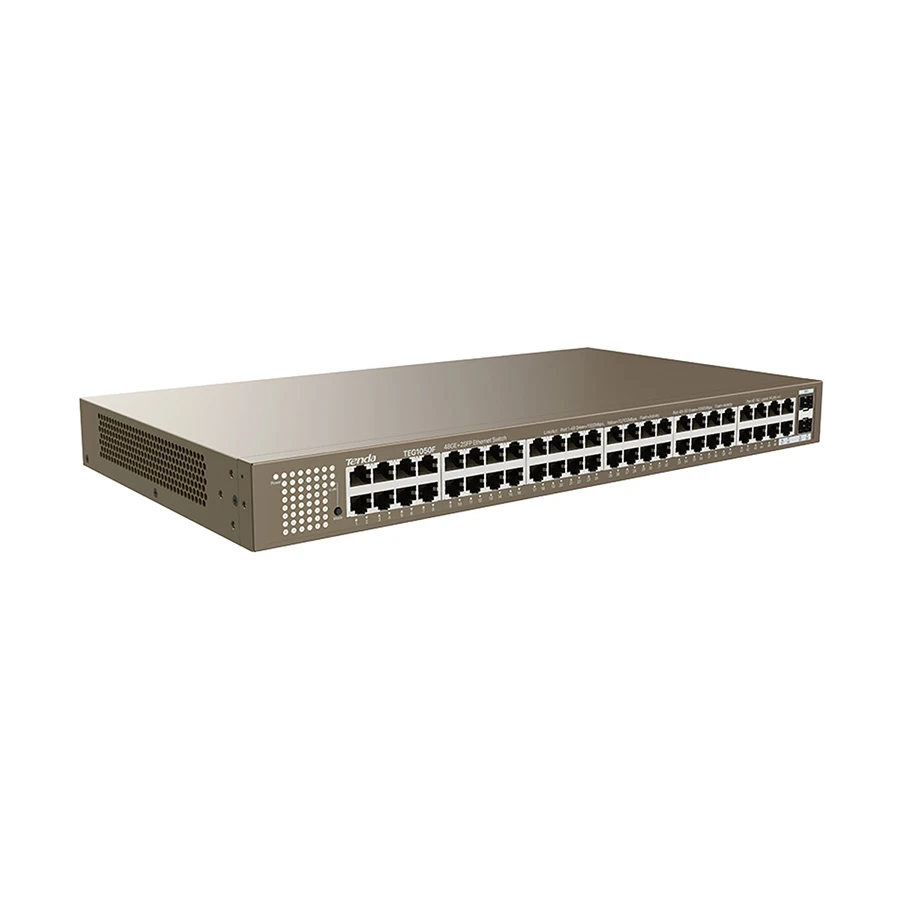

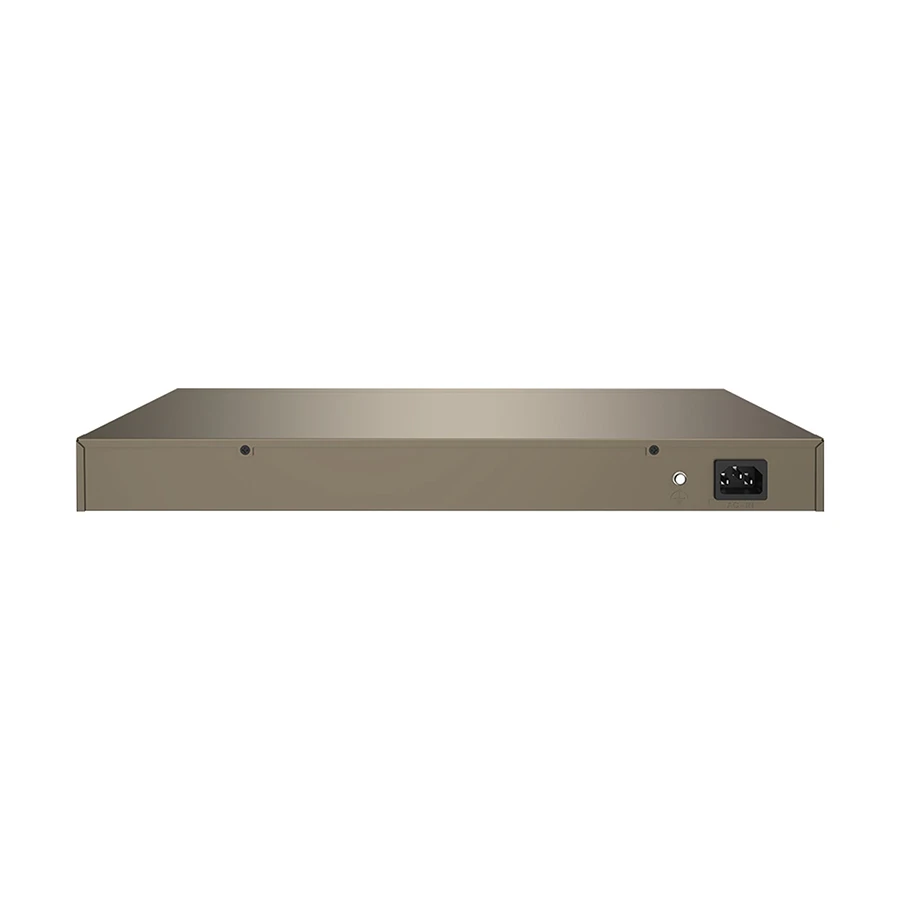

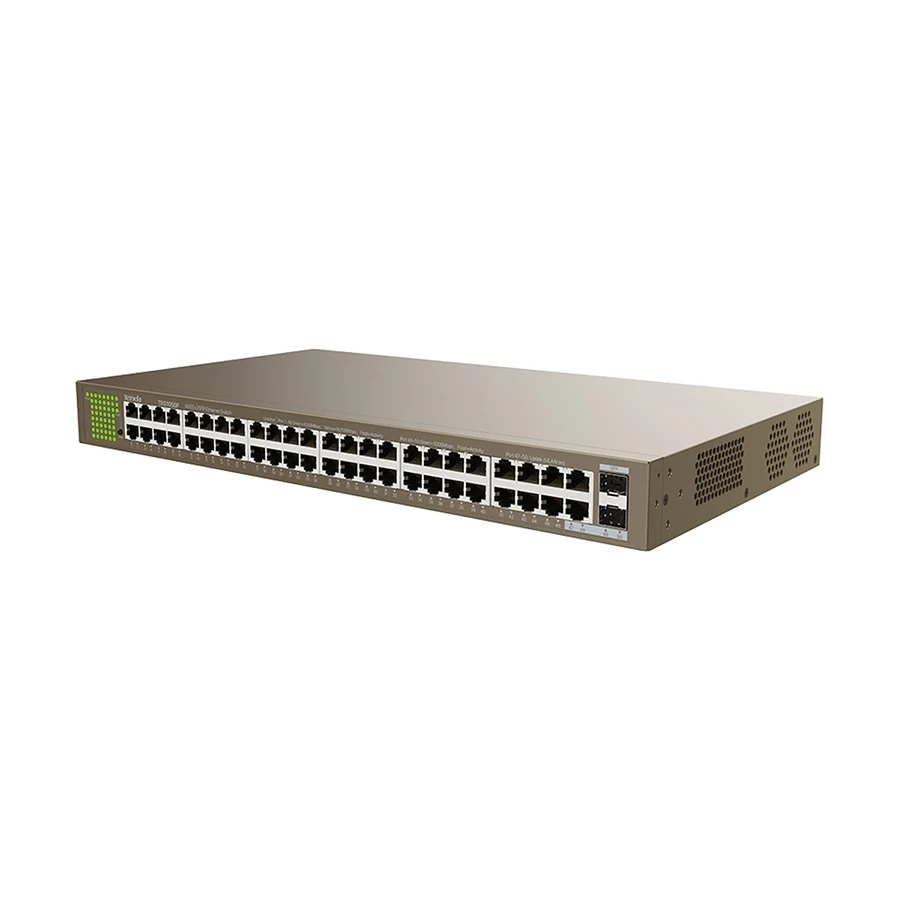

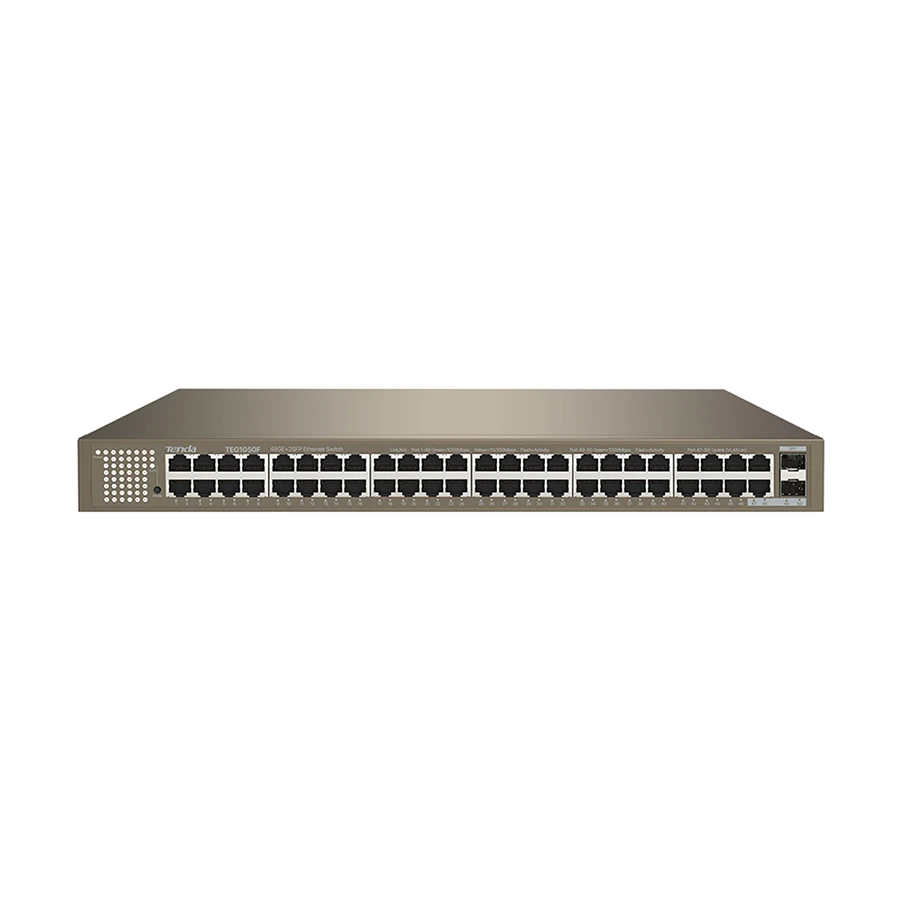

Tenda TEG1050F 50-Port Unmanaged Gigabit Switch

Product Id: 29.05.744.50

Brand Tenda

Coming Soon

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 50 Port
  • PoE - No
  • Manageability - Unmanaged
  • Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
  • Data Transfer Rate - 10/100/1000 Mbps
  • Form Factor - Desktop/Rackmount/Wall Mounting
General
Brand
Tenda

Model
Tenda TEG1050F

Type
Network Switch


Ports & Slots
Number of Total Port
50 Port

Gigabit Port
50

SFP Port
2

PoE Port
No

PoE+ Port
No


Technical Info
PoE
No

Manageability
Unmanaged

Interface(s)
48 x 10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX), 2 x 1000 Base-X SFP ports (Independent)

Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z

Data Transfer Rate
10/100/1000 Mbps

Transmission Method
Store-and-forward

Switching Capacity
100Gbps


Physical Description
Indicators
1 x Power, 50 x Link/Act, 1 x VLAN

Body Material
Metal

Body Color
Gray

Form Factor
Desktop/Rackmount/Wall Mounting

Dimension
440 x 240 x 44mm


Power
Power Supply
Input: 100 - 240V AC 50/60Hz, Output: 12V 4A

Approx. Power Consumption
<48W (Max)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
Transmission media: ecommended: CAT5/5e UTP or better, Level of protection: Lightning protection for uplink ports: 6KV, Lightning protection for power: 6KV, ESD: Air discharge: -/+10kV, Contact discharge: -/+8kV, Forwarding rate: 74.4Mpps, Buffer: 12Mb, MAC address table: 16K, Operating temperature: 0 Degree C - 45 Degree C, Storage temperature: -40 Degree C - 70 Degree C, Operating humidity: (10% - 90%) RH, non-condensing, Storage humidity: (5% - 90%) RH, non-condensing, Certifications: CE, FCC, RoHS, Funtions: One-key VLAN (In this mode, ports 1 to 46 cannot communicate with each other, but can communicate with ports 47 to 50.), Jumbo frame: 12K, Protocols: CDMA/CD, MAC address learning: Auto-Learning and Auto-Aging.

Specialty
Developed by Tenda, TEG1050F is a Gigabit unmanaged Ethernet switch designed for establishing wired networks of high density and high speed in such scenarios as enterprises, parks, schools, and internet cafes, providing a simple, easy, cost-effective, and rapid internet access solution for video surveillance and SMBs` networking. With 48 10/100/1000 Mbps RJ45 ports, and 2 independent Gigabit SFP slots that can be paired with Tenda`s SFP modules, this switch can be used to deploy a long-distance network up to 20 km. Its full-duplex transmission rate can reach 2000 Mbps, ensuring the timely transmission of large files and smoothness of videos. Its one-key VLAN function can isolate broadcast storms. Its integrated professional lightning protection circuit offers 6 kV lightning protection for the built-in power supply and all Ethernet ports, ensuring the stability and reliability of the switch. The switch supports desktop mounting, rack mounting and wall mounting, and features a 1U 19-inch standard rack-mount shell design and plug & play function. With these advantages, it is an ideal choice for deploying a cost-effective and high-speed network.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
