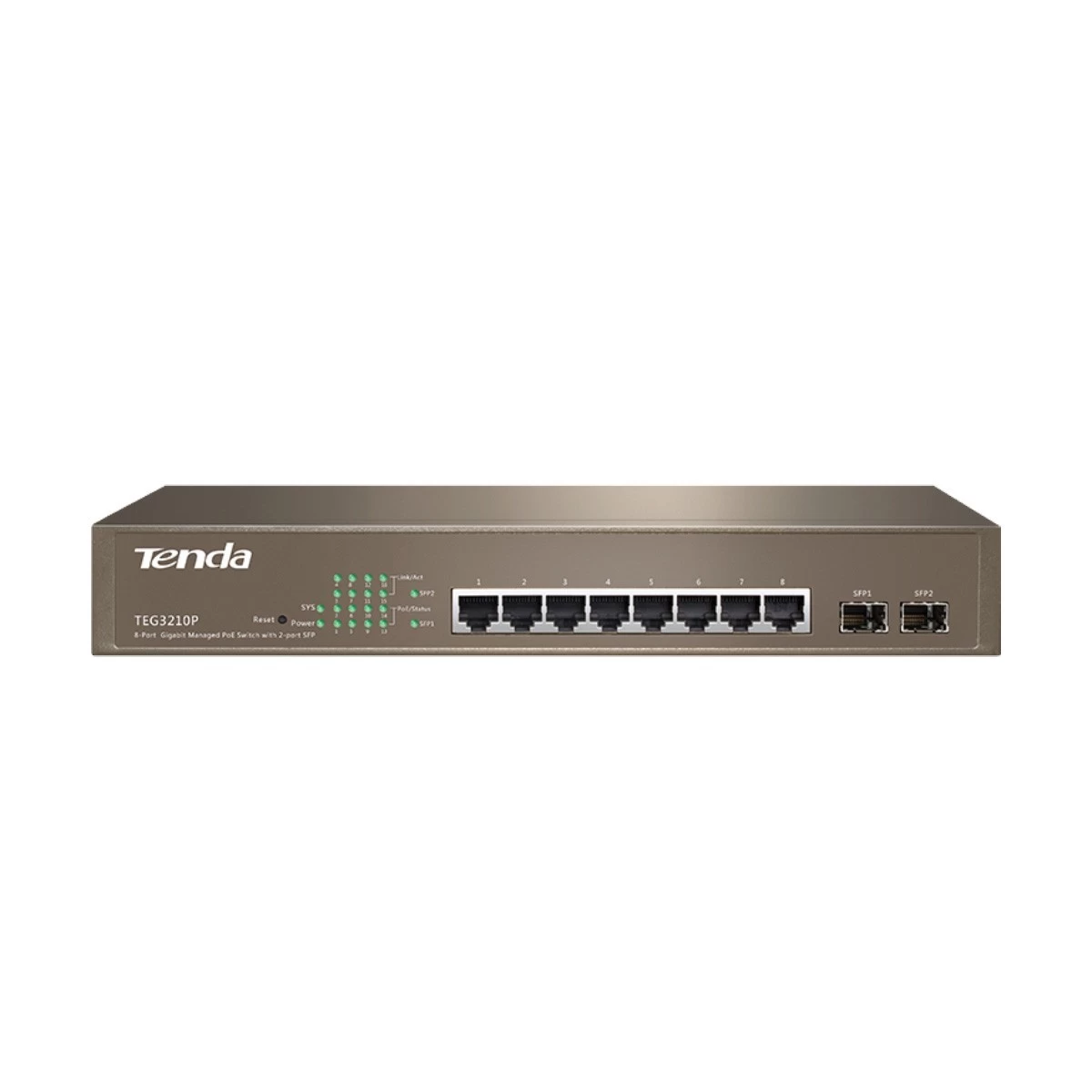

Tenda TEG3210P 10 Port (8 Gigabit PoE + 2SFP) Managed PoE Switch

Item: Tenda TEG3210P 10 Port (8 Gigabit PoE + 2SFP) Managed PoE Switch
Rating: 5
Author: Verified Buyer

3 reviews

Product Id: 29.05.744.08

This item is discontinued.

Quick Overview

Type - Network Switch
Number of Total Port - 10 Port
PoE - Yes
Manageability - Managed
Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.3ad
Data Transfer Rate - 10/100/1000 Mbps
Form Factor - Desktop
Body Color - Gray

Payment Method Shipping & Charge Order Procedure

General

Brand

Tenda

Model

Tenda TEG3210P

Type

Network Switch

Part No

TEG3210P

Ports & Slots

Number of Total Port

10 Port

SFP Port

PoE Port

Technical Info

PoE

Yes

Manageability

Managed

Interface(s)

8 x 10/100/1000Mbps RJ45 Ports(Data/PoE), 2 x 100/1000Mbps SFP Slots (Data) (Auto Negotiation/Auto MDI/MDIX)

Network Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.3ad

Data Transfer Rate

10/100/1000 Mbps

Switching Capacity

20Gbps

MTBF

100,000 Hours

Physical Description

Indicators

Link/Act, PoE Status, Power, System, PoE Max

Body Color

Gray

Form Factor

Desktop

Dimension

294 x 178.8 x 44 mm

Weight

1.8 Kg

Packet Contents

1 x Tenda TEG3210P, 1 x User manual

Power

Power Supply

AC 100 - 240V - 50/60Hz

Approx. Power Consumption

in full configuration <130W Power Supply 115W

Warranty

1 Year (Without Adapter)

Additional Info

Others

Throughput: 14.8Mpps. Capacity - Wire-speed forwarding: Support, Forwarding mode: Store-forward and cut-through, Mac Address Table: 8K. PoE Supply: Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 40W) PoE power type is end-span(12+, 36- line pair)

Specialty

PoE management: Support setup of PoE and power adjustable by priority; Support over temperature protection for PoE module; Support graphical management, detection of PD; equipment and setting of the power consumption; PoE control and schedule by hour/weekly basis. MAC table: Supports up to 10 VLAN IDs Port VLAN Supports up to 64 VLAN IDs 802.1Q VLAN Supports Voice VLAN. Security: IEEE 802.1X Port/MAC Based authentication Port Security Broadcast/Multicast/Unknown-unicast Storm Control. DHCP: DHCP Client DHCP Snooping DHCP Snooping option82. Link aggregation: IEEE 802.3ad LACP; Static Trunk Supports 2 groups of 8-Port trunk support. STP: STP/RSTP. IGMP Snooping: IGMP (v1/v2) Snooping; IGMP Fast Leave mode support. Port Mirroring: N: 1 port mirroring. QoS: 802.1p and DSCP priority re-marking; Flow control; Flexible queue scheduling algorithm can be set based on port and queue, support SP, WRR. Management and maintenance: Support configuration through CLI, Telnet; Support SNMP v1/v2/v3 and WEB-based management; Support PING, Tracert; Support loopback detection

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Tenda TEG3210P Network Switch In Bangladesh

TEG3210P / Switch / 8G+2SFP Managed PoE Switch

TEG3210P is the best choice for wireless and surveillance projects. Besides the useful management features, it also provides 8 10/100/1000 Base-T Ethernet ports and 2 separate 1000 Mbps Base-X Gigabit SFP slots. Ports 1~8 applies IEEE 802.3af PoE (15.4W) or 802.3at PoE+ (30W) compliance, up to 40W power output per PoE port, which can supply power to high-power PDs such as dual band/11AC devices. The switch can transmit data at the same time to AP, IP Camera or IP Phone via Cat.5 twisted-pair cables. In addition, it provides stronger safety protection system, improved QoS policy, multiple VLAN features and higher availability of maintenance. To sum up, Tenda 8G+2SFP Managed PoE Switch is an ideal and safe switch to set up your network.

What It Does

TEG3210P, it is the best choice for wireless and surveillance projects. Besides the useful management features, it also provides 8 10/100/1000 Base-T Ethernet ports and 2 separate 1000 Mbps Base-X Gigabit SFP slots. Ports 1~8 applies IEEE 802.3af PoE (15.4W) or 802.3at PoE+ (30W) compliance, up to 40W power output per PoE port, which can supply power to high-power PDs such as dual band/11AC devices. The switch can transmit data at the same time to AP, IP Camera or IP Phone via Cat.5 twisted-pair cables. In addition, it provides stronger safety protection system, improved QoS policy, multiple VLAN features and higher availability of maintenance. To sum up, Tenda 8G+2SFP Managed PoE Switch is an ideal and safe switch to set up your network.

Main Features

>>8 10/100/1000 Base-T Ethernet ports and 2 extra independent 1000Base-X Gigabit SFP ports.

>>Ports 1~8 support IEEE 802.3af/at PoE standard; up to 40W power output per PoE port

>>Allows and assures packets to be forwarded by all ports at full wire speed.

>>Supports VLAN, IGMP, QoS, DHCP Snooping, Telnet, etc.

>>With inducive lightening protection towards the power adapter and ports, and enterprise-level design of 1U(thickness)-steel casing and 13-inch rack; With the help of hangers, it can be installed on the standard rack.

PoE Performance

Tenda 8G+2SFP Managed PoE Switch has 8 Gigabit Ethernet ports and 2 SFP independent optical ports; Ports 1~8 support PoE (AT/AF) and up to 40W power output per PoE port.

Safe Network Management

Tenda 8G+2SFP Managed PoE Switch supports VLAN, IP+MAC Binding, QoS, DHCP Snooping, Telnet etc.

Power Supply Distance Extension

By Cat.5e twisted-pair cables, Tenda TEG3210P can transmit the power and data up to 150m .

What is the price of Tenda TEG3210P Network Switch In Bangladesh?

The price of Tenda TEG3210P Network Switch not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Tenda TEG3210P Network Switch from our website or visit our showrooms nearby.
