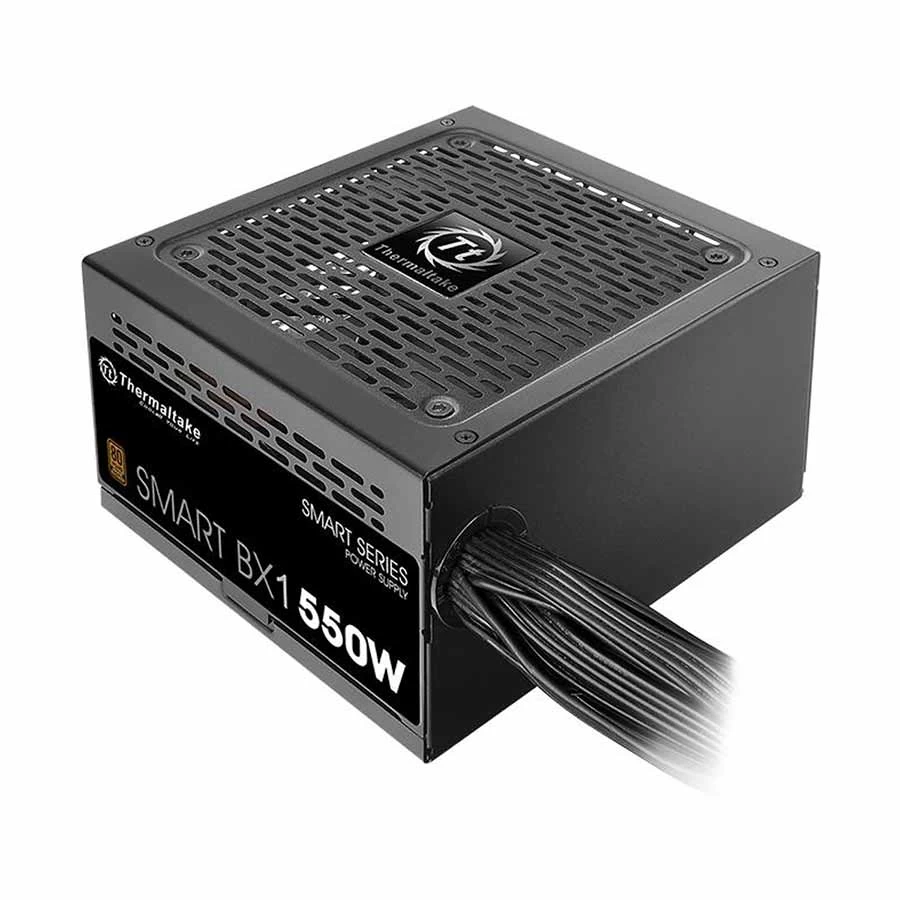

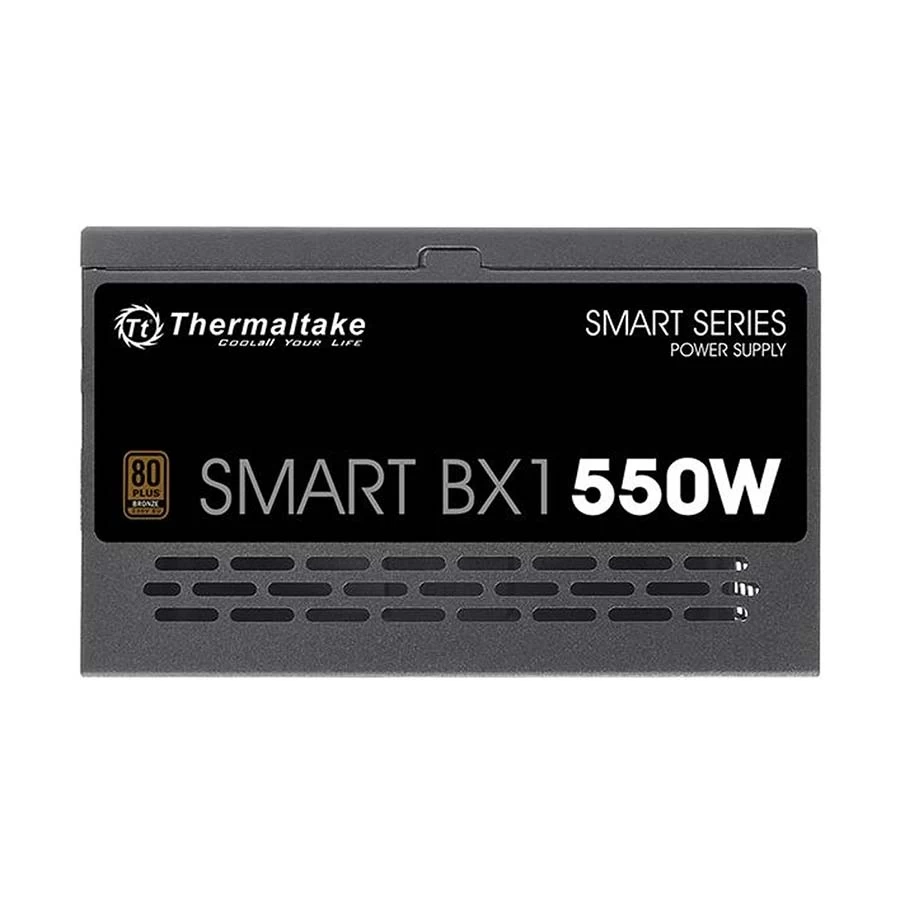

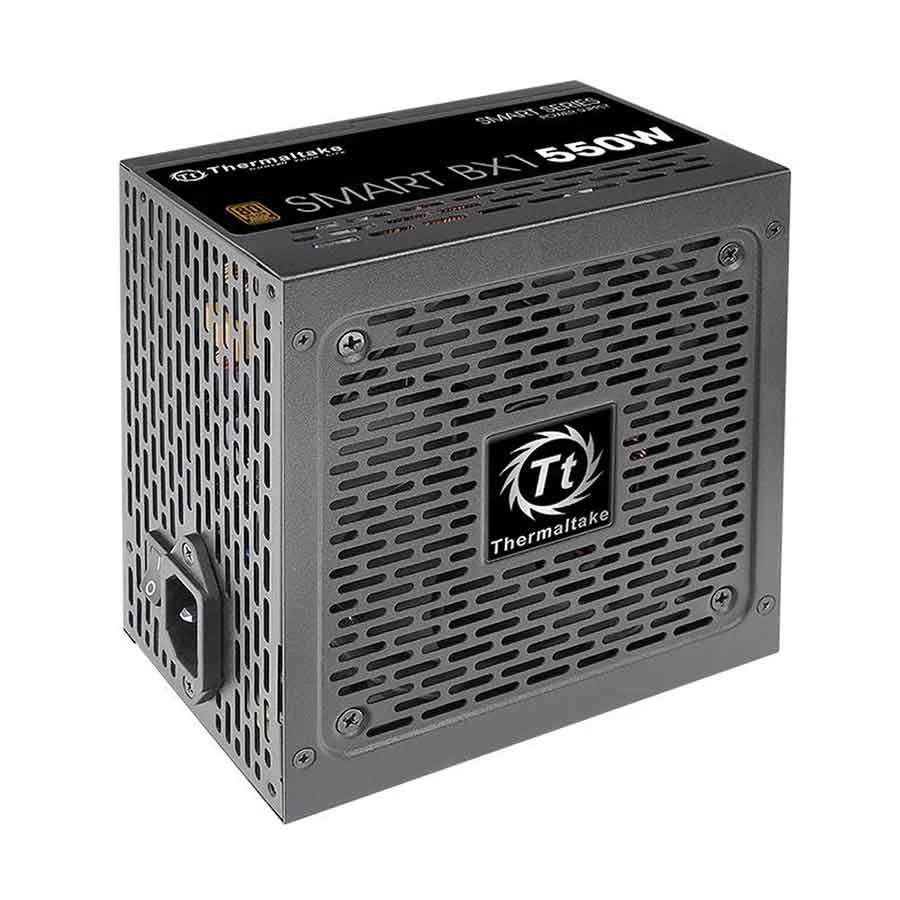

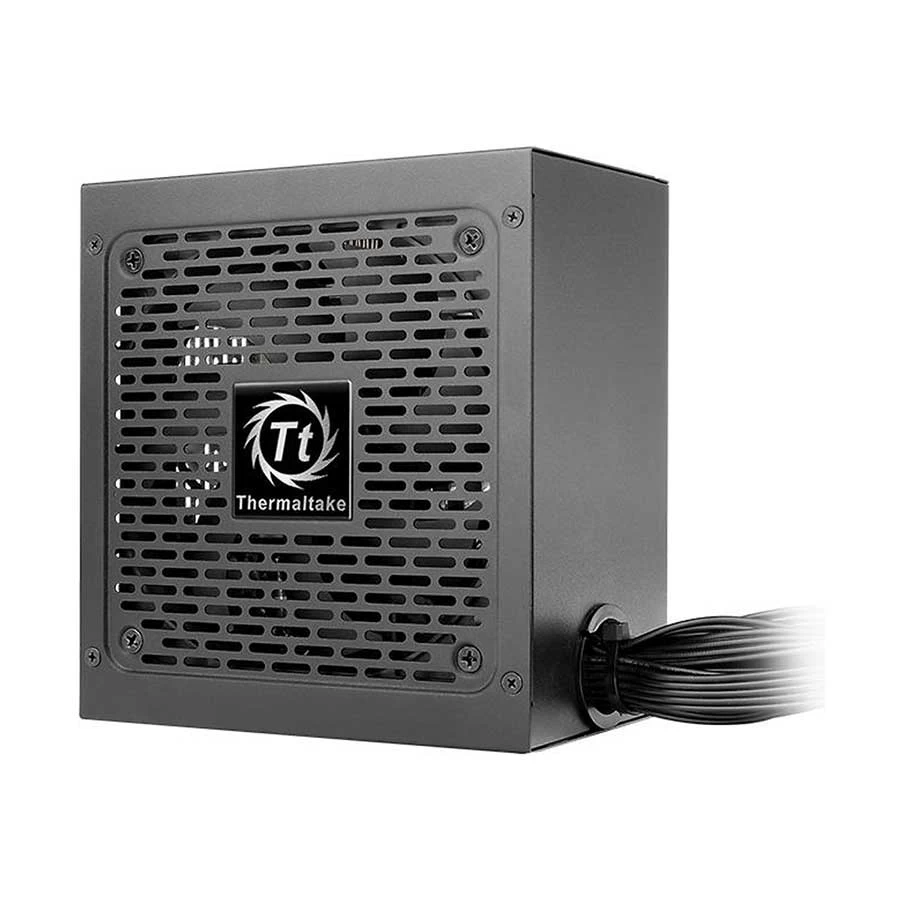

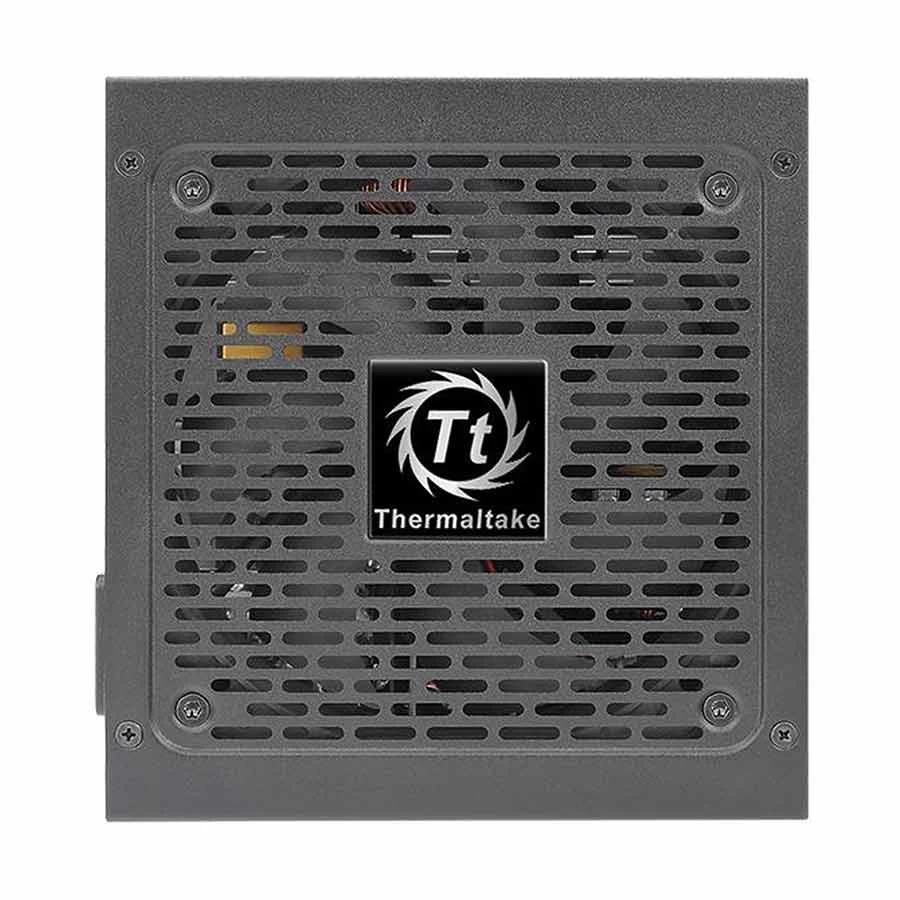

Thermaltake Smart BX1 550W ATX Non Modular Power Supply #PS-SPD-0550NNSABE-1
Product Id: 55.01.269.174
Brand
Thermaltake
Regular Price Tk 6,240
Monthly EMI Tk 520
Special Price Tk 5,800
Quick Overview
- PSU Category - Non Modular
- Type - ATX
- Maximum Power - 550 Watt
- Efficiency - 88% Efficiency
- Efficiency Rating - 80 Plus Bronze
General
Brand
Thermaltake
Model
Thermaltake Smart BX1
Series
Smart BX1
PSU Category
Non Modular
Type
ATX
Part No
PS-SPD-0550NNSABE-1
Cooling & Lighting
Fan Size
120mm
Lighting Effect
No
Lighting Type
Not Applicable
Fan Bearing
Hydraulic Bearing
Performance
Efficiency
88% Efficiency
Efficiency Rating
80 Plus Bronze
PFC (Power Factor Correction)
Active PFC
Power Good Signal
100-500 msec
Hold Up Time
> 16msec at 70% of full load
Protection
Over Voltage Protection (OVP)
Unmentioned
Over Power Protection (OPP)
Unmentioned
Over Current Protection (OCP)
Unmentioned
Over Temperature Protection (OTP)
Unmentioned
Short Circuit Protection (SCP)
Unmentioned
Under Voltage Protection (UVP)
Unmentioned
Connectors
ATX Main Connectors
1
PCIe Connectors
2
SATA Power Connectors
v
4-Pin Peripheral Connectors
4
Floppy Connectors
1
Power
Min. Power (Approx.)
480W
Maximum Power
550 Watt
Input AC
100V-240 VAC
Input Voltage
100V-240V
Input Frequency Range
50Hz-60Hz
Input Current
10A
Peak Output Capacity
660W
Operating Temperature
5 - 40 Degree C
Operating Humidity
20% to 85%, non-condensing
Storage Temperature
-40 - 55 Degree C
Storage Humidity
10% to 95%, non-condensing
Physical Description
Cable Type
Flat cable
MTBF
100,000 Hours
Form Factor
ATX
Dimensions
150 x 86 x 140mm
Color
Black
Warranty
Warranty Details
5 Year
Additional Info
Regulatory / Safety Approval
CE/CB/TUV/ UL/ FCC/ BSMI
Specialty
Low Ripple Noise, Premium Japanese Main Capacitor, High Amperage Single +12V Rail, Multiple Connectors.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Thermaltake Smart BX1 Power Supply In Bangladesh
Smart BX1 550W (230V)
The Smart BM1 series is 80 PLUS Bronze certified with 88% energy efficiency and is available in 450W - 750W power versions. The power supply is equipped with a 120 mm hydraulic fan, Japanese main capacitors and other premium components that help ensure: continuous and stable output at temperatures up to 40 ℃, almost silent operation and reliable performance. Thanks to a long, 5-year warranty, Smart BX1 is able to meet the needs of customers looking for a new power supply with all the latest functions.
Extremely quiet fan with 120 mm hydraulic bearing
The power supply is equipped with a 120 mm fan with hydraulic bearings and intelligent speed control to guarantee excellent cooling performance and almost silent operation.
Low ripple noise
All ripple is lower than 80 mV at +12 V and lower than 40 mV at +5 V or +3.3 V from 0% to 100% load, to ensure stable operation and to ensure the performance of components such as high-end cards graphic. This allows them to operate reliably for a longer time.
High-quality Japanese main capacitor
It ensures great durability and also offers the highest stability while remaining reliable.
Single +12V high current rail
A powerful single +12V line provides stable and reliable power to all computer components.
Brand - Thermaltake, Model - Thermaltake Smart BX1, Series - Smart BX1, PSU Category - Non Modular, Type - ATX, Min. Power (Approx.) - 480W, Maximum Power - 550 Watt, Input AC - 100V-240 VAC, Input Voltage - 100V-240V, Input Frequency Range - 50Hz-60Hz, Input Current - 10A, Fan Size - 120mm, Lighting Effect - No, Lighting Type - Not Applicable, Fan Bearing - Hydraulic Bearing, Efficiency - 88% Efficiency, 80 Plus/Efficiency Rating - 80 Plus Bronze, Over Voltage Protection (OVP) - Unmentioned, Over Power Protection (OPP) - Unmentioned, Over Current Protection (OCP) - Unmentioned, Over Temperature Protection (OTP) - Unmentioned, Short Circuit Protection (SCP) - Unmentioned, Under Voltage Protection (UVP) - Unmentioned, ATX Main Connectors - 1, PCIe Connectors - 2, SATA Power Connectors - 6, 4-Pin Peripheral Connectors - 4, Floppy Connectors - 1, PFC (Power Factor Correction) - Active PFC, Peak Output Capacity - 660W, Power Good Signal - 100-500 msec, Hold Up Time - > 16msec at 70% of full load, Cable Type - Flat cable, Operating Temperature - 5 - 40 Degree C, Operating Humidity - 20% to 85%, non-condensing, Storage Temperature - -40 - 55 Degree C, Storage Humidity - 10% to 95%, non-condensing, MTBF - 100,000 Hours, Form Factor - ATX, Dimension (W/H/D) - 150 x 86 x 140mm, Color - Black, Regulatory / Safety Approval - CE/CB/TUV/ UL/ FCC/ BSMI, Specialty - Low Ripple Noise, Premium Japanese Main Capacitor, High Amperage Single +12V Rail, Multiple Connectors., Part No - PS-SPD-0550NNSABE-1, Warranty - 5 year, Country of Origin - Taiwan, Made in/ Assemble - China
What is the price of Thermaltake Smart BX1 Power Supply In Bangladesh?
The price of Thermaltake Smart BX1 Power Supply starts from 5,800 . The price may vary due to your customization and product availability. You can buy Thermaltake Smart BX1 Power Supply from our website or visit our showrooms nearby.
