Thermaltake TR2 S 550W ATX Non Modular 80 Plus Standard 230V EU Certified Power Supply #PS-TRS-0550NPCWEU-2
Product Id: 55.01.269.177
Brand
Thermaltake
Regular Price Tk 5,530
Monthly EMI Tk 461
Special Price Tk 5,150
Quick Overview
- PSU Category - Non Modular
- Type - ATX 12V 2.3
- Maximum Power - 550 Watt
- Fan Speed - 1800 RPM
- Efficiency - 86% Efficiency
- Efficiency Rating - 80 Plus
General
Brand
Thermaltake
Model
Thermaltake TR2 S 550W
Series
TR2 S
PSU Category
Non Modular
Type
ATX 12V 2.3
Part No
PS-TRS-0550NPCWEU-2
Cooling & Lighting
Fan Size
120mm
Lighting Effect
No
Fan Speed
1800 RPM
Performance
Efficiency
86% Efficiency
Efficiency Rating
80 Plus
PFC (Power Factor Correction)
Active PFC
Power Good Signal
100-500 msec
Hold Up Time
16msec (minimum) within 60% load
Protection
Over Voltage Protection (OVP)
Unmentioned
Over Power Protection (OPP)
Unmentioned
Over Current Protection (OCP)
Unmentioned
Over Temperature Protection (OTP)
Unmentioned
Short Circuit Protection (SCP)
Unmentioned
Under Voltage Protection (UVP)
Unmentioned
Connectors
ATX Main Connectors
1
PCIe Connectors
2
SATA Power Connectors
5
4-Pin Peripheral Connectors
4
Floppy Connectors
1
Power
Min. Power (Approx.)
470W
Maximum Power
550 Watt
Input AC
7A, 50 Hz - 60 Hz, 230 Vac
Input Voltage
230 Vac
Input Frequency Range
50 Hz - 60 Hz
Input Current
7A
Peak Output Capacity
550 Watt
Operating Temperature
5 to +4 Degree C
Operating Humidity
20% to 85%,non-condensing
Storage Temperature
-40 to +55 Degree C
Storage Humidity
10% to 95%, non-condensing
Physical Description
MTBF
100000 Hours
Form Factor
ATX
Color
Black
Warranty
Warranty Details
3 year
Additional Info
Regulatory / Safety Approval
CE/CB/TUV
Others
Type - Intel ATX 12V 2.3, Efficiency - 82-86% efficiency @ 20-100% load, PCI-E 6+2pin - PCI-E 6+2pin x 2. Connectors - Main power connector (20+4 pin) x 1, ATX 12V (4+4 pin) x 1, 4-Pin Peripheral Connectors x 4, SATA 4-pin x 1, PCI-E (6+2 pin) x 2, Floopy 4-pin x 1.
Specialty
TR2 S Series TRS-0550P-2 550W 80 PLUS 230V Standard Certified APFC PSU. High-Quality Components, Single +12V Output.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Thermaltake TR2 S 550W Power Supply In Bangladesh
Thermaltake TR2 S 550W
Incorporating various high-quality components, the new TR2 S Series – models are rated from 350W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

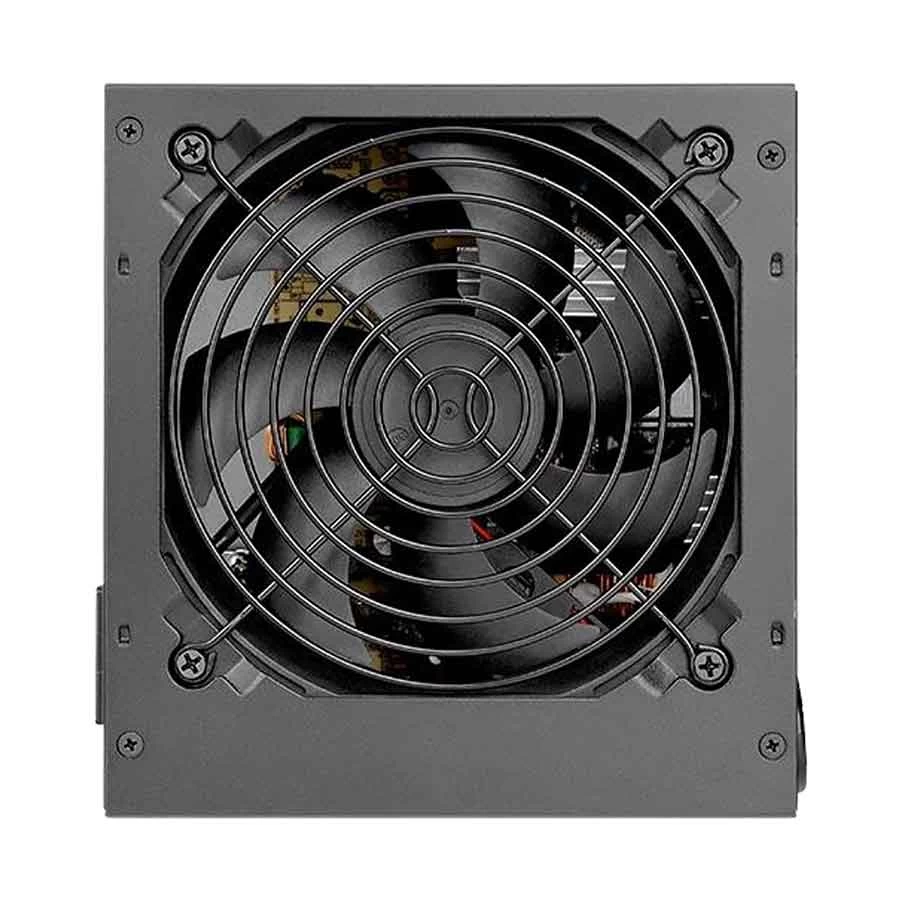

Ultra Quiet 120mm Fan
TR2 S Series adopts 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading.
Brand - Thermaltake, Model - Thermaltake TR2 S 550W, Series - TR2 S, PSU Category - Non Modular, Type - ATX 12V 2.3, Min. Power (Approx.) - 470W, Maximum Power - 550 Watt, Input AC - 7A, 50 Hz - 60 Hz, 230 Vac, Input Voltage - 230 Vac, Input Frequency Range - 50 Hz - 60 Hz, Input Current - 7A, Fan Size - 120mm, Lighting Effect - No, Fan Speed - 1800 RPM, Efficiency - 86% Efficiency, 80 Plus/Efficiency Rating - 80 Plus, Over Voltage Protection (OVP) - Unmentioned, Over Power Protection (OPP) - Unmentioned, Over Current Protection (OCP) - Unmentioned, Over Temperature Protection (OTP) - Unmentioned, Short Circuit Protection (SCP) - Unmentioned, Under Voltage Protection (UVP) - Unmentioned, ATX Main Connectors - 1, PCIe Connectors - 2, SATA Power Connectors - 5, 4-Pin Peripheral Connectors - 4, Floppy Connectors - 1, PFC (Power Factor Correction) - Active PFC, Peak Output Capacity - 550 Watt, Power Good Signal - 100-500 msec, Hold Up Time - 16msec (minimum) within 60% load, Operating Temperature - 5 to +4 Degree C, Operating Humidity - 20% to 85%,non-condensing, Storage Temperature - -40 to +55 Degree C, Storage Humidity - 10% to 95%, non-condensing, MTBF - 100000 Hours, Form Factor - ATX, Color - Black, Regulatory / Safety Approval - CE/CB/TUV, Others - Type - Intel ATX 12V 2.3, Efficiency - 82-86% efficiency @ 20-100% load, PCI-E 6+2pin - PCI-E 6+2pin x 2. Connectors - Main power connector (20+4 pin) x 1, ATX 12V (4+4 pin) x 1, 4-Pin Peripheral Connectors x 4, SATA 4-pin x 1, PCI-E (6+2 pin) x 2, Floopy 4-pin x 1., Specialty - TR2 S Series TRS-0550P-2 550W 80 PLUS 230V Standard Certified APFC PSU. High-Quality Components, Single +12V Output., Part No - PS-TRS-0550NPCWEU-2, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
What is the price of Thermaltake TR2 S 550W Power Supply In Bangladesh?
The price of Thermaltake TR2 S 550W Power Supply starts from 5,150 . The price may vary due to your customization and product availability. You can buy Thermaltake TR2 S 550W Power Supply from our website or visit our showrooms nearby.
