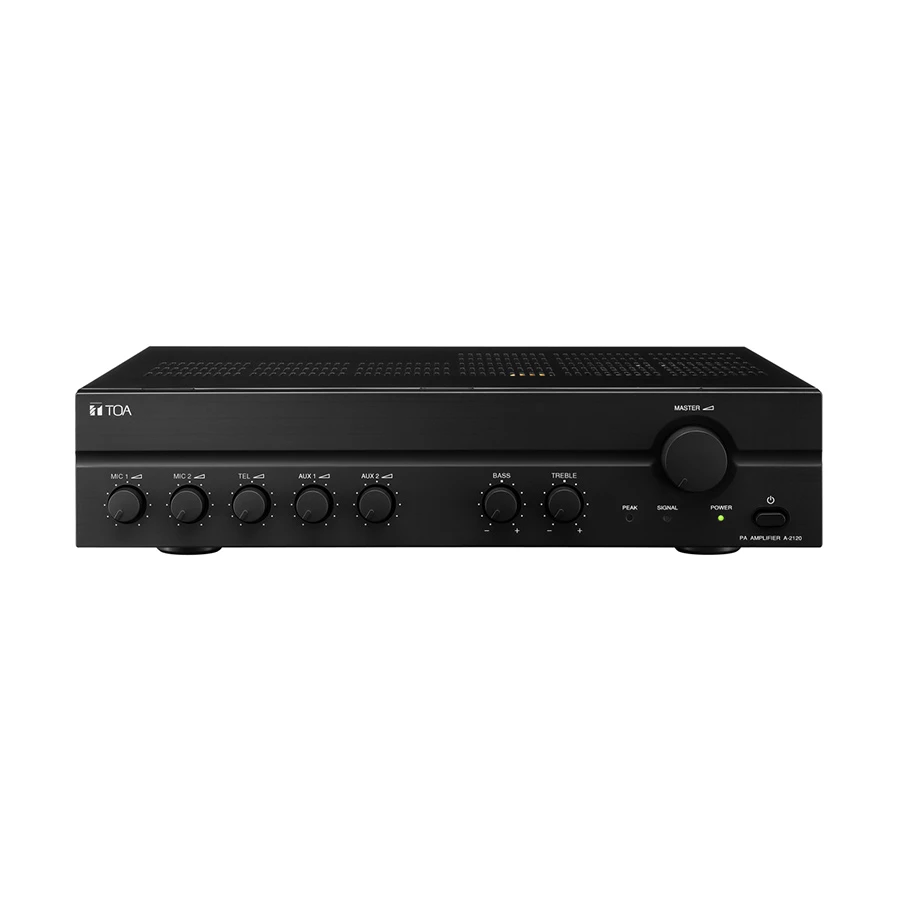

TOA A-2240 Mixer Power Amplifier

Product Id: 10.11.846.01

Brand TOA

Regular Price Tk 44,700 Monthly EMI Tk 3,725
Special Price Tk 41,500

Delivery in 7 days

Quick Overview

  • Channel - Not Applicable
  • Connectivity Mode - Wired
  • Memory Card Slot - No
  • USB Port - No
  • Remote Control - No
General
Brand
TOA

Model
TOA A-2240

Type
Amplifier


Audio Details
Channel
Not Applicable

RMS/Channel (Watt)
Not Applicable

RMS/Subwoofer (Watt)
Not Applicable

Signal to Noise Ratio (dB)
60dB or more

Frequency (Hz - KHz)
50Hz - 20KHz (-+3 dB)


Connectivity
Connectivity Mode
Wired

USB Port
No


Slots
Memory Card Slot
No


Technical Info
Microphone
No

Input Interface
2 x MIC Input , 1 x Telephone Input , 2 x AUX Input.

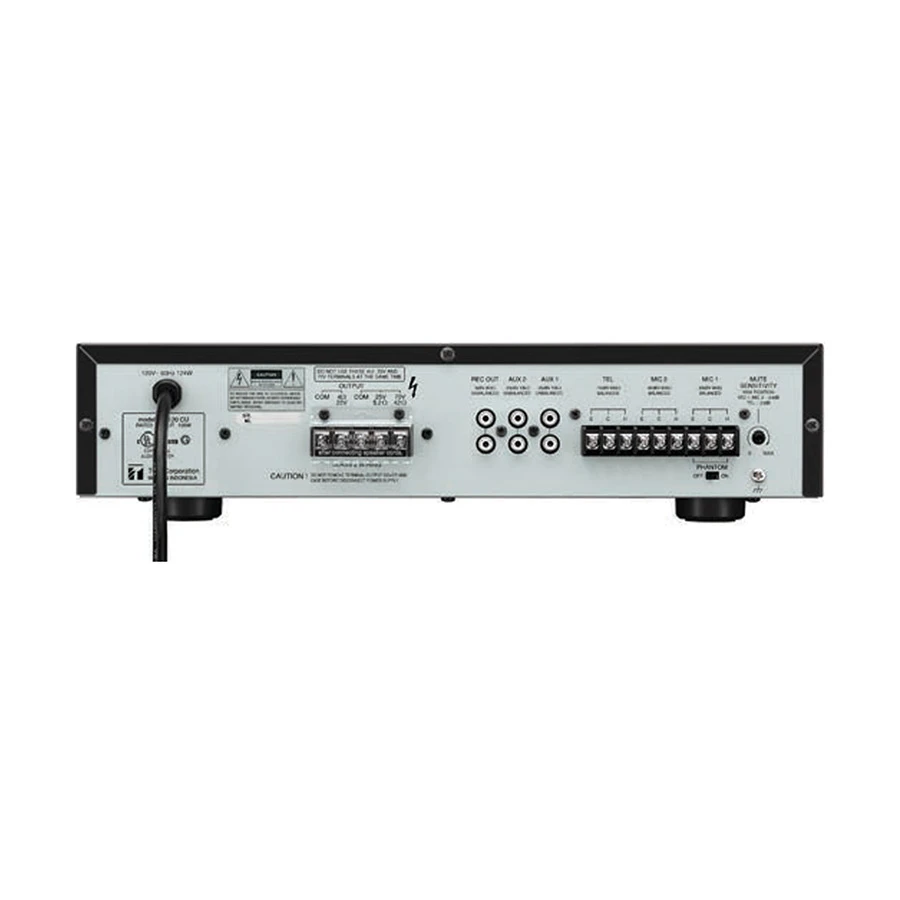

Output Interface
Speaker Out, Rec Out.


Performance
Lighting Effect
No

Waterproof
No


Power
Power Supply
120V AC

Approx. Power Consumption
238W


Physical Description
Remote Control
No

Dimensions
420 x 100.9 x 360.3mm

Weight (Kg)
13.2 kg

Color
Black


Warranty
Warranty Details
No warranty


Additional Info
Feature
TOA A-2240 MIXER/POWER AMPLIFIER offers versatile features and outstanding value for installed sound applications such as schools, offices, restaurants, shops, factories, houses of worship and large meeting rooms. The A-2240 (240 W) is manufactured with proven TOA quality and reliability.Features include five inputs, two auxiliary (stereo summing) line inputs. two balanced microphone inputs and one telephone input. Mic 1 input provides 21V DC phantom power (switchable ON/OFF). Speaker outputs consist of 70.7 V, 25 V and 4 ohm. An auxiliary line output can be used for recording or connection to an external power amplifier.

Others
Distortion: 1% or less at 1 kHz, 1/3 rated power. Input: MIC 1, 2: -60 dB*, 600 ohm, balanced, M3.5 screw terminal, distance between barriers: 8.3 mm (0.33 inch). TEL: -10 dB*, 10 k, balanced, M3.5 screw terminal, distance between barriers: 8.3 mm (0.33 inch). AUX 1, 2: -20 dB*, 10 kohm, unbalanced, RCA pin jack. Output: Speaker out: Balanced (floating), M3.5 screw terminal, distance between barriers: 8.3 mm (0.33 inch). High impedance: 21ohm (70 V), 2.6ohm (25 V). Low impedance: 4ohm (31 V). Rec out: 0 dB*, 600ohm, unbalanced, RCA pin jack. Phantom Power: DC +21 V (MIC 1). Tone Control: Bass: -+10 dB at 100 Hz. Treble: -+10 dB at 10 kHz. Muting: MIC 1, MIC 2, and TEL have a priority function to attenuate AUX1 and AUX 2, input signals by 30 dB. (Sensitivity level for MIC 1, MIC 2, and TEL adjustable), Priority level among MIC 1, MIC 2, and TEL is the same. Finish: Panel: ABS resin, black. Case: Steel plate, black.


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
