Digital Mixer Amplifier. Distortion: 1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025)), Tone Control Bass: -/+10 dB at 100 Hz, Treble: -/+10 dB at 10 kHz, Input Bus INPUT 1 - 4: BUS 1, INPUT 5 - 6: BUS 1/BUS 2 selectable, INPUT 7: BUS 2, Control Input 4 channels. no-voltage make contact input, open voltage: 35 V DC or less, Short circuit current: 10 mA or less, removable terminal block (4 pins), REMOTE VOLUME: Removable terminal block (4 pins), ZONE CONTROL IN: No-voltage make contact input, even voltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (4 pins), Control Output POWER REMOTE OUT: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins), EMERGENCY OUT: Open collector output, withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins), ZONE CONROL OUT: Open collector output, withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins), Chime 1-note, 2-note, or ascending, 4-note chime, or None selectable with switch setting, Indicator 5-point LED output level meter, Power LED, LAN connect LED, Priority LED, Emergency LED, Thermal protection LED, Over current protection indicator LED, CPU RUN LED, Error LED, Zone 1 LED, Zone 2 LED, Operating Temperature -10 Degree C to +40 Degree C, Operating Humidity 85 %RH or less (no condensation), Finish Panel: ABS resin, black, Case: Surface-treated steel plate, black, paint, Accessory: Power Cord (2 m) x 1, Audio Input Removable Terminal Plug (3.81 mm, 3 pins) x 6, Control I/O Removable Terminal Plug (3.81 mm, 4 pins) x 4, Remote Control Removable Terminal Plug (3.5 mm, 4 pins) x 2, Speaker Out Removable Terminal Plug (5 mm, 6 pins) x 1, Volume Control Cover x 4.
Specialty

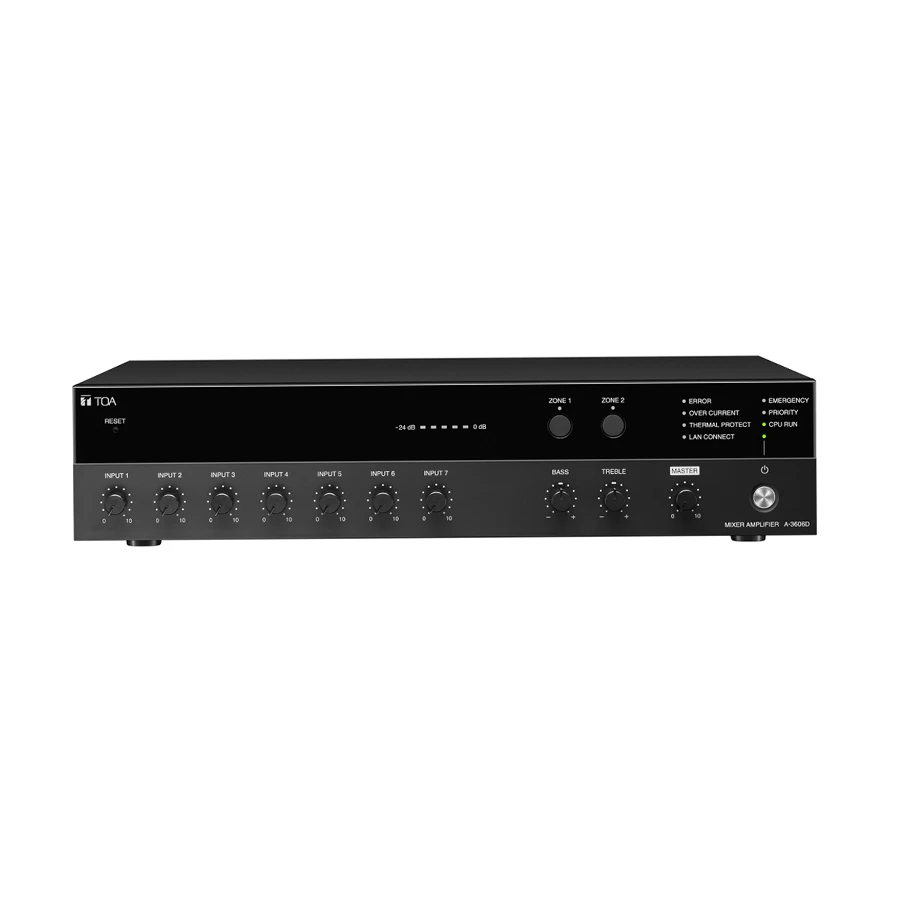

TOAs A-3600D series is a PA amplifier equipped with 4 microphone inputs and 3 auxiliary inputs and 2-channel zone selector. It also features Volume control function, Priority function, Chime function and Remote confirmation function. In addition, it is equipped with a 2-channel input BUS of BUS 1 and BUS 2, and the signal processing function. The A-3600D series is ideal for paging announcement and BGM applications in schools, offices and supermarkets.
