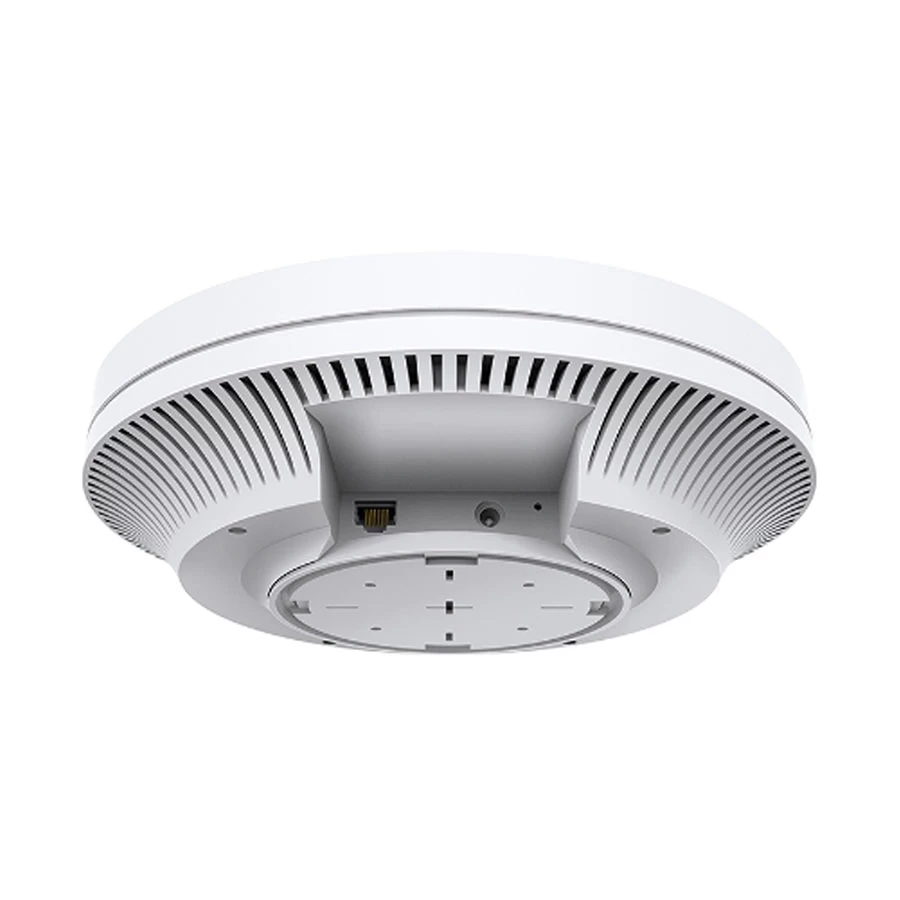

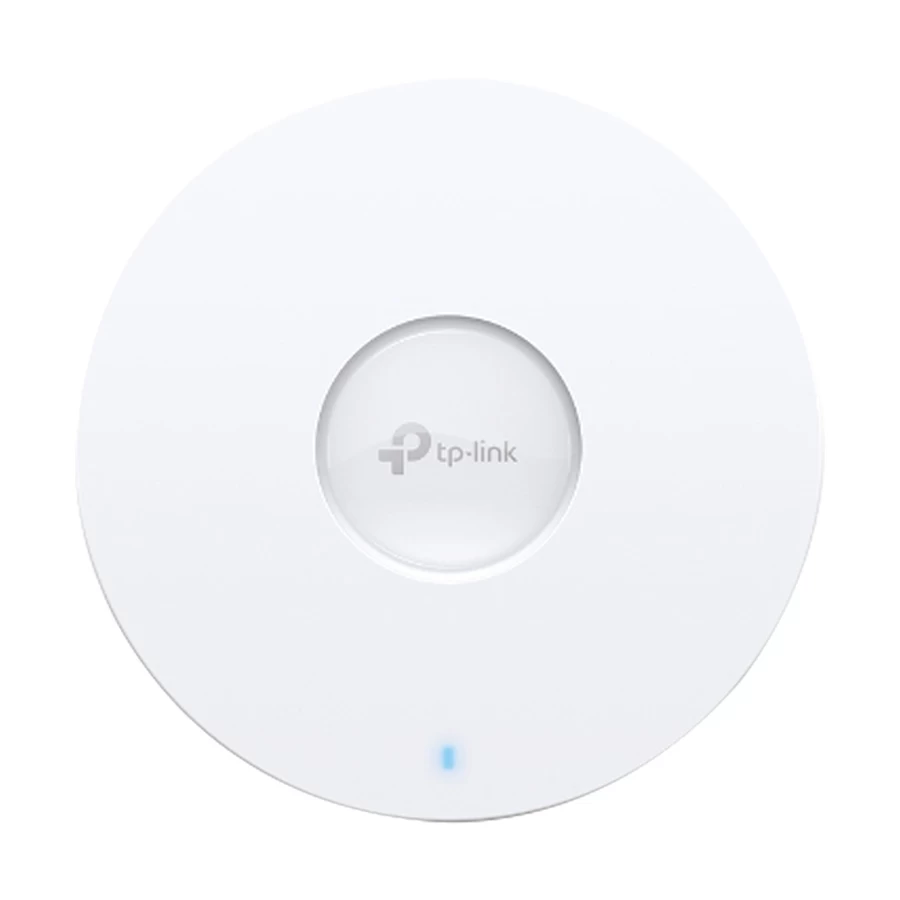

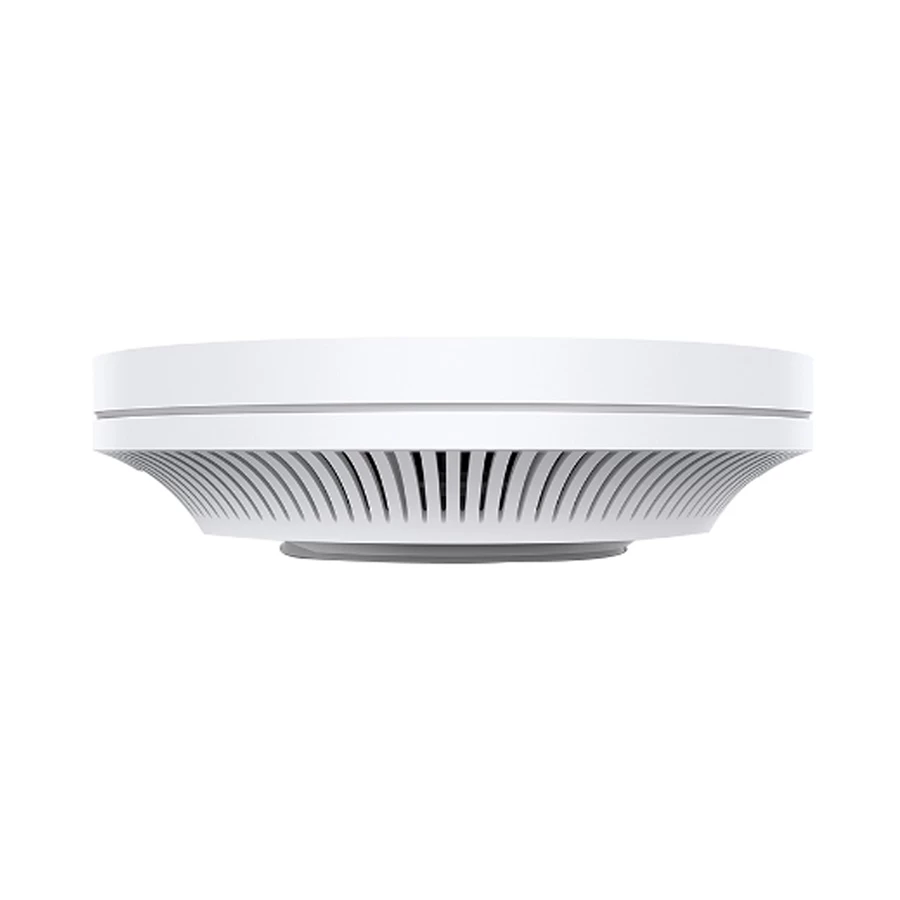

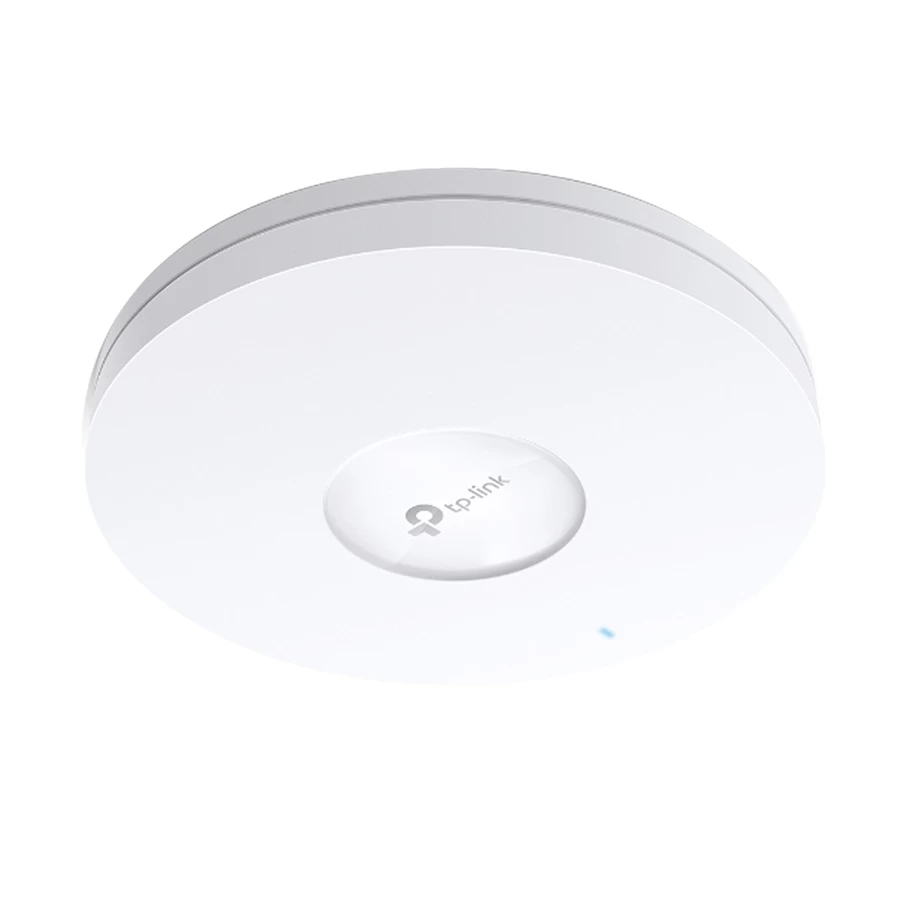

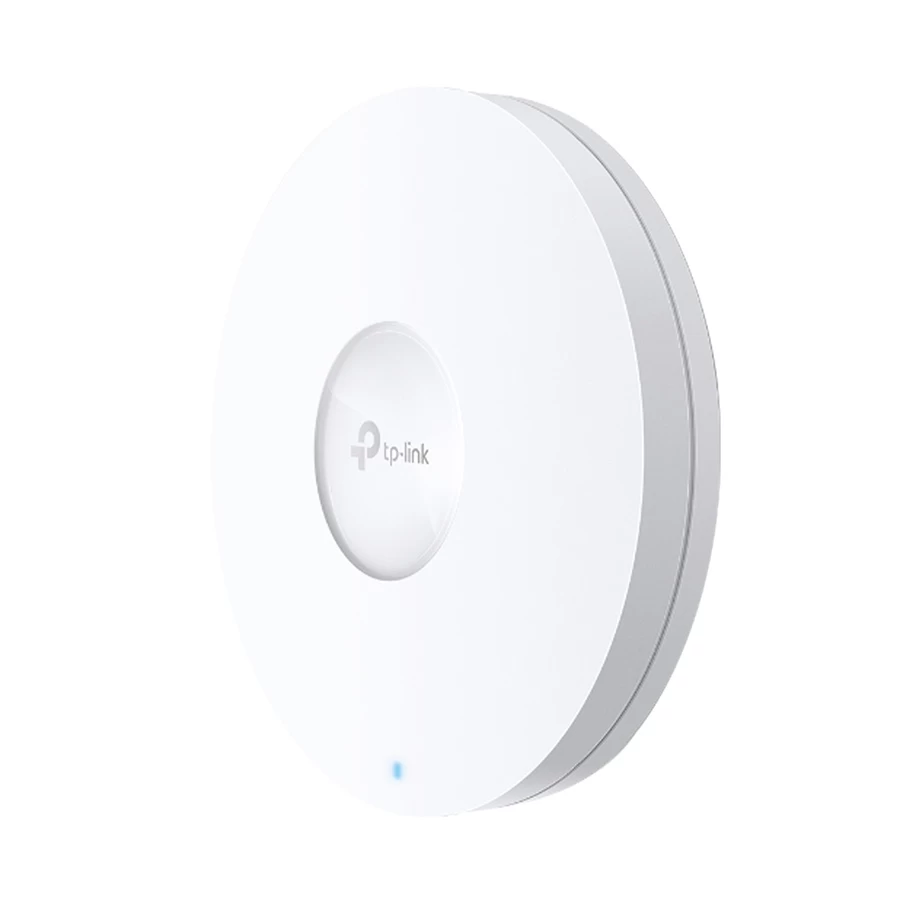

TP-Link EAP660 HD AX3600 Wireless Ceiling Mount Access Point
Product Id: 29.02.091.164
Brand
Tp-link
Regular Price Tk 22,130
Monthly EMI Tk 1,844
Special Price Tk 20,500
Quick Overview
- Data Transfer Rates - 3600 Mbps
- Network Standards - IEEE 802.11ax/ac/n/g/b/a
- Antenna (Type & Qty) - Unmentioned
- Interface(s) - 1 x 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
- Band - Dual
General
Brand
TP-Link
Model
TP-Link EAP660 HD
Hardware
Network Standards
IEEE 802.11ax/ac/n/g/b/a
Data Transfer Rates
3600 Mbps
LAN Network Standard
2.5 Gbps
Interface
Interface(s)
1 x 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Number of WAN Port
No
Number of LAN Port
1
Wireless
Security Protocols
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Band
Dual
Frequency
2.4 GHz , 5 GHz
Bluetooth
No
Antenna (Type & Qty)
Unmentioned
Antenna Gain
2.4 GHz: 4 x 4 dBi, 5 GHz: 4 x 5 dBi
Antenna Placement
Internal
MU-MIMO Support
Yes
Transmission Power
CE: <20 dBm(2.4 GHz, EIRP), <23 dBm(5 GHz, EIRP), FCC - <26 dBm (2.4 GHz), <26 dBm (5 GHz).
Management
Throughput
3600 Mbps
Max. Concurrent Clients
1000+
SSID Numbers
116
Management
Omada , Centralized Management, Cloud Access, Email Alerts, Management MAC Access Control, SNMP, System Logging Local/Remote Syslog, SSH, Web-based Management, L3 Management, Multi-site Management, Management VLAN, Zero-Touch Provisioning.
Web-Based Management
HTTP/HTTPS
Multi-Site Management
Yes
Management MAC Access Control
Yes
Remote Management
Local/Remote Syslog
Performance
OFDM/OFDMA
OFDM and OFDMA
Email Alerts
Yes
Technical Info
System Requierment
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Security
Wireless Security
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Electrical
Power Method
12 V DC
Max. Power Consumption
18.5W - 21.5W
Passive PoE Power Supply
802.3at PoE
Environmental
Operating Temperature
0 - 40 Degree C
Operating Humidity
10 - 90% RH non-condensing
Storage Temperature
-40 to 70 Degree C
Storage Humidity
5 - 90% RH non-condensing
Physical Description
Button
Reset
LED Indicators
LED ON/OFF
Mounting
Yes
Mount Options
Ceiling / wall mount
Dimensions
243 x 243 x 64mm
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Certification - CE, FCC, RoHS, SNMP - v1, v2c, v3, Cloud Access - Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Specialty
Ultra-Fast Wi-Fi 6 Speeds, High-Density Connectivity, Integrated into Omada SDN, Centralized Management, 2.5G Port, Seamless Roaming, PoE+ Support, Secure Guest Network.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of TP-Link EAP660 HD Access Point In Bangladesh
Brand - TP-Link, Model - TP-Link EAP660 HD, Network Standards - IEEE 802.11ax/ac/n/g/b/a, Data Transfer Rates (Mbps) - 3600 Mbps, Security Protocols - WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Band - Dual, Frequency - 2.4 GHz , 5 GHz, Interface - 1 x 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE), Number of WAN Port - No, Number of LAN Port - 1, Bluetooth - No, Throughput - 3600 Mbps, Antenna Type & Qty - Unmentioned, Antenna Gain - 2.4 GHz: 4 x 4 dBi, 5 GHz: 4 x 5 dBi, Antenna Placement - Internal, Max. Concurrent Clients - 1000+, OFDM/OFDMA - OFDM and OFDMA, MU-MIMO Support - Yes, Email Alerts - Yes, Button - Reset, LED Indicators - LED ON/OFF, Power Method - 12 V DC, Max. Power Consumption - 18.5W - 21.5W, Operating Temperature - 0 - 40 Degree C, Operating Humidity - 10 - 90% RH non-condensing, Storage Temperature - -40 to 70 Degree C, Storage Humidity - 5 - 90% RH non-condensing, Passive PoE Power Supply - 802.3at PoE, Transmission Power - CE: <20 dBm(2.4 GHz, EIRP), <23 dBm(5 GHz, EIRP), FCC - <26 dBm (2.4 GHz), <26 dBm (5 GHz)., SSID Numbers - 116, Management - Omada , Centralized Management, Cloud Access, Email Alerts, Management MAC Access Control, SNMP, System Logging Local/Remote Syslog, SSH, Web-based Management, L3 Management, Multi-site Management, Management VLAN, Zero-Touch Provisioning., Web-Based Management - HTTP/HTTPS, Multi-Site Management - Yes, Management MAC Access Control - Yes, Remote Management - Local/Remote Syslog, Mounting - Yes, Mount Options - Ceiling / wall mount, System Requirements - Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux, Dimension - 243 x 243 x 64mm, Others - Certification - CE, FCC, RoHS, SNMP - v1, v2c, v3, Cloud Access - Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller., Specialty - Ultra-Fast Wi-Fi 6 Speeds, High-Density Connectivity, Integrated into Omada SDN, Centralized Management, 2.5G Port, Seamless Roaming, PoE+ Support, Secure Guest Network., Warranty - 1 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
What is the price of TP-Link EAP660 HD Access Point In Bangladesh?
The price of TP-Link EAP660 HD Access Point starts from 20,500 . The price may vary due to your customization and product availability. You can buy TP-Link EAP660 HD Access Point from our website or visit our showrooms nearby.
