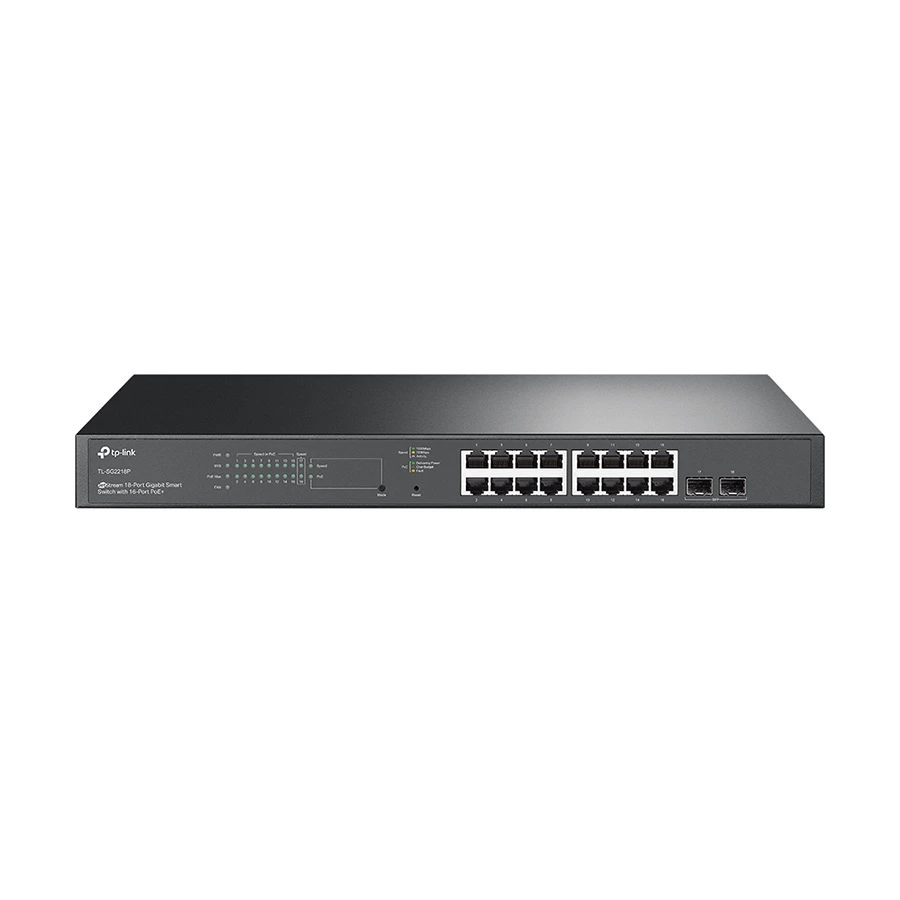

TP-Link Jetstream TL-SG2218P 18-Port Manageable Smart Switch

Product Id: 29.05.091.215

Brand Tp-link

Coming Soon

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 18 Port
  • PoE - Yes
  • Manageability - Managed
  • Network Standards - IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
  • Data Transfer Rate - 10/100/1000 Mbps
  • Form Factor - Rackmount
General
Brand
TP-Link

Model
TP-Link Jetstream TL-SG2218P

Type
Network Switch


Ports & Slots
Number of Total Port
18 Port

Gigabit Port
16

SFP Port
2

PoE+ Port
16


Technical Info
PoE
Yes

Manageability
Managed

Interface(s)
16 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 2 x Gigabit SFP Slots

Network Standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Data Transfer Rate
10/100/1000 Mbps

Connector Type
16 x 10/100/1000 Mbps RJ45 Ports, 2 x Gigabit SFP Slots

Switching Capacity
36Gbps

OS Supported
Microsoft Windows XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.


Physical Description
Fan/Fanless
Fan

Body Color
Gray

Form Factor
Rackmount

Dimension
440 x 180 x 44mm

Packet Contents
TL-SG2218P, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet


Power
Power Supply
100-240V AC, 50/60Hz

Approx. Power Consumption
181.4W (110 V/60 Hz) (with 150 W PD connected), 178.3W (220 V/50 Hz) (with 150 W PD connected)


Warranty
Warranty Details
2 Year (Without Adapter)


Additional Info
Others
Network Media: 10BASE T: UTP category 3, 4, 5 cable (maximum 100m), 100BASE TX/1000Base T: UTP category 5, 5e or above cable (maximum 100m), 1000BASE X: MMF, SMF, PoE Ports (RJ45): Standard: 802.3at/af compliant, PoE+ Ports: 16 Ports, PoE Power Budget: 150 W, Max Heat Dissipation: 619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected), 608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected), Packet Forwarding Rate: 26.78 Mpps, MAC Address Table: 8K, Packet Buffer Memory: 4.1 Mbit, Jumbo Frame: 9 KB, Quality of Service: 802.1p CoS/DSCP priority, 8 priority queues, Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control, Port/Flow based Rating Limit, Smoother Performance, Storm Control, Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown Unicast Control: L2 and L2+ Features: 16 IP Interfaces, Support IPv4/IPv6 Interface, Static Routing: 32 IPv4/IPv6 Static Routes, DHCP Server, DHCP Relay, DHCP Interface Relay, DHCP VLAN Relay, DHCP L2 Relay, Static ARP, Proxy ARP, Gratuitous ARP, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring: Port Mirroring, CPU Mirroring, One to One, Many to One, Flow Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP MED, Advanced Certification: CE, FCC, RoHS, Environment: Operating Temperature: 0 Degree C to 50 Degree, Storage Temperature: 40 Degree C to 70 Degree C, Operating Humidity: 10 - 90% RH non condensing, Storage Humidity: 5 - 90% RH non condensing.

Specialty
Centralized Management: Cloud access and Omada app for ultra convenience and easy management. Static Routing: Helps route internal traffic for more efficient use of network resources. Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more. Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
