Tp-Link VIGI NVR4032H 32 Channel NVR

Product Id: 127.04.091.12

Brand Tp-link

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Dual Stream Support - Unmentioned
  • Number HDD Interface (SATA) - 4 SATA
  • Video Recording Res. - 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
  • Max. Storage Support - 40TB
Brand
Tp-Link

Model
Tp-link VIGI NVR4032H

Type
NVR

Video Compression/Format
H.265+ / H.265 / H.264+ / H.264

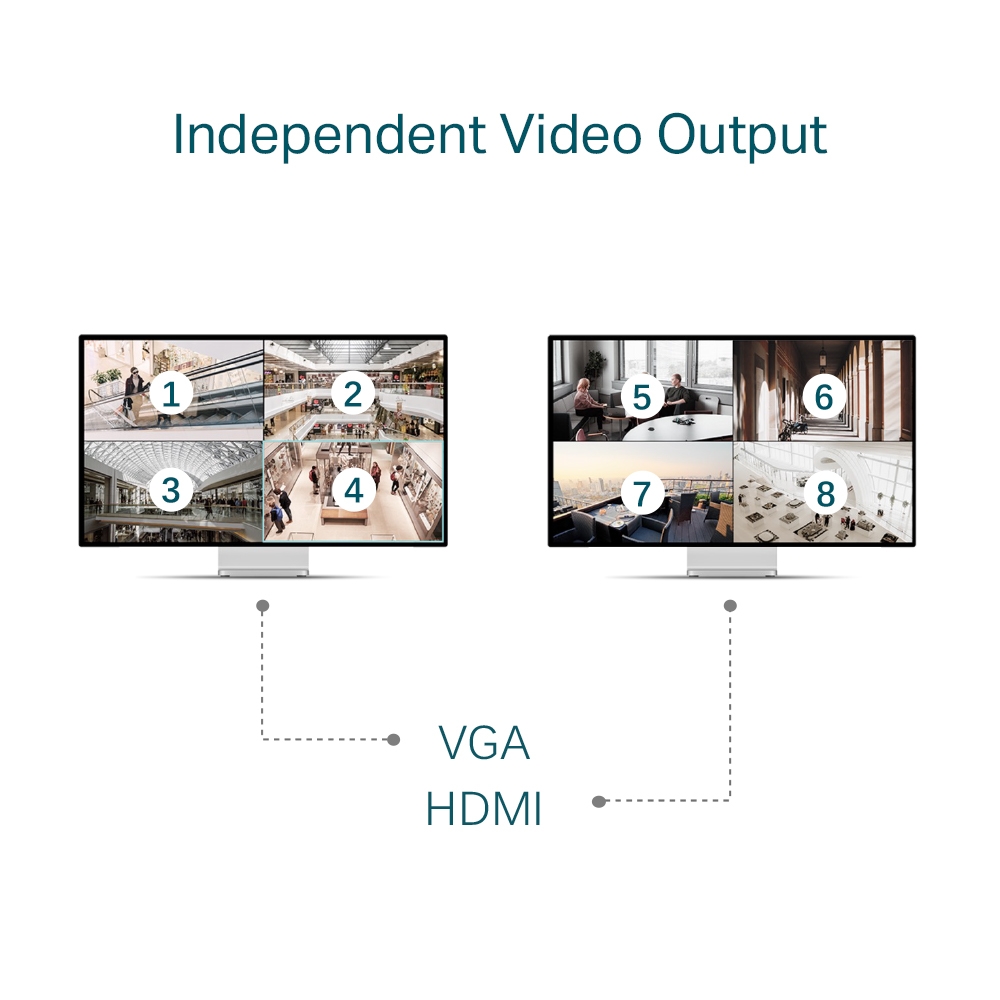

Video Output (VGA)
1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Video Output (HDMI)
1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Video Recording Res.
3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.

Max. Video Recording Res.
3840 x 2160

IP Video Input
32 Channel

Two way Audio
Yes

Dual Stream Support
Unmentioned

Live View / Playback Resolution
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Decoding Capability
16-ch 1080p (30 fps), 8-ch 4MP (30 fps), 4-ch 8MP (30 fps).

Synchronous Playback
16 Channel

Network Protocol
UPnP (Plug and Play), NTP (Network Timing)

Number HDD Interface (SATA)
4 SATA

Max HDD Support (GB,TB)
10TB

Max. Storage Support
40TB

Network Interface (RJ45)
2 x RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet

Serial Interface
1 x RS232

USB Port
1 x USB 3.0 (Rear), 2 x USB 2.0 (Front)

Incoming Bandwidth
320 Mbps

Outgoing Bandwidth
320 Mbps

Power Supply
100-240 VAC, 50 to 60HZ, 1.5A

Approx. Power Consumption
5W (Without Disk), 48W (With Disk)

Dimensions
440 x 330 x 44mm

Weight (Kg)
4.0 Kg (Net)

Smart Phone Supported
Android, iOS

Feature
Face Recognition, Smart Search by Motion and Object, 320 Mbps Incoming and Outgoing Bandwidth, Mass Storage: Supports 4 x SATA, up to 10 TB each, 1 HDMI and 1 VGA Interface, 16-Channel Simultaneous Playback, Plug & Play, Remote Monitoring, Two-Way Audio, ONVIF Ensures Compatibility.

Others

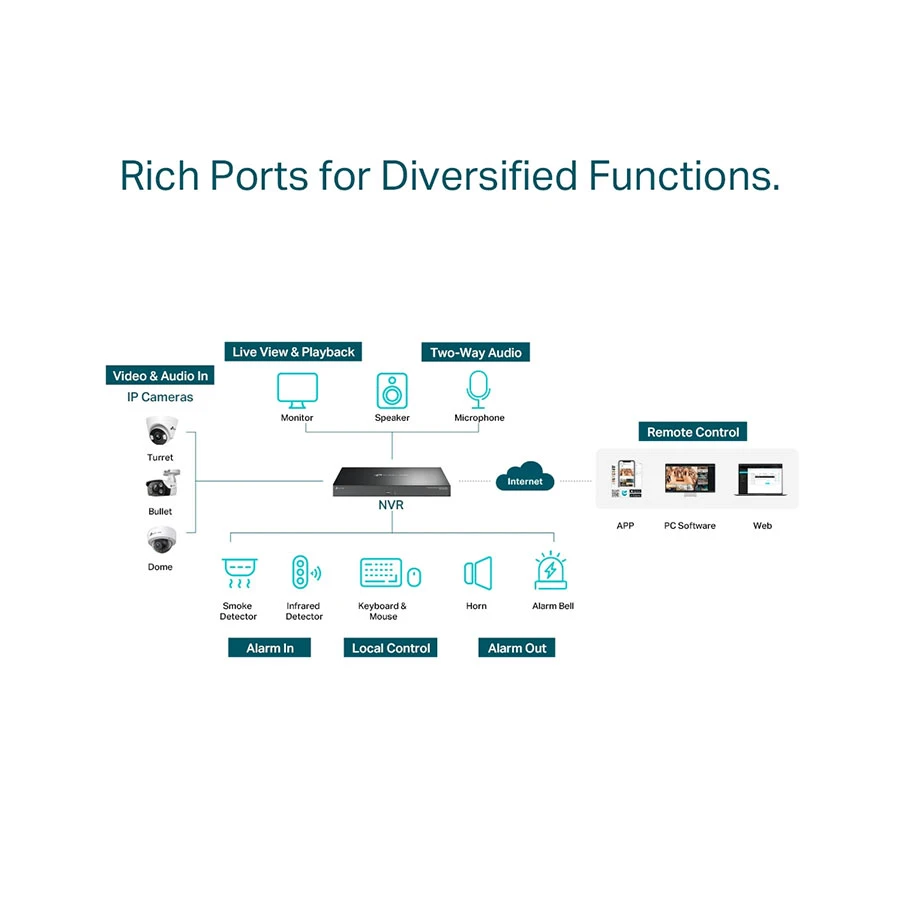

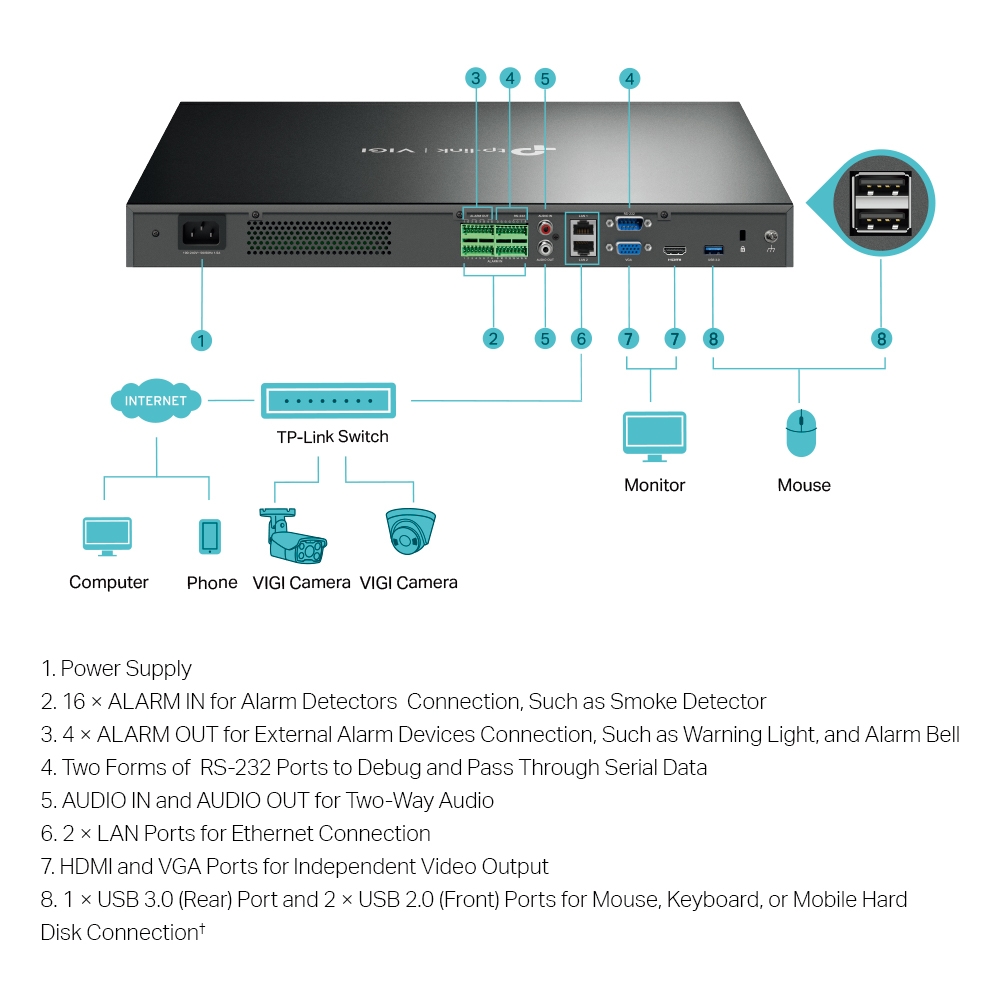

Interface: 2 x RJ45, 1 x Power Supply. 16 x ALARM IN for Alarm Detectors Connection, Such as Smoke Detector. 4 x ALARM OUT for External Alarm Devices Connection, Such as Warning Light, and Alarm Bell, 1 x RS232, 1 x AUDIO IN, 1 x AUDIO OUT. 1 x HDMI, 1 x VGA, 1 x USB 3.0 (Rear), 2 x USB 2.0 (Front) Ports for Mouse, Keyboard, or Mobile Hard Disk Connection. Interoperability: ONVIF, CGI, General Alarm: Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection. Anomaly Alarm: Video Loss, Offline and IP Conflict,Disk Exception, Login, Exception, Fan Exception. Alarm Linkage: Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm. Record Mode: Manual Recording, Scheduling Recording, Motion Detection, Recording. Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event, Playback. Backup Mode: Regular Backup, Video Clip Backup. Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off. Multi-View Dispaly: 1/4/6/8/9/16/25/32/36.

Package Includes
VIGI Network Video Recorder, Mouse, Installation Guide, Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks, Mounting Brackets, Screws and Rubber Feet.

Warranty Details
1 year

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
