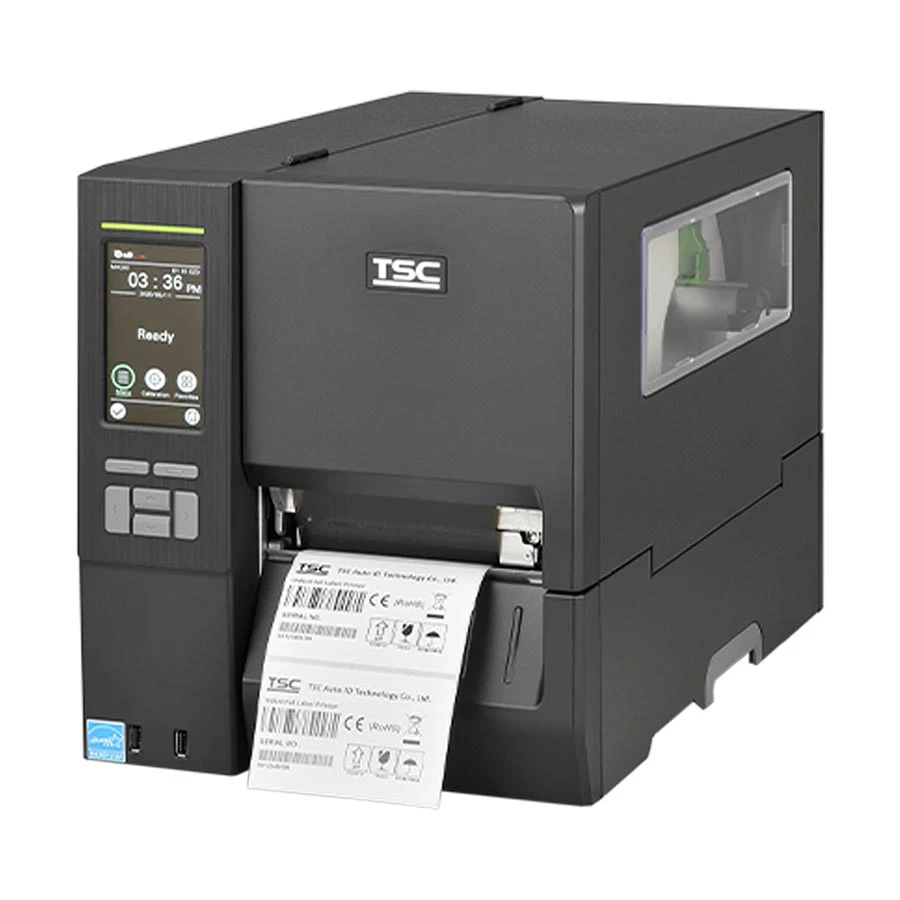

TSC MH241 (203 DPI) Industrial Label Barcode Printer

Item: TSC MH241 (203 DPI) Industrial Label Barcode Printer
Rating: 1
Author: shohan

Product Id: 153.03.560.11

Coming Soon

Quick Overview

Type - Barcode Label Printer
Cutter - Unmentioned
Max. Print Speed - 356 mm/sec
Print Length - 25,400 mm
Paper/Media Types - Continuous, die-cut, black mark (Bottom side or top side black mark), fan-fold, notch, perforated, tag, care label (outside wound)
Tape Size - Unmentioned
Maximum Tape Width - Unmentioned
Interface (Built-in) - USB, LAN, Serial

Payment Method Shipping & Charge Order Procedure

Brand

TSC

Model

TSC MH241

Type

Barcode Label Printer

Housing color

Black

Printing Method

Thermal Transfer & Direct Thermal

Cutter

Unmentioned

Max. Print Speed

356 mm/sec

Paper/Media Types

Continuous, die-cut, black mark (Bottom side or top side black mark), fan-fold, notch, perforated, tag, care label (outside wound)

Tape Size

Unmentioned

Maximum Tape Width

Unmentioned

Screen Type

3.5 Inch color display

Screen Resolution

320 x 240

Memory

256MB

Storage

512MB

Interface (Built-in)

USB, LAN, Serial

Housing Dimensions

276 x 326 x 502mm

Weight (Kg)

15.60 kg

Color Ribbon Supported

Warranty Details

1 Year Service (No Warranty for Print Head)

General

Brand

TSC

Model

TSC MH241

Type

Barcode Label Printer

Technical Info

Cutter

Unmentioned

Resolution

203 dpi

Screen Type

3.5 Inch color display

Screen Resolution

320 x 240

Print Performance

Printing Method

Thermal Transfer & Direct Thermal

Max. Print Speed

356 mm/sec

Print Length

25,400 mm

Max. Print Width

104 mm

Direct Printing

Unmentioned

Paper Information

Paper/Media Types

Continuous, die-cut, black mark (Bottom side or top side black mark), fan-fold, notch, perforated, tag, care label (outside wound)

Paper Thickness

0.06 - 0.28 mm (2.36 - 11 mil)

Tape Size

Unmentioned

Maximum Tape Width

Unmentioned

Max. Label Length

25,400mm

Storage & Interface

Memory

256MB

Memory Type

SDRAM

Storage

512MB

Storage Type

Flash

Interface (Built-in)

USB, LAN, Serial

Main Features

Font Styles

8 alpha-numeric bitmap fonts, Monotype Image true type font engine with CG Triumvirate Bold Condensed scalable font

Bar-codes Types

1D (Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post), 2D (PDF-417, Maxicode, DataMatrix, QR code, Aztec)

Software

Printer Language

Printer language TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)

Power

Power Source/ Power Consumption

Input: AC 100-240V, 4-2A, 50-60Hz, Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W

Operating Temperature

0 Degree C - 40 Degree C

Operating Humidity

25 - 85% non-condensing

Storing/Storage Temperature

-40 Degree C - 60 Degree C

Physical Description

Housing color

Black

Housing Dimensions

276 x 326 x 502mm

Weight (Kg)

15.60 kg

Color Ribbon Supported

Warranty

Warranty Details

1 Year Service (No Warranty for Print Head)

Additional Info

Specialty

4-Inch Performance Industrial Printers.

Others

Enclosure: Die-cast print mechanism and base with bi-fold metal cover with large clear media view window, Label roll capacity: 203.2 mm, Ribbon: 600 m long, max. O.D. 90 mm, 1inch core (ink coated outside or inside), Ribbon width: 25.4 mm ~ 114.3 mm, Processor: Processor 32-bit RISC CPU, LCD display/ Operation buttons: 6 operation buttons, 1 LED (with 2 LEDs Green & Red), Sensors: Gap transmissive sensor (position adjustable), Black mark reflective sensor (Bottom or Top black mark sensor switchable and position adjustable), Head open sensor, Ribbon encoder sensor, Ribbon end sensor. Font & barcode rotation: 0, 90, 180, 270 degree, Media core diameter: 38.1 mm / 76.2 mm, Safety regulation: FCC Class A, CE Class A, RCM Class A, UL, cUL, TUV, CCC, KC, BIS, BSMI, EAC, Argentina S mark, Mexico CoC, ENERGY STAR, Environmental concern: Comply with RoHS, WEEE.

Details

Features of TSC MH241 Label Printer In Bangladesh

Sophisticated TSC Sense Care
The TSC TPH Care Mechanism offers an advanced level of auto-detection ensuring real-time printhead health status, to monitor and prevent down. In addition, the MH241 series supports various media with a pre-printed black mark on top or bottom sides by user’s selection in the panel menu.

Dynamic Remote Printer Management
SOTI Connect and TSC Console provide enterprise remote printer management on multiple tasks to reduce maintenance costs and avoid downtime of business-critical devices.

Multi-Connectivity
The MH241 series offers GPIO to support common applicators and emulations along with an optional 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module.

Highly Adaptable to Various Media
MH241 printers can adapt to various media lengths and widths. With accurate printing positioning, the MH241 and MH241T are capable of peeling off minimum of 0.5-inch labels in length. Additionally, the mechanism for fine adjustment to avoid ribbon wrinkles and ensures label print quality.

Brilliant User Experience
The MH241T and MH241P can easily adjust the media near-end sensor to detect the media and remind users to change the media roll on color GUI display (Media near the end). The MH241 series allows users to easily replace printhead and platen roller without the need for specific tools.

What is the price of TSC MH241 Label Printer In Bangladesh?

The price of TSC MH241 Label Printer not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy TSC MH241 Label Printer from our website or visit our showrooms nearby.
