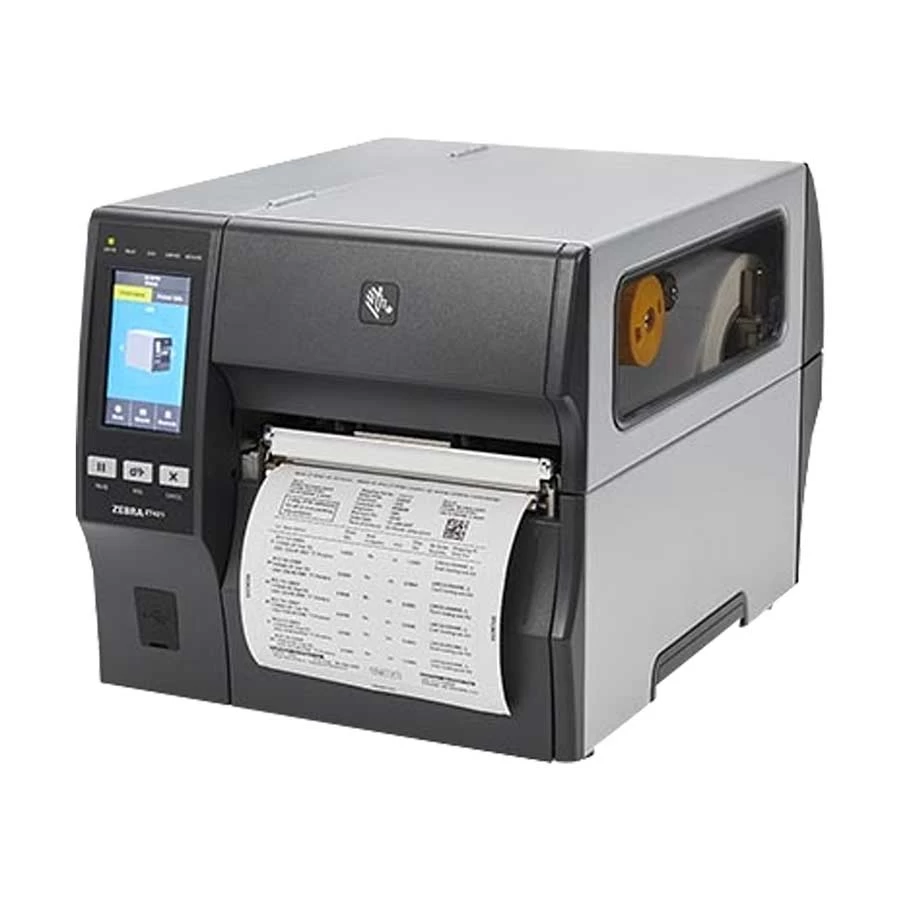

Zebra ZT421 Industrial Barcode Label Printer (6 inch/168 mm)

Product Id: 153.03.703.24

Brand Zebra

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Cutter - Manual
  • Interface (Built-in) - USB, LAN, RS232
  • Max. Print Speed - 305 mm/sec
  • Maximum Tape Width - 174 mm
  • Tape Size - 81.3 mm
  • Type - Barcode Label Printer
General
Brand
Zebra

Model
Zebra ZT421

Type
Barcode Label Printer


Technical Info
Cutter
Manual

Resolution
300 dpi

Screen Type
4.3 Inch Color Touch Display


Print Performance
Printing Method
Thermal Transfer & Direct Thermal

Max. Print Speed
305 mm/sec

Print Length
1143mm

Max. Print Width
168mm

Direct Printing
No


Paper Information
Paper/Media Types
Continuous, die-cut, notch, black-mark

Paper Thickness
0.0023 Inch (0.058 mm) to 0.010 Inch (0.25 mm)

Paper Sensor
Dual Media sensors

Tape Size
81.3 mm

Maximum Tape Width
174 mm

Max. Label Length
991 mm


Storage & Interface
Memory
256MB

Storage
512MB

Storage Type
Flash

Interface (Built-in)
USB, LAN, RS232


Main Features
Font Styles
Asian and other international scalable and smooth bitmapped fonts

Mirror Printing
Yes

Vertical Printing
<+ - 0.039 Inch (+ - 1.0 mm) on non-continuous media

Bar-codes Types
Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A / B / C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code. 2D Barcodes: Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec.


Software
Printer Language
Resident ZPL, ZPL II and EPL


Power
Power Source/ Power Consumption
100-240VAC, 50-60Hz

Operating Temperature
Thermal transfer: 40 Degree to 104 Degree F (5 Degree to 40 Degree C), Thermal direct: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)

Operating Humidity
20% to 85% non-condensing R.H.

Storing/Storage Temperature
40 Degree to 140 Degree F (-40 Degree to 60 Degree C)

Storing/Storage Humidity
5% to 85% non-condensing R.H.


Physical Description
Housing color
Black

Body Material
Metal

Weight (Kg)
18.14 Kg


Warranty
Warranty Details
1 Year Service (Without Adapter)


Additional Info
Specialty
Media Support: Dual media sensors - transmissive and reflective, 3 Inch media supply hanger, Auto calibration - printer calibrates when printer is turned on or when printhead is closed. Auto-switching 100-240V power supply.

Others
Dot Size: 0.0033 x 0.0039 Inch (0.084 x 0.099mm), Programmable Print Speeds: 2.4 Inch Through 10 Inch (61 - 254mm) in 1 Inch Increments, Ribbon Width: 2.00 Inch (51 mm) to 6.85 Inch/ 174 mm, Maximum Ribbon Length: 1476 ft (450 m), Maximum Ribbon Roll Size: 450 m: 3.2 Inch (81.3 mm) O.D. on a 1.0 Inch (25.4 mm) I.D. core, Ribbon Wound Ink-side Out. Maximum Non-continuous Label Length: 39 Inch (991 mm), Media Web Width (Label and Liner): 2.00 Inch (51 mm) to 7.0 Inch (178 mm) Tear / Cutter, 2.00 Inch (51 mm) to 6.75 Inch (171 mm) Peel / Rewind, Minimum Label Length: Tear-off mode: 0.5 Inch (12.7 mm), Peel mode: 0.5 Inch (12.7 mm), Rewind mode: 0.5 Inch (12.7 mm), Cutter: 1.00 Inch (25.4 mm), Media Thickness (Label and Liner): 0.0023 Inch (0.058 mm) to 0.010 Inch (0.25 mm), Maximum Media Roll Dimensions: 8.0 Inch (203 mm) O.D. on a 3 Inch (76 mm) I.D. core. Communication: USB 2.0, high speed, RS-232 Serial (RS-232C with DB9F connector; Configurable baud rate (2400 - 115,200kB), parity, and data bits. Stop bits at 1 or 2; Software (XON/XOFF), hardware (DTR/DSR or RTS/CTS) communication handshake protocols). 10/100 Ethernet: Supports networks internally integrated option that enables the use of Webview and Alert features. Bluetooth 4.1 (including Apple), Dual USB Host

Warranty
1 Year

Country Of Origin
USA

Made in/ Assemble
Mexico/Singapore/China (or Country may vary by Shipment)


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
