Ugreen Revodok Max 313 U709 (25085EU) Type-C Female to HDMI, DP, Tri USB, Tri USB-C (Thunderbolt 4), TF, SD, 3.5mm & LAN Female Gray Docking Station #25085EU
HDMI, DP, Tri USB, Tri USB-C (Thunderbolt 4), TF, SD, 3.5mm & LAN Female
Side 2 Port Type
Female
Side 2 Port Name
Multiport
Length.
0
USB Quantity
6
Color
Gray
Dimension
190 x 85 x 28.5mm
Weight (gm)
1521 gm
Warranty Details
1 year
General
Brand
Ugreen
Model
Ugreen Revodok Max 313 U709
Type
Dock
Part No
25085EU
Connectivity
Port Side-1
Type-C Female
Side 1 Port Type
Female
Side 1 Port Name
USB-C
Port Side-2
HDMI, DP, Tri USB, Tri USB-C (Thunderbolt 4), TF, SD, 3.5mm & LAN Female
Side 2 Port Type
Female
Side 2 Port Name
Multiport
Interface(s)
Type-C Female, HDMI, DP, Tri USB, Tri USB-C (Thunderbolt 4), TF, SD, 3.5mm & LAN Female
USB Quantity
6
Networking.
10/100/1000Mbps
Performance
Data Transfer Rates
40Gbps (TBT Max.)
Technical Info
Resolution
7680 x 4320
Charging Watt (Max.)
140W
Compatibility
Compatible for
Widely Compatible: The Thunderbolt 4 Hub is compatible with most Thunderbolt 4, Thunderbolt 3, USB4, or USB-C computers or tablets, including Macbooks(macOS 11.4 & above), Windows laptops(Windows 10 & above), iPads, or other tablets with USB-C ports.
OS Compatibility
Windows 10 & above, macOS 11.4 & above
Physical Description
Length.
0
Color
Gray
Dimension
190 x 85 x 28.5mm
Weight (gm)
1521 gm
Package Content
UGREEN 13-in-1 Docking Station
Warranty
Warranty Details
1 year
Additional Info
Feature

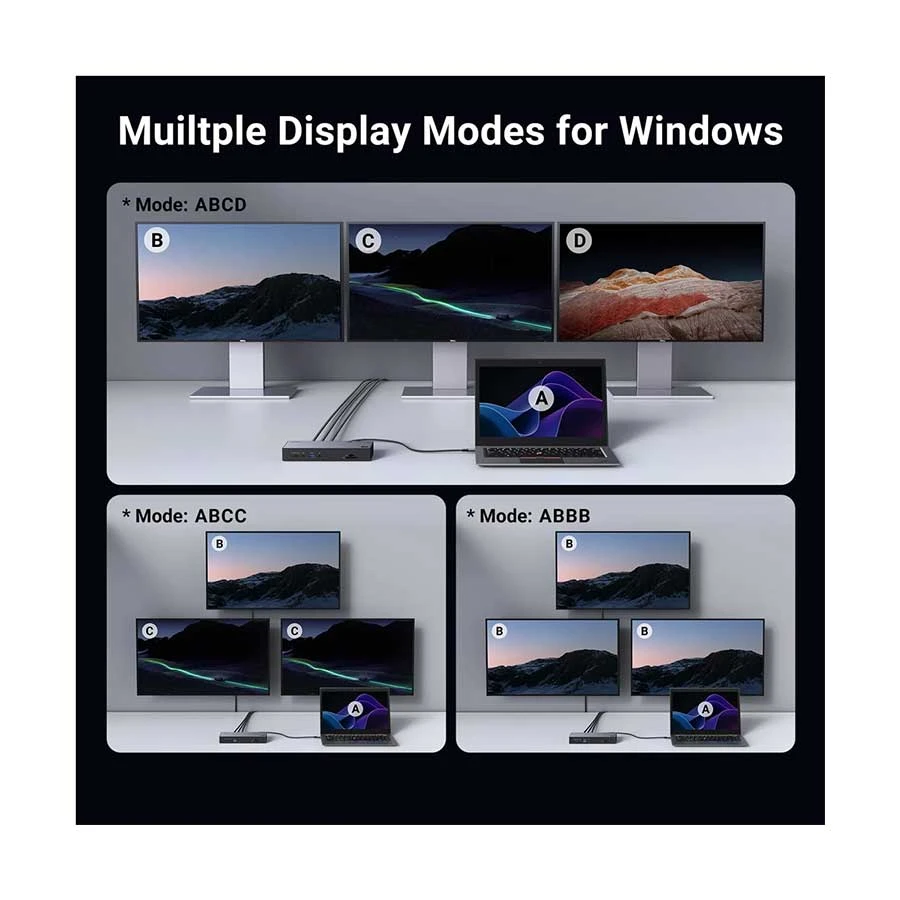

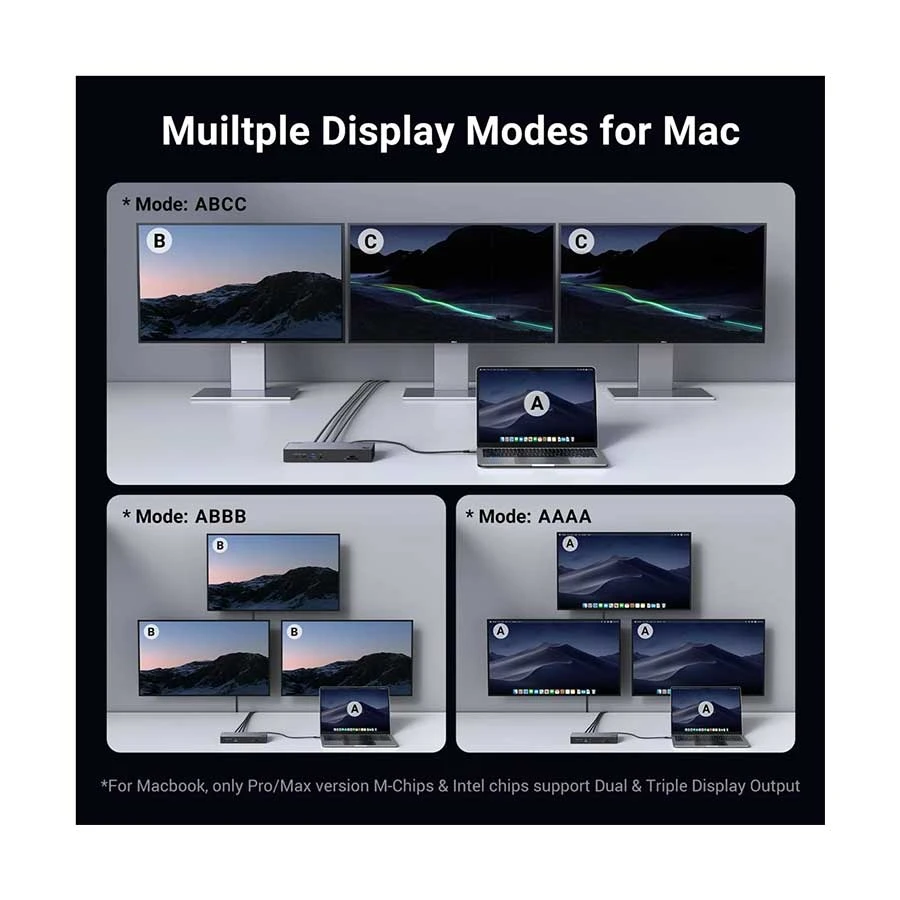

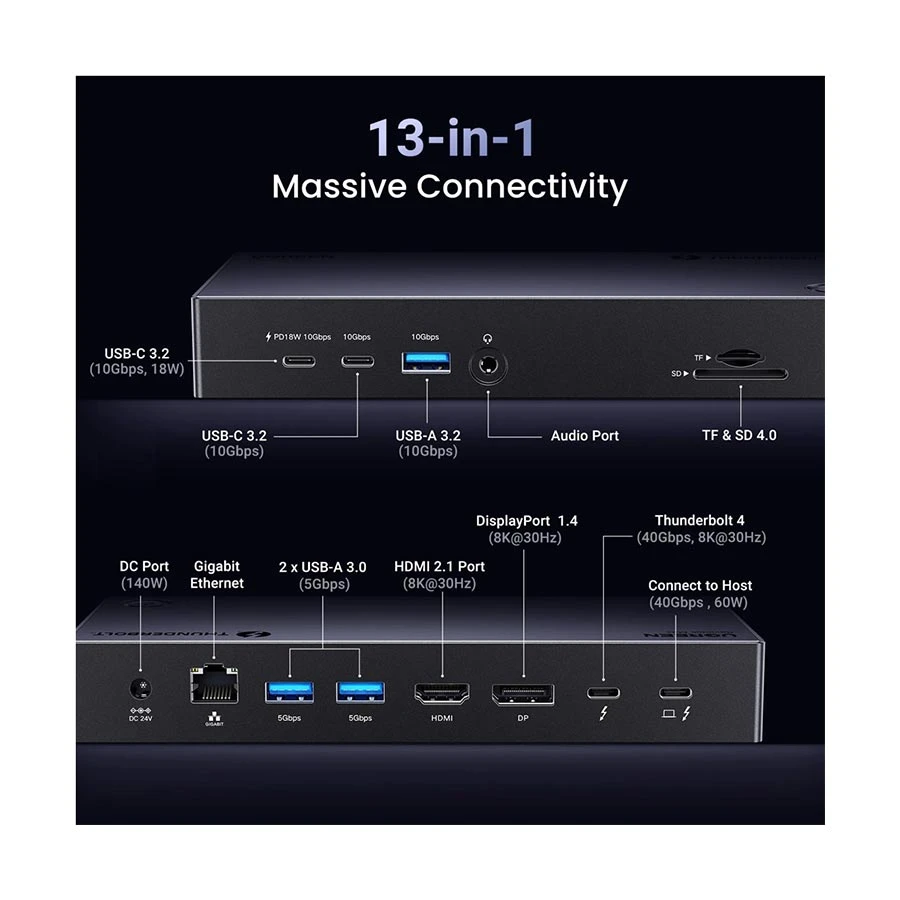

13-in-1 Massive Expansion: The 13-in-1 Thunderbolt 4 Dock is equipped with a Thunderbolt 4(40Gbps, 15W), a DisplayPort 1.4, a HDMI 2.1, a gigabit ethernet, SD & TF 4.0, a USB C 3.2(10Gbps, 18W), a USB C 3.2(10Gbps), a USB A 3.2(10Gbps), two USB A 3.0, a 3.5mm audio, and a 140W DC power ports, which can meet all your high-performance expansion needs. Triple 4K@60Hz or Single 8K Display: With the Thunderbolt 4, DP 1.4, and HDMI 2.1 ports, the Thunderbolt 4 Docking station can extend up to three 4K@60Hz displays or a single 8K@30Hz display for Windows laptops, three 4K@60Hz displays or a single 4K@60Hz display for Macbook with Pro/Max version M-Chips & Intel chips, a single 4K@60Hz display for Macbook with basic M-Chips. Greatly improve your work efficiency and display experience. Powerful Thunderbolt 4: With one upstream and one downstream Thunderbolt 4 port, you can transfer data at speeds up to 40Gbps and display in resolutions up to 8K. Experience high-performance work like never before. 60W High-speed Charging: With the included 140W GaN charger, this Thunderbolt 4 dock can charge your laptop up to 60W while working. No need to connect another charger. (The dock must be connected to the charger to work). (Full-function USB-C laptops only support dual display with HDMI & DP, tablets only support single display. Not compatible with Mac mini 2018(intel)).
