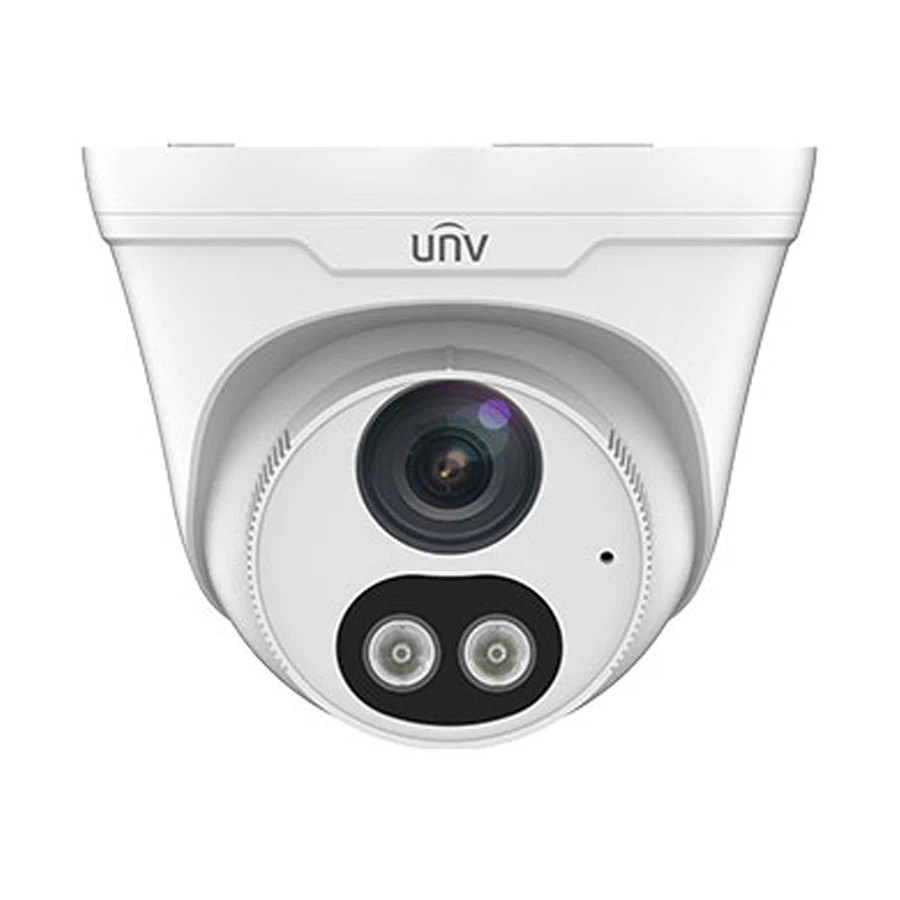

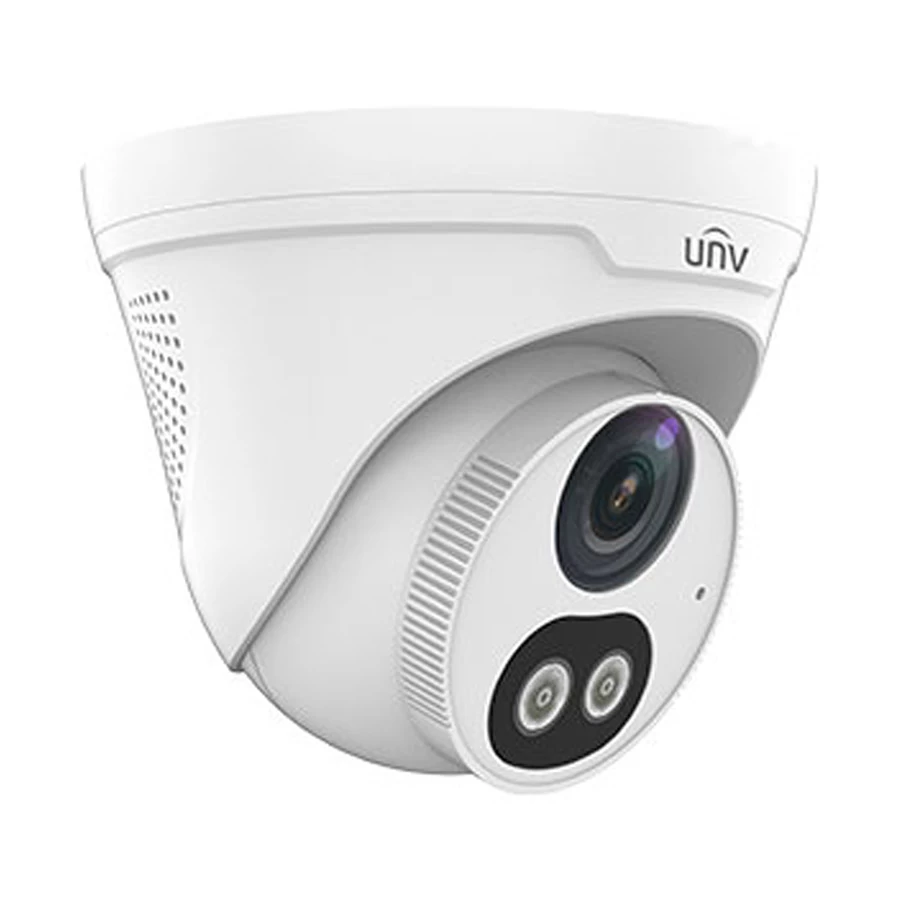

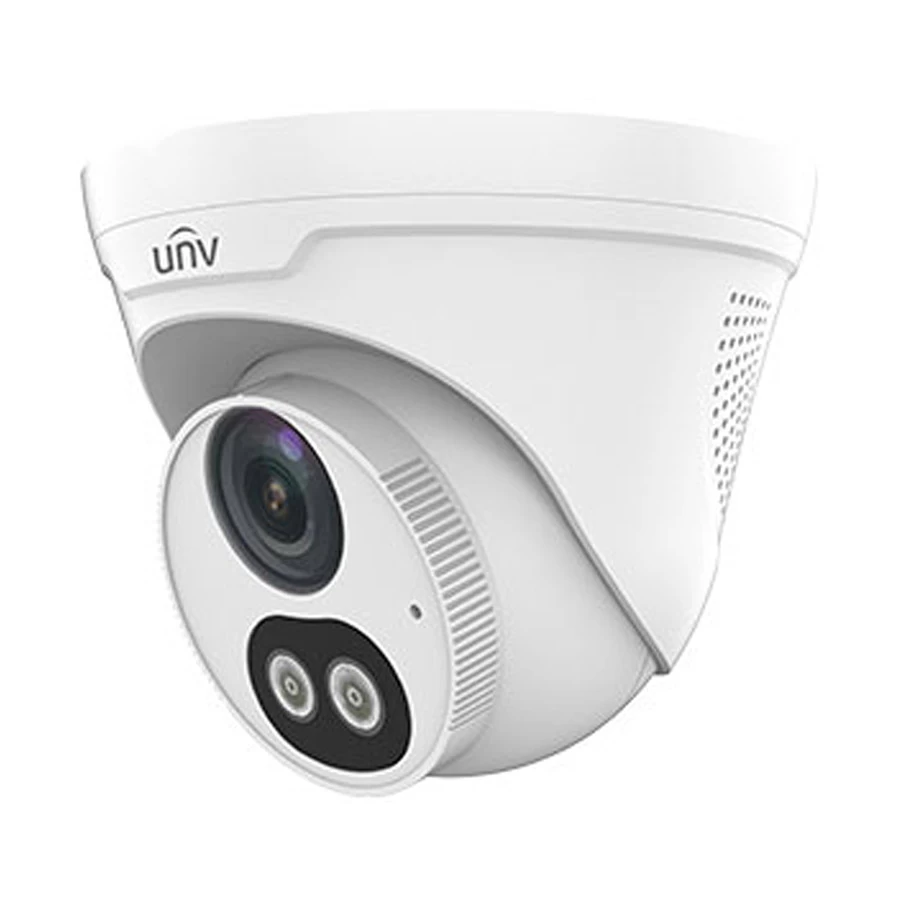

Uniview IPC3614LE-ADF28KC-WL (4.0mm) (4MP) HD Network IR Fixed Eyeball Dome Camera

Item: Uniview IPC3614LE-ADF28KC-WL (4.0mm) (4MP) HD Network IR Fixed Eyeball Dome Camera
Rating: 5
Author: Verified Buyer

12 reviews

Product Id: 127.03.806.31

Coming Soon

Quick Overview

Usage - Indoor & Outdoor
Form-Factor - Dome
Mega Pixels (MP) - 4.0
Night Vision Mode - Color
Working Distance - 90 Meter
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Uniview

Model

Uniview IPC3614LE-ADF28KC-WL

Usage

Indoor & Outdoor

Type

Dome IP Camera

Number of Camera

Mega Pixels (MP)

4.0

Max. Camera Resolution

2688 x 1520

Secondary Camera Mega Pixel (MP)

Not Applicable

Secondary Camera Max Resolution

Not Applicable

Number of Lens

Single Lens (Primary)

Lens

2.8mm Fixed lens

Night Vision

Yes

Night Vision Mode

Color

Mic & Speaker

Both Mic and Speaker

Smart Alarm

Yes

Sim Supported

Wi-Fi

Card Slot

Yes

Human Detection

Yes

Face Detection

Surge Protection

4KV

Viewing Angle.

112.9 Degree (H), 59.1 Degree (V)

Working Distance

90 Meter

Power

DC / PoE

Approx. Power Consumption

8.0W

Color

White

Dimensions

118 x 96mm

Weight (gm)

0.30kg

Warranty

1 Year (Without Adapter)

General

Brand

Uniview

Model

Uniview IPC3614LE-ADF28KC-WL

Usage

Indoor & Outdoor

Type

Dome IP Camera

Camera

Number of Camera

Camera Type

Fixed

Mega Pixels (MP)

4.0

Max. Camera Resolution

2688 x 1520

Secondary Camera Type

Not Applicable

Secondary Camera Mega Pixel (MP)

Not Applicable

Secondary Camera Max Resolution

Not Applicable

Sensor Type.

1/3 inch CMOS image sensor

Resolution

2688 x 1520

Shutter Speed

1 s to 1/100000 s

Day & Night

IR-cut filter with auto-switching

Night Vision

Yes

Night Vision Mode

Color

S/N Ratio

52dB

Lens

Number of Lens

Single Lens (Primary)

Lens

2.8mm Fixed lens

Lens Adjustment Range

Pan: 0 degree - 360 degree, Tilt: 0 degree - 80 degree, Rotation: 0 degree - 360 degree

Focal Length

2.8mm

PTZ

Zoom

Digital

Viewing Angle.

112.9 Degree (H), 59.1 Degree (V)


Dual-Stream

Yes

Triple-Stream

Frame Rate

Main Stream: 4MP (2688 x 1520), Max 25fps 4MP (2560 x 1440), Max 25fps 3MP (2304 x 1296), Max 30fps 1080P (1920 x 1080), Max 30fps; 720P (1280 x 720), Max 30fps; Sub Stream: 720P (1280 x 720), Max 30fps; D1 (720 x 576), Max 30fps 640 x 360, Max 30fps

Noise Reduction

Yes

Digital Noise Reduction (DNR)

2D/3D DNR

Wide Dynamic Range (WDR)

120dB

Network & Connectivity

Sim Supported

Sim Network Type

Not Applicable

Interface(s)

1 x RJ45 10M/100M Base-TX Ethernet

Wi-Fi

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Password Protection

Yes

Watermark

Yes

Motion Detection

Yes

Human Detection

Yes

Face Detection

Surge Protection

4KV

Dust Protection

Yes

Water Protection

Yes

Weather Proof

IP67

Technical Info

Scanning System

Progressive

Video Type

Ultra 265, H.265, H.264, MJPEG

Wavelength

850nm

Mic & Speaker

Both Mic and Speaker

Audio Communication

Two-Way Audio

Input Trigger

Cross line, intrusion(based on human body detection),Motion detection, Ultra motion detection, tampering alarm, audio detection

Working Distance

90 Meter

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP

Physical Description

Form-Factor

Dome

Smart Alarm

Yes

Card Slot

Yes

Storage Type

MicroSD

Storage Supported

128GB

Color

White

Dimensions

118 x 96mm

Weight (gm)

0.30kg

Power

DC / PoE

Battery Capacity

Not Applicable

Battery Backup

Battery Backup Time

Not Applicable

Power Supply

DC 12V-+25%, PoE (IEEE 802.3af)

Approx. Power Consumption

8.0W

Operating Temperature

-30 degree C - 60 degree C

Storing/Storage Temperature

-30 degree C- 60 degree C

Warranty

1 Year (Without Adapter)

Additional Info

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Uniview IPC3614LE-ADF28KC-WL IP Camera In Bangladesh

4MP HD ColorHunter IR Fixed Eyeball Network Camera

• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic & Speaker
• Smart IR, up to 30m (98ft) IR distance
• White Light, up to 30m (98ft) white light distance
• Supports 128 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis

What is the price of Uniview IPC3614LE-ADF28KC-WL IP Camera In Bangladesh?

The price of Uniview IPC3614LE-ADF28KC-WL IP Camera not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Uniview IPC3614LE-ADF28KC-WL IP Camera from our website or visit our showrooms nearby.
