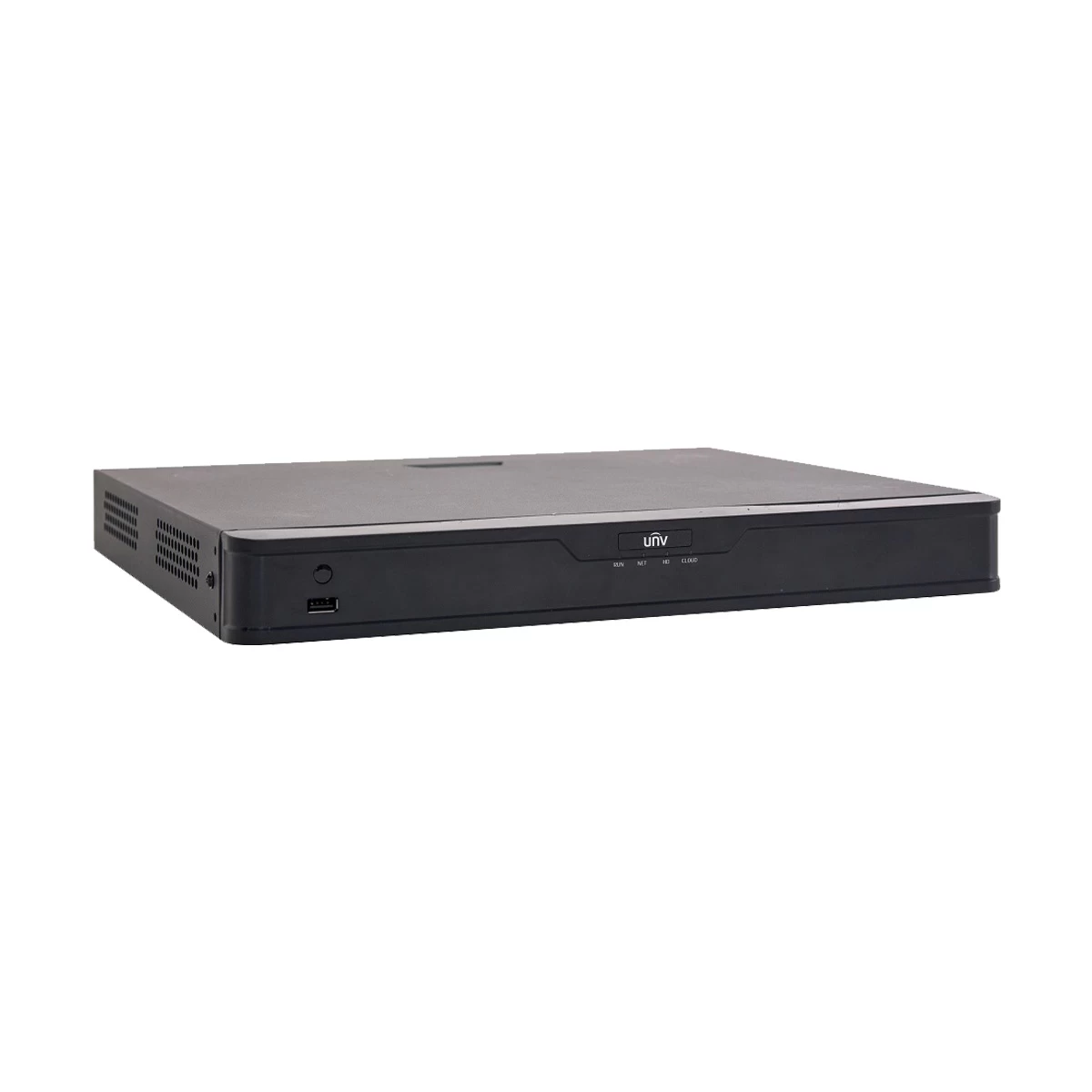

Uniview NVR302-16S-P16 16 Channel 4K PoE NVR

Item: Uniview NVR302-16S-P16 16 Channel 4K PoE NVR
Rating: 5
Author: Verified Buyer

1 reviews

Product Id: 127.04.806.10

This item is discontinued.

Quick Overview

Number of Input Channel - 16 Channel
Video Recording Res. - 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
Dual Stream Support - Unmentioned
Number HDD Interface (SATA) - 2 SATA
Max. Storage Support - 20TB
Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Uniview

Model

Uniview NVR302-16S-P16

Type

16 Channel DVR

Number of Input Channel

16 Channel

Video Output (VGA)

1024X768 / 60Hz, 1280X720 / 60Hz, 1280X1024 / 60Hz, 1920X1080 / 50Hz, 1920X1080 / 60Hz

Video Output (HDMI)

4k 3840x2160 / 30Hz, 4k 3840x2160 / 60Hz, 1024X768 / 60Hz, 1280X720 / 60Hz, 1280X1024 / 60Hz, 1920X1080 / 50Hz, 1920X1080 / 60Hz

Max. Video Recording Res.

3840 x 2160

Two way Audio

1-ch, RCA

Dual Stream Support

Unmentioned

Live View / Playback Resolution

8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF

Number HDD Interface (SATA)

2 SATA

Max HDD Support (GB,TB)

Up to 10TB for each disk

Wi-Fi

USB Port

2 x USB2.0

Approx. Power Consumption

Color

Black

Dimensions

380 x 315 x 53mm

Weight (Kg)

2.4kg

Warranty

1 year

General

Brand

Uniview

Model

Uniview NVR302-16S-P16

Type

16 Channel DVR

Video Info

Number of Input Channel

16 Channel

Video Compression/Format

Ultra 265/ H.265/ H.264

Video Output (VGA)

1024X768 / 60Hz, 1280X720 / 60Hz, 1280X1024 / 60Hz, 1920X1080 / 50Hz, 1920X1080 / 60Hz

Video Output (HDMI)

4k 3840x2160 / 30Hz, 4k 3840x2160 / 60Hz, 1024X768 / 60Hz, 1280X720 / 60Hz, 1280X1024 / 60Hz, 1920X1080 / 50Hz, 1920X1080 / 60Hz

Video Recording Res.

8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF

Max. Video Recording Res.

3840 x 2160

IP Video Input

16-ch

Audio Info

Audio Output Channel

1-ch, RCA

Two way Audio

1-ch, RCA

Recording & Decoding

Dual Stream Support

Unmentioned

Live View / Playback Resolution

8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF

Decoding Capability

1 x 4K / 30fps, 2 x 4MP / 30fps, 3 x 3MP / 25fps, 4 x 1080P / 30fps, 8 x 720P / 30fps,16 x D1

Synchronous Playback

16-ch

Network

Network Protocol

P2P, UPnP, NTP, DHCP, PPPoE

Wi-Fi

Wi-Fi Details

Not Applicable

Wi-Fi Coverage (Approximate)

Not Applicable

Network Interface (RJ45)

1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface

POE Interface

Remote Connections

128

Auxiliary Interface

Number HDD Interface (SATA)

2 SATA

Max HDD Support (GB,TB)

Up to 10TB for each disk

Max. Storage Support

20TB

USB Port

2 x USB2.0

Technical Info

Incoming Bandwidth

160 Mbps

Outgoing Bandwidth

96 Mbps

Power Info

Power Supply

220V AC

Approx. Power Consumption

Max. Power

240W

Physical Description

Color

Black

Dimensions

380 x 315 x 53mm

Weight (Kg)

2.4kg

Warranty

1 year

Additional Info

Feature

Support Ultra265/H.265/H.264 video formats, Plug & Play with 8/16 independent PoE network interfaces, Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T, Support HDMI and VGA simultaneous output, Up to 8 Megapixels resolution recording, 2 SATA HDDs, up to 10TB for each HDD, ANR technology to enhance the storage reliability when the network is disconnected, Support cloud upgrade

Others

Protocols: P2P, UPnP, NTP, DHCP, PPPoE, Decoding format: Ultra265/H.265/H.264

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Uniview NVR302-16S-P16 DVR/NVR/XVR In Bangladesh

Brand - Uniview, Model - Uniview NVR302-16S-P16, Type - 16 Channel DVR, Number of Input Channel - 16 Channel, Video Compression/Format - Ultra 265/ H.265/ H.264, Video Output (VGA) - 1024X768 / 60Hz, 1280X720 / 60Hz, 1280X1024 / 60Hz, 1920X1080 / 50Hz, 1920X1080 / 60Hz, Video Output (HDMI) - 4k 3840x2160 / 30Hz, 4k 3840x2160 / 60Hz, 1024X768 / 60Hz, 1280X720 / 60Hz, 1280X1024 / 60Hz, 1920X1080 / 50Hz, 1920X1080 / 60Hz, Video Recording Res. - 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF, Max. Video Recording Res. - 3840 x 2160, IP Video Input - 16-ch, Audio Output Channel - 1-ch, RCA, Two way Audio - 1-ch, RCA, Live View / Playback Resolution - 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF, Decoding Capability - 1 x 4K / 30fps, 2 x 4MP / 30fps, 3 x 3MP / 25fps, 4 x 1080P / 30fps, 8 x 720P / 30fps,16 x D1, Synchronous Playback - 16-ch, Network Protocols - P2P, UPnP, NTP, DHCP, PPPoE, Number HDD Interface (SATA) - 2 SATA, Max HDD Support (GB,TB) - Up to 10TB for each disk, Max. Storage Support - 20TB, Wi-Fi - No, Wi-Fi Details - Not Applicable, Wi-Fi Coverage (Approximate) - Not Applicable, Network Interface (RJ45) - 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface, USB Port - 2 x USB2.0, POE Interface - 16 RJ-45 10M/100M self-adaptive Ethernet Interface, Remote Connections - 128, Incoming Bandwidth - 160 Mbps, Outgoing Bandwidth - 96 Mbps, Power Supply - 220V AC, Approx. Power Consumption - 9W, Max. Power - 240W, Color - Black, Dimension - 380 x 315 x 53mm, Weight (Kg) - 2.4kg, Feature - Support Ultra265/H.265/H.264 video formats, Plug & Play with 8/16 independent PoE network interfaces, Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T, Support HDMI and VGA simultaneous output, Up to 8 Megapixels resolution recording, 2 SATA HDDs, up to 10TB for each HDD, ANR technology to enhance the storage reliability when the network is disconnected, Support cloud upgrade, Warranty - 1 Year, Country of Origin - China, Made in/ Assemble - China
