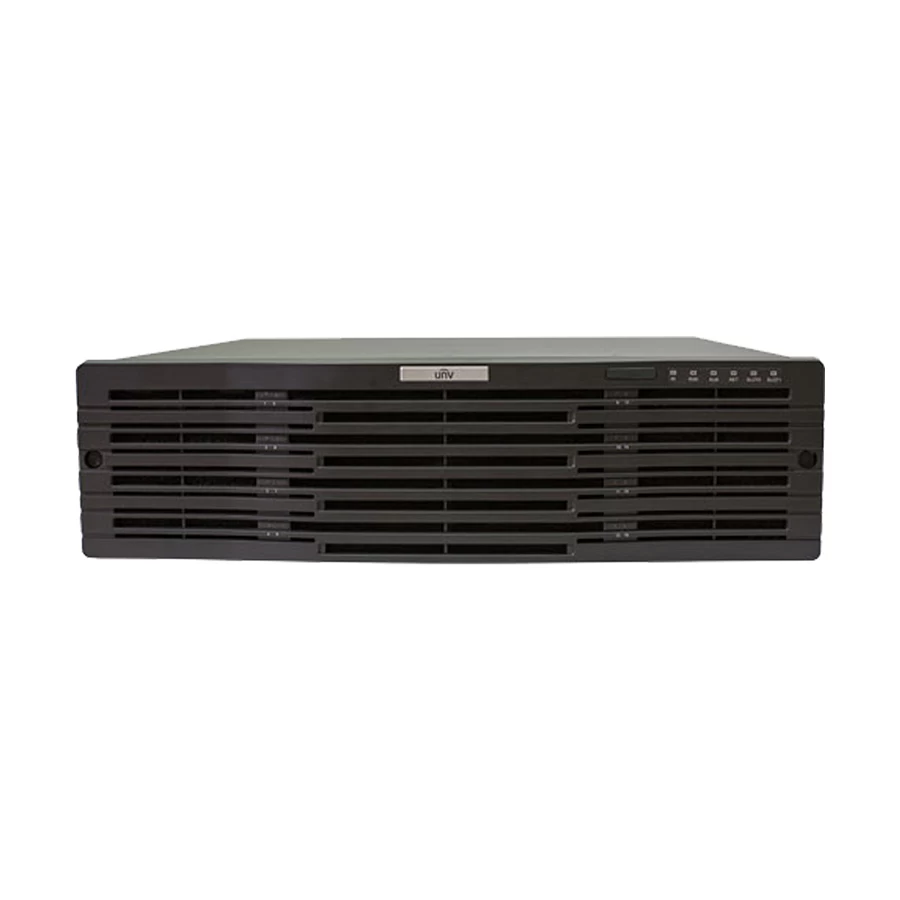

Uniview NVR516-128 128 Channel 4K NVR
Product Id: 127.04.806.26
Brand
Uniview
Coming Soon
Quick Overview
- Dual Stream Support - Yes
- Number HDD Interface (SATA) - 16 SATA
- Video Recording Res. - 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Max. Storage Support - 256TB
Brand
Uniview
Model
Uniview NVR516-128
Type
NVR
Video Input Channel (BNC)
No
Video Compression/Format
Ultra 265/H.265/H.264
Video Output (VGA)
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video Output (DVI)
No
Video Output (HDMI)
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video Output (BNC)
No
Video Recording Res.
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Max. Video Recording Res.
3840 x 2160
IP Video Input
128 Channel
Analog & HD-TVI Video Input
No
Audio Input Channel (RCA)
No
Audio Output Channel
1 Channel
Two way Audio
1 Channel
Dual Stream Support
Yes
Live View / Playback Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Decoding Capability
4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1
Synchronous Playback
16 Channel
Network Protocol
P2P, UPnP, NTP, DHCP, PPPoE
Number HDD Interface (SATA)
16 SATA
Max HDD Support (GB,TB)
Up to 16TB capacity for each HDD
Max. Storage Support
256TB
eSATA
1 eSATA
Network Interface (RJ45)
6
Serial Interface
1 x RS232, 1 x RS485
USB Port
Rear panel: 4 x USB3.0
POE Interface
No
Remote Connections
128
Incoming Bandwidth
512 Mbps
Outgoing Bandwidth
384 Mbps
Array Type
RAID 0/1/5/6/10/50/60
Video Detection
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD)
Backup Storage
USB device
Chassis
3U
Power Supply
100 - 240V AC
Approx. Power Consumption
50W (without HDD)
Max. Power
50 W
Dimensions
482mm x477mm x131mm
Weight (Kg)
10 Kg
Smart Phone Supported
Yes
Supported Camera Models
IP camera ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Feature
2 decoding cards optional, up to 12-ch HDMI, Support 2 miniSAS Interfaces, ANR technology to enhance the storage reliability when the network is disconnected, Support cloud upgrade, Support N+1 Hot spare
Others
VCA Search: Behavior Search, Vehicle Search, People Counting: People Flow Counting, Crowd Density Monitoring, Alarm In: 24-ch, Alarm Out: 8-ch, Working Environment: -10 + 55 drgreeC, Chassis Details: 19-inch rack-mounted 3U chassis, Certification: CE, FCC, UL, RoHS, WEEE, CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017, FCC: Part15 Subpart B, ANSI C63.4
Warranty Details
1 year
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Uniview NVR516-128 DVR/NVR/XVR In Bangladesh
• Support Ultra 265/H.265/H.264 video formats
• 128-channel input
• Up to 12 Megapixels resolution recording
• 16 SATA HDDs, Up to 10TB for each HDD, Hot-Swap
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support N+1 Hot spare
Brand - Uniview, Model - Uniview NVR516-128, Type - NVR, Number of Input Channel - 128 Channel, Video Input Channel (BNC) - No, Video Compression/Format - Ultra 265/H.265/H.264, Video Output (VGA) - 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz, Video Output (DVI) - No, Video Output (HDMI) - 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz, Video Output (BNC) - No, Video Recording Res. - 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF, Max. Video Recording Res. - 3840 x 2160, IP Video Input - 128 Channel, Analog & HD-TVI Video Input - No, Audio Input Channel (RCA) - No, Audio Output Channel - 1 Channel, Two way Audio - 1 Channel, Dual Stream Support - Yes, Live View / Playback Resolution - 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF, Decoding Capability - 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1, Synchronous Playback - 16 Channel, Network Protocols - P2P, UPnP, NTP, DHCP, PPPoE, Number HDD Interface (SATA) - 16 SATA, Max HDD Support (GB,TB) - Up to 16TB capacity for each HDD, Max. Storage Support - 256TB, eSATA - 1 eSATA, Network Interface (RJ45) - 6, Serial Interface - 1 x RS232, 1 x RS485, USB Port - Rear panel: 4 x USB3.0, POE Interface - No, Remote Connections - 128, Incoming Bandwidth - 512 Mbps, Outgoing Bandwidth - 384 Mbps, Array Type - RAID 0/1/5/6/10/50/60, Video Detection - Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD), Backup Storage - USB device, Chassis - 3U, Power Supply - 100 - 240V AC, Power Consumption - 50W (without HDD), Dimension - 482mm ??477mm ?? 131mm, Weight (Kg) - 10 Kg, Smart Phone Supported - Yes, Supported Camera Models - IP camera ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T, Feature - 2 decoding cards optional, up to 12-ch HDMI, Support 2 miniSAS Interfaces, ANR technology to enhance the storage reliability when the network is disconnected, Support cloud upgrade, Support N+1 Hot spare, Others - VCA Search: Behavior Search, Vehicle Search, People Counting: People Flow Counting, Crowd Density Monitoring, Alarm In: 24-ch, Alarm Out: 8-ch, Working Environment: -10 + 55 drgreeC, Chassis Details: 19-inch rack-mounted 3U chassis, Certification: CE, FCC, UL, RoHS, WEEE, CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017, FCC: Part15 Subpart B, ANSI C63.4, Warranty - 1 Year, Country of Origin - China, Made in/ Assemble - China
What is the price of Uniview NVR516-128 DVR/NVR/XVR In Bangladesh?
The price of Uniview NVR516-128 DVR/NVR/XVR not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Uniview NVR516-128 DVR/NVR/XVR from our website or visit our showrooms nearby.
Video
【Product Intro】NVR516, 64 and 128 channel
