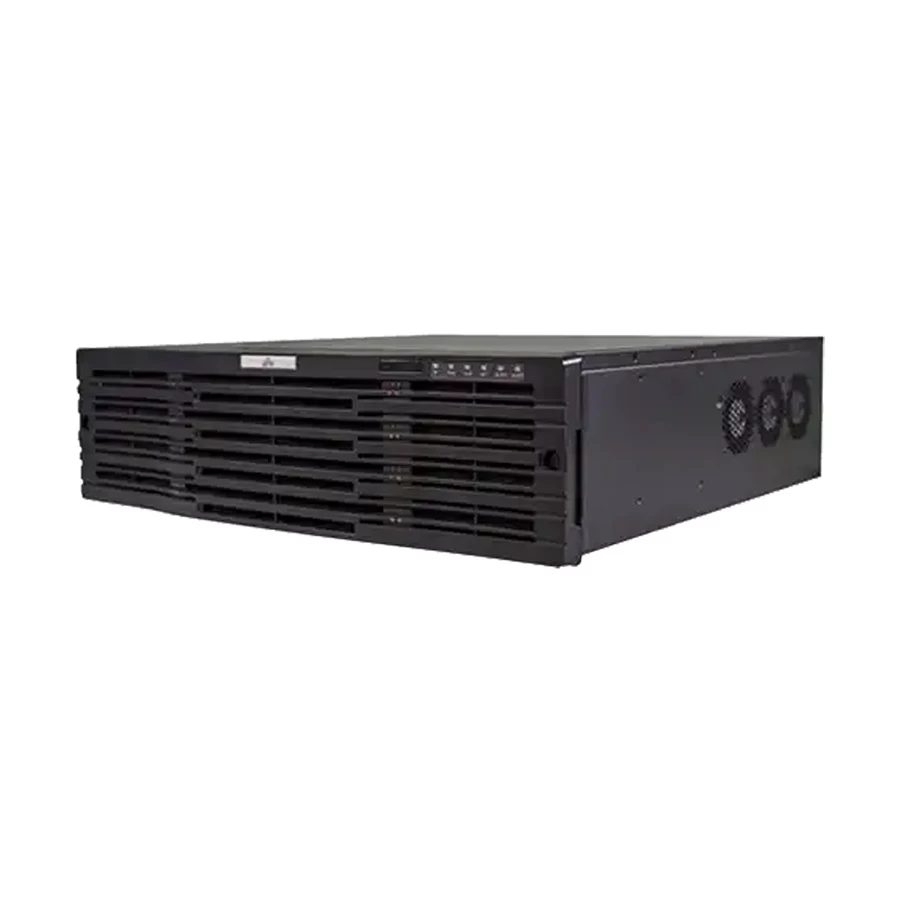

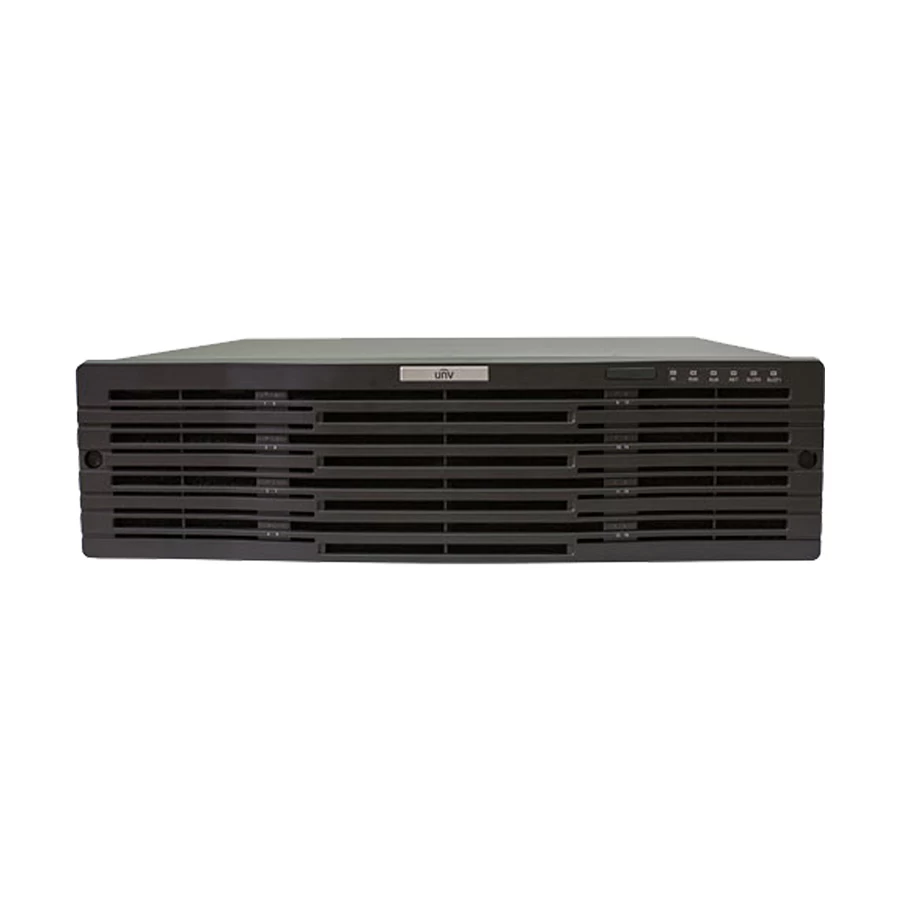

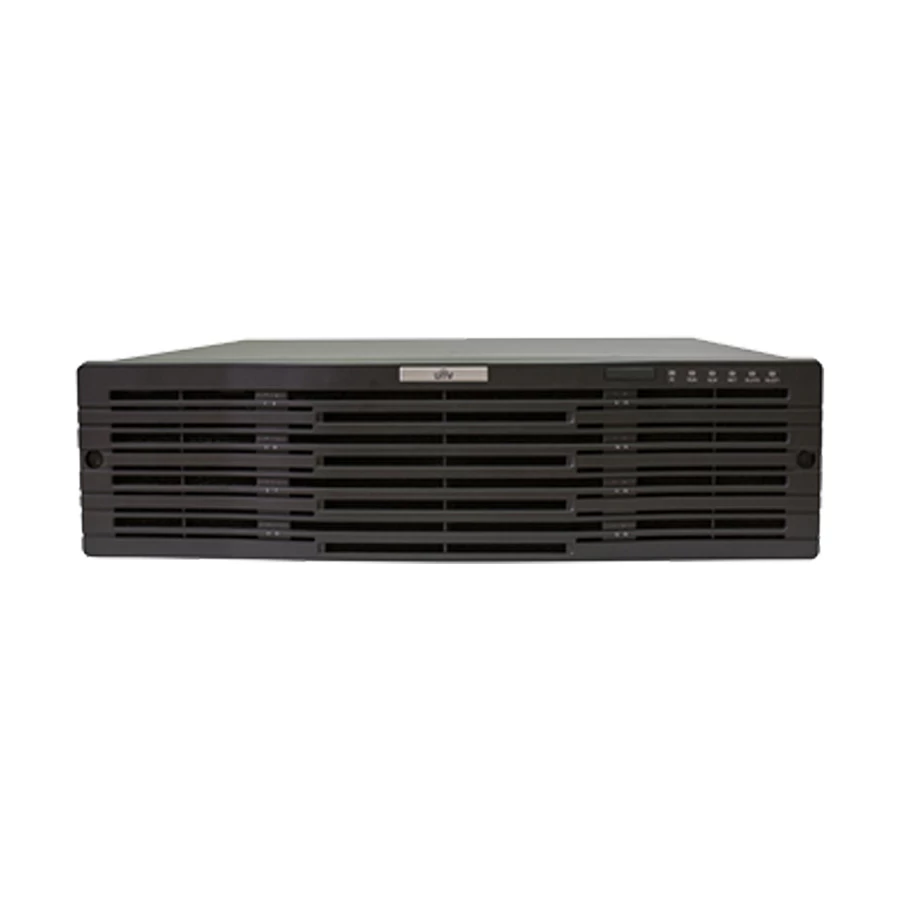

Uniview NVR516-64 64 Channel 4K NVR
Product Id: 127.04.806.25
Brand
Uniview
Coming Soon
Quick Overview
- Dual Stream Support - Yes
- Number HDD Interface (SATA) - 16 SATA
- Video Recording Res. - 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
- Max. Storage Support - 256TB
Brand
Uniview
Model
Uniview NVR516-64
Type
64 Channel NVR
Video Input Channel (BNC)
1-ch, BNC
Video Compression/Format
Ultra 265, H.265, H.264
Video Output (VGA)
1
Video Output (HDMI)
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video Recording Res.
12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
Max. Video Recording Res.
3840 x 2160
IP Video Input
64-channel
Audio Output Channel
1-ch, BNC
Two way Audio
1-ch, BNC
Dual Stream Support
Yes
Live View / Playback Resolution
12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
Decoding Capability
4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1
Synchronous Playback
16-channel
Network Protocol
P2P, UPnP, NTP, DHCP, PPPoE
Number HDD Interface (SATA)
16 SATA
Max HDD Support (GB,TB)
Up to 16TB capacity for each disk
Max. Storage Support
256TB
eSATA
1 eSATA
Network Interface (RJ45)
4 RJ-45 10M/100M/1000M adaptive Ethernet Interface, 2 1000M SFP Ethernet Interface
Serial Interface
1 x RS232, 1 x RS485
USB Port
4 x USB 3.0
Remote Connections
128
Incoming Bandwidth
384Mbps
Outgoing Bandwidth
384Mbps
Array Type
RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60
Video Detection
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD)
Chassis
19-inch rack-mounted 3U chassis
Power Supply
100 - 240V AC
Approx. Power Consumption
<=50W (without HDD)
Dimensions
482 x 477 x 131mm
Weight (Kg)
10 kg
Feature
Support Ultra 265/H.265/H.264 video formats, ANR technology to enhance the storage reliability when the network is disconnected
Others
miniSAS: 2 miniSAS ports, VCA Search: Behavior Search, Vehicle Search, People Counting: People Flow Counting, Crowd Density Monitoring, Alarm Out: 8-ch, Decoding Card (optional): 2 slots (4-ch HDMI or 6-ch HDMI outputs per card), Power Output: 12V, Working Environment: -10 - +55 Degree C, Humidity: <=90% RH (non-condensing),
Warranty Details
1 year
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Uniview NVR516-64 DVR/NVR/XVR In Bangladesh
• Support Ultra 265/H.265/H.264 video formats
• 64-channel input
• Up to 12 Megapixels resolution recording
• 16 SATA HDDs, Up to 10TB for each HDD, Hot-Swap
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support N+1 Hot spare
Brand - Uniview, Model - Uniview NVR516-64, Type - 64 Channel NVR, Number of Input Channel - 64 Channel, Video Compression/Format - Ultra 265, H.265, H.264, Video Output (VGA) - 1, Video Output (HDMI) - 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz, Video Recording Res. - 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF, Max. Video Recording Res. - 3840x2160, IP Video Input - 64-channel, Two way Audio - 1-ch, BNC, Dual Stream Support - Yes, Live View / Playback Resolution - 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF, Decoding Capability - 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1, Synchronous Playback - 16-channel, Network Protocols - P2P, UPnP, NTP, DHCP, PPPoE, Number HDD Interface (SATA) - 16 SATA, Max HDD Support (GB,TB) - Up to 16TB capacity for each disk, Max. Storage Support - 320TB, eSATA - 1 eSATA, Network Interface (RJ45) - 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface, 2 1000M SFP Ethernet Interface, Serial Interface - 1 x RS232, 1 x RS485, USB Port - 4 x USB 3.0, Remote Connections - 128, Incoming Bandwidth - 384Mbps, Outgoing Bandwidth - 384Mbps, Array Type - RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60, Video Detection - Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD), Chassis - 19-inch rack-mounted 3U chassis, Power Supply - 100 - 240V AC, Power Consumption - <=50W (without HDD), Dimension - 482 x 477 x 131mm, Weight (Kg) - 10 kg, Others - miniSAS: 2 miniSAS ports, VCA Search: Behavior Search, Vehicle Search, People Counting: People Flow Counting, Crowd Density Monitoring, Alarm Out: 8-ch, Decoding Card (optional): 2 slots (4-ch HDMI or 6-ch HDMI outputs per card), Power Output: 12V, Working Environment: -10 - +55 Degree C, Humidity: <=90% RH (non-condensing),, Warranty - 1 Year, Country of Origin - China, Made in/ Assemble - China
What is the price of Uniview NVR516-64 DVR/NVR/XVR In Bangladesh?
The price of Uniview NVR516-64 DVR/NVR/XVR not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Uniview NVR516-64 DVR/NVR/XVR from our website or visit our showrooms nearby.
