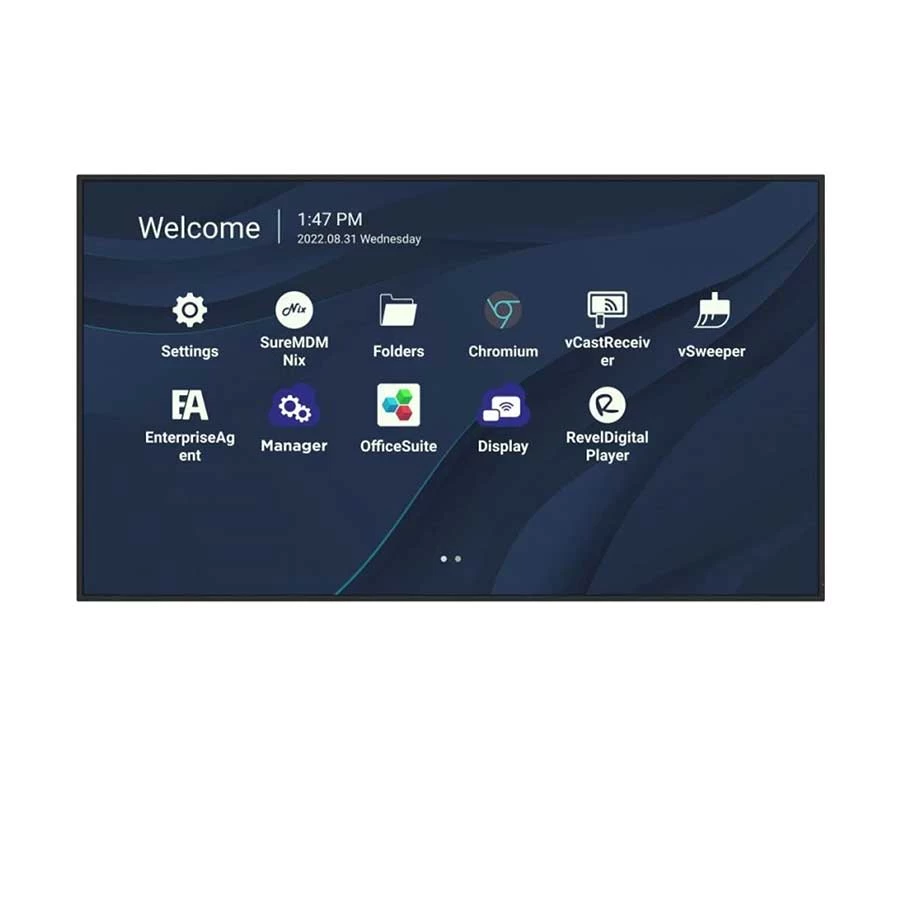

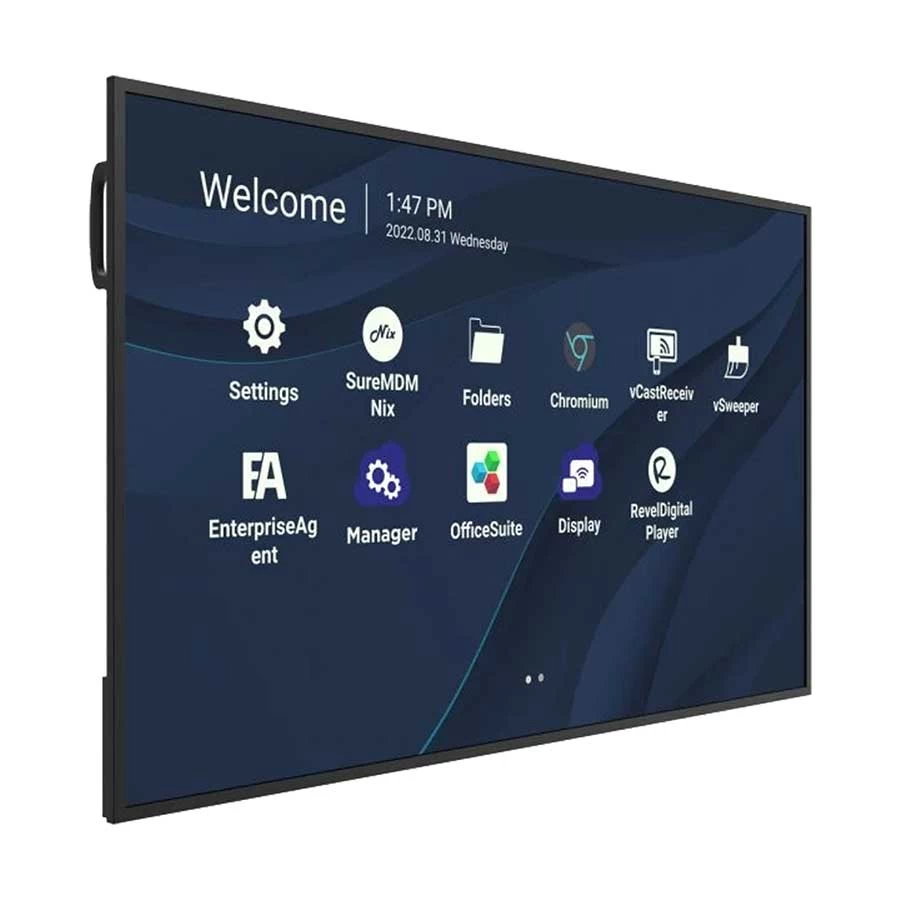

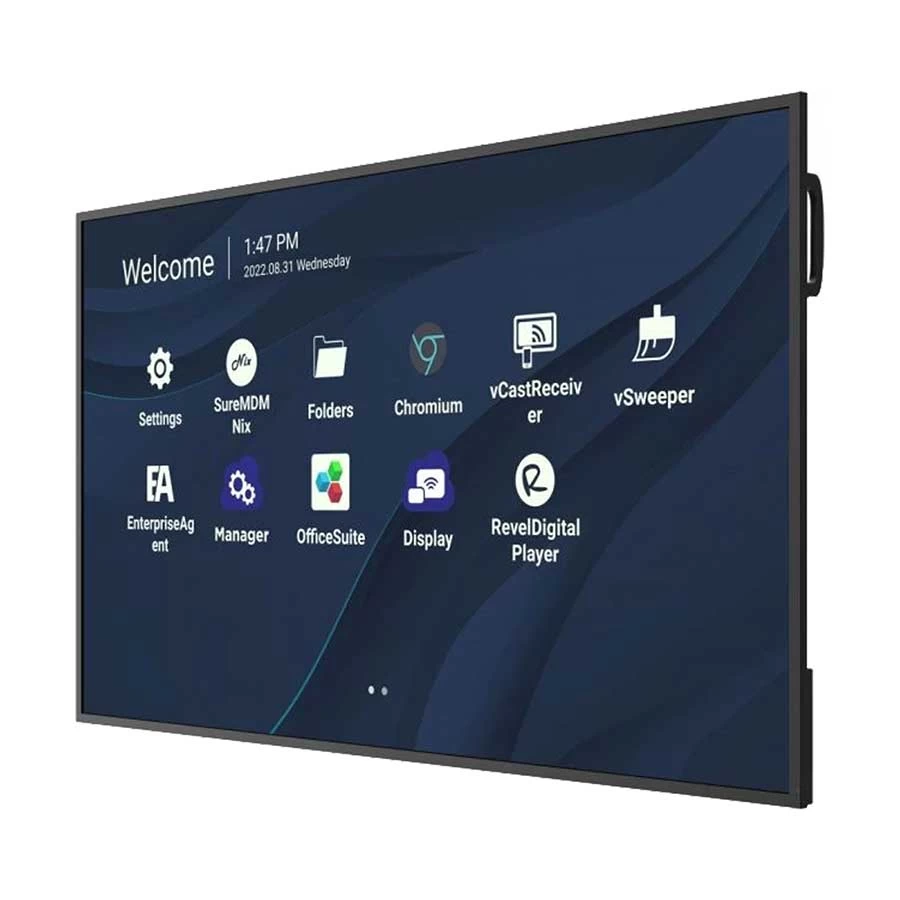

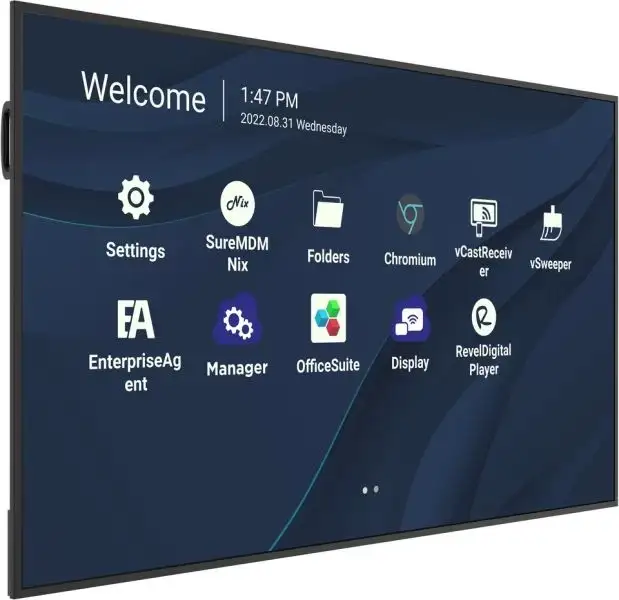

ViewSonic CDE6530 65 Inch (4GB, 32GB) 4K Ultra HD Wireless Commercial Display (Android 11)
Type A 2.0 x 1, 3.0 x 1, Type C x1 ( (DP1.2, PD 65W, USB2.0, 100M ethernet)
Lan Port
1
OPS Included
No
Slot
OPS Slot, WiFi Slot
OPS Slot
Yes
Power (Voltage)
100-240 VAC +/- 10%
Embedded OS
Android 11

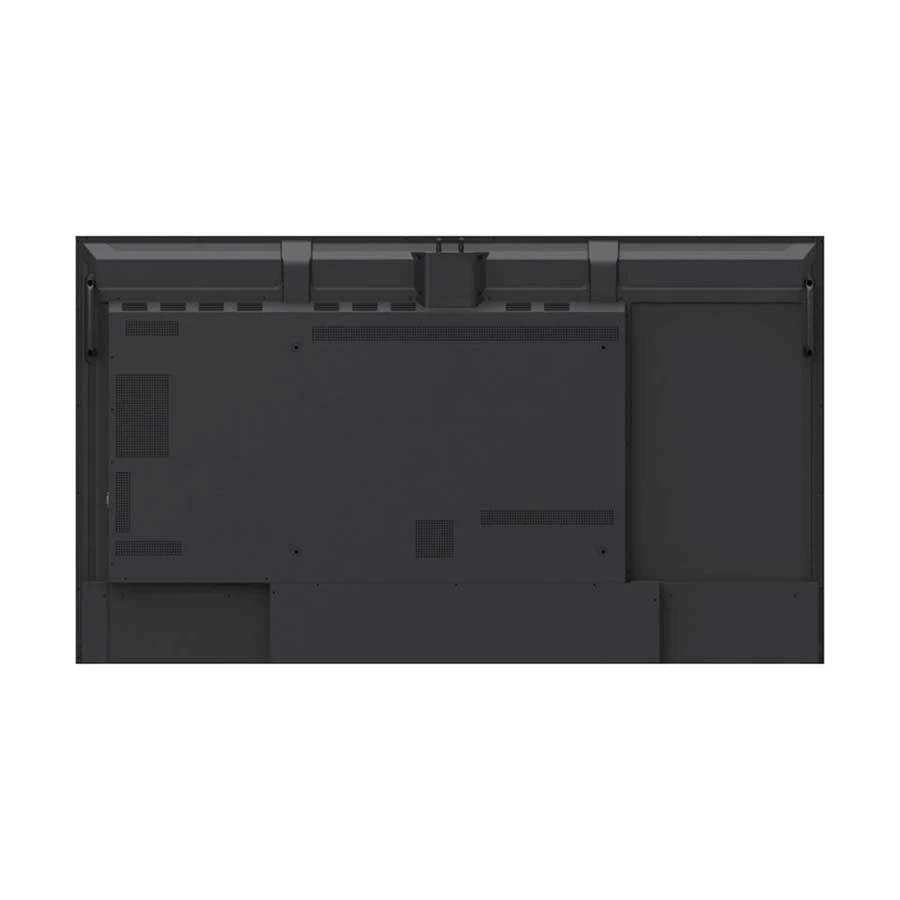

Wall Mounting
600x400mm
Body Color
Black
Dimensions
1463.3 x 838.3 x 81.6mm
Weight
25.4 kg
Accessories In The Box
Remote Control with batteries, Quick Start Guide, Power Cables, HDMI cable, USB-C cable, Wall Mount Screw x 4, RS232 adapter, Compliance statement
Warranty
3 year
General
Brand
Viewsonic
Model
ViewSonic CDE6530
Technology
4K UHD Commercial Display
Display
Display Size
65 Inch
Resolution
3840 x 2160
Supported Display Resolutions
3840 x 2160
Display Area
1428.48 (H) x 803.52 (V)
Anti-Glare
Yes
Panel Type
TFT
Panel Bit
8bit
Aspect Ratio
16:9
Bezel
14.7/14.7/14.7/14.7 mm (L/R/T/B)
Display Orientation
Landscape & Portrait
Brightness (cd/m2)
450nits
Colors
1.07 Billion
Light Source Type
DLED
Light Life
50,000 hours
Contrast Ratio
1200:1 (typ.), 5000:1 (DCR enabled)
Response Time (ms)
8ms
Viewing Angle.
178 Degree(H&V)
Surface
Surface
Anti-Glaire, 3H hardness, Haze 25%
Number of Touch
No
Touch Interface
No
Touch Resolution
No
Hardware
Processor
Quad-Core
RAM
4GB
Storage (MB/GB/TB)
32GB
GPU
No
Slot
OPS Slot, WiFi Slot
Technical Info
Germ-Resistant
No
Connectivity
Control
Remote Control
Input Ports
HDMI 2.1x3 ( 3840x2160 @60Hz, HDMI 1 support ARC), RS-232 x 1 OPS Slot x 1, WiFi Slot x 1
Output Ports
HDMI 2.0 x1 ( 3840x2160 @60Hz ), SPDIF x 1
VGA Input
No
HDMI Input
3
HDMI Output
1
Display Port
No
Composite Video In
No
USB Port
Type A 2.0 x 1, 3.0 x 1, Type C x1 ( (DP1.2, PD 65W, USB2.0, 100M ethernet)
RS232 Input/Output
1
Lan Port
1
COAX Output
No
OPS Included
No
OPS Slot
Yes
SPDIF
1
Audio
Speaker (Built-in)
Yes
Speaker Details
10W x 2
Audio In
No
Audio Out
No
Electrical
Power (Voltage)
100-240 VAC +/- 10%
Approx. Power Consumption
139 W(typ.) < 0.5W(off)
Environmental
Operating Temperature
0 Degree C to 40 Degree C
Operating Humidity
10%-90% RH
Physical Description
IR Sensor
No
Camera Plate
No
Wall Mounting
600x400mm
Body Color
Black
Dimensions
1463.3 x 838.3 x 81.6mm
Weight
25.4 kg
Accessories In The Box
Remote Control with batteries, Quick Start Guide, Power Cables, HDMI cable, USB-C cable, Wall Mount Screw x 4, RS232 adapter, Compliance statement
Software
Embedded OS
Android 11
Warranty
Warranty
3 year
Additional Info
Others
With stunning 4K Ultra HD resolution, high brightness, and landscape and portrait modes, the CDE30 Series offers continuous and sustainable 24/7 display for both corporate and campus communication. Purpose-engineered for ease of use, the display is equipped with a Quad Core SoC to run multiple operations seamlessly, and its USB-C one-cable solution sorts for effortless connection with external devices. Designed for easy-to-operate continuous multimedia playback, the CDE30 Series offers cable-free screen casting and screen sharing through myViewBoard Display and ViewBoard Cast, which also supports Airplay and Chromecast. Remote management via the intuitive myViewBoard Manager makes changing content, broadcasting, and software updates a breeze.
Feature
Wireless presentation for upgraded efficiency, Single cable via USB-C with 65W power delivery, 24/7 Sustainable video playback for continuous communication, Remote device management with myViewBoard Manager , ProAV compatibility with Crestron, Extron, and AMX.
Country Of Origin
USA
Made in/ Assemble
China
