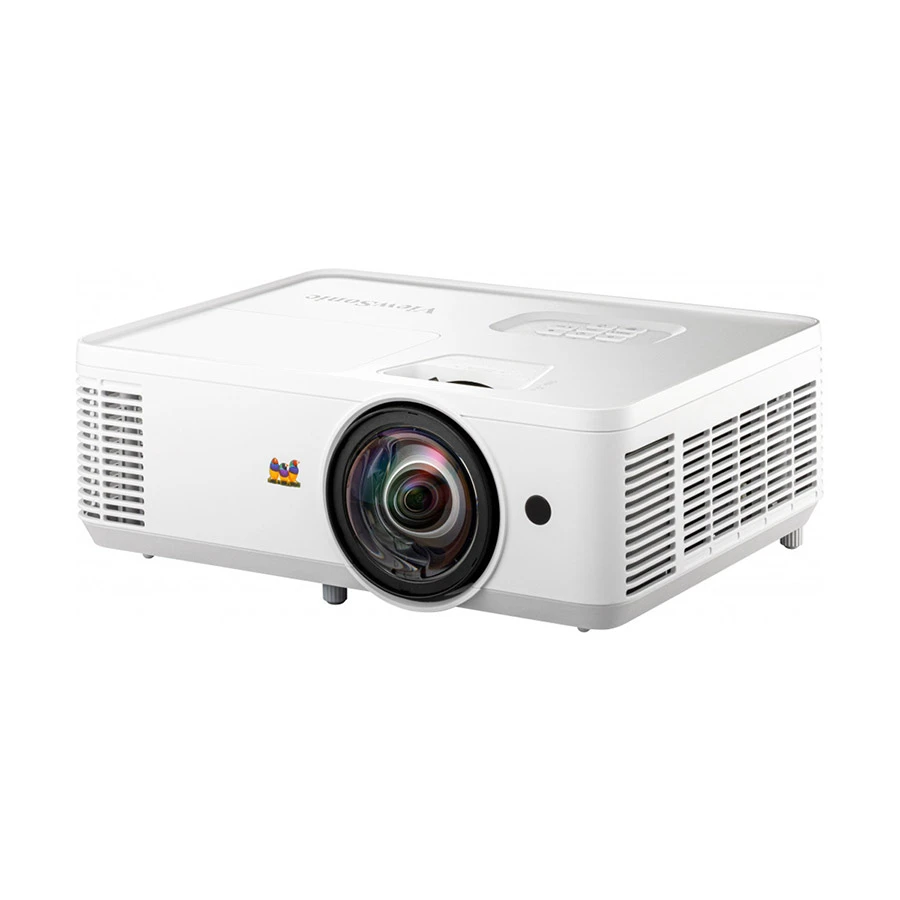

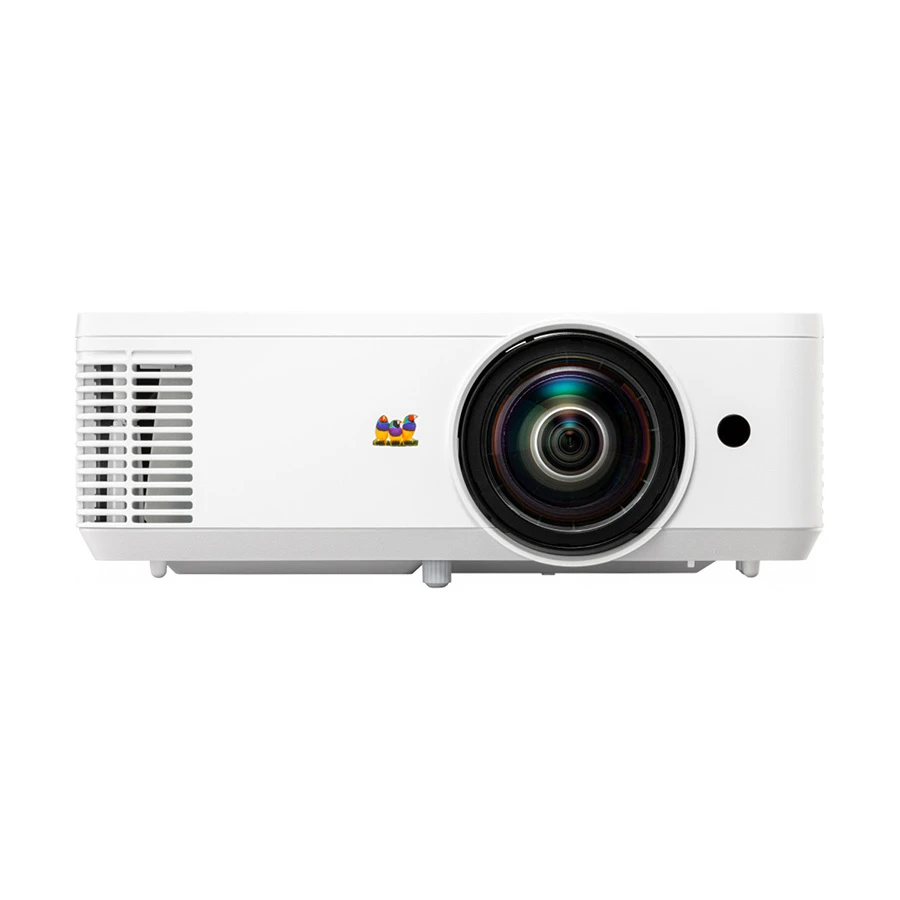

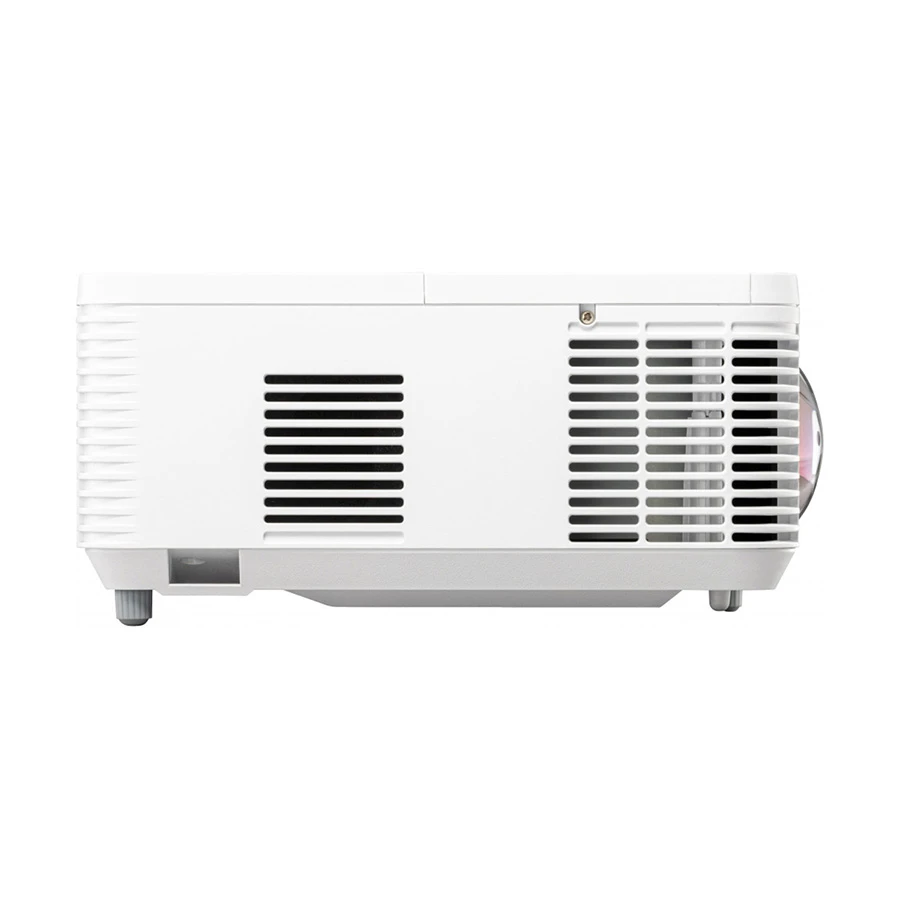

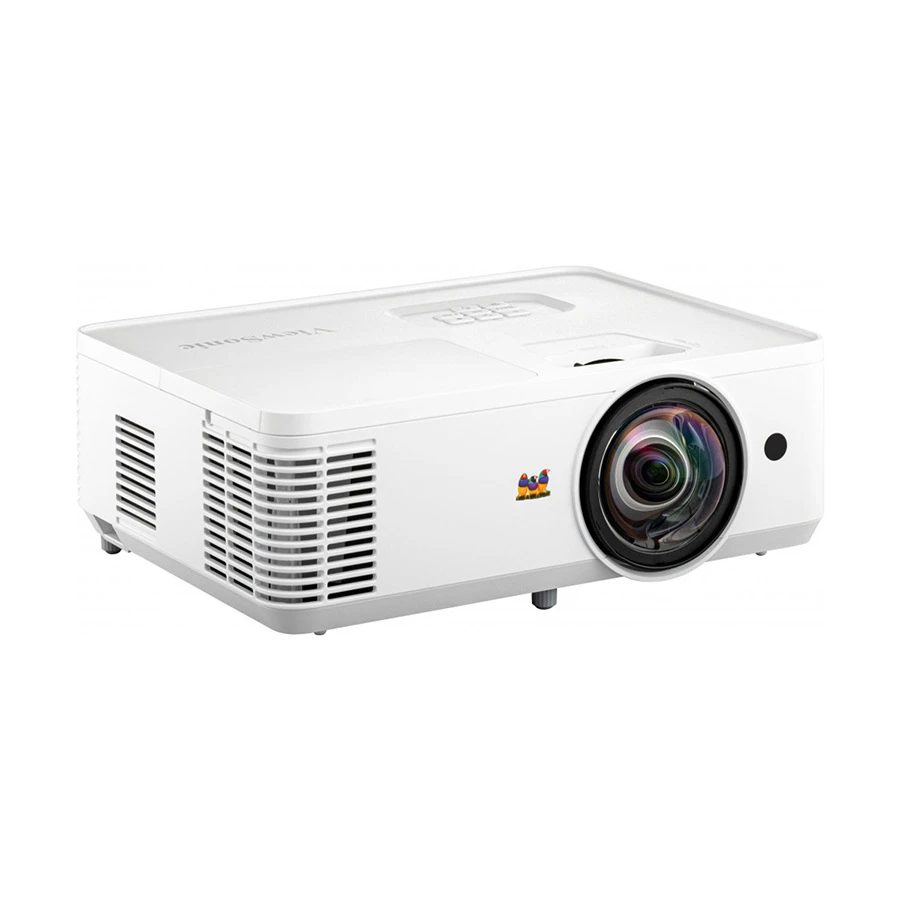

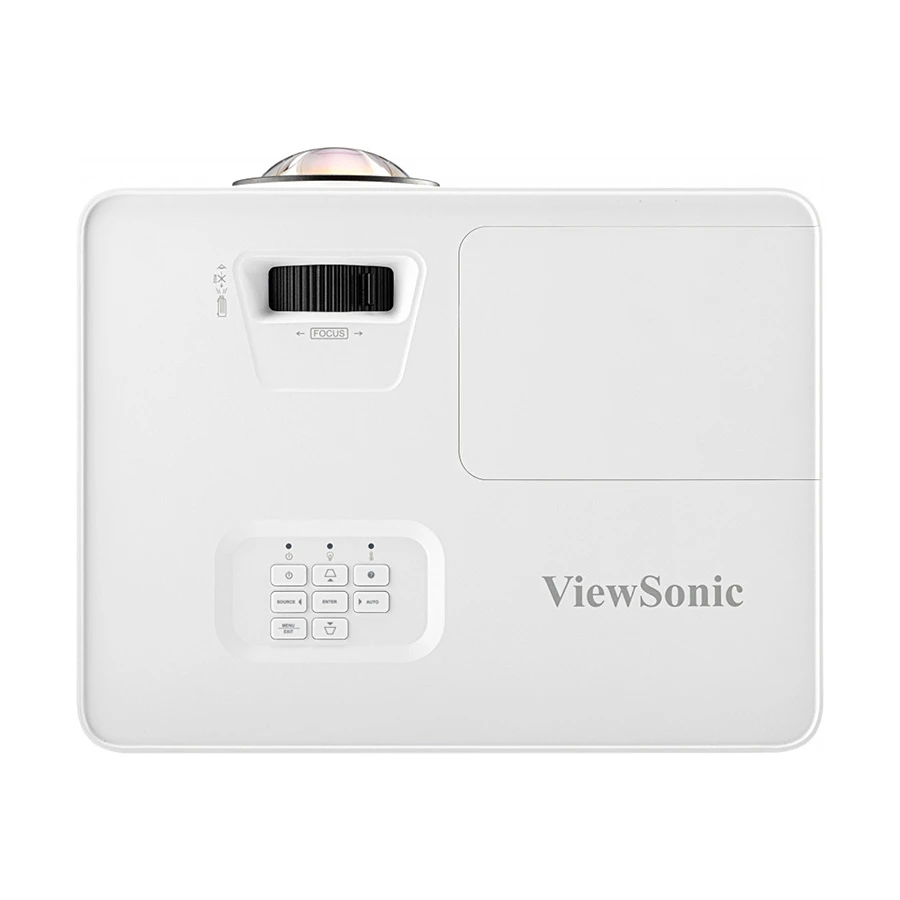

ViewSonic PS502X (4000 Lumens) XGA Short Throw Business & Education Projector
2 Year (1st Year Parts, 2nd Year service ) (Lamp 12 Month/1000 Hours Which One Comes First)
General
Brand
ViewSonic
Model
ViewSonic PS502X
Category
Short Throw
Display & Projection
Display Type.
XGA
Display Resolution (Pixels)
VGA(640 x 480) to FullHD(1920 x 1080)
Max. Supported Resolution
1920 x 1080
Light Output (lumens)
4000 Lumens
Contrast Ratio
15000:1
Display Color
1.07 Billion Colors
Throw Ratio
0.616
Projection Offset
130% +-10%
Color Brightness
4000 Lumens
Throw Ratio Range
0.616
Viewing
Min. Projection Distance
2.46 ft.
Max. Projection Distance
12.34 ft.
Min. Image/Screen Size (Inch)
60 Inch
Max. Image/Screen Size (Inch)
300 Inch
Zoom Ratio
0.8x-2.0x (Digital)
Minimum Viewable Screen Size
60 Inch
Maximum Viewable Screen Size
300 Inch
Vertical Refresh Rate
23-120Hz
Lens
Projection Lens
F=2.7, f=7.15mm
Keystone Correction
+ - 19 Degree (V)
Chip Size
0.55 Inch
Lighting
Light Source (Watt)
240Watt
Light Source Type
UHP Lamp
Light Source Life Hours (Normal)
4000 Hours
Light Source Life Hours (Economy)
12000 Hours
Network & Connectivity
Input Source
HDMI, VGA & Audio
HDMI
2
VGA/D-Sub
1 x VGA in, 1 x VGA out
USB
1 x USB (Service)
Audio
1 x (Audio in), 1 x (Audio out)
Memory Card Slot
No
LAN
No
Wireless LAN / Wi-Fi
No
Additional I/O Ports & Connectivity
1 x RS232 (DB 9-pin male)
Inputs
HDMI, VGA & Audio
Sound
Speaker
Yes
Integrated Speaker
Yes
Speakers Included
Yes
Watts Per Channel
16Watt
Physical Description
Remote Control Included
Yes
Color
White
Dimensions
309 x 234 x 115mm
Weight (Kg)
2.87 kg
Package Contents
ViewSonic PS502X, 1 x Power Cord, 1 x VGA Cable, 1 x Remote Control, QSG, Lens Cover, Air Filter
Software
Video Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Operating System
Unmentioned
Power
Power Source
100-240V+/- 10%, 50/60Hz
Approx. Power Consumption
295W (Normal), <0.5W (Standby)
Warranty
Warranty Details
2 Year (1st Year Parts, 2nd Year service ) (Lamp 12 Month/1000 Hours Which One Comes First)
Additional Info
Feature
4,000 ANSI Lumens offering clear images in any environment, 0.616 Short throw ratio for minimal space consumption, Up to 300 Inch ultra large screen with lower cost-per-inch, Easy and flexible connection: dual HDMI ports, USB Type-A port, Convenient software updates for projectors via USB connection.
High Brightness for Business & Education Environments, Big Screen for Small Spaces, Ultra-Large Screen with Lower Cost-per-inch, Easy and Flexible Connection, Dual HDMI Ports, Vibrant Colors for Captivating Presentations, A Simpler Way to Update Projector Software, Audio Right Out of the Box, Built-in 16W Speakers.
Country Of Origin
USA
Made in/ Assemble
China
