3 x USB 2.0 Type A (Front x2, Side x1 ), 2 x USB 3.0 Type A (Side x 2 ), 3 x USB Type B Touch, (Front x1, Rear x 2), 1 x USB 2.0 Type C (USB2.0, DP1.2, Ethernet 100M, PD 65W)
Lan Port
2
OPS Included
No
OPS Slot
1
Power (Voltage)
100-240VAC +/- 10% Wide Range
Embedded OS
Android 11.0
Wall Mounting
600 x 400
Body Color
Black
Dimensions
1488 x 948 x 120mm (Physical)
Weight
42.35kg (Net)
Accessories In The Box
1.Power cable 2. Remote control 3. USB Type-C cable 4. USB Touch cable 5. Touch pen x 2 6. Quick Start Guide + Compliance statement 7. RS232 adapter 8. Clamp x 5 9. Camera Plate 10. Screw x 8 11. HDMI cable 12. Eraser 13. AAA Battery x 2
Warranty
3 year
General
Brand
Viewsonic
Model

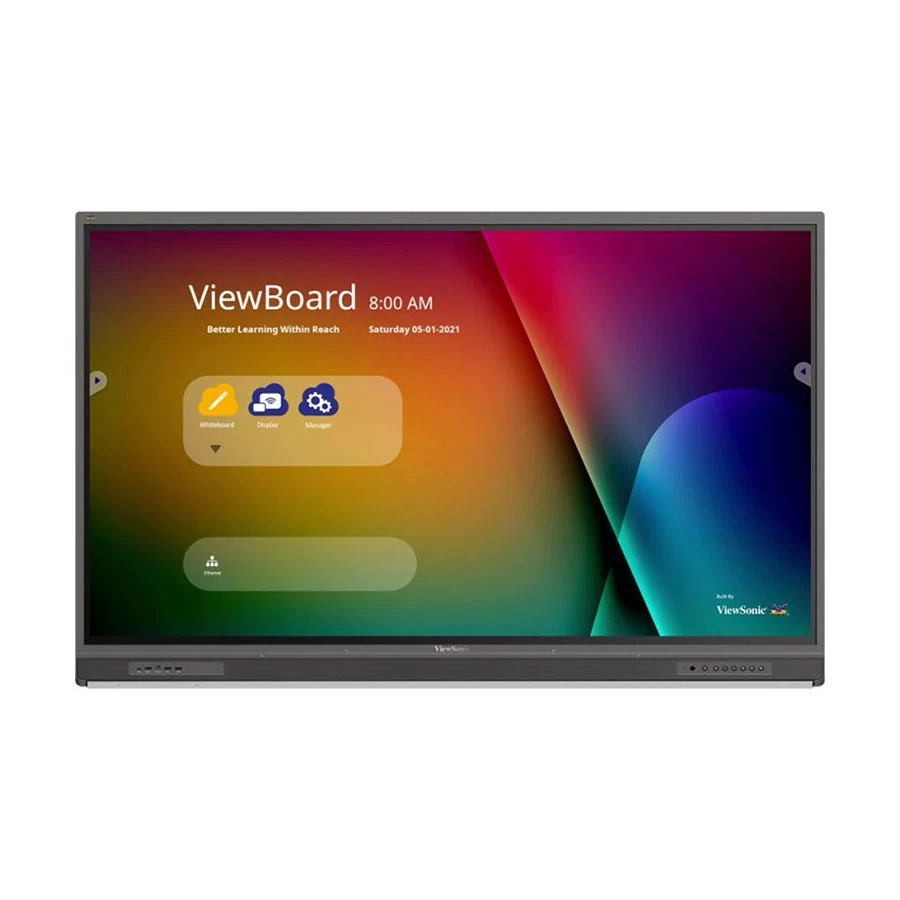

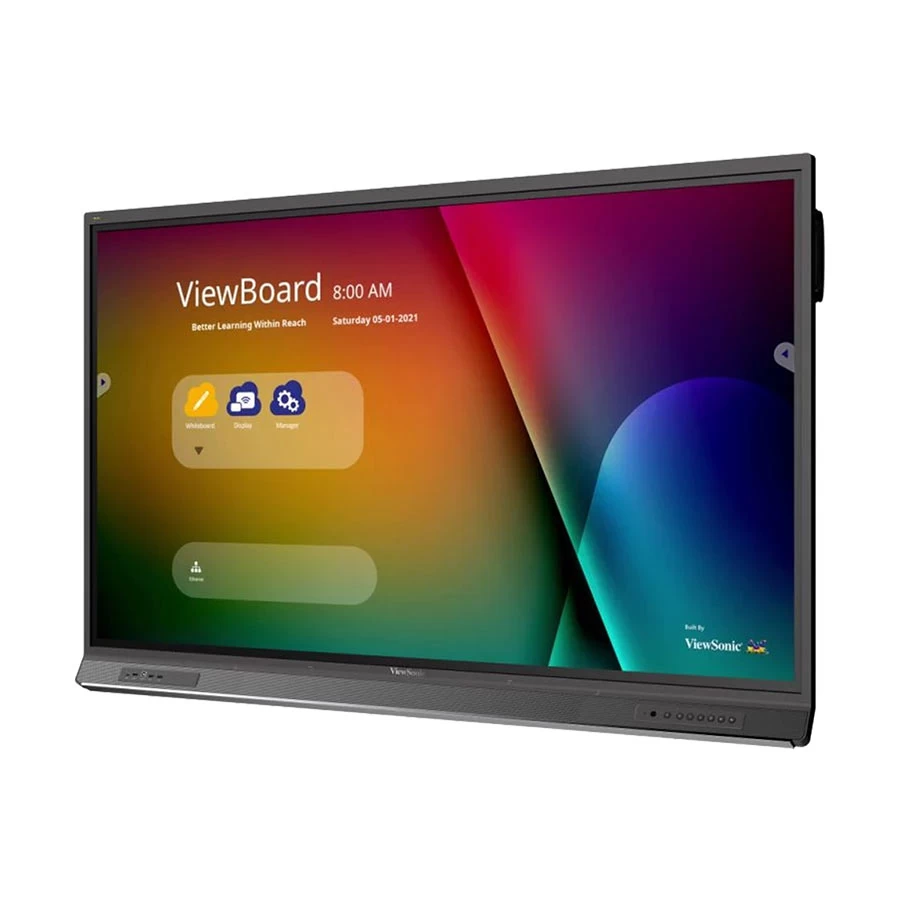

Viewsonic ViewBoard 6552-1C
Technology
4K UHD Interactive Flat Panel
Display
Display Size
65 Inch
Resolution
3840 x 2160
Supported Display Resolutions
3840 x 2160
Display Area
1428.52 x 803.52mm
Anti-Glare
Yes
Panel Type
TFT LCD Module with DLED Backlight, IPS
Panel Bit
10bit
Aspect Ratio
16:9
Display Orientation
Landscape
Brightness (cd/m2)
400nits
Colors
1.07 Billion
Light Source Type
DLED
Light Life
50000 Hrs (typ)
Contrast Ratio
1200:1 (Typ.) , 3000:1 (Max.)
Response Time (ms)
8ms
Viewing Angle.
178 Degree (H & V)
Screen Share
Yes
Surface
Surface
9H Hardness
Number of Touch
20 Point
Touch Interface
3 x USB Type-B Touch
Touch Resolution
32767 x 32767
Hardware
Processor
ARM Cortex A73 x 4
RAM
4GB
Storage (MB/GB/TB)
32GB
Technical Info
Camera (Built-in)
No
Connectivity
Control
Remote Control
Input Ports
4 x HDMI, 1 x VGA, 1 x Audio, 1 x RS232, 1 x OPS, 1 x WiFi module
Output Ports
1 x HDMI, 1 x Audio, 1 x SPDIF
VGA Input
1
HDMI Input
4
HDMI Output
1
Composite Video In
No
USB Port
3 x USB 2.0 Type A (Front x2, Side x1 ), 2 x USB 3.0 Type A (Side x 2 ), 3 x USB Type B Touch, (Front x1, Rear x 2), 1 x USB 2.0 Type C (USB2.0, DP1.2, Ethernet 100M, PD 65W)
RS232 Input/Output
1
Lan Port
2
OPS Included
No
OPS Slot
1
SPDIF
1
Audio
Speaker (Built-in)
Yes
Speaker Details
15W x 2 front soundbar + 15W x 1 subwoofer
Microphone (Built-in)
Yes
Microphone Details
built-in 8-array microphone
Audio In
1
Audio Out
1
Electrical
Power (Voltage)
100-240VAC +/- 10% Wide Range
Approx. Power Consumption
119.2W (Typ.) / Off: <0.5W
Environmental
Operating Temperature
0 to 40 Degree C
Operating Humidity
10% 90% RH non-condensing
Certifications
cTUVus, FCC/ICES003, Energy star 8.0, Mexico CoC, Mexico Energy, EMC/CE, CB/LVD, EAC, UkrSEPRO, LBL, FF, Green BOM, RoHS, SCIP, WEEE , EPEAT, BSMI, ErP, REACH , TPCH, CA65, PAIA
Physical Description
Camera Plate
Yes
Wall Mounting
600 x 400
Body Color
Black
Dimensions
1488 x 948 x 120mm (Physical)
Weight
42.35kg (Net)
Accessories In The Box
1.Power cable 2. Remote control 3. USB Type-C cable 4. USB Touch cable 5. Touch pen x 2 6. Quick Start Guide + Compliance statement 7. RS232 adapter 8. Clamp x 5 9. Camera Plate 10. Screw x 8 11. HDMI cable 12. Eraser 13. AAA Battery x 2
Software
Embedded OS
Android 11.0
Warranty
Warranty
3 year
Additional Info
Others
Type/ Tech: UFT (Ultra Fine Touch) Technology, MICROPHONE - built-in 8-array microphone, All-in-one USB port: USB 3.0 x 2, Simple LAN sharing between IFP and slot-in device: 10/100/1000M for Android and PC, Light Sensor: Yes.
Feature

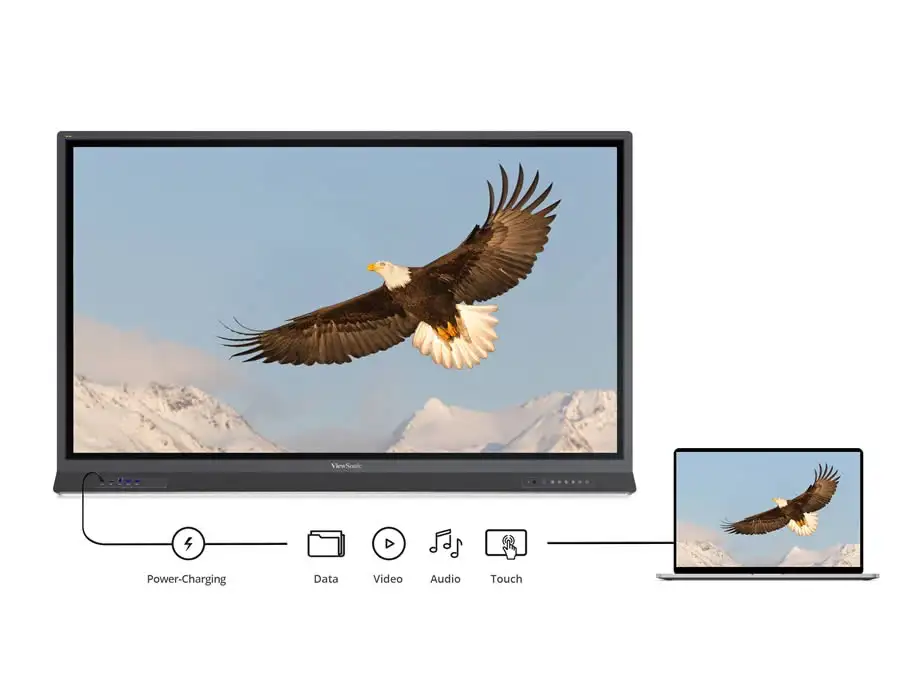

New Exterior Design with Innovative Multimedia Sound Bar, USB-C for plug-and-play connectivity via a single cable, Dual-pen, 33-point touch with naturally smooth writing experience, Industry-leading audio and advanced eye-care technology, Centralized remote management system via myViewBoard Manager.
Country Of Origin
USA
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
