2 x USB 3.0 Type-A, 2 x USB 2.0 Type-A, 1 x USB Type-C, 2 x USB Type-B
Lan Port
2
OPS Included
No
Slot
OPS Slot, Wi-Fi Module Slot
OPS Slot
1
Power Switch
1
Power (Voltage)
AC 110- 240V
Embedded OS
Android 11.0
Wall Mounting
800 x 400mm
Body Color
Black & gray
Dimensions
1710 x 1020 x 90mm
Weight
53.9 kg
Accessories In The Box
1. Power cord, 2. Remote control with AAA battery, 3. Touch USB cable, 4. Touch pen x 2 (VB-PEN-009), 5. Quick Start Guide + Compliance statement, 6. RS232 adapter, 7. Clamp x 5, 8. Camera Plate, 9. Screw x 8, 10. HDMI cable.
Warranty
3 year
General
Brand
Viewsonic
Model
Viewsonic ViewBoard 7550-5
Technology
4K UHD Interactive Flat Panel
Display
Display Size
75 Inch
Resolution
3840 x 2160
Supported Display Resolutions
3840 x 2160
Display Area
1650.24 x 928.26mm
Anti-Glare
Yes
Panel Type
IPS
Panel Bit
10bit
Aspect Ratio
16:9
Bezel
Slim Bezel
Display Orientation
Landscape
Brightness (cd/m2)
400cd/m2
Colors
1.07 Billion
Light Source Type
DLED
Light Life
50,000 hours
Contrast Ratio
1200:1 (Typ.), 5000:1 (DCR)
Response Time (ms)
8ms
Viewing Angle.
178 Degree (H & V)
Screen Share
Yes
Surface
Surface
Hardness: 9H, Anti-glare coating
Number of Touch
20 Point
Touch Interface
2 x USB Type-B
Touch Resolution
32768 x 32768
Hardware
Processor
ARM Cortex-A73 x 4 + Cortex-A53 x 4
RAM
4GB
Storage (MB/GB/TB)
32GB
Slot
OPS Slot, Wi-Fi Module Slot
Technical Info
Camera (Built-in)
No
Mechanical
Wall Mount, OPS Slot support
Connectivity
Control
Remote Control
Input Ports
3 x HDMI, 1 x RS232, 1 x OPS, 1 x WiFi Module Slot
Output Ports
1 x HDMI, 1 x Earphone Out, 1 x SPDIF Optical
VGA Input
No
HDMI Input
3
HDMI Output
1
Display Port
No
Composite Video In
No
USB Port
2 x USB 3.0 Type-A, 2 x USB 2.0 Type-A, 1 x USB Type-C, 2 x USB Type-B
RS232 Input/Output
1
Lan Port
2
OPS Included
No
OPS Slot
1
SPDIF
1
Audio
Speaker (Built-in)
Yes
Speaker Details
2 x 12W (Speaker), 1 x 16W (Subwoofer)
Microphone (Built-in)
No
Audio Out
1
Electrical
Power Switch
1
Power (Voltage)
AC 110- 240V
Approx. Power Consumption
135W
Environmental
Operating Temperature
0 Degree C - 40 Degree C
Operating Humidity
10% - 90% RH non-condensing
Certifications
cTUVus, FCC/ICES003, Energy Star 8.0, EMC/CE, CB/LVD, GOST-R/EAC, UkrSEPRO, EPEAT, Mexico NOM , Mexico Energy, UKCA, UK-EEL, BSMI, BIS, LBL( Low Blue Light Certification), Flicker Free, Green BOM, RoHS, ErP-Eco, REACH, SCIP, WEEE, TPCH , Packing waste, CA65, PAIA
Physical Description
Camera Plate
Yes
Wall Mounting
800 x 400mm
Body Color
Black & gray
Dimensions
1710 x 1020 x 90mm
Weight
53.9 kg
Accessories In The Box
1. Power cord, 2. Remote control with AAA battery, 3. Touch USB cable, 4. Touch pen x 2 (VB-PEN-009), 5. Quick Start Guide + Compliance statement, 6. RS232 adapter, 7. Clamp x 5, 8. Camera Plate, 9. Screw x 8, 10. HDMI cable.
Software
Embedded OS
Android 11.0
Warranty
Warranty
3 year
Additional Info
Others
Touch Point: (Windows 40 points of touch, Android 20 points of touch), Type/Tech: Ultra Fine Touch Techology (IR Recognition),
Feature

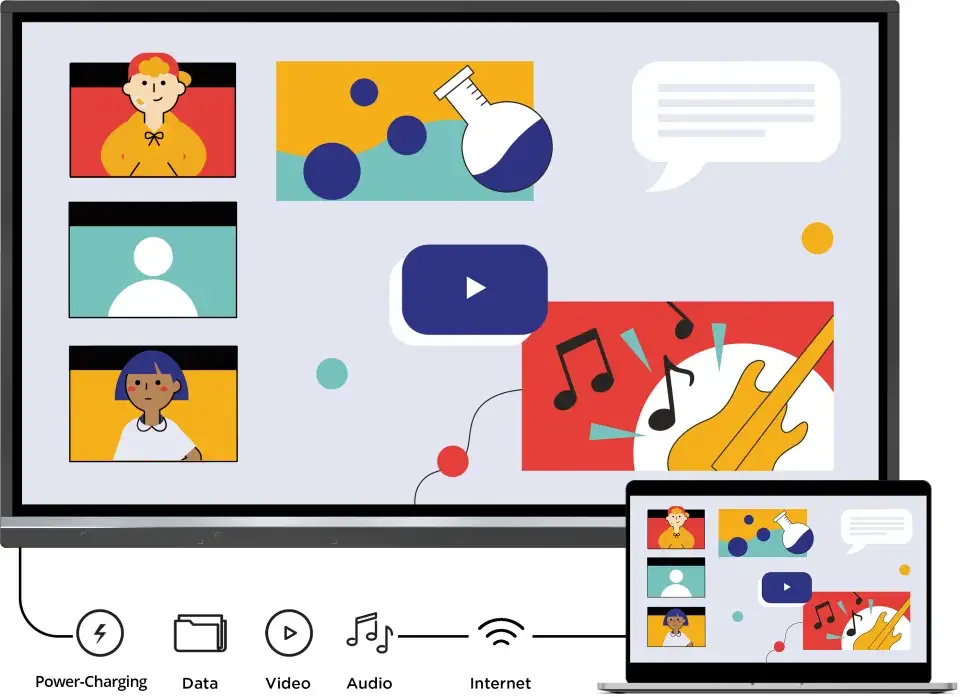

Light Sensor, All-in-one USB port, Simple LAN sharing between IFP and slot-in device, Designed with modern educators in mind, the ViewBoard 50-5 Series offers an intuitive and interactive interface for a multi-user writing experience. With a single-cable USB-C for instant, worry-free connectivity, teachers can seamlessly plug-in and control their devices while continuing the lesson. Both students and educators enjoy smooth writing with Ultra Fine Touch Technology offering 40-point touch, and the dual-pen that comes in a range of colors and sizes.
Country Of Origin
USA
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
