Viewsonic ViewBoard IFP110 110 Inch 4K Ultra HD Interactive Flat Panel Display (Android 13)
Type A: USB2.0 x 1 (Rear x 1) (for FW upgrade), USB3.0 x 4 (Rear x 2 + Front x2 ), Type B: 3 (Front x1, Bottom x 1, Rear x 1), Type C: 3 (Rear x 2: 1x (PD100W + DP1.2 + Touch + USB 3.0 & USB 2.0 ; 1x(USB 3.0 only) ; Front x 1(PD65W + DP1.2 + Touch + 100M sharing, USB 3.0 & USB 2.0))
Lan Port
2
OPS Included
No
Slot
1 x OPS Slot
OPS Slot
Yes
Power Switch
Yes
Power (Voltage)
100-240VAC +/- 10% Wide Range
Embedded OS
Android 13
Wall Mounting
1000 x 800mm
Body Color
Black
Dimensions
2507.1 x 1474.8 x 96.8mm
Weight
120.2 kg
Accessories In The Box
Remote Control with batteries, Quick Start Guide, Power Cables (3 M), HDMI cable (3 M) x 1, USB touch cable 2.0 (3 M) x 1, WIFI Dongle (VB-WIFI-005) x 1, RS232 adapter (Female to Female), Touch pen (Passive pen) (VB-PEM-002 x 2), Retractable Stylus (PNT-001-B0/R0 x 1), Clamp x 5, Camera plate x 1, Screws x 8 (Camera 2+2, Wall mount x4), Compliance Statement
Warranty Details
3 year
General
Brand
Viewsonic
Model
Viewsonic ViewBoard IFP110
Technology
4K UHD Interactive Flat Panel
Display
Display Size
110 Inch
Resolution
3840 x 2160
Supported Display Resolutions
3840 x 2160
Display Area
2436.48 (H) x 1370.52 (V)mm
Anti-Glare
Yes
Panel Type
TFT
Aspect Ratio
16:9
Display Orientation
Landscape
Brightness (cd/m2)
400nits
Colors
1.07G colors
Light Life
DLED
Refresh Rate (Hz)
120Hz
Contrast Ratio
1200:1(Typ.), 5000:1(Min. with DCR enabled)
Response Time (ms)
8ms
Viewing Angle.
178 Degree (H & V)
Surface
Surface
Hardness: 7H, Anti-glare coating
Number of Touch
40 Point
Touch Resolution
32767 x 32767
Hardware
Processor
Octa-Core CPU (A73 x 4 + A53 x 4)
RAM
8GB
Storage (MB/GB/TB)
128GB
Slot
1 x OPS Slot
Technical Info
Camera (Built-in)
No
Connectivity
Control
Remote Control
Input Ports
3 x HDMI, 1 x VGA, 1 x DP, 1 x Audio, 1 x RS232
Output Ports
1 x HDMI, 1 x Audio, 1 x SPDIF
VGA Input
1
HDMI Input
3
HDMI Output
1
Display Port
1
USB Port
Type A: USB2.0 x 1 (Rear x 1) (for FW upgrade), USB3.0 x 4 (Rear x 2 + Front x2 ), Type B: 3 (Front x1, Bottom x 1, Rear x 1), Type C: 3 (Rear x 2: 1x (PD100W + DP1.2 + Touch + USB 3.0 & USB 2.0 ; 1x(USB 3.0 only) ; Front x 1(PD65W + DP1.2 + Touch + 100M sharing, USB 3.0 & USB 2.0))
RS232 Input/Output
1
Lan Port
2
OPS Included
No
OPS Slot
Yes
SPDIF
1
Audio
Speaker (Built-in)
Yes
Speaker Details
15W x 2 + 20W x 1 subwoofer
Microphone (Built-in)
Yes
Microphone Details
8-array Microphone
Audio In
1
Audio Out
1
Electrical
Power Switch
Yes
Power (Voltage)
100-240VAC +/- 10% Wide Range
Power (AC) Input
100 - 240VAC
Environmental
Operating Temperature
0 Degree C to 40 Degree C
Operating Humidity
20% - 80% RH non-condensing
Certifications
US NRTL w/ CA, FCC/ ICES003, DOE Energy Star, DOE EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE, GOST-R / EAC, FF, LBL, ErP-Eco, SCIP, Annex I, Annex II, TPCH DoC, Packing waste, CA65 DoC
Physical Description
IR Sensor
Yes
RF (NFC Reader/Writer)
Yes
Camera Plate
Yes
Wall Mounting
1000 x 800mm
Body Color
Black
Dimensions
2507.1 x 1474.8 x 96.8mm
Weight
120.2 kg
Accessories In The Box
Remote Control with batteries, Quick Start Guide, Power Cables (3 M), HDMI cable (3 M) x 1, USB touch cable 2.0 (3 M) x 1, WIFI Dongle (VB-WIFI-005) x 1, RS232 adapter (Female to Female), Touch pen (Passive pen) (VB-PEM-002 x 2), Retractable Stylus (PNT-001-B0/R0 x 1), Clamp x 5, Camera plate x 1, Screws x 8 (Camera 2+2, Wall mount x4), Compliance Statement
Software
Embedded OS
Android 13
OS Supported
Android
Warranty
Warranty Details
3 year
Additional Info
Others
Panel Type: TFT LCD module with DLED backlight, Touch Point: Windows: 40 Android: 20, Bundle Software: Basic Annotation Software: myViewBoard, Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC), ViewSonic Launcher: Yes, Wireless Presentation with Touch Feedback: Viewboard Cast: Yes, All-in-one USB port: USB 3.0 SmartPort USB to all channels. Simple LAN sharing between IFP and slot-in device: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000), Light Sensor: Yes, NFC Reader: Yes, Compatible Slot-in PC, VPC-A31-O1, VPC3X series
Feature

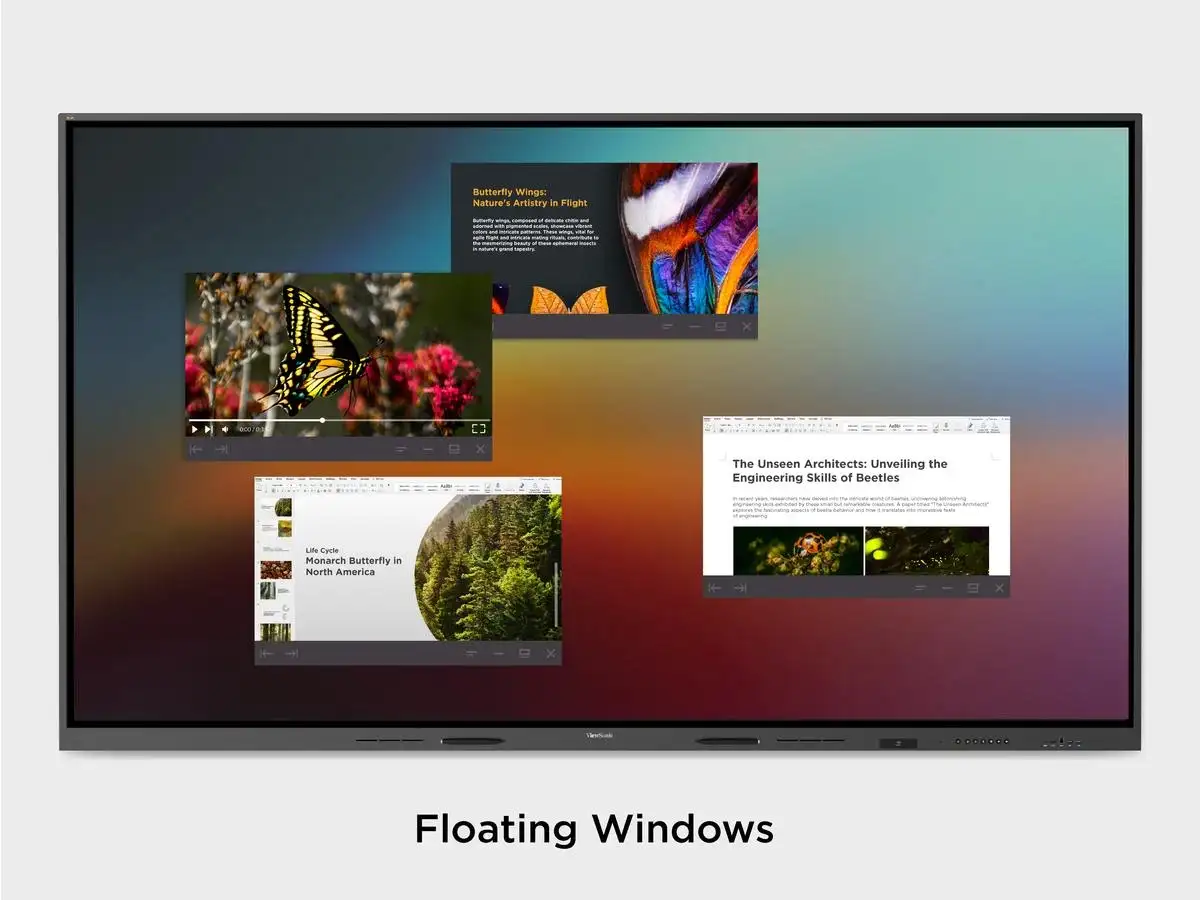

Effortless collaboration and multitasking on the 110 inch screen with floating windows, Intuitive launcher with NFC card, myViewBoard, and SSO options for swift access to personalized settings, Powerful productivity with Android 13 OS and Octa-core processor, Triple USB-C ports enable seamless device integration with up to 100W charging, Enriched educational experiences through integrated ViewSonic Software
Country Of Origin
USA
Made in/ Assemble
China
