Type A: USB3.0 x4 (Front x2, Rear x2): USB2.0 x1, Type B: x2 (Front x1, Rear x1), Type C: Frontx1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing)
Lan Port
2
OPS Included
Yes
Slot
1
OPS Slot
Yes
Power (Voltage)
100-240V AC
Embedded OS
Android 11
Wall Mounting
800 x 400mm
Body Color
Gray
Dimensions
1709 x 1020 x 88mm
Weight
47.3kg
Accessories In The Box
1. 3m power cord by ship area, 2. Remote control with AAA battery, 3. 3m touch USB cable, 4. Touch pen x 2 (VB-PEN-009), 5. Quick Start Guide + Compliance statement, 6. RS232 adapter, 7. Clamp x 5, 8. Camera Plate, 9. Screw x 8 (camera 2+2, wall mount 4), 10. HDMI cable 3m
Warranty
3 year
General
Brand
ViewSonic
Model
ViewSonic ViewBoard IFP7533-G
Technology
4K UHD Interactive Flat Panel
Display
Display Size
75 Inch
Resolution
3840 x 2160
Supported Display Resolutions
3840 x 2160
Display Area
1649.664(H) x 927.936(V) (74.6 Inch diagonal)
Anti-Glare
Yes
Panel Type
IPS
Aspect Ratio
16:9
Display Orientation
Landscape
Brightness (cd/m2)
400nits
Colors
1.07 Billion
Light Source Type
DLED
Light Life
50,000 Hours
Contrast Ratio
5000:1 (Typical)
Response Time (ms)
6ms
Viewing Angle.
178 Degree (H & V)
Surface
Surface
Hardness: 7H, 4mm tempered glass, Anti-Glare, Anti-Dust and Anti-Fingerprint Technologies
Number of Touch
40 Point
Hardware
Processor
Quad-core ARM Cortex (A55*4)
RAM
8GB
Storage (MB/GB/TB)
128GB
GPU
Quad-core ARM Mali G52 (Support 4K UHD)
Slot
1
Technical Info
Camera (Built-in)
No
Tempered Glass
Yes
Connectivity
Control
Remote control
Input Ports
HDMI-IN 2.0 x 3 (3840x2160 @60Hz), RGB / VGA: x1, Audio x 1, RS232 x 1
Output Ports
HDMI 2.0 x1, Audio x1, SPDIF x1.
VGA Input
1
HDMI Input
3
HDMI Output
1
USB Port
Type A: USB3.0 x4 (Front x2, Rear x2): USB2.0 x1, Type B: x2 (Front x1, Rear x1), Type C: Frontx1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing)
RS232 Input/Output
1
Lan Port
2
OPS Included
Yes
OPS Slot
Yes
Audio
Speaker (Built-in)
Yes
Speaker Details
16W x 2
Microphone (Built-in)
No
Audio In
1
Audio Out
1
Electrical
Power (Voltage)
100-240V AC
Approx. Power Consumption
On: 106W; Off: <- 0.5W
Environmental
Operating Temperature
0 Degree C to 40 Degree C
Operating Humidity
20% - 80% RH non-condensing
Physical Description
Camera Plate
Yes
Wall Mounting
800 x 400mm
Body Color
Gray
Dimensions
1709 x 1020 x 88mm
Weight
47.3kg
Accessories In The Box

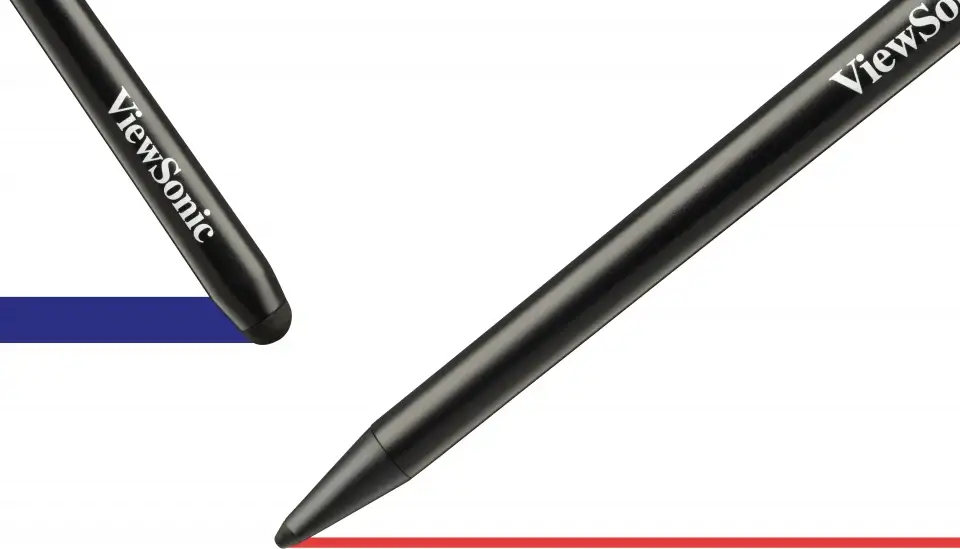

1. 3m power cord by ship area, 2. Remote control with AAA battery, 3. 3m touch USB cable, 4. Touch pen x 2 (VB-PEN-009), 5. Quick Start Guide + Compliance statement, 6. RS232 adapter, 7. Clamp x 5, 8. Camera Plate, 9. Screw x 8 (camera 2+2, wall mount 4), 10. HDMI cable 3m
Software
Embedded OS
Android 11
OS Supported
Android
Warranty
Warranty
3 year
Additional Info
Others
BUNDLE SOFTWARE: Basic Annotation Software: myViewBoard Whiteboard, Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC), Wireless Presentation: myViewBoard Display, Device Management: Remote Device Management: myViewBoard Manager, Wireless Presentation with Touch Feedback: Viewboard Cast: Yes, SPECIAL FEATURES: All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front SmartPort USB to all channels., Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC, Light Sensor: Yes
Feature

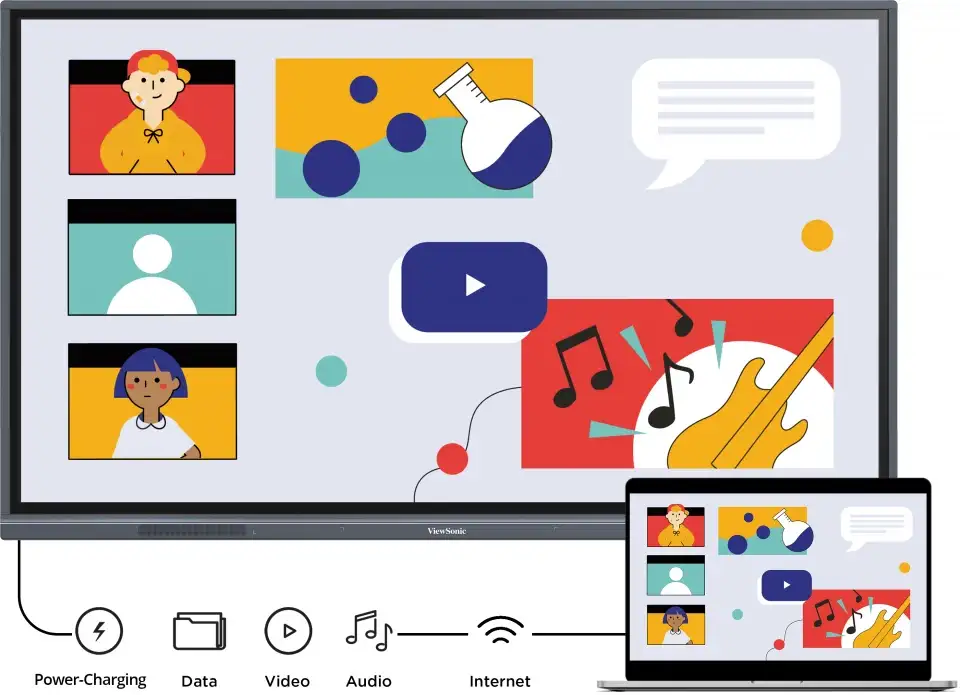

Integrated with myViewBoard software, Multi-tasking capabilities for enhanced lesson delivery, Embrace simplicity and organization with the USB-C one-cable solution, offering 65W of Power Delivery. Intuitive user interface and fast app launch for smooth operation, Powered by Android 11
Country Of Origin
USA
Made in/ Assemble
China
