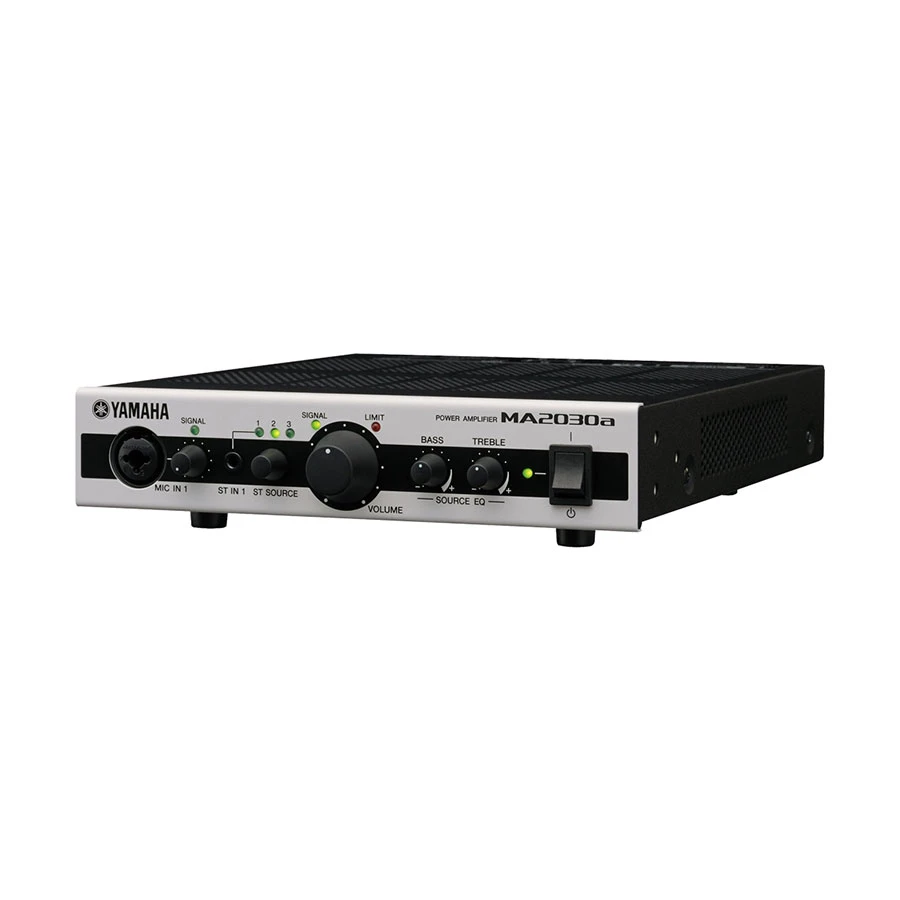

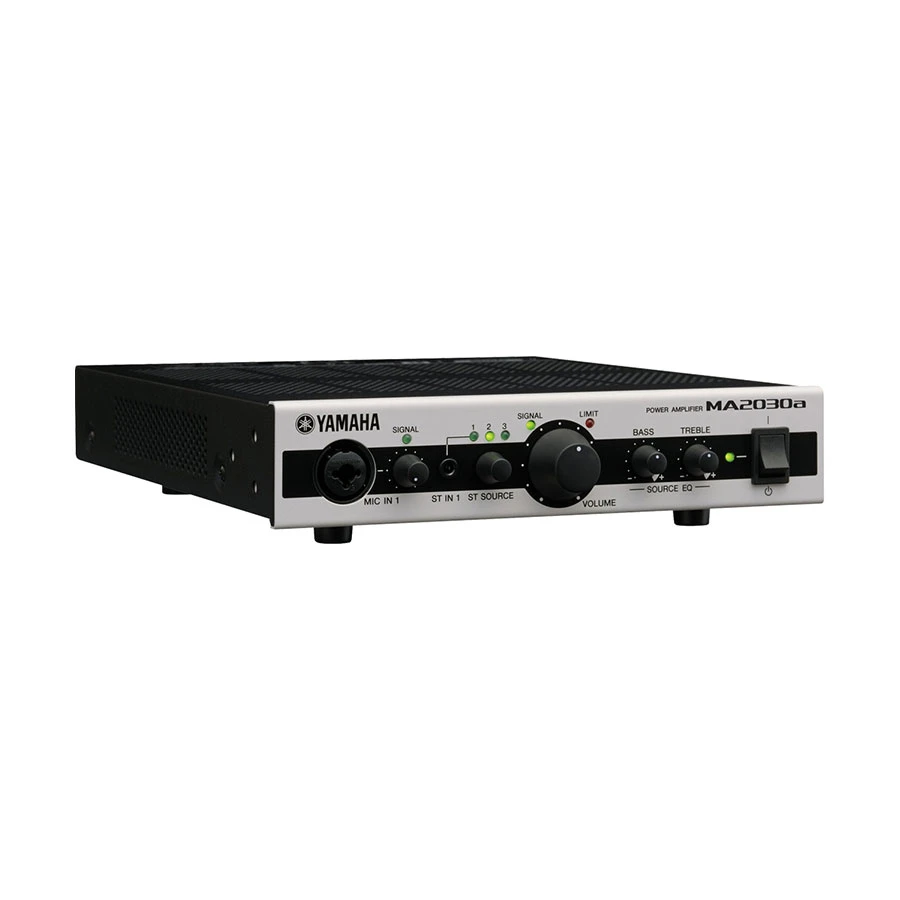

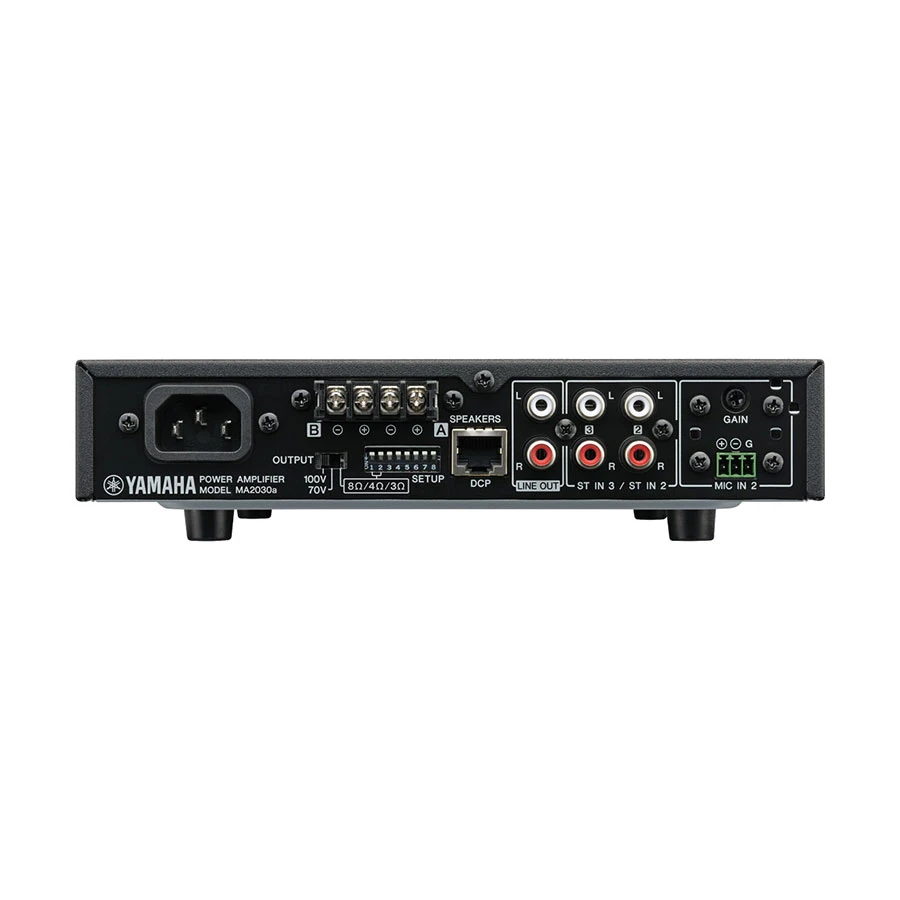

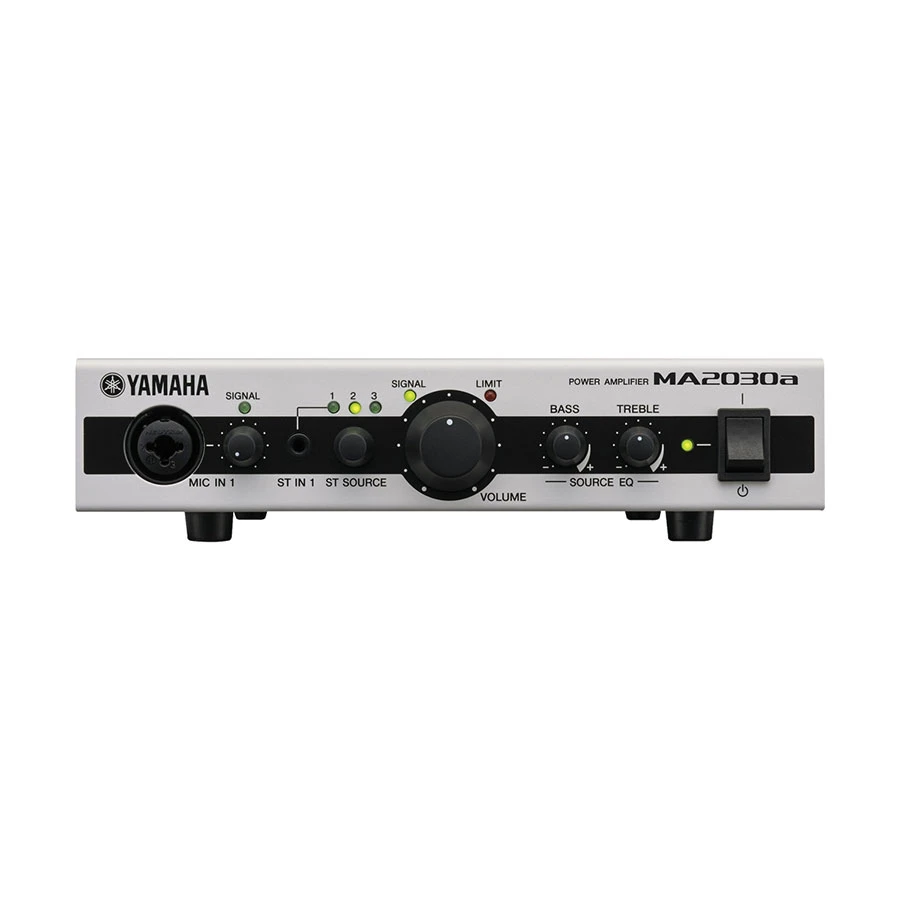

Yamaha MA2030A Mixer Amplifier
Product Id: 10.11.944.06
Brand
Yamaha
Quick Overview
- Channel - Unmentioned
- Connectivity Mode - Wired
- USB Port - No
General
Brand
Yamaha
Model
Yamaha MA2030A
Type
Amplifier
Audio Details
Channel
Unmentioned
RMS/Channel (Watt)
Unmentioned
RMS/Subwoofer (Watt)
Unmentioned
Output Power
1kHz (THD+N=1%: 3 ohm, 4 ohm, 8 ohm): 30W x 2 (20ms Burst), High impedance: 100V line & 70V line: 60W x 1
Frequency (Hz - KHz)
20Hz - 20kHz
Connectivity
Connectivity Mode
Wired
USB Port
No
Technical Info
Microphone
No
Performance
Lighting Effect
No
Waterproof
No
Dustproof
No
Shockproof
No
Power
Power Supply
100V, 120V, 230V-240V; 50Hz/ 60Hz
Approx. Power Consumption
30W
Physical Description
Dimensions
288 x 215 x 54mm
Weight (Kg)
1.8kg
Package Contents
Amplifier, AC power cable, 3.5mm Euroblock plug (3-pin) x 1, Owners manual, Specification sheet.
Warranty
Warranty Details
No warranty
Additional Info
Others
Total harmonic distortion: <=0.1% (Stereo in to Speaker out @1kHz, Half power, 3 ohm/ 4 ohm/ 8 ohm), <= 0.2% (Stereo in to Speaker out @1kHz, Half power, 70V/ 100V), Frequency response: 0dB, -2.5dB, +1.0dB (Stereo in to Line out, 20Hz to 20kHz), 0dB, -3.0dB, +1.0dB (Stereo in to Speaker out, 50Hz to 20kHz, 1W, 3 ohm/ 4 ohm/ 8 ohm), 0dB, -3.0dB, +1.0dB (Stereo in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V), Crosstalk: <= -70dB (Stereo in to other Stereo in), Speaker Output: Barrier strip x 2 pairs, Line Out: Stereo RCA pin (unbalanced), Control ports: RJ-45 (for DCP1V4S), Mic Input: MIC IN 1: XLR combo jack (balanced), MIC IN 2: 3.5mm Euroblock (3-pin, balanced), Stereo Input: ST IN 1: Stereo mini phone (3.5mm, unbalanced), ST IN 2 / ST IN 3: Stereo RCA pin (unbalanced), Input Level: Mic input: -76 dBu (Sensitivity), -66 dBu (Nominal), -22 dBu (Max before clip) / Line input: -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip), Output Level: -10dBV (LINE OUT, Nominal), Processors: Speaker EQ (VXS:Full Range, VXC), HPF (150Hz), Amplifier class: Class D, Operating Temperature: 0 Degree C to + 40 Degree C, Storage Temperature: -20 Degree C to + 60 Degree C, Rack-mountable when ensuring sufficient ventilation above and below the unit.
Specialty
Protection circuit: Load protection: Power switch on/off: Mute the output, Output voltage protection: Compress the output, DC-fault: Power supply shutdown (Restored automatically), Amplifier protection: Thermal: Limit the output - Mute - Shutdown, Over current: Mute the output, Integrated power limit: Compress the output (Restored automatically), Power supply protection: Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown, Conventional cooling, bottom to up airflow.
Country Of Origin
Japan
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
