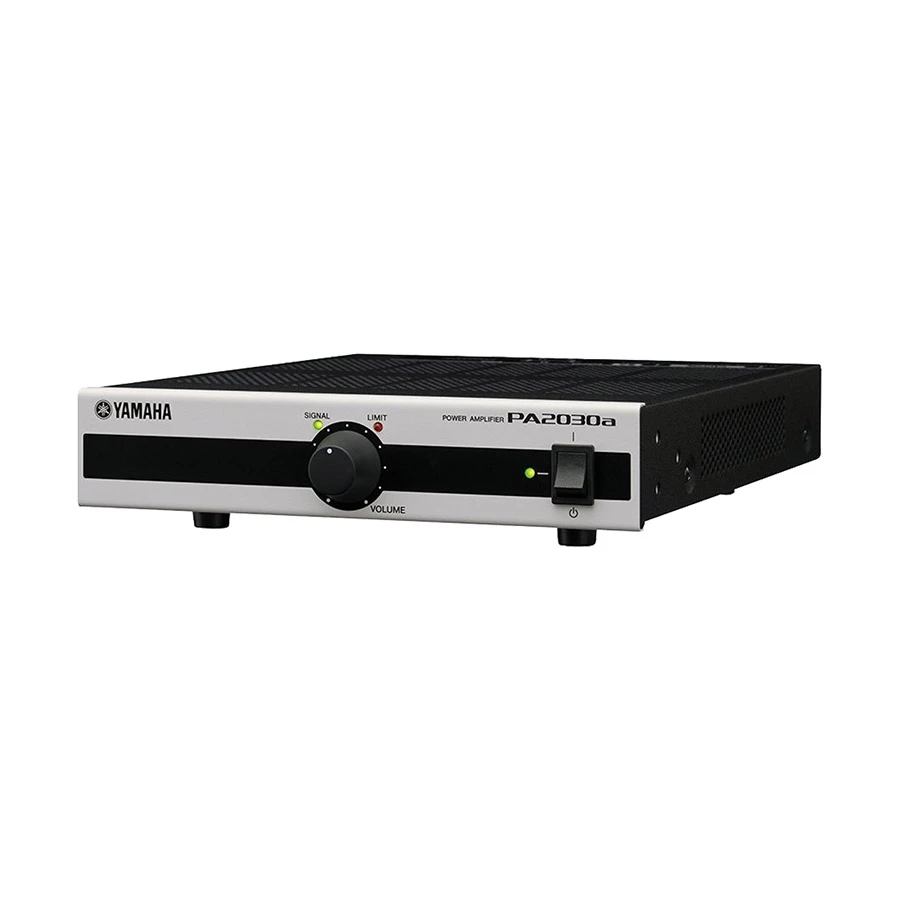

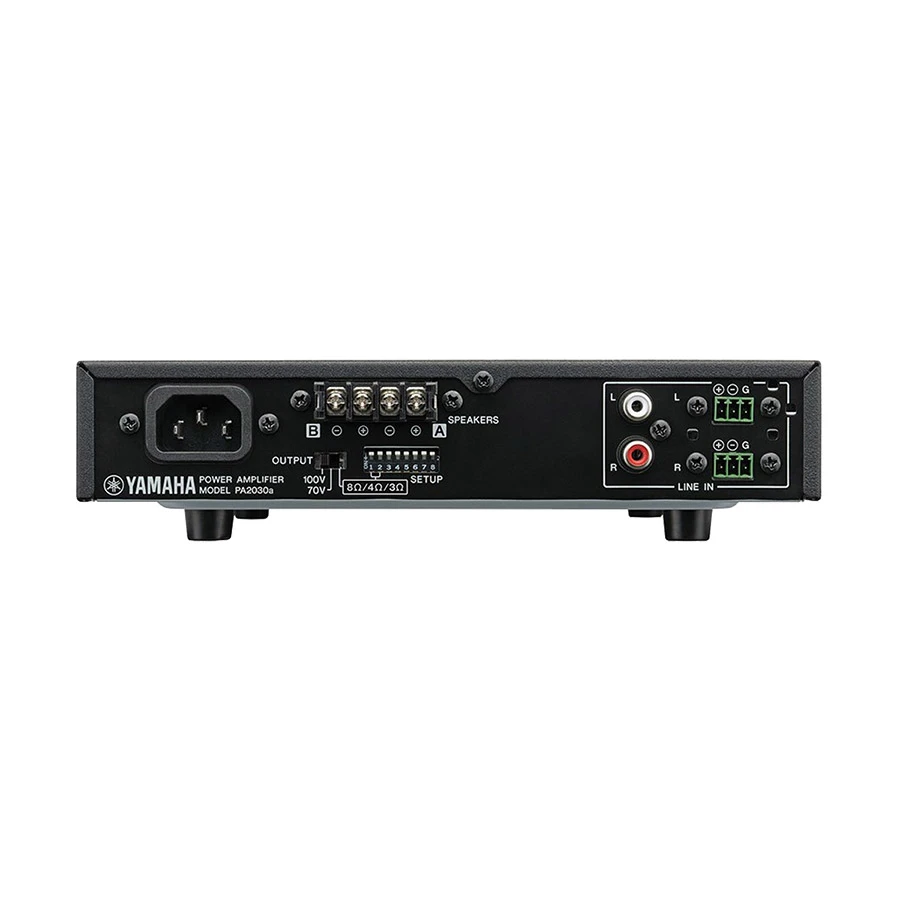

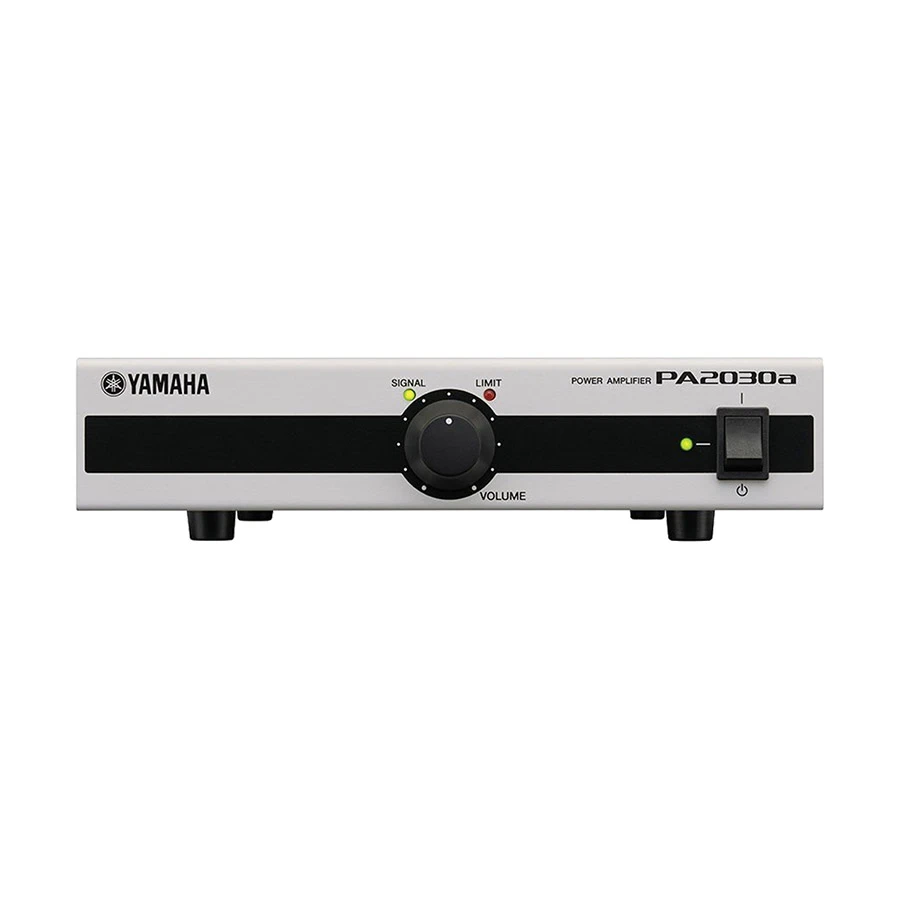

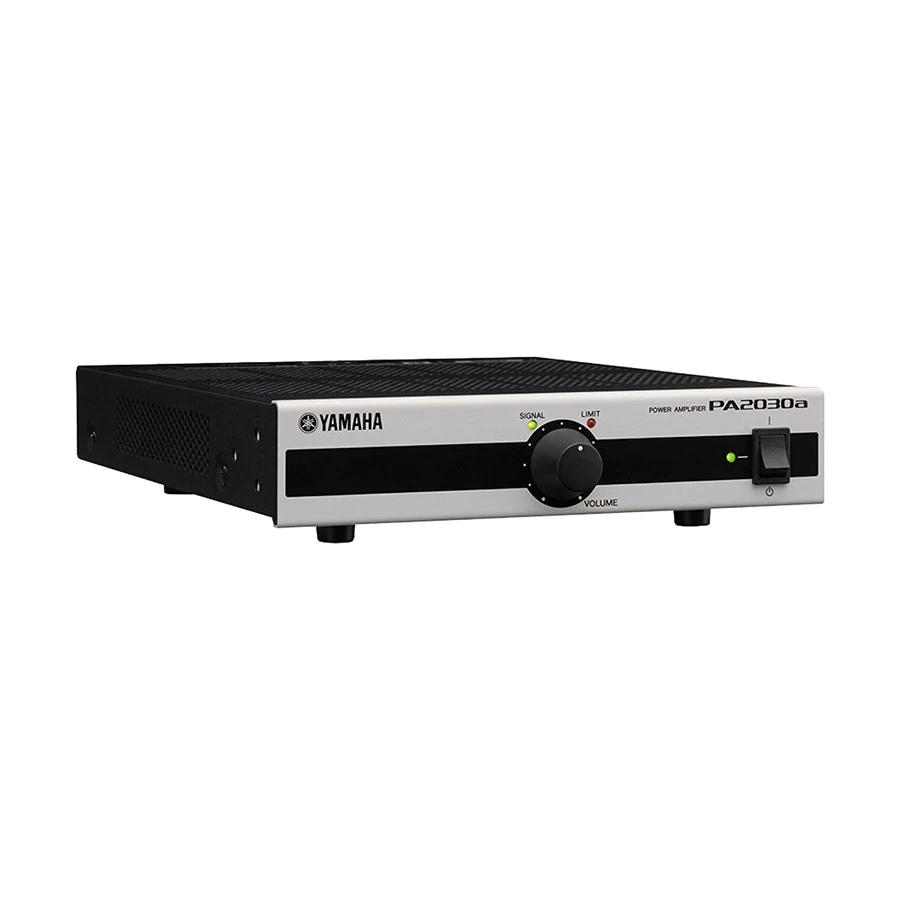

Yamaha PA2030A Power Amplifier
Product Id: 10.11.944.07
Brand
Yamaha
Quick Overview
- Channel - Unmentioned
- Connectivity Mode - Wired
- USB Port - No
General
Brand
Yamaha
Model
Yamaha PA2030A
Type
Amplifier
Audio Details
Channel
Unmentioned
RMS/Channel (Watt)
Unmentioned
RMS/Subwoofer (Watt)
Unmentioned
Output Power
1kHz (THD+N=1%: 3 ohm, 4 ohm, 8 ohm): 30W x 2 (20ms Burst), High impedance: 100V line & 70V line: 60W x 1
Connectivity
Connectivity Mode
Wired
USB Port
No
Technical Info
Microphone
No
Performance
Lighting Effect
No
Waterproof
No
Dustproof
No
Shockproof
No
Power
Power Supply
100V, 120V, 230V-240V; 50Hz/ 60Hz
Approx. Power Consumption
30W
Physical Description
Dimensions
288 x 215 x 54mm
Weight (Kg)
1.8kg
Color
Black & Silver
Package Contents
Amplifier, AC power cable, 3.5mm Euroblock plug (3-pin) x 2, Owners manual, Specification sheet.
Warranty
Warranty Details
No warranty
Additional Info
Others
Total harmonic distortion: <= 0.1% (Line in to Speaker out @1kHz, Half power, 3ohm/ 4 ohm/ 8 ohm), <= 0.2% (Line in to Speaker out @1kHz, Half power, 70V/ 100V), Frequency response: 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3 ohm/ 4 ohm/ 8 ohm), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/ 100V), Speaker Output: Barrier strip x 2 pairs, Stereo Input: LINE IN: Stereo RCA pin (unbalanced), 3.5mm Euroblock (3-pin, balanced) x 2, Input Level: Line input (unbalanced): -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip)/ Line input (balanced): +4dBu (Sensitivity), +4dBu (Nominal), +24dBu (Max before clip), Processors: peaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz), Operating Temperature: 0 Degree C to + 40 Degree C, Storage Temperature: -20 Degree C to + 60 Degree C, Rack-mountable when ensuring sufficient ventilation above and below the unit.
Specialty
Protection circuit: Load protection: Power switch on/off: Mute the output, Output voltage protection: Compress the output, DC-fault: Power supply shutdown (Restored automatically), Amplifier protection: Thermal: Limit the output - Mute - Shutdown, Over current: Mute the output, Integrated power limit: Compress the output (Restored automatically), Power supply protection: Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown, Conventional cooling, bottom to up airflow.
Country Of Origin
Japan
