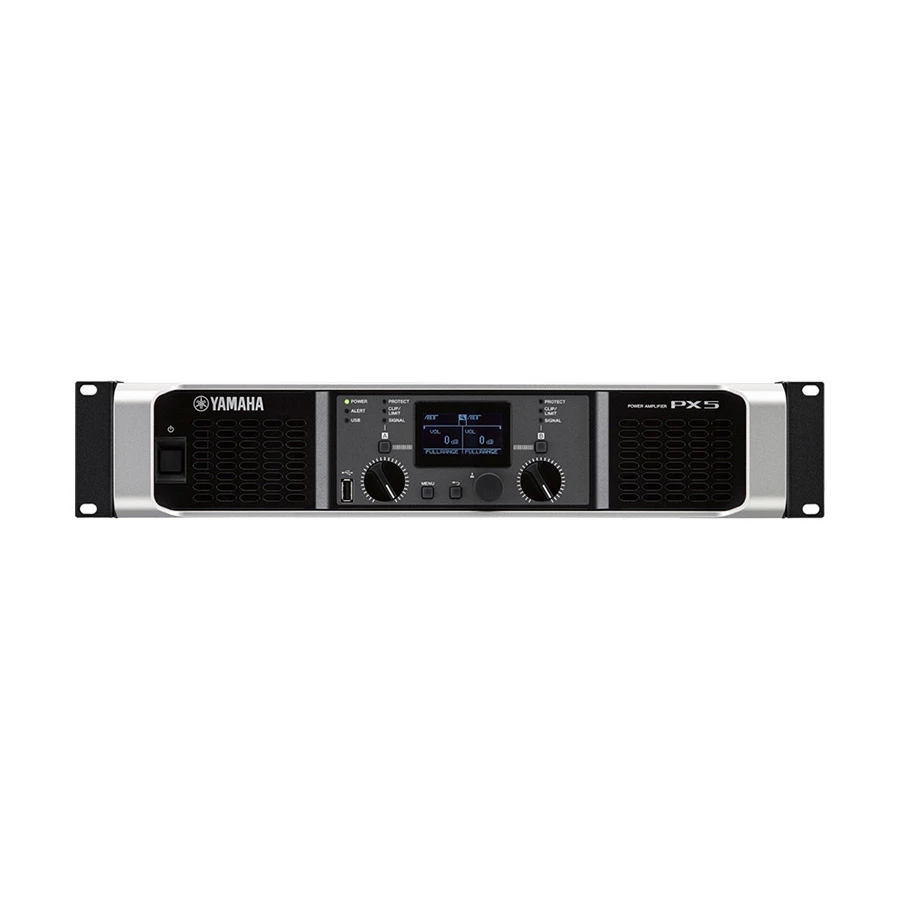

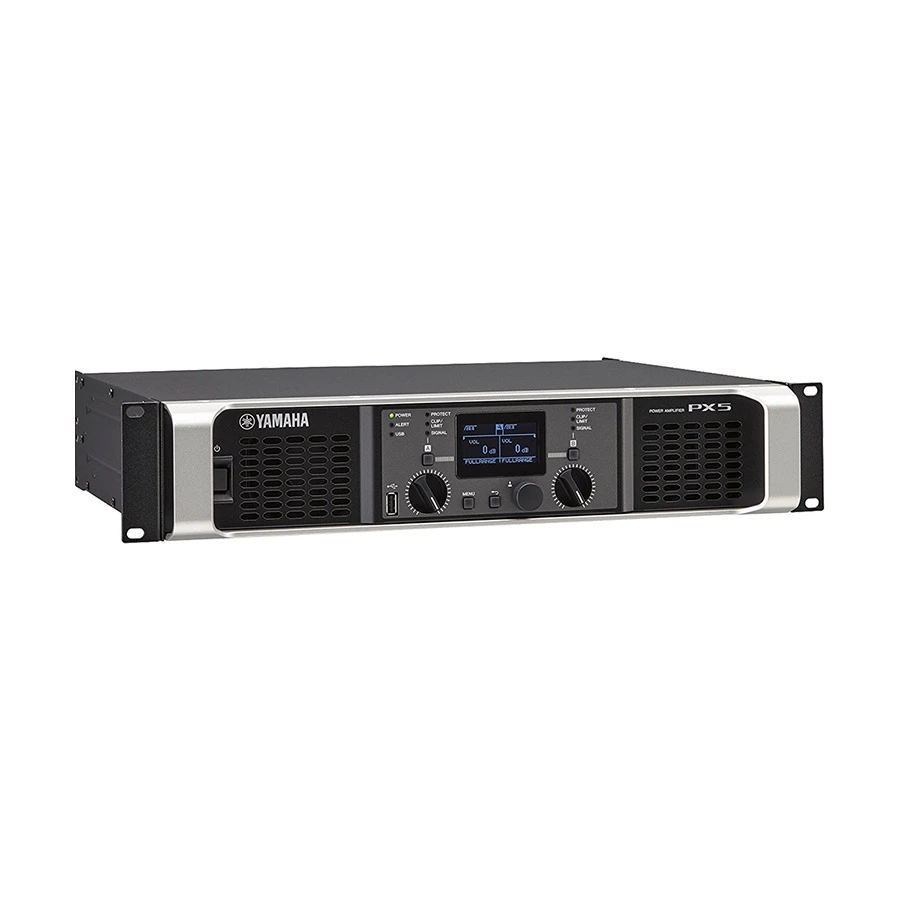

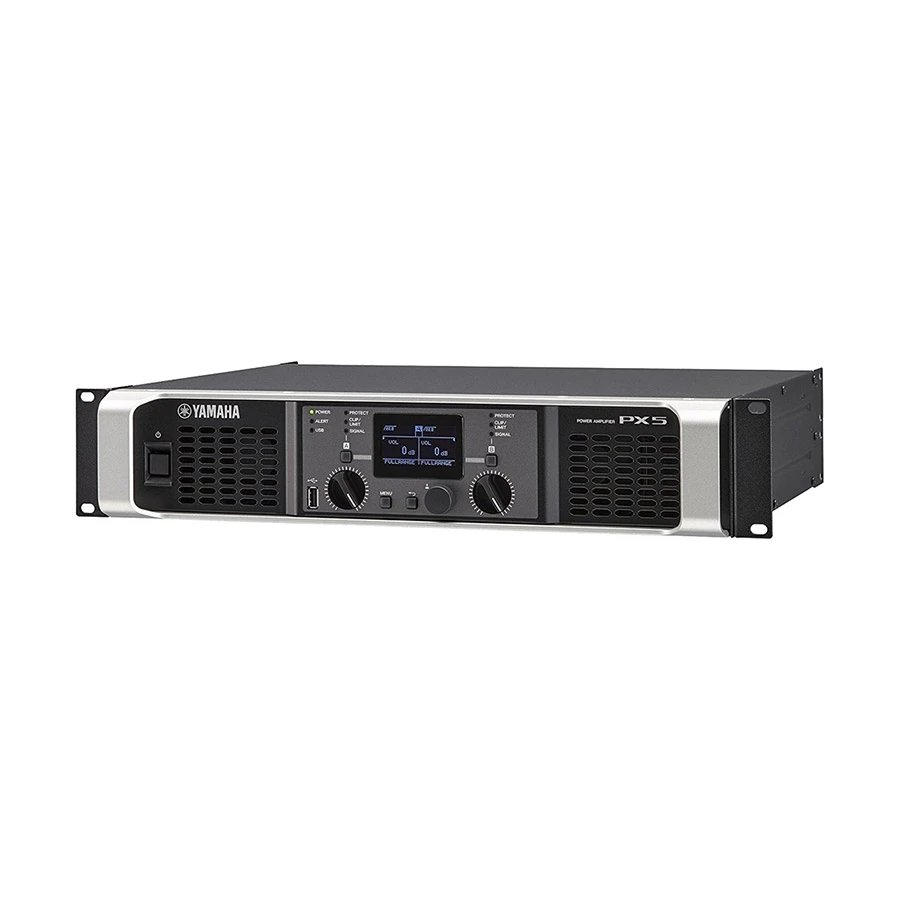

Yamaha PX5 100V Power Amplifier
Product Id: 10.11.944.08
Brand
Yamaha
Quick Overview
- Channel - Unmentioned
- Connectivity Mode - Wired
- USB Port - No
General
Brand
Yamaha
Model
Yamaha PX5
Type
Amplifier
Audio Details
Channel
Unmentioned
RMS/Channel (Watt)
Unmentioned
RMS/Subwoofer (Watt)
Unmentioned
Frequency (Hz - KHz)
20Hz - 20kHz
Impedance (ohm)
20kohm (Balance), 10kohm (Unbalance)
Connectivity
Connectivity Mode
Wired
USB Port
No
Technical Info
Microphone
No
Performance
Lighting Effect
No
Waterproof
No
Dustproof
No
Shockproof
No
Power
Approx. Power Consumption
230W (1/8 MAX power, 4 ohm, Pink noise at all channels), 55W (4 ohm, Idling)
Physical Description
Dimensions
480 x 388 x 88mm
Weight (Kg)
6.9 kg
Warranty
Warranty Details
No warranty
Additional Info
Feature
50% lighter than previous Yamaha P Series Power Amplifiers, Onboard Signal Processing including D-Contour, Features include; Config Wizard, Panel Lock, Event Logging, 2x 800W@4 ohm.
Others

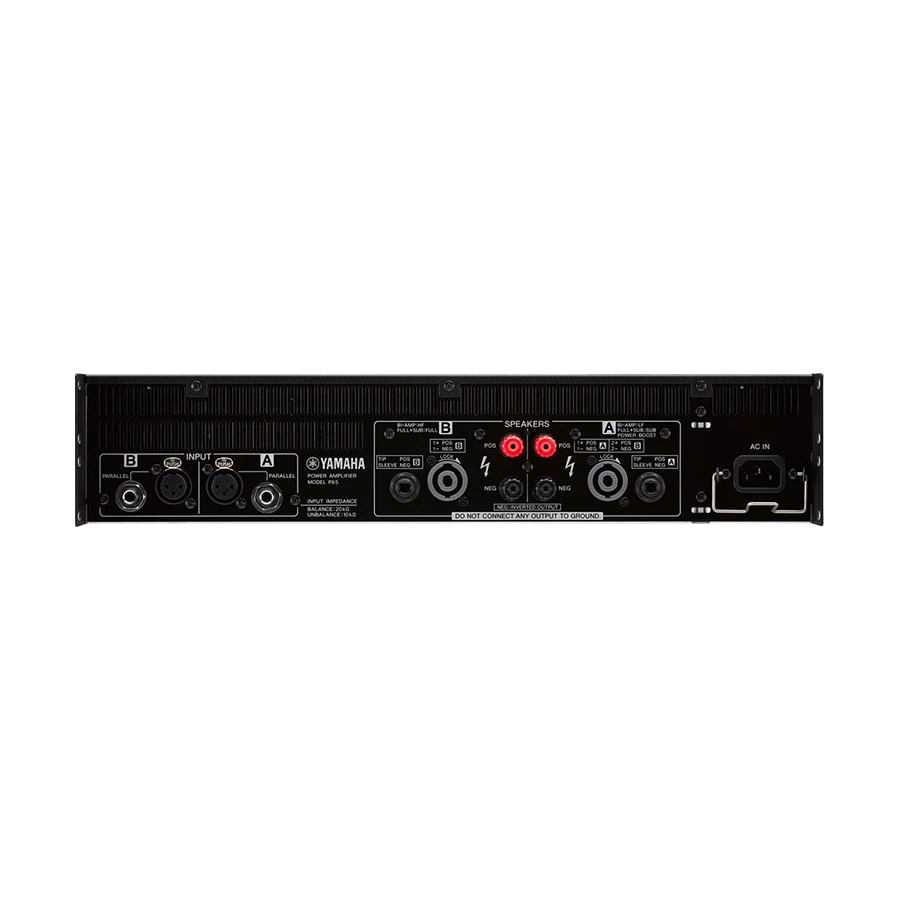

Output power, 1kHz Non-clip 20msec Burst Both channels driven: 8 ohm & 2 ohm: 500W x 2, 4 ohm: 800W x 2, 8 ohm/ Power Boost Mode: 800W x 1, 4 ohm/ Power Boost Mode: 1200W x 1, Sampling frequency rate: Internal: 48kHz, A/D D/A Converters: AD/DA: 24-bit linear, 128 times over sampling, Total harmonic distortion: 0.1% (1kHz, 10W), 0.3% (1kHz, Half power), Frequency response: +-1.0dB (1W, 8 ohm, 20Hz to 20kHz), S/N ratio: 100dB (A-weighted, 8 ohm, Gain setting = +14dBu), Crosstalk: Less than -60dB (Half Power, 8 ohm, 1kHz, Vol max input 150 shunt), Voltage Gain/ Sensitivity: 8 ohm Volume max: 32.0dB/ +6.3dBu (Gain setting: 32dB), 26.0dB/ +12.3dBu (Gain setting: 26dB), 34.3dB/ +4dBu (Gain setting: +4dBu), 24.3dB/ +14dBu (Gain setting: +14dBu), 8 ohm Volume max /Power Boost mode: 34.0dB/ +6.3dBu (Gain setting: 32dB), 28.0dB/ +12.3dBu (Gain setting: 26dB), 36.3dB/ +4dBu (Gain setting: +4dBu), 26.3dB/ +14dBu (Gain setting: +14dBu), Maximum input voltage: +24dBu, Speaker output ports: Neutrik speakON NL4 x2, Binding post x2 pairs, 1/4 inch PHONE(TS) x2, Line Input: XLR-3-31 x2, 1/4 inch PHONE(TRS) x2, USB 2.0 Standard-A Connector (Female) for Save/ Load, Speaker preset update, Firmware update with USB memory, AC inlet x1 with AC cord clamp, Indicators: POWER x1 (Green), ALERT x1 (Red), USB x1 (Green), PROTECT x2 (Red), CLIP/LIMIT x2 (Red), SIGNAL x2 (Green); Auto LED off feature, Processors: Input summing; D-CONTOUR(FOH/MAIN, MONITOR, OFF); Delay(0 - 74msec); HPF/LPF(cutoff frequency 20Hz-20kHz with polarity control), Speaker Processor(6 band PEQ + Limiter + Delay), Latency: 1.5 msec (Analog Input to Speakers), Presets: 8 user amplifier presets (Factory preset: Speaker presets for Yamaha passive speakers), Amplifier class: Class D, Balanced output circuit (BTL), Cooling: 16 step variable speed fan x 2, front to rear airflow, Operating Temperature: 0 Degree C to +40 Degree C, Storage temperature: -20 Degree C to +60 Degree C, Power supply protection: Thermal: Output limiter (Restored automatically) - Power supply shutdown; Over voltage: Power supply shutdown; Over current: Power supply shutdown.
Country Of Origin
Japan
