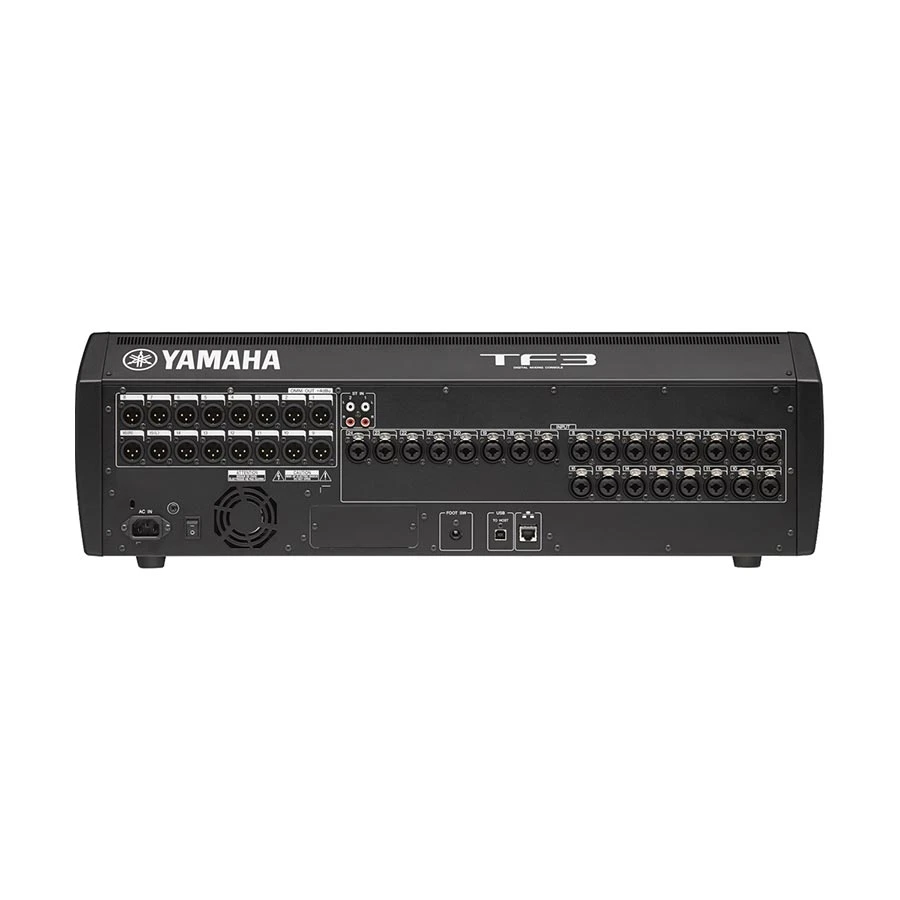

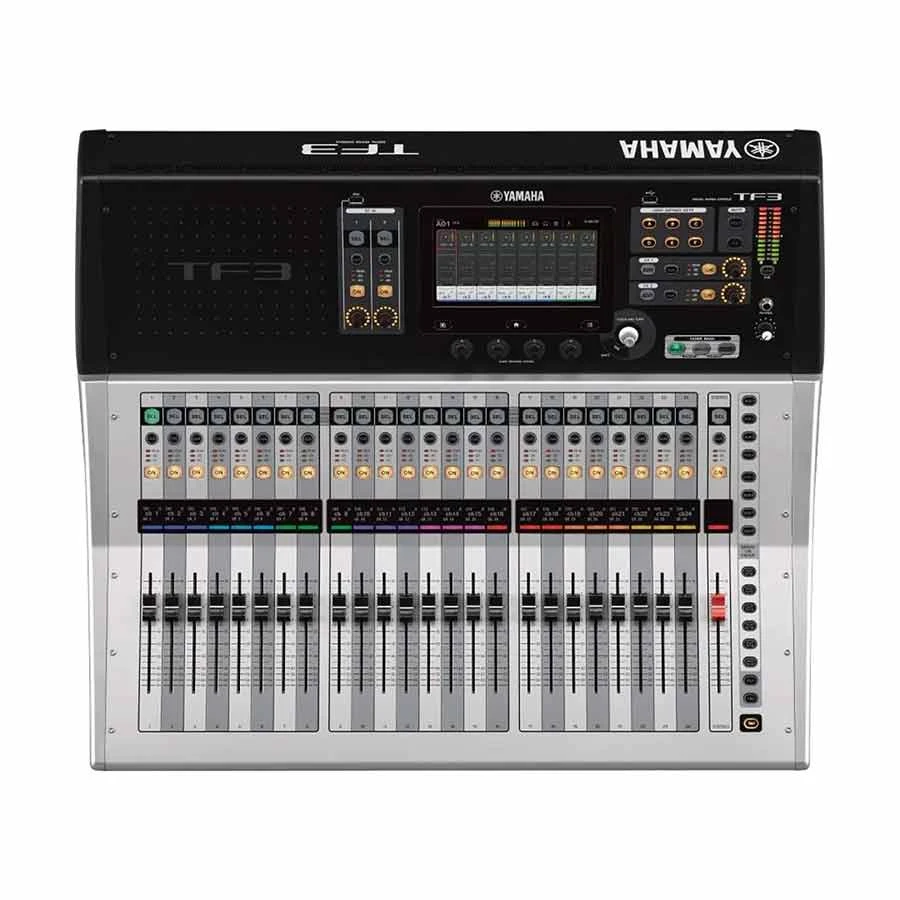

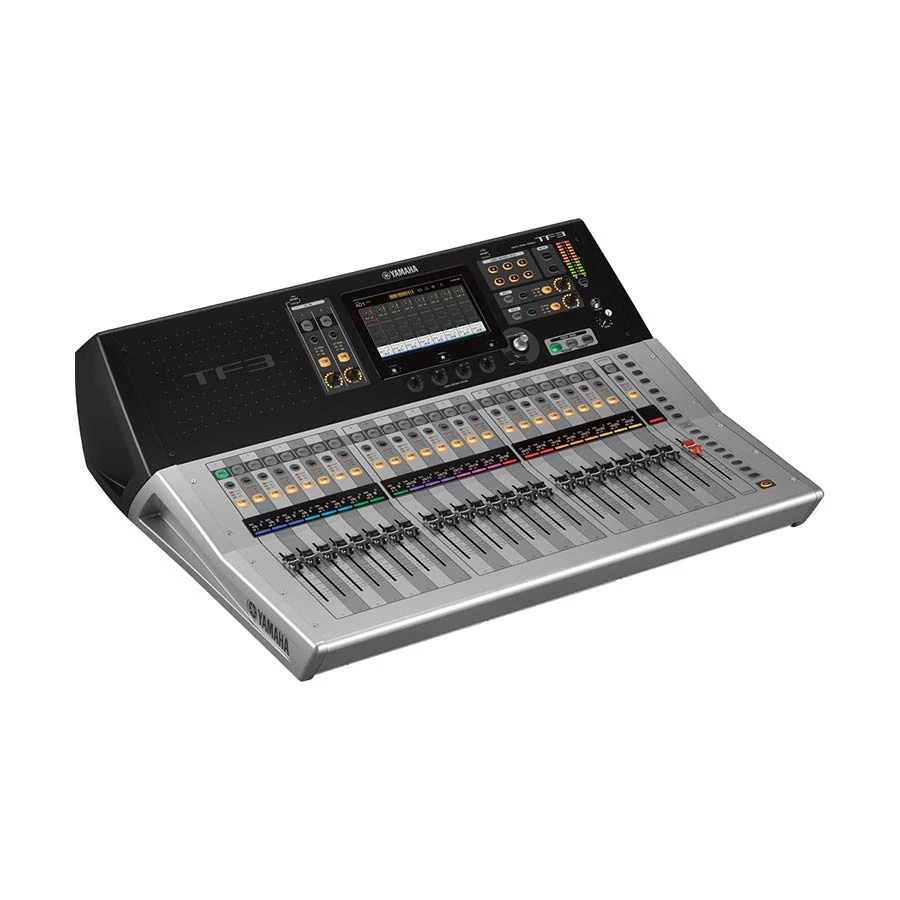

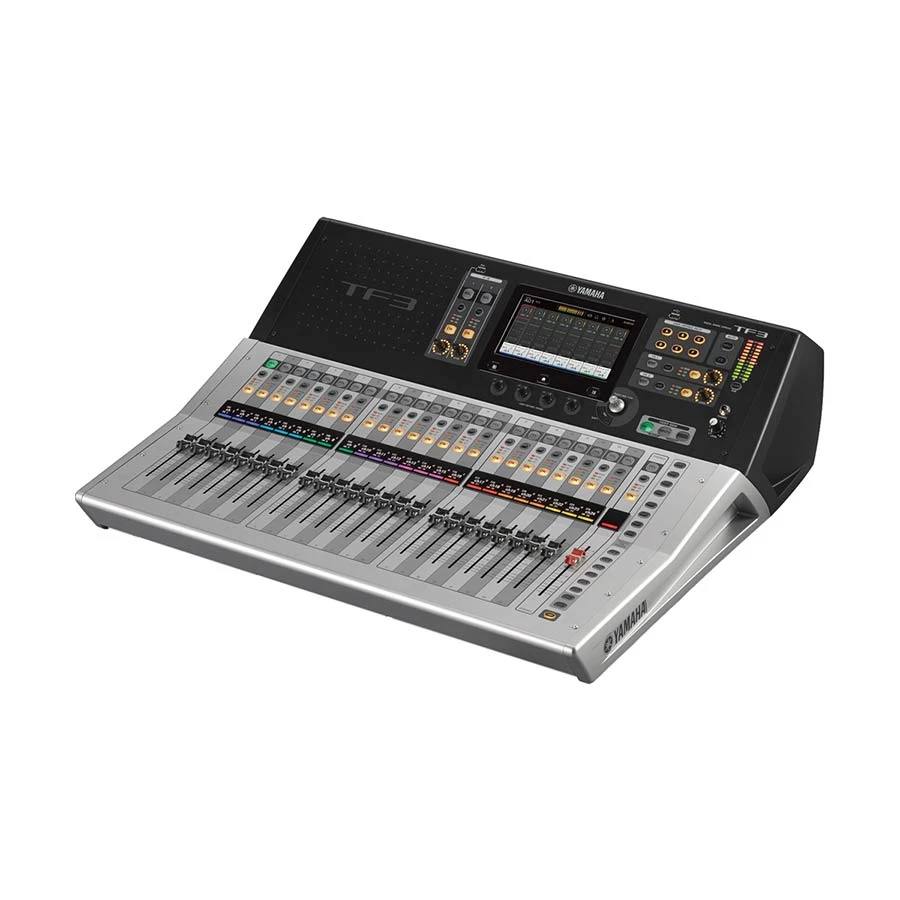

Yamaha TF3 Digital Mixing Console
Product Id: 10.11.944.42
Brand
Yamaha
Quick Overview
- Channel - Unmentioned
- Connectivity Mode - Wired
- USB Port - Yes
General
Brand
Yamaha
Model
Yamaha TF3
Type
Mixing Console
Audio Details
Channel
Unmentioned
RMS/Channel (Watt)
Unmentioned
RMS/Subwoofer (Watt)
Unmentioned
Connectivity
Connectivity Mode
Wired
USB Port
Yes
Technical Info
Microphone
No
Performance
Lighting Effect
No
Waterproof
No
Dustproof
No
Shockproof
No
Power
Power Supply
100 - 240V 50/ 60Hz
Approx. Power Consumption
110W
Physical Description
Dimensions
716 x 599 x 225mm
Weight (Kg)
17.0 kg
Color
Black & Silver
Warranty
Warranty Details
No warranty
Additional Info
Others
Fader Configuration: 24 + 1 (Master), Input Channels: 48 (40 mono + 2 stereo + 2 return), Aux Buses: 20 (8 mono + 6 stereo), Stereo Buses: 1, Sub Buses: 1, Input channel functions: 8 DCA Groups, Inputs: 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin), Outputs: 16 (XLR), Expansion slots: 1, DSP: 8 Effects + 10 GEQ, USB: 34x34 USB Audio Interface, 2-track recording via USB Storage Device, Sampling frequency rate: 48 kHz (Internal), Signal delay: Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz, Fader: 100 mm motorized, Resolution = 10-bit, +10 dB to -138 dB, - infinity dB all faders, Total harmonic distortion: Less than 0.05% 20 Hz-20 kHz @+4 dBu into 600 , Input to Omni Out, Input Gain=Min. (Measured with a -18 dB/octave filter@80 kHz), Frequency response: +0.5, -1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT, Dynamic range: 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. Equivalent input noise: -128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter), Residual output noise: -85 dBu, ST master off (Measured with an A-Weight filter), Crosstalk: -100 dB (Measured with a -30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. Operating temperature range: 0-40 Degree C, Storage temperature range: -20-60 Degree C.
Country Of Origin
Japan
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Yamaha TF3 Speaker In Bangladesh
Yamaha TF Series
Yamaha has always made it a mission to stay in touch with the needs of sound engineers worldwide. The outcome is evident in the success of the recent CL and QL series digital mixing consoles, and the flagship RIVAGE PM10. The key to success has always been in supporting the user’s creativity. Creativity is most effective when unrestricted, and now Yamaha has created a new digital mixing console that gives the user's intuition even freer rein.
TouchFlow Operation
In the TF series consoles allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix.
Recallable D-PRE preamplifiers
It support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications. Experience the intuitive control and creative freedom that a truly evolved digital console can provide.
TouchFlow Operation – Smooth, Natural Control Flow
Yamaha digital consoles have always been designed with input from leading engineers worldwide to ensure that the most efficient, intuitive operation is achieved. The highly regarded Selected Channel and Centralogic interfaces attest to the success of that approach. The TF series combines Yamaha know-how with new input from the field and the latest touch-screen technology to deliver an evolved experience in console operation. Smooth setup and operation, practical presets and scenes, refined design, and software applications that integrate seamlessly with the entire system: these elements comprise TouchFlow Operation, a new concept in console interfaces that offers unprecedented comfort and convenience in small consoles, for a wide range of users and applications.
What is the price of Yamaha TF3 Speaker In Bangladesh?
The price of Yamaha TF3 Speaker starts from 328,000 . The price may vary due to your customization and product availability. You can buy Yamaha TF3 Speaker from our website or visit our showrooms nearby.
