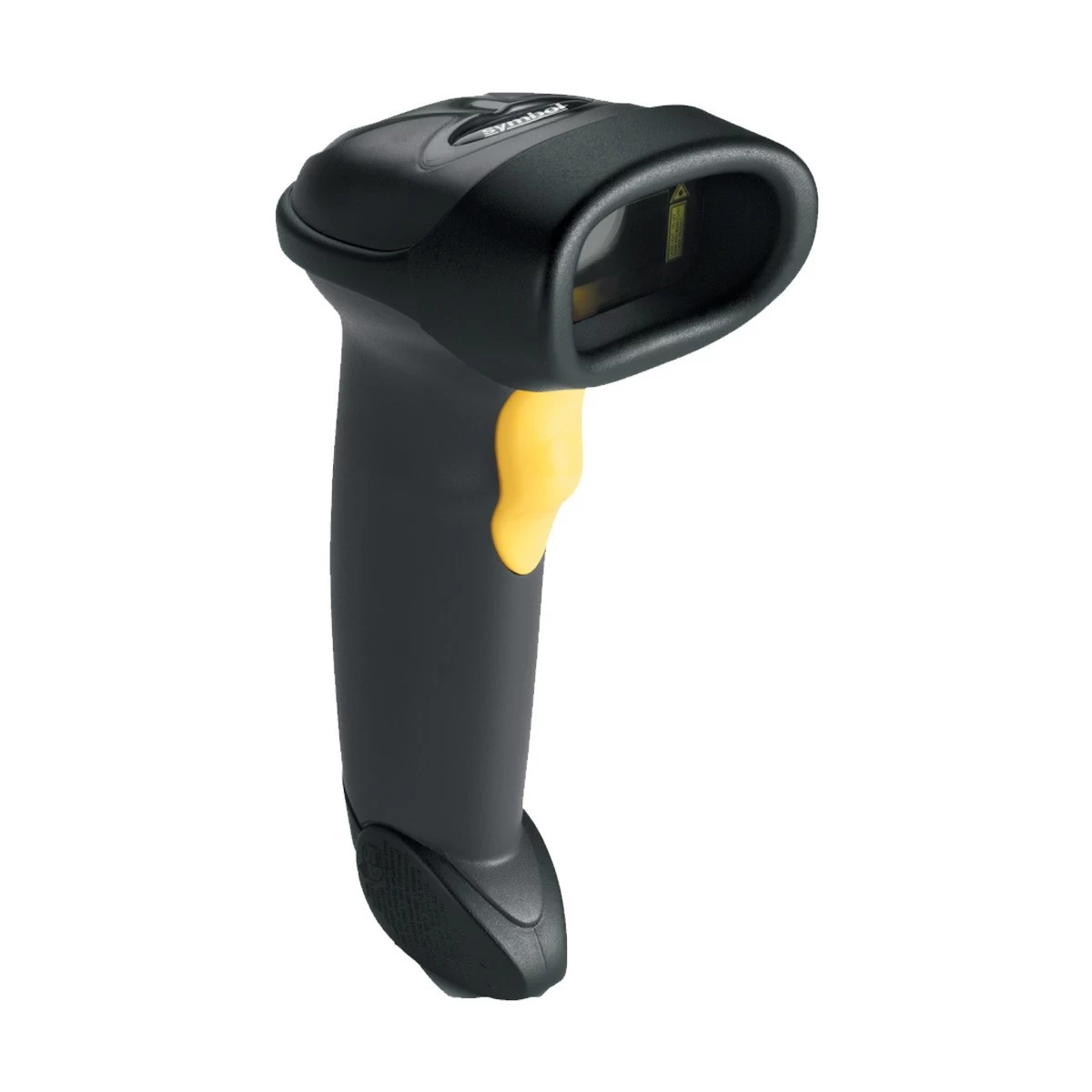

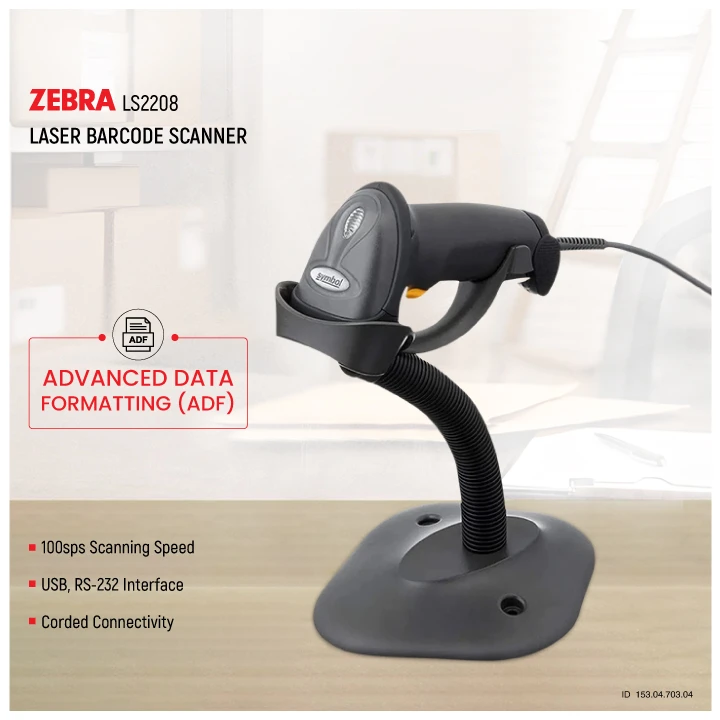

Zebra LS2208 Single Line Laser Barcode Scanner with Stand
Product Id: 153.04.703.04
Brand
Zebra
Quick Overview
- Cable - USB cable
- Interface(s) - USB, RS-232, Keyboard Wedge, TGCS (IBM) 46XX over RS-485
- Scanning Speed - 100sps
- Scan Angle - 35 Degree
- Connectivity Mode - Corded
General
Brand
Zebra
Model
Zebra LS2208
Scanner Type
Barcode Scanner
Performance Characteristics
Scan Angle
35 Degree
Scanning Speed
100sps
Scan Element Type
Frictionless liquid polymer
Scan Pattern
Single line
Print Contrast
20% minimum reflective difference
Interface(s)
USB, RS-232, Keyboard Wedge, TGCS (IBM) 46XX over RS-485
Decode/Scanner Capability

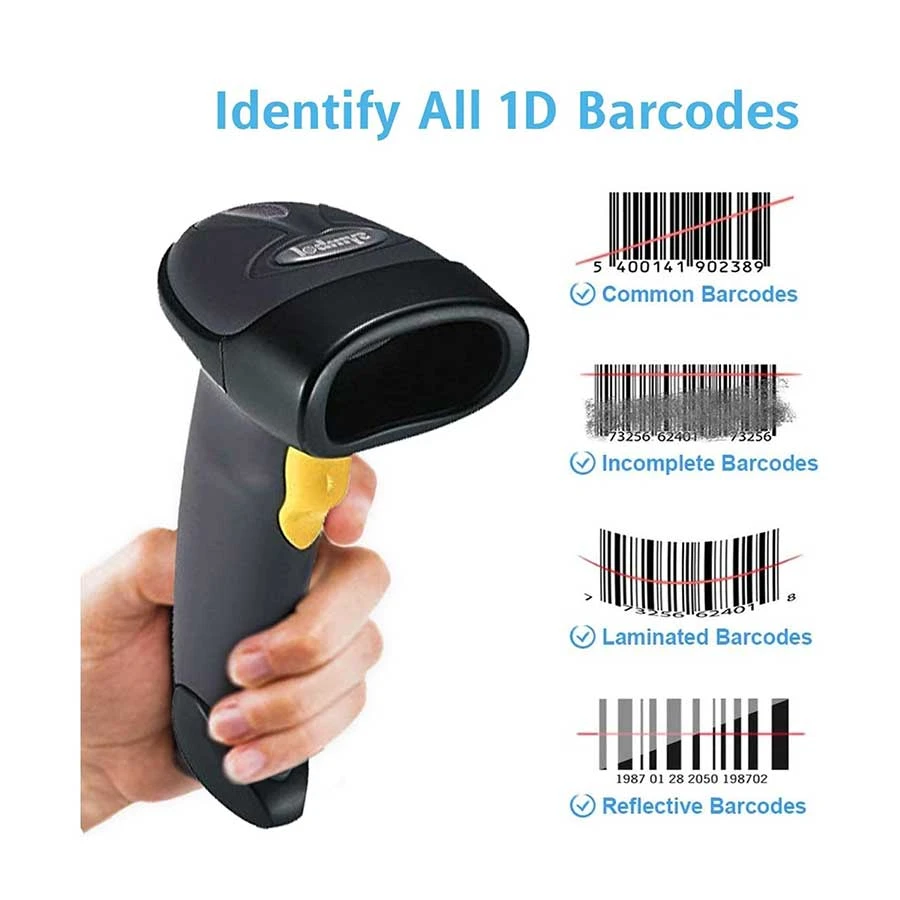

Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies.
Drop Tolerance
5.0 ft.
Technical Info
Connectivity Mode
Corded
Optical System
Wired
Depth of Field
Code 39 - 5 mil, Code 39 - 7.5 mil, Code 39 - 10 mil, 100% UPC - 13 mil, Code 39 - 20 mil, Code 39 - 40 mil
Working/Communication Range
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.
Sealing
IP30
Physical Description
Indicators
Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume)
Durability
1.5M drop
Cable
USB cable

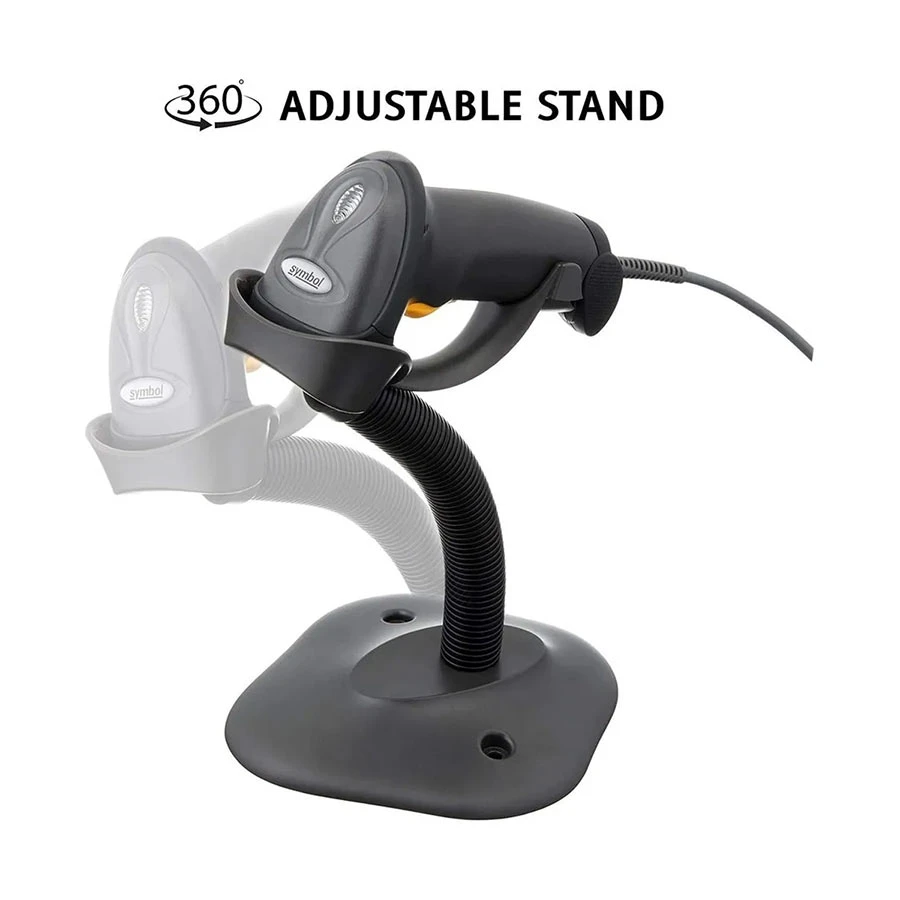

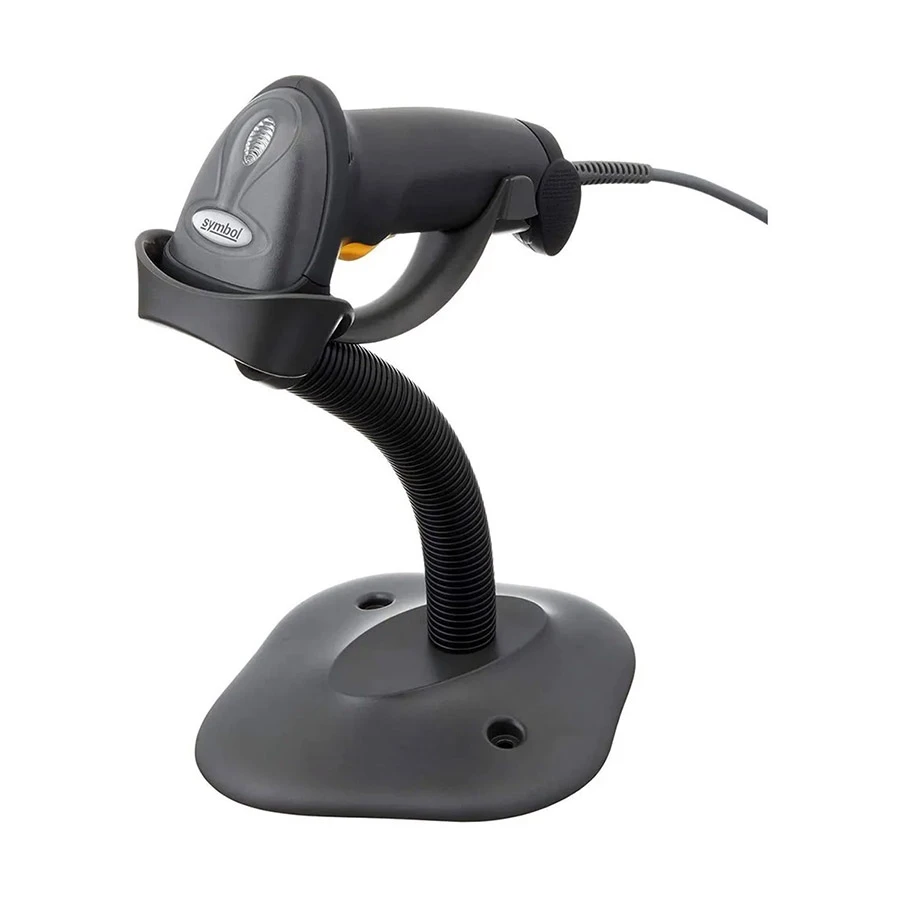

Stand
Yes
Form Factor
Gun Shape
Color
Black
Dimensions
152.4 x 63.5 x 84.83mm
Weight (Kg)
150gm
Included Cables
Yes
Application
POS system, Supermarket, Hospital, Ticket Barrier, pharmacies, retail stores etc
Power
Input Voltage
5 volts +/- 10%
Operating Current
130 mA typical, 175 mA max
Warranty
Warranty Details
1 year
Additional Info
Feature
5% - 95% RH, non-condensing Humidity, Designed to withstand 500 tumbles in 1.64 ft./0.5 m tumbler
Others
Power Source: Host power or external power supply, Color: Cash Register White or Twilight Black, Scanner Type: Bi-directional, Light Source: 650 nm visible laser diode, Scan Element Frequency: 50Hz, Decode Capability: UPC/EAN, UPC/EAN with Supplementals, UPC/ EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5, Ambient Lighting Tolerant to typical artificial indoor and Tolerance: natural outdoor ( direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux), Electrostatic Discharge: Conforms to 15 kV air discharge and 8 kV of contact discharge, Electrical Safety: Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950, EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori, Laser Safety: CDRH Class II, IEC Class 2, Environmental: Compliant with RoHS directive 2002/95/EEC
Specialty
Truly plug-and-play, Advanced Data Formatting (ADF), Multiple interfaces
Country Of Origin
USA
Made in/ Assemble
Mexico/Singapore/China/Vietnam (or Country may vary by Shipment)
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
