Model

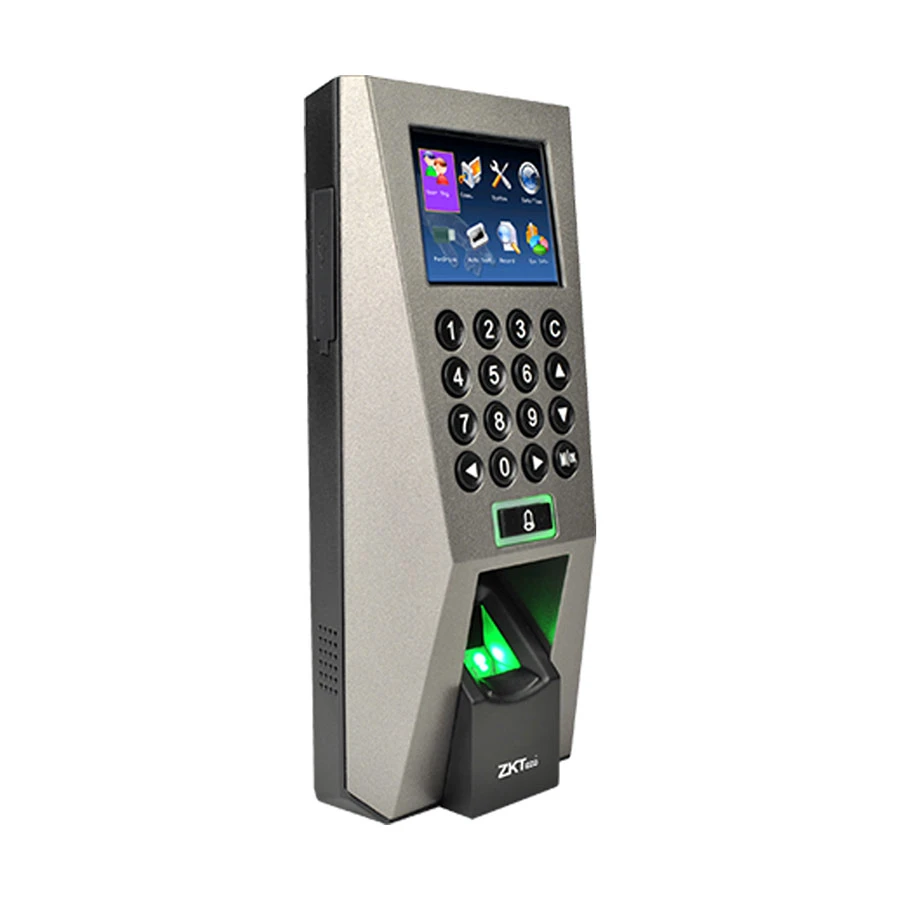

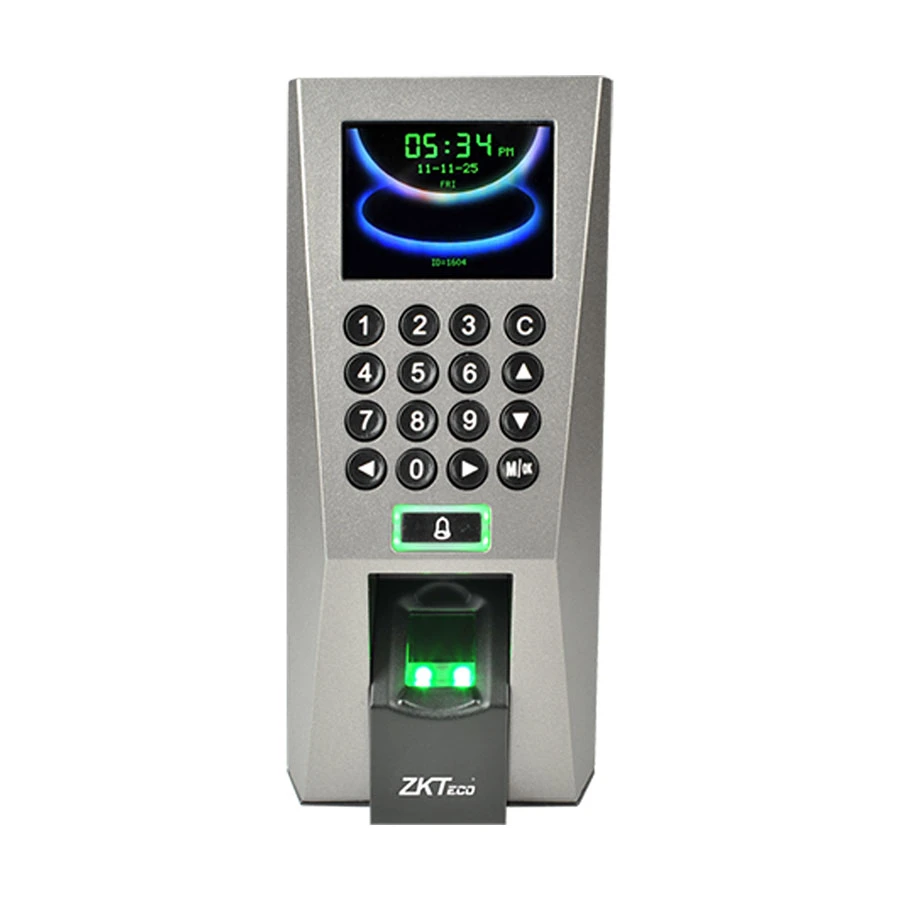

ZKTeco Fingerprint F18
Standard Function
Webserver, Anti-passback
Optional Function
ID Card, Mifare Card
Fingerprint Sensor
ZK Optical Sensor
Fingerprint Capacity
3000
RF Card Capacity
5000 (optional)
ID Card Capacity
5000 (optional)
Interface Styles
Common, Matrix and Magic styles
Communication Interface
RS232/485, TCP/IP, USB-host
Access Control Interface
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Wiegand Signal
Input and Output
Algorithm Version
ZK Finger VX9.0&10.0
SDL/Software
AC push, ZKBioAccess IVS / TA push, ZKBioTime8.0 / Standalone SDK, ZKAccess3.5
Authentication
Fingerprint
Power Adapter
12V DC,2A (Not Included)
Dimensions
80 x 183 x 42mm
Feature
Algorithm Version: ZK Finger VX9.0&10.0, Standard Function: Webserver, Anti-passback, 1 touch a-second user recognition, Fingerprint reader with durable and highly accurate ZK optical sensor, Stores 3000 templates, 5,000 CARDS and 30,000 transactions, Reads Fingerprint and/or CARD, OPTIONAL integrated smart CARD reader, Built-in Serial and Ethernet ports, Tamper-proofs switch and alarm outputs, Request-to-exit and alarm contacts, Audio-Visual indications for acceptance and rejection of valid/invalid fingers
Specialty
Standalone Access Control and Time Attendance
Others
Display Type: 2.4-inch TFT LCD Color Screen User: 5,000, Transactions Capacity: 30,000 Transactions, Reader Supported, Fingerprint Standalone Access Control and Time Attendance
Additional Accessories (Not Included)
31.048.01 Twinmos Patch Cord (20 Meter), 130.691.02 ZKTeco LM-1802 Electromagnetic Lock, 130.691.11 ZKTeco LM-2805 Electromagnetic Lock, 130.691.04 ZKTeco LMB-180L L Bracket, 130.691.09 Zkteco LMB-180U U Bracket, 130.691.10 ZKTeco EX-800B Exit Button (Size86L,86W, 20T(mm)), 130.197.29 Installation for Access Control
Necessary Accessories (Not Included)
A. Lock 180Kg 127.09.691.02 ZKTeco LM-1802 Electromagnetic Lock 127.09.691.03 ZKTeco AL-180D Electromagnetic Doub Bracket for wooded door 127.09.691.04 ZKTeco LMB-180L L Bracket Bracket for Glass door 127.09.691.09 Zkteco LMB-180U U Brack B. Lock for 280kg 127.09.691.11 ZKTeco LM-2805 Electromagnetic Lock 127.09.691.05 ZKTeco AL-280 (LED) Electromagnetic Lock 127.09.691.14 ZKTeco AL-280D (LED) Electromagnetic Double Lock Bracket for wooded door 127.09.691.12 ZKTeco LMB-280L Electromagnetic Lock L Bracket Bracket for Glass door 127.09.691.13 ZKTeco AL-280PU Electromagnetic Lock U Bracket C. Optional Z Bracket 127.09.691.07 Zkteco Z bracket for LM-2802 (280kg) D. Exit Button 127.09.691.10 ZKTeco EX-800B Exit Button (Size 86L,86W, 20T(mm) E. Exit Reader F. Cat 6 Cable G. RJ 45 Connector, Power Adapter
Warranty Details
1 Year (Without Adapter)
