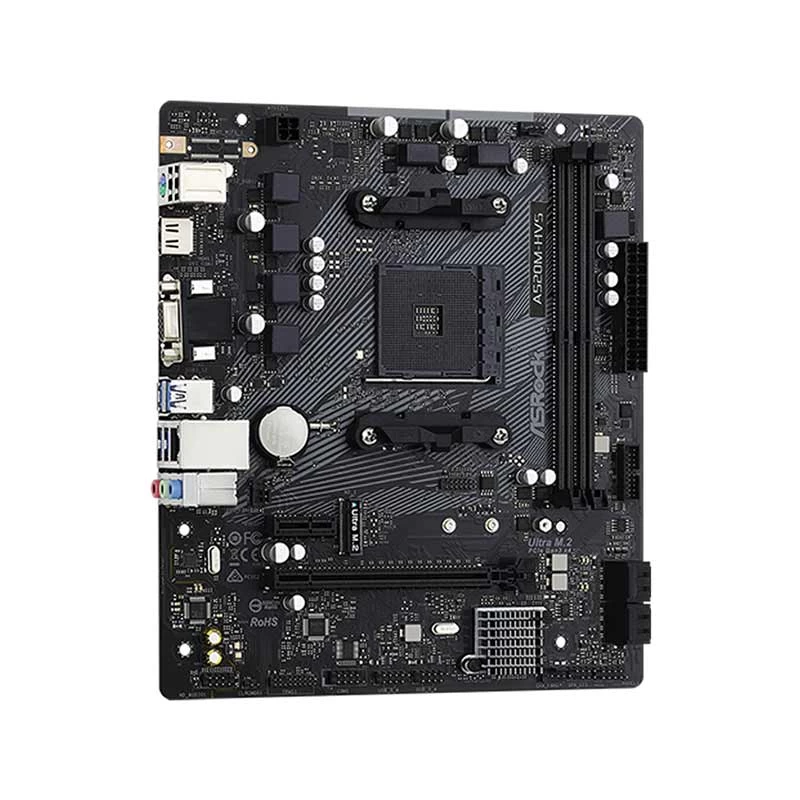

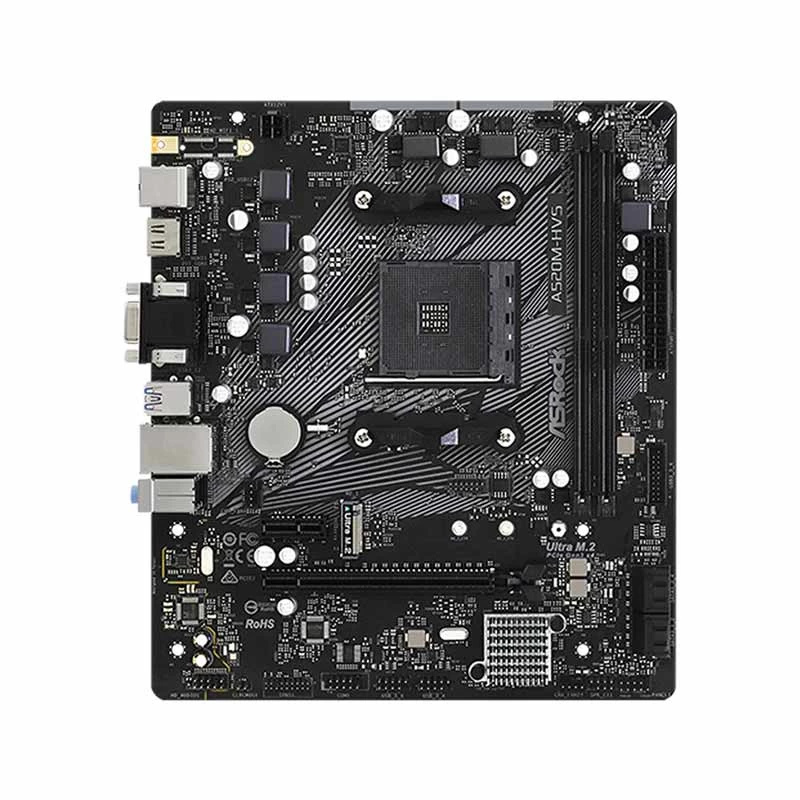

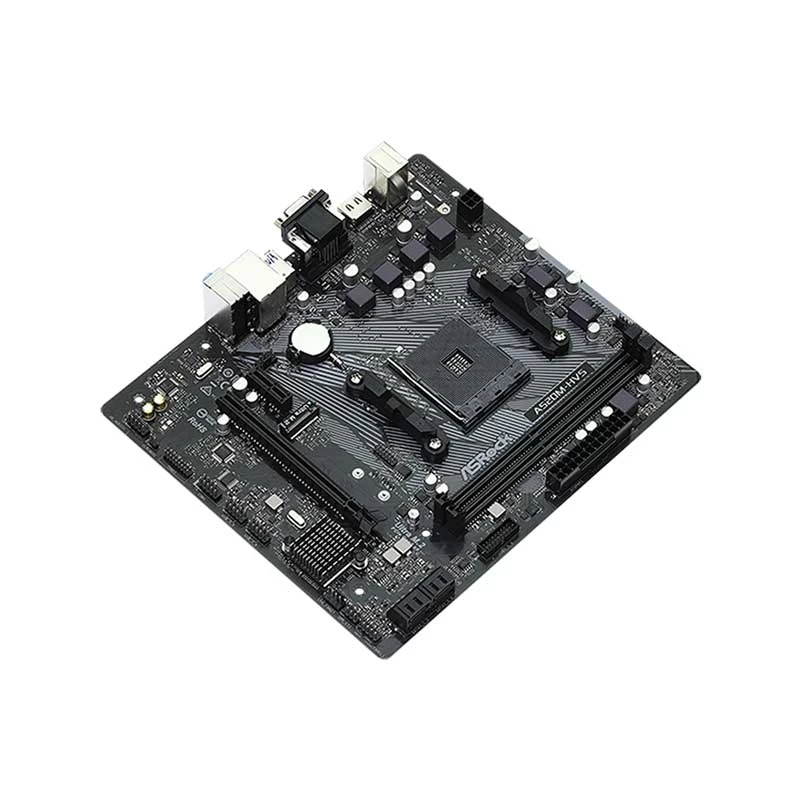

ASRock A520M-HVS DDR4 AMD Motherboard
Product Id: 02.02.504.122
Brand
Asrock
Regular Price Tk 9,220
Monthly EMI Tk 768
Special Price Tk 8,600
Quick Overview
- Chipset - AMD A520
- Memory Max. - 64GB
- Memory Slot - 2
- Sockets Supported - AM4
- Supported CPU - Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors
- Generation - Not Applicable
General
Brand
ASRock
Model
ASRock A520M-HVS
Body Color
Black
CPU
Chipset Brand
AMD
Chipset
AMD A520
Sockets Supported
AM4
Built-in Processor
No
Supported CPU
Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors
Generation
Not Applicable
Memory Support
Memory Type
DDR4
Memory MHz
4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered
Memory Channel
Dual
Memory Slot
2
Memory Slot (Additional Info)
Vermeer & Matisse support up to 4600+(OC), Cezanne & Renoir support up to 4733+(OC)
Memory Max.
64GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
1
M.2/SSD Expansion Slot Details
1 x M.2 (Ultra Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes)
Graphics
Graphics
Integrated
Graphics Chipset
AMD Vega Graphics support
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express 3.0 x 16 (PCIE2: x16 mode), 1 x PCI Express 3.0 x 1
Audio & Video
Audio Chipset
Realtek ALC887/897
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek RTL8111H
LAN Speed (Mbps)
10/ 100/ 1000 Mbps
WiFi
No
Ports
USB Port
2 x USB 2.0, 4 x USB 3.2 Gen 1
VGA Port
1
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
1
Technical Info
DirectX Support
12
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 10
RGB Support
No
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
128Mb AMI UEFI Legal BIOS
BIOS Model
AMI UEFI Legal BIOS
BIOS Version
ACPI 5.1, SMBIOS 2.3
Compatibility
Supported Operating System
Windows 10, 11
Compatible Products
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Processors
Warranty
Warranty
3 Year
Warranty Details
3 year
Additional Info
Feature
Unique Feature: ASRock Super Alloy: Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop, Software and UEFI: Software: ASRock Motherboard Utility (A-Tuning), ASRock XFast LAN, UEFI: ASRock Full HD UEFI, ASRock Instant Flash.
Others

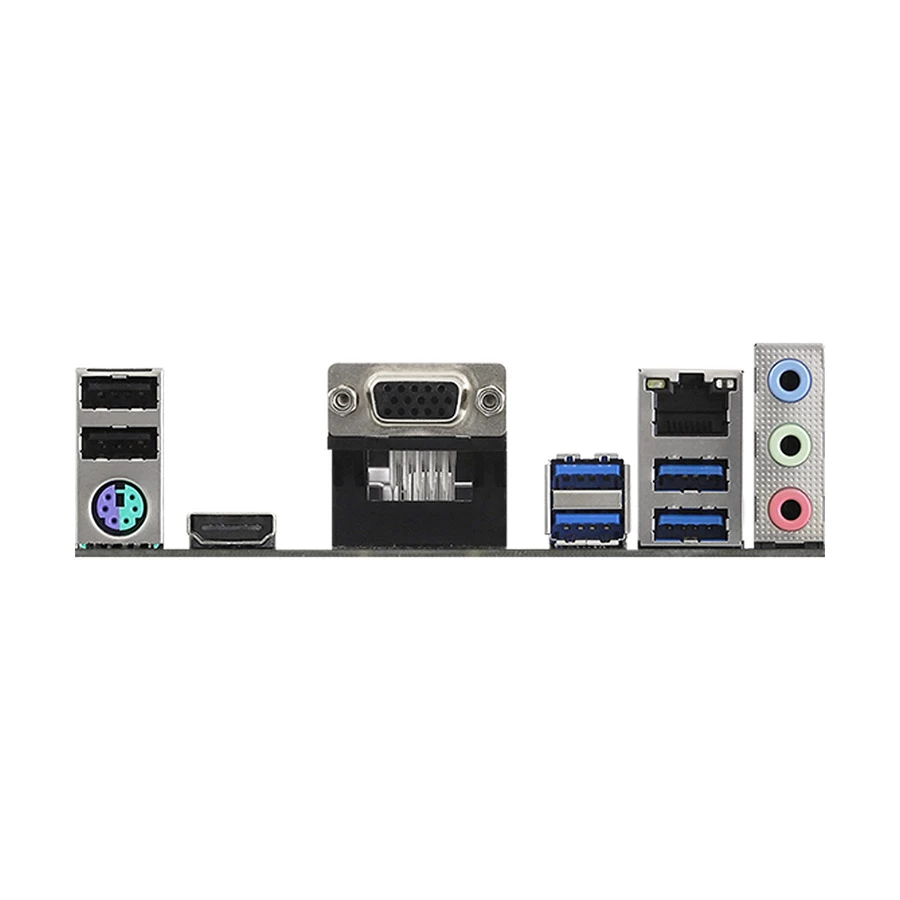

BIOS: Supports jumperfree, CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment, HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, D-Sub with max. resolution up to 1920x1200 @ 60Hz, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE, Connector: 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector (4-pin), 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, Rear Panel I/O: 1 x PS/2 Mouse/Keyboard Port, 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of ASRock A520M-HVS Motherboard In Bangladesh
A520 MOTHERBOARD FOR EVERYONE
All Essentials You Need For Computing

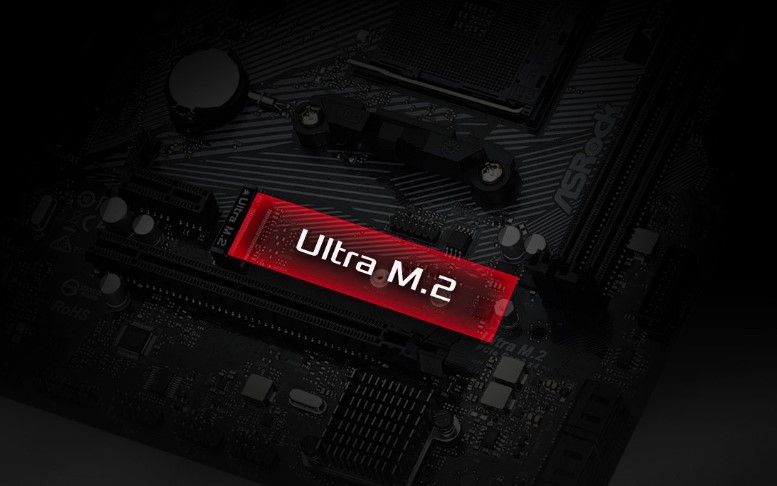

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
What is the price of ASRock A520M-HVS Motherboard In Bangladesh?
The price of ASRock A520M-HVS Motherboard starts from 8,600 . The price may vary due to your customization and product availability. You can buy ASRock A520M-HVS Motherboard from our website or visit our showrooms nearby.
