Brand

MSI

Model

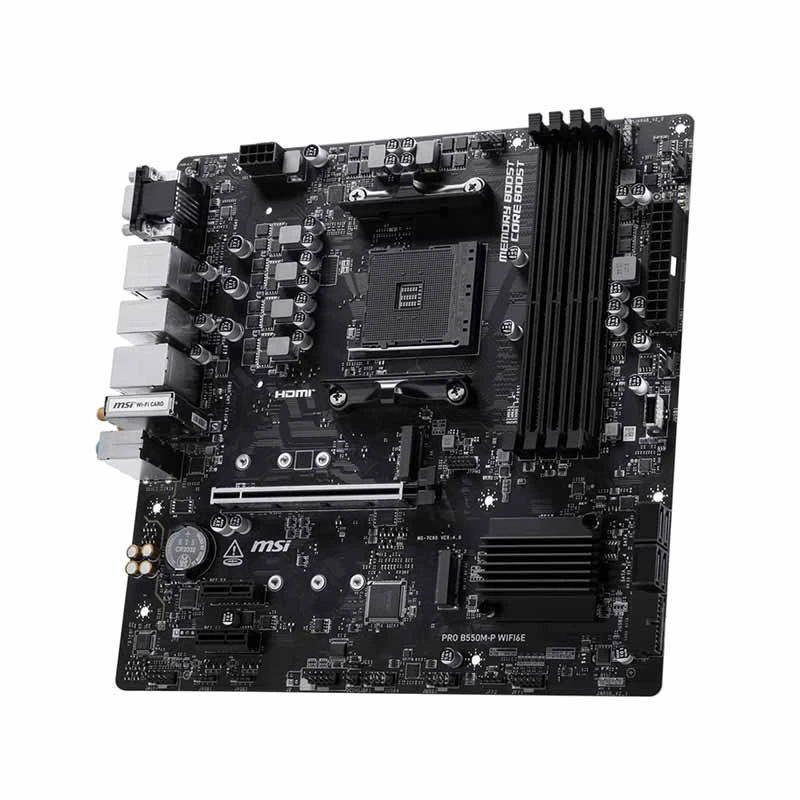

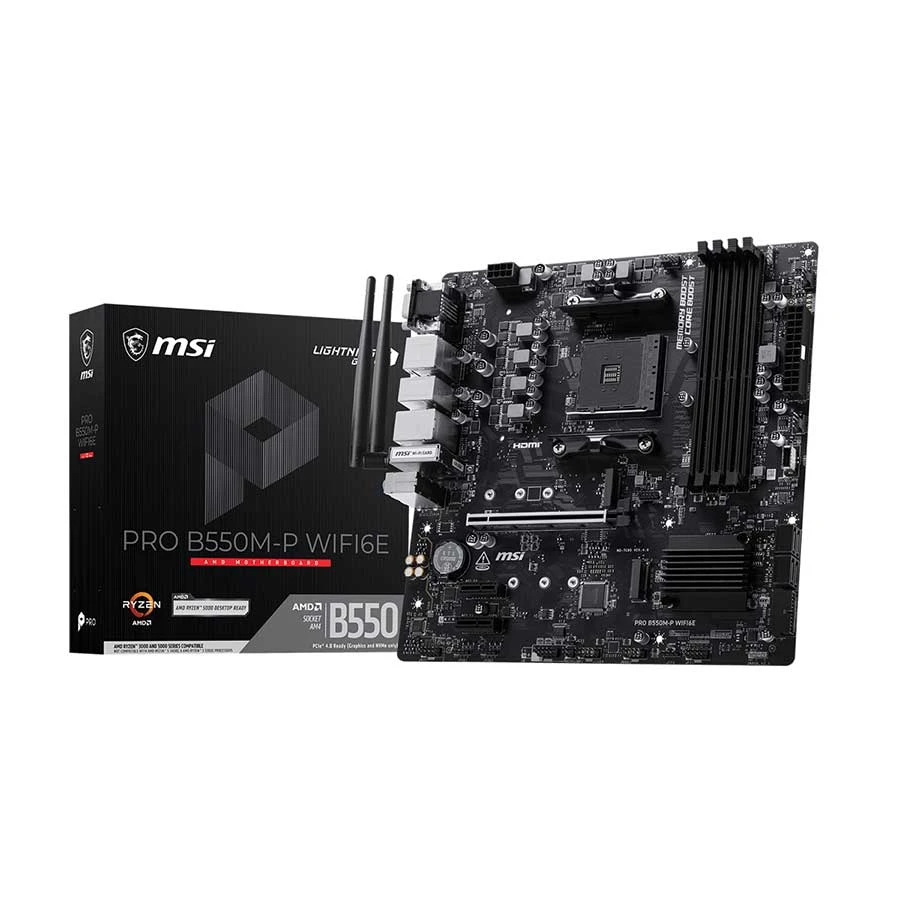

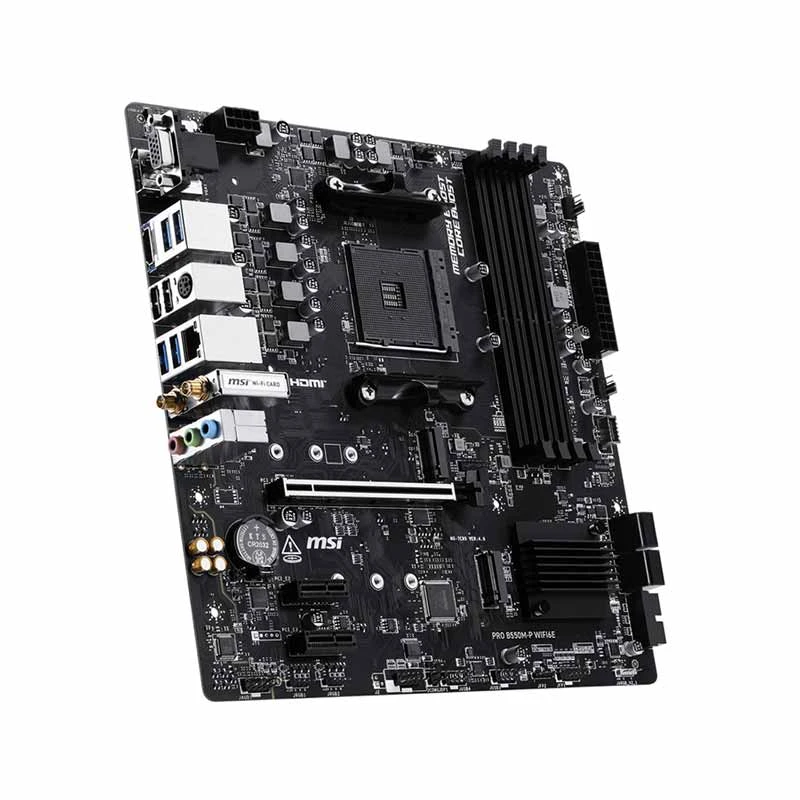

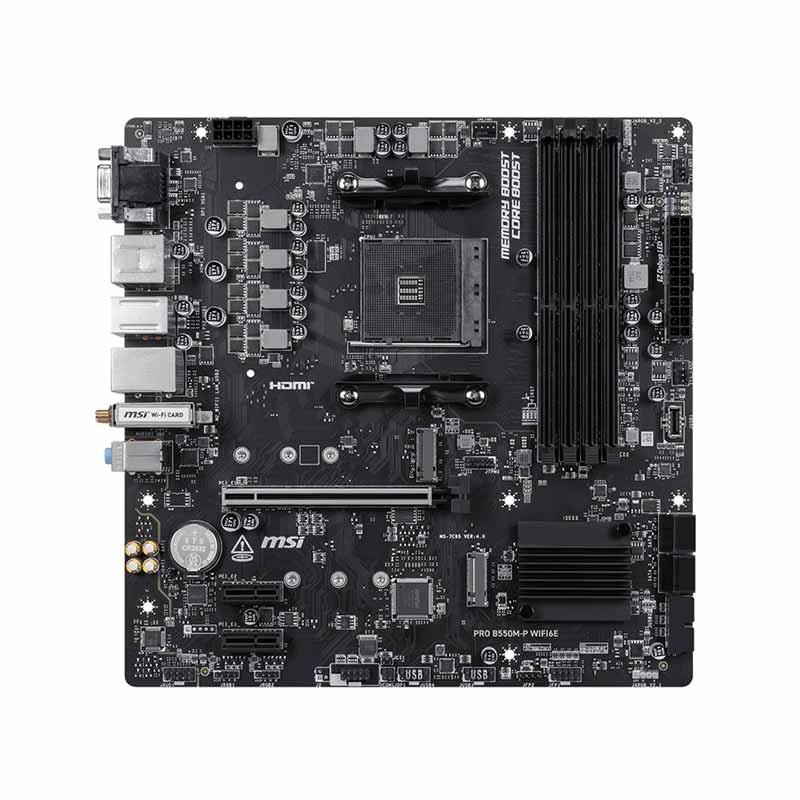

MSI PRO B550M-P (Wi-Fi 6E)

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.3

Form Factor

Micro-ATX

Supported Operating System

Windows 11, 10

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI PRO B550M-P (Wi-Fi 6E)

Body Color

Black

Part No

PRO B550M-P WIFI6E

CPU

Chipset Brand

AMD

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Supported CPU

AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz

Memory Channel

Dual

Memory Slot

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 (M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1x PCI-E x16, 2x PCI-E x1

Audio & Video

Audio Chipset

Realtek ALC897 Codec

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek RTL8111H 1Gbps LAN

LAN Speed (Mbps)

10/100/1000 Mbps

WiFi

Yes

WiFi Technology

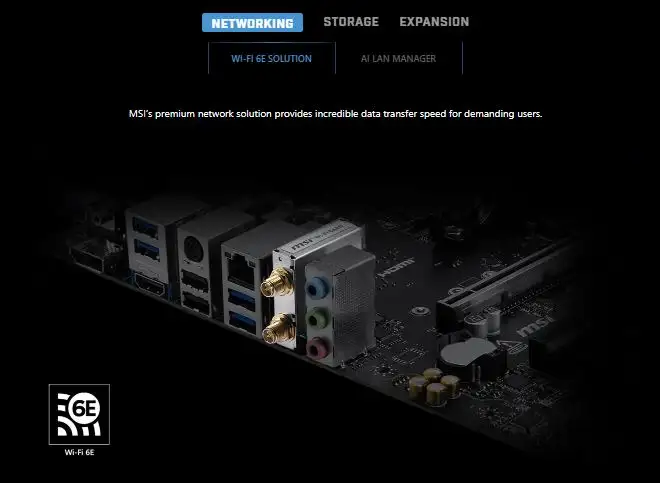

Wi-Fi 6E, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports 2.4GHz/ 5GHz/ 6GHz frequency band, Supports MU-MIMO RX, Dual-band 1T1R mode

Bluetooth

Bluetooth 5.3

Ports

USB Port

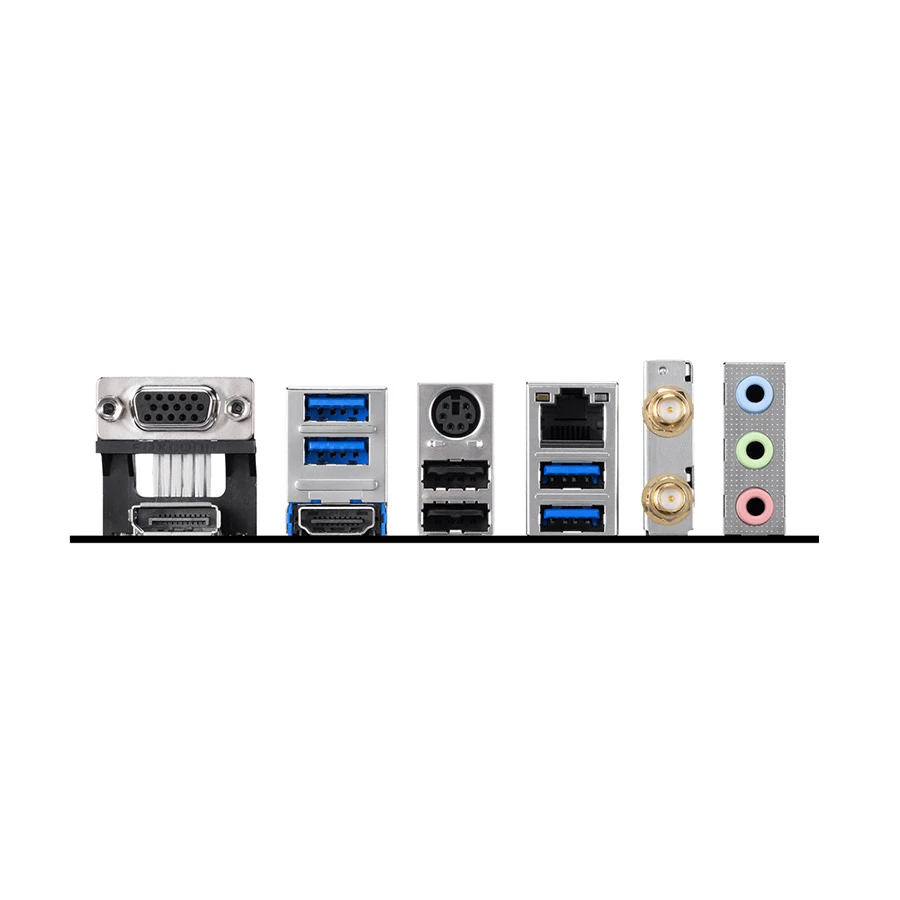

2 x USB 2.0, 4 x USB 5Gbps Type A (Rear), 4 x USB 2.0, 2 x USB 5Gbps Type A, 1 x USB 5Gbps Type C (Front)

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

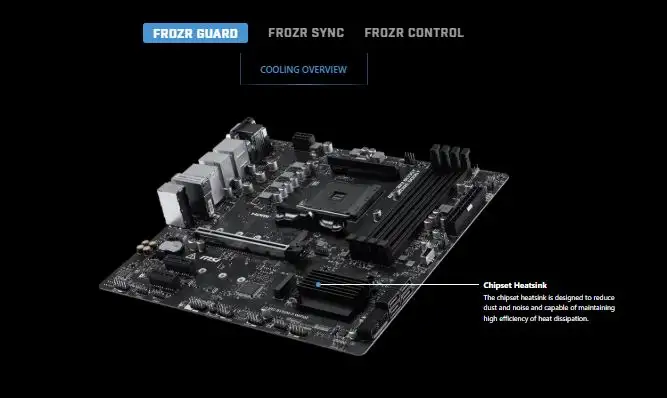

Heatsink

CrossFire Support

Sli Support

Raid Support

0, 1, 10 (SATA), 0, 1 (NVMe)

RGB Support

ARGB

RGB Connector

2 x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector(JRGB)

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Compatibility

Supported Operating System

Windows 11, 10

Compatible Products

AMD AM4 Socket Ryzen 5000, 4000 & 3000 Series Desktop Processors

Warranty

3 year

Additional Info

Feature

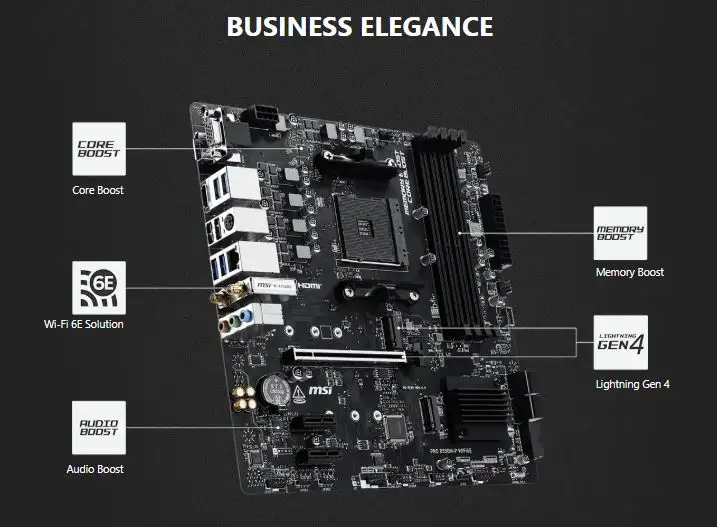

Wi-Fi 6E Supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps, Lightning Gen4 Solution, The Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed, Frozr AI Cooling Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value, EZ Debug LED Easiest way to troubleshoot, PCI-E Steel Armor Protecting VGA cards against bending and EMI, Memory Boost Advanced technology to deliver pure data signals for the best performance, stability and compatibility, Core Boost With premium layout and fully digital power design to support more cores and provide better performance, Audio Boost- Reward your ears with studio grade sound quality for the most immersive audio experience.

Others

Support HDMI 2.1, maximum resolution of 4K 60Hz, Support DisplayPort 1.4, maximum resolution of 4K 60Hz, Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz, Internal IO: (1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0)), LED FEATURE: (4x EZ Debug LED), BACK PANEL PORTS: (Wi-Fi / Bluetooth, LAN, Audio connectors).

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

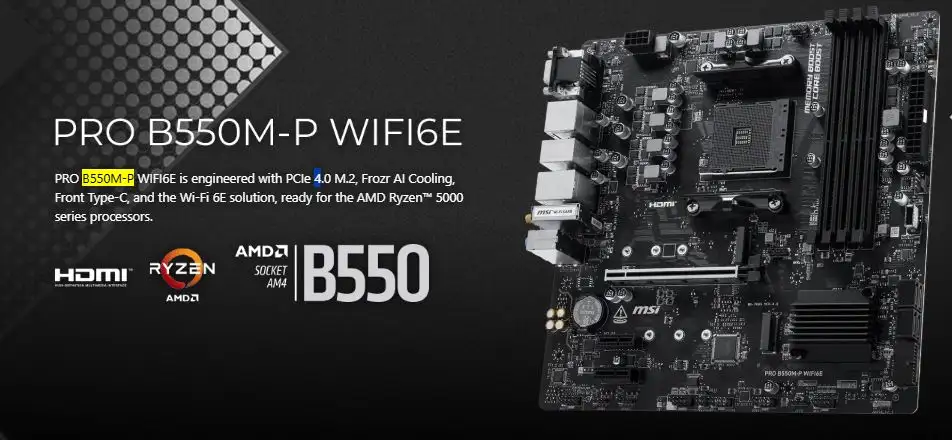

Features of MSI PRO B550M-P (Wi-Fi 6E) Motherboard In Bangladesh

What is the price of MSI PRO B550M-P (Wi-Fi 6E) Motherboard In Bangladesh?

The price of MSI PRO B550M-P (Wi-Fi 6E) Motherboard starts from 14,900 . The price may vary due to your customization and product availability. You can buy MSI PRO B550M-P (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
