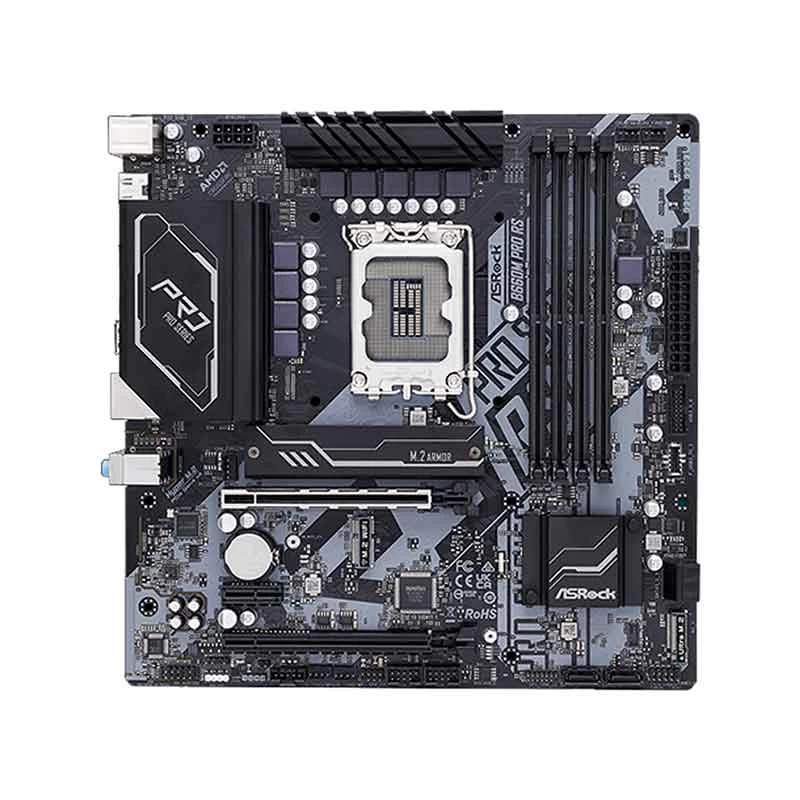

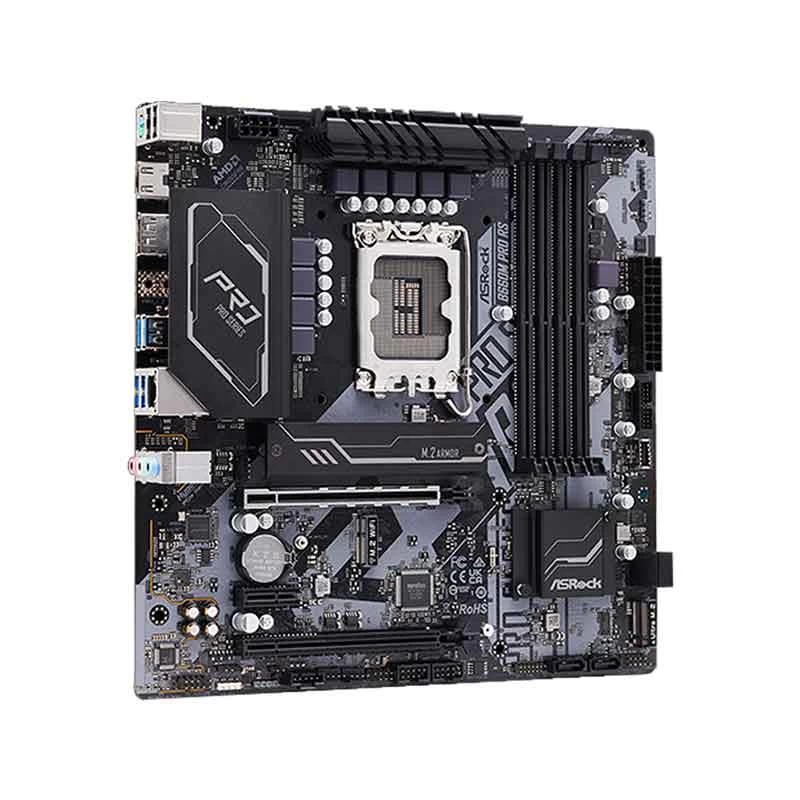

ASRock B660M PRO RS Micro-ATX DDR4 Motherboard

Product Id: 02.01.504.107

Brand Asrock

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel B660
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - Intel Core Processors (12th/13th/14th Gen)
  • Generation - 12th/13th/14th
General
Brand
ASRock

Model
ASRock B660M PRO RS

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B660

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
Intel Core Processors (12th/13th/14th Gen)

Generation
12th/13th/14th


Memory Support
Memory Type
DDR4

Memory MHz
un-buffered memory 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Optane Memory Support
Yes


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 (supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode), (1 x M.2, supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
Supports AMD CrossFire

PCI Express Slot
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode, 1 x PCIe 3.0 x1 Slot (PCIE2)


Audio & Video
Audio Chipset
Realtek ALC897 Audio Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Giga PHY Intel I219V

LAN Speed (Mbps)
10/ 100/ 1000 Mbps

WiFi
No

WiFi Technology
No

Bluetooth
No


Ports
USB Port
4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0,1,5,10

RGB Support
RGB

RGB Connector
1 x RGB LED Header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
4 x SATA

BIOS Model
AMI UEFI Legal BIOS

BIOS Version
ACPI 6.0, SMBIOS 2.7


Compatibility
Supported Operating System
Windows 10/11

Compatible Products
Compatible with LGA1700 Sockets Intel Core Processors (12th/13th/ 14th Gen)


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop

Others

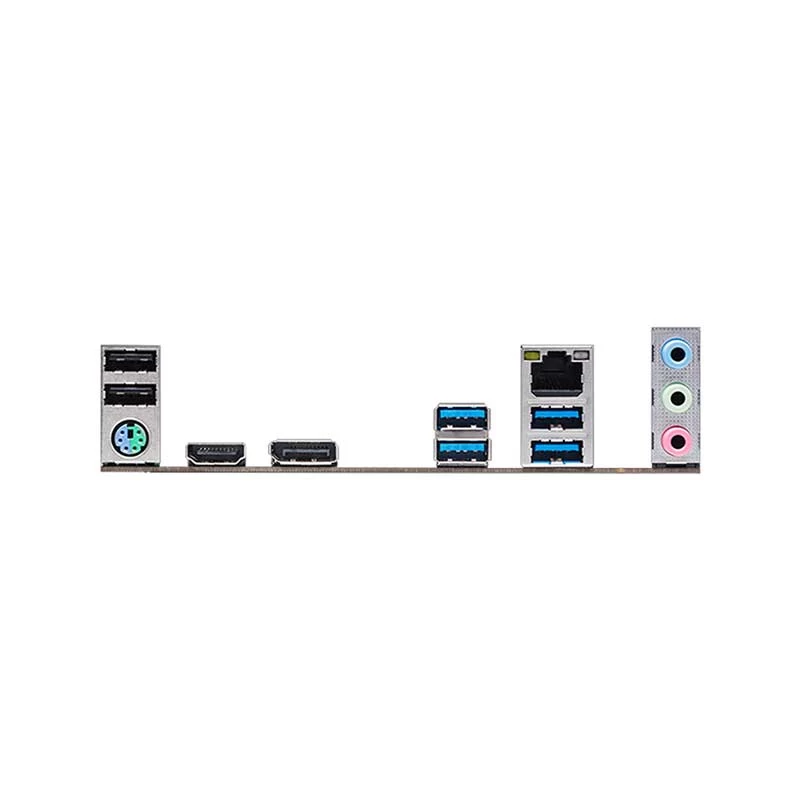

Connector: 1 x Chassis Intrusion and Speaker Header, 3 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x Front Panel Audio Connector. Rear Panel I/O: 3 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), 3 x Audio Connectors

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
