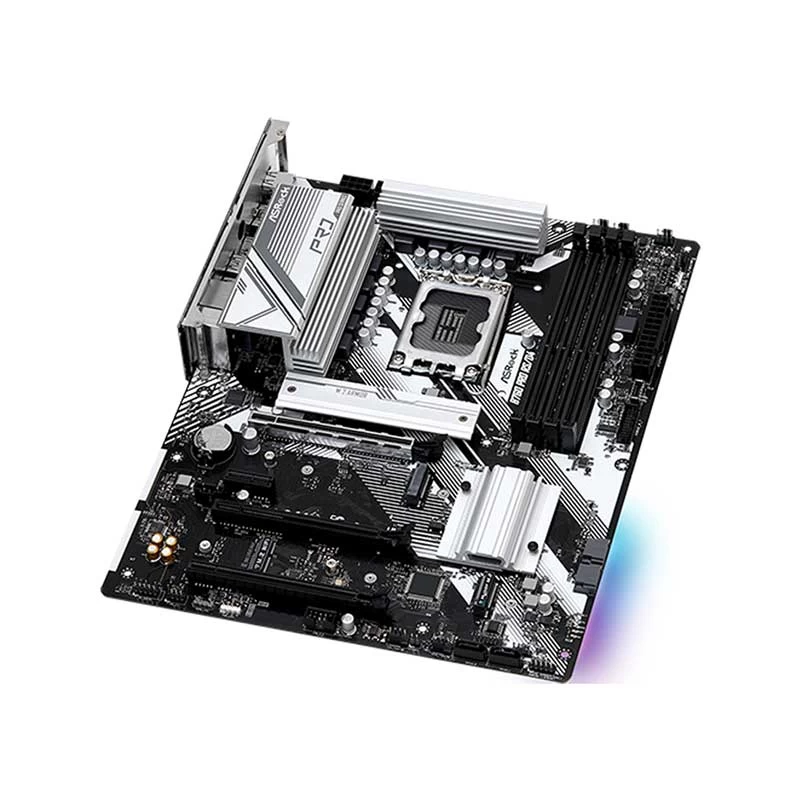

ASRock B760 Pro RS/D4 DDR4 Intel Motherboard

Product Id: 02.01.504.118

Brand Asrock

Regular Price Tk 20,290 Monthly EMI Tk 1,691
Special Price Tk 18,700

Quick Overview

  • Chipset - Intel B760
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors.
  • Generation - 12th/13th/14th
General
Brand
Asrock

Model
ASRock B760 Pro RS/D4

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors.

Generation
12th/13th/14th


Memory Support
Memory Type
DDR4

Memory MHz
5333+(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
4

M.2/SSD Expansion Slot Details
4 x M.2 Slots (1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2, 1 x Hyper M.2 Socket M2-1 Key M type 2260/2280 supports PCIe Gen4x4, 1 x M.2 Socket Key M type 2260/2280 supports PCIe Gen4x2 (32 Gb/s) mode, 1 x Hyper M.2 Socket Key M type 2260/2280 supports PCIe Gen4x4 (64 Gb/s) mode


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
Supports AMD CrossFire

PCI Express Slot
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode, 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode, 1 x PCIe 3.0 x1 Slot (PCIE2)


Audio & Video
Audio Chipset
Realtek ALC897 Audio Codec, Nahimic Audio

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Dragon 2.5G LAN

LAN Speed (Mbps)
10/100/1000/2500Mbps

WiFi
No

Bluetooth
No

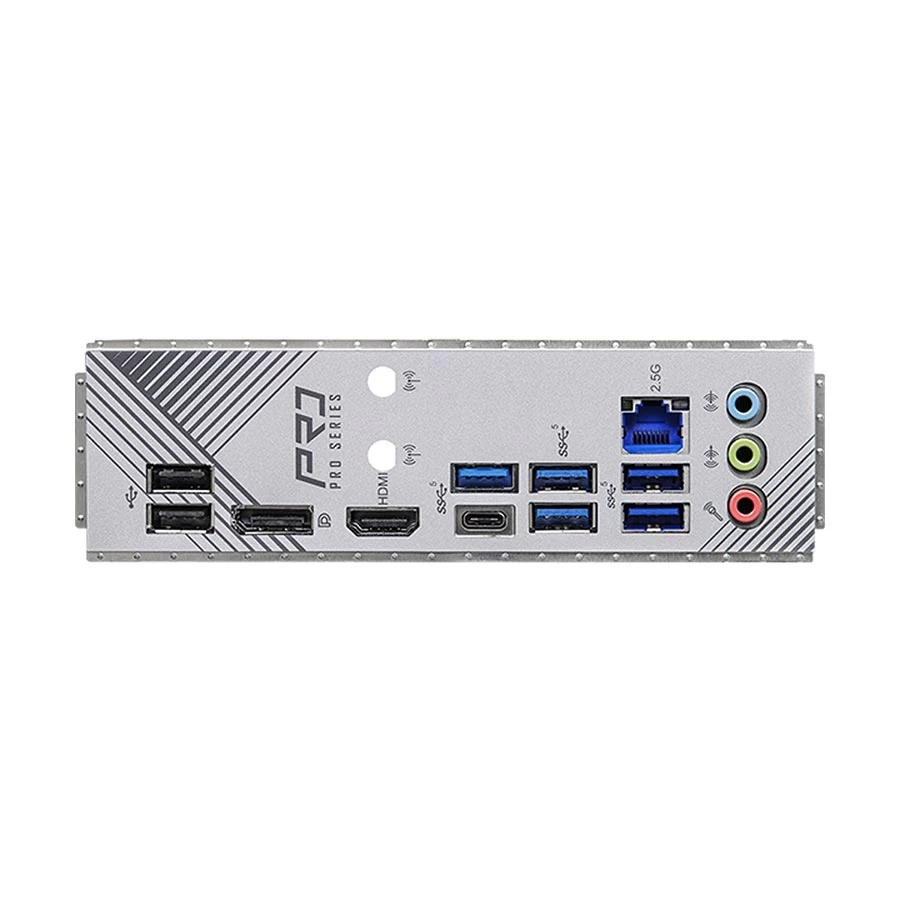

Ports
USB Port
1 x USB 3.2 Gen 1 Type-C, 5 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A

VGA Port
No

DVI Port
No

HDMI Port
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
1

TPM Port
1

COM Port
No


Technical Info
FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Connector
2 x RGB LED Headers, 2 x Addressable LED Headers

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
128 Mb

BIOS Model
AMI UEFI Legal BIOS


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
Compatible with LGA1700 Socket 12th, 13th & 14th Gen Intel Processor.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz, DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Others
Internal Connector (1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card).

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
