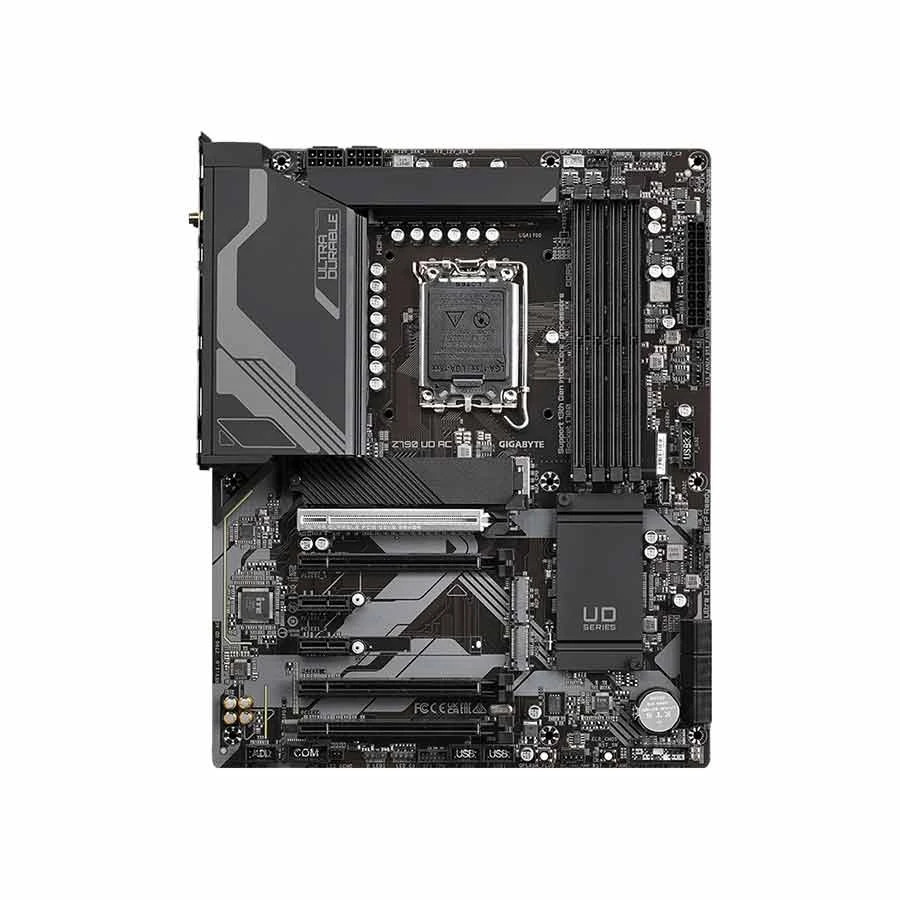

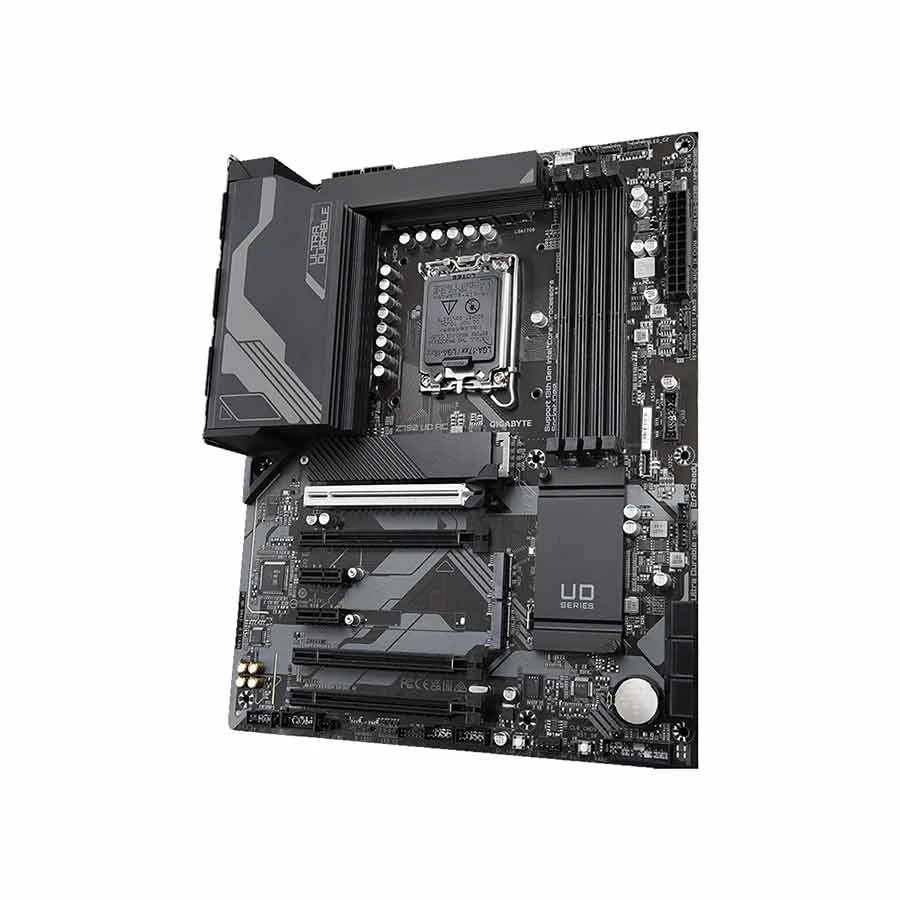

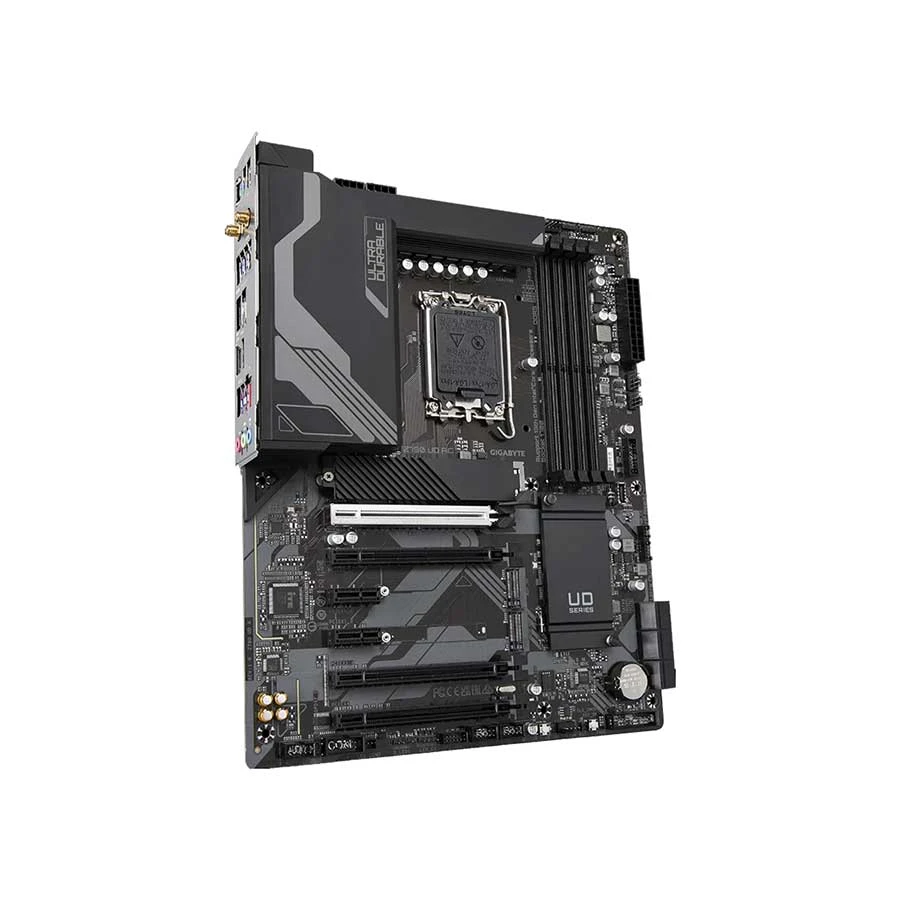

Gigabyte Z790 UD AC (Wi-Fi 5) DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard

Item: Gigabyte Z790 UD AC (Wi-Fi 5) DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard
Rating: 5
Author: Verified Buyer

Product Id: 02.01.018.616

Coming Soon

Quick Overview

Form Factor - ATX
Chipset - Intel Z790
Sockets Supported - LGA1700
Supported CPU - Intel Core, Pentium Gold and Celeron Processors
Generation - 12th/13th/14th
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte Z790 UD AC (Wi-Fi 5)

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th/14th

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 4.2

Form Factor

ATX

Supported Operating System

Windows 11, 10

Body Color

Black

Warranty

3 year

General

Brand

Gigabyte

Model

Gigabyte Z790 UD AC (Wi-Fi 5)

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

Intel Core, Pentium Gold and Celeron Processors

Generation

12th/13th/14th

Memory Support

Memory Type

DDR5

Memory MHz

7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

Memory Channel

Dual

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

3 x M.2 (1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB), )

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4), 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3).

Audio & Video

Audio Chipset

Realtek Audio CODEC

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek 2.5GbE LAN chip

LAN Speed (Mbps)

10/ 100/ 1000/ 2500Mbps

WiFi

Yes

WiFi Technology

Realtek Wi-Fi RTL8821CE (For PCB rev. 1.0)

Bluetooth

Bluetooth 4.2

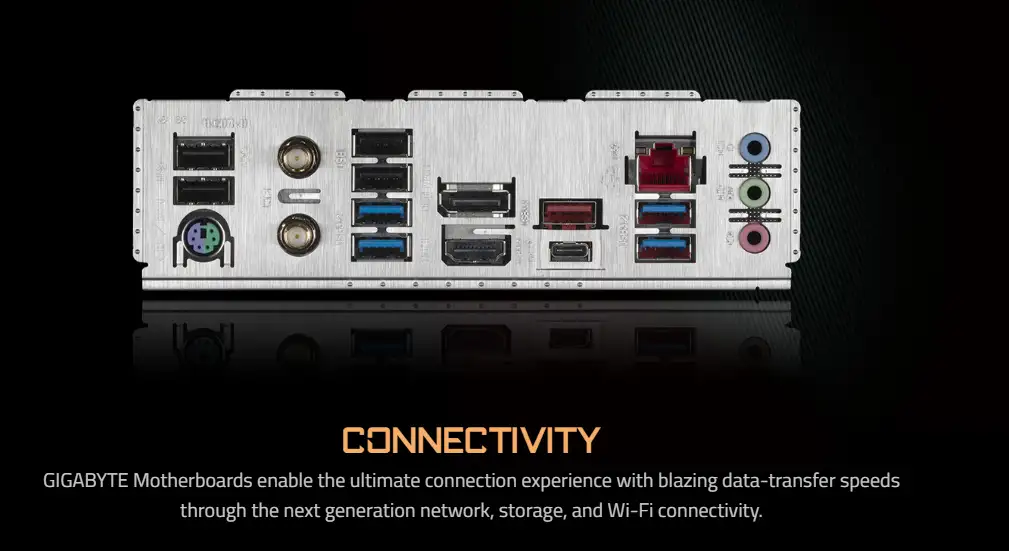

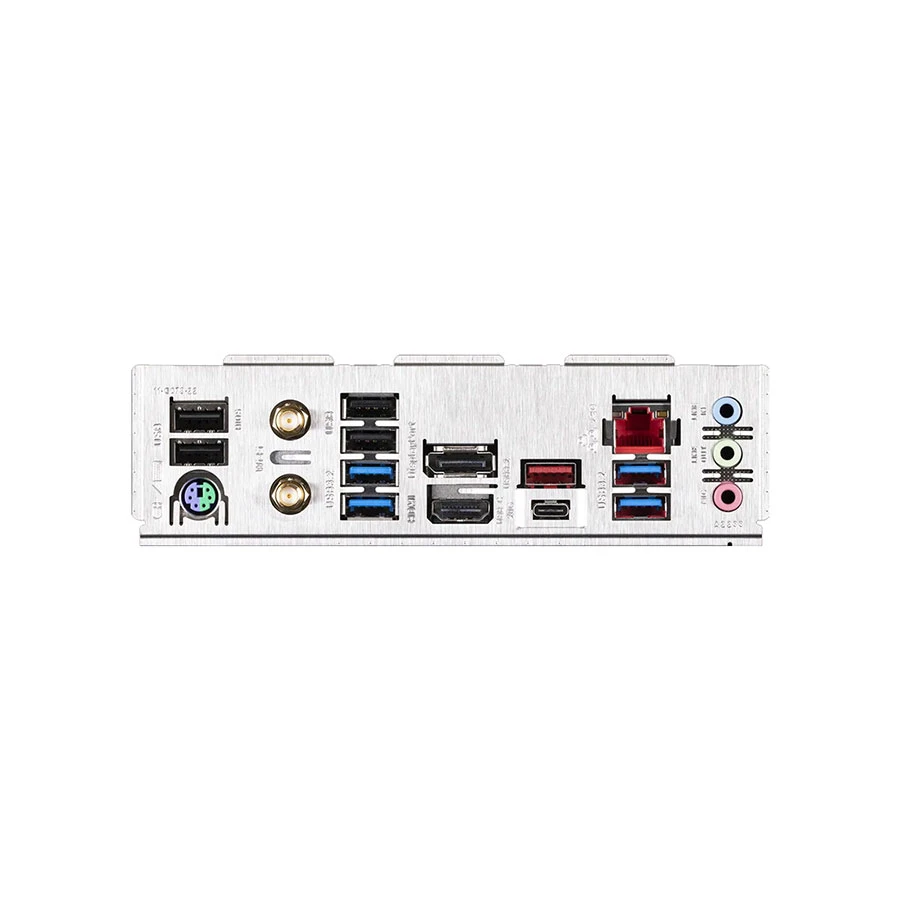

Ports

USB Port

1 x USB Type-C port, with USB 3.2 Gen 2x2 support, 1 x USB 3.2 Gen 2 Type-A port (red), 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

6 x SATA

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Yes

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

ARGB

RGB Connector

2 x addressable LED strip headers, 2 x RGB LED strip headers

Approx. Power Consumption

70W

Form Factor

ATX

Bios Information

BIOS Type

1 x 256 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 11, 10

Compatible Products

12th/ 13th Gen Intel Core i9/ i7/ i5/ i3 and Pentium/ Celeron processors in the LGA1700

Warranty

3 year

Additional Info

Feature

Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup, Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.

Others

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, High Definition Audio, WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band, Internal I/O Connectors: 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 1 x system fan/water cooling pump header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x serial port header, 2 x Thunderbolt add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x reset button, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper. Back Panel Connectors: 2 x SMA antenna connectors (1T1R), 1 x RJ-45 port, 3 x audio jacks, I/O Controller iTE I/O Controller Chip, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte Z790 UD AC (Wi-Fi 5) Motherboard In Bangladesh

What is the price of Gigabyte Z790 UD AC (Wi-Fi 5) Motherboard In Bangladesh?

The price of Gigabyte Z790 UD AC (Wi-Fi 5) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Gigabyte Z790 UD AC (Wi-Fi 5) Motherboard from our website or visit our showrooms nearby.
