Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Generation
12th/13th/14th
Memory Support
Memory Type
DDR5
Memory MHz
7200+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively.
Memory Channel
Dual
Memory Slot
2
Memory Slot (Additional Info)
2 x DDR5 DIMM Slots
Memory Max.
128GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2

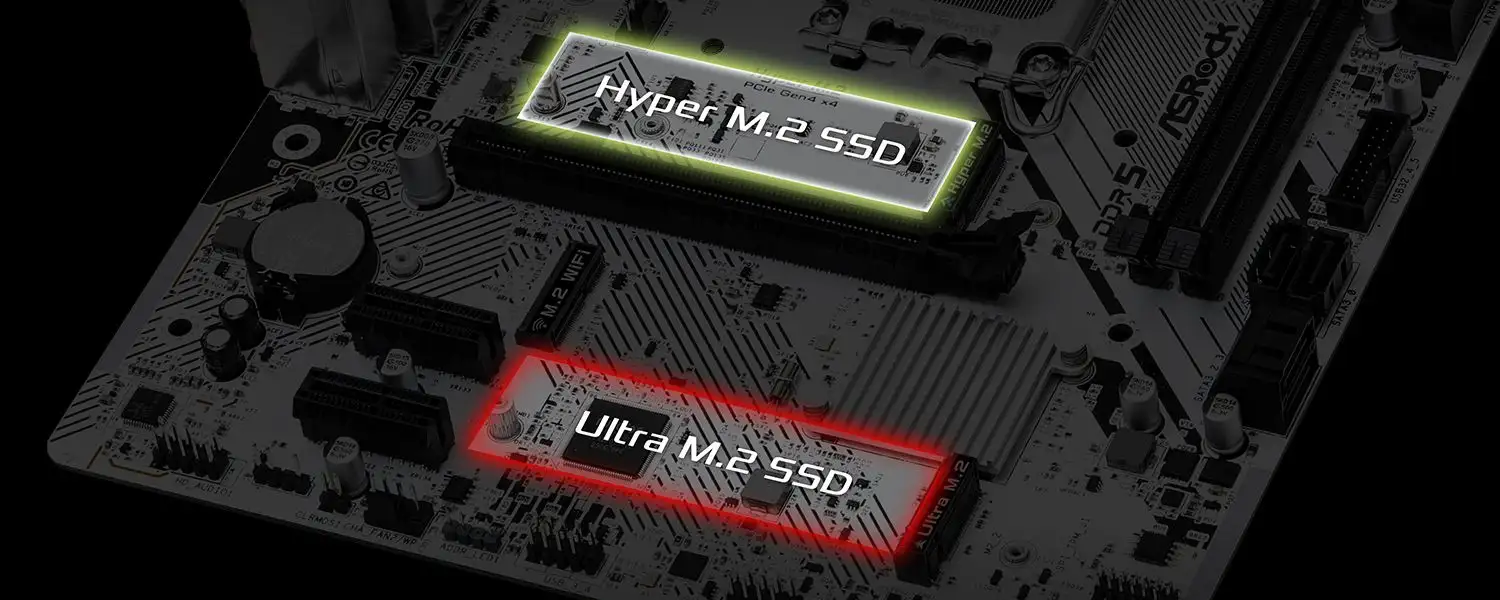

M.2/SSD Expansion Slot Details
2 x M.2 (1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes)
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Intel Xe Graphics Architecture (Gen 12) Support
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
Audio & Video
Audio Chipset
Realtek ALC897 Audio Codec
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Dragon 2.5G LAN
LAN Speed (Mbps)
10/100/1000/2500 Mb/s
WiFi
No
Bluetooth
No
Ports
USB Port
1 x USB 3.2 Gen1 Type-C Port, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports
VGA Port
1
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4
Thunderbolt
No
TPM Port
1
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
DirectX Support
No
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
RAID 0, 1, 5, 10
RGB Support
ARGB
RGB Sync
ASRock Polychrome
RGB Connector
1 x RGB LED Header, 3 x Addressable LED Headers
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 128Mb
BIOS Model
AMI UEFI Legal BIOS
Compatibility
Supported Operating System
Windows 10 64-bit / 11 64-bit
Compatible Products
Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Warranty
Warranty
3 year
Additional Info
Feature

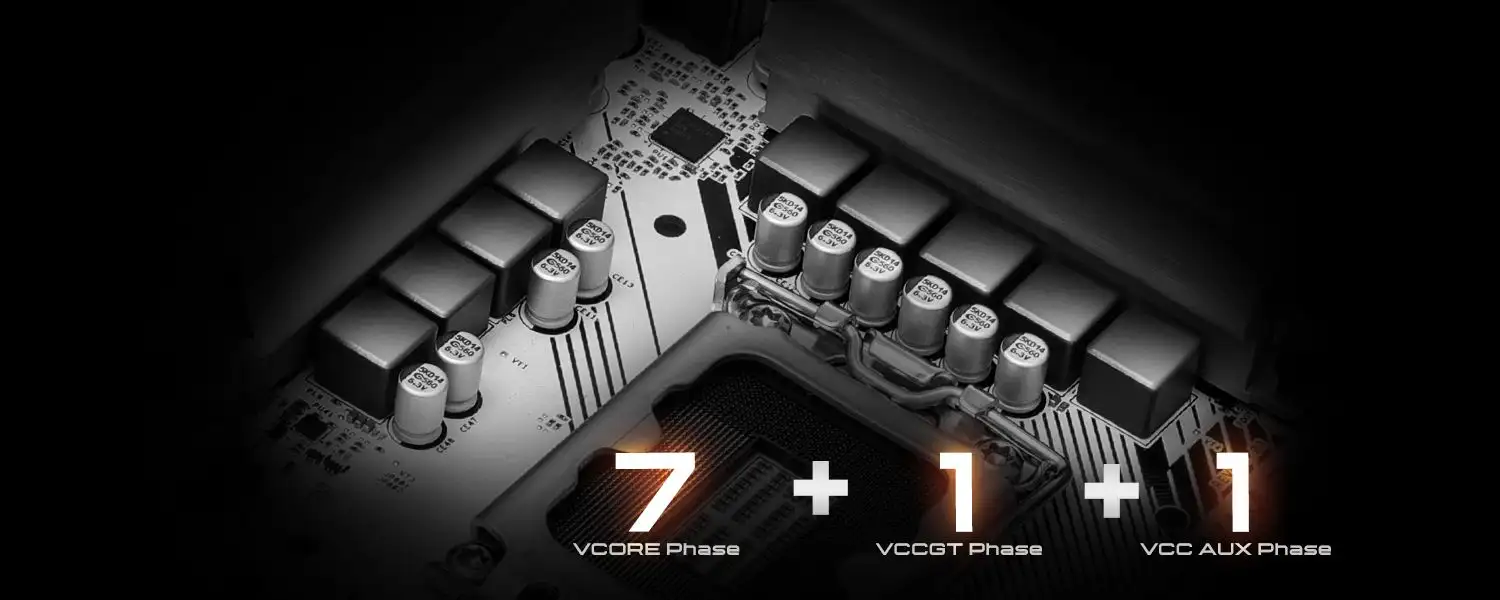

Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Supports Intel Extreme Memory Profile (XMP) 3.0, 7+1+1 Power Phase, Supports Dual Channel, up to 7200+ (OC), DDR5 XMP & EXPO Support, POLYCHROME RGB, High Speed M.2 Solution(PCIe Gen4 x4), M.2 (KEY E) For WiFi, USB 3.2 Gen1 Type-C, 3 Graphics Outputs, Auto Driver Installer.
Others
Accessories: 1 x User Manual, 1 x I/O Shield, 2 x SATA Data Cables, 3 x Screws for M.2 Sockets, Certifications: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required), 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module.
Country Of Origin
Taiwan
Made in/ Assemble
China
