3 x M.2 (1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode)
Graphics
Graphics
Integrated
Graphics Chipset
Intel Xe Graphics Architecture (Gen 12) Support
Multi-GPU Support
AMD CrossFire
PCI Express Slot
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode
Audio & Video
Audio Chipset
Realtek ALC897 Audio Codec
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Dragon RTL8125BG 2.5 Gigabit LAN
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
802.11axe Wi-Fi 6E
Bluetooth
Bluetooth 5.3
Ports
USB Port
2 x USB 2.0, 3 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4 x SATA
Thunderbolt
1
TPM Port
1
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
No
CrossFire Support
Yes
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Connector
1 x RGB LED Header, 3 x Addressable LED Headers
Approx. Power Consumption
60W
Form Factor

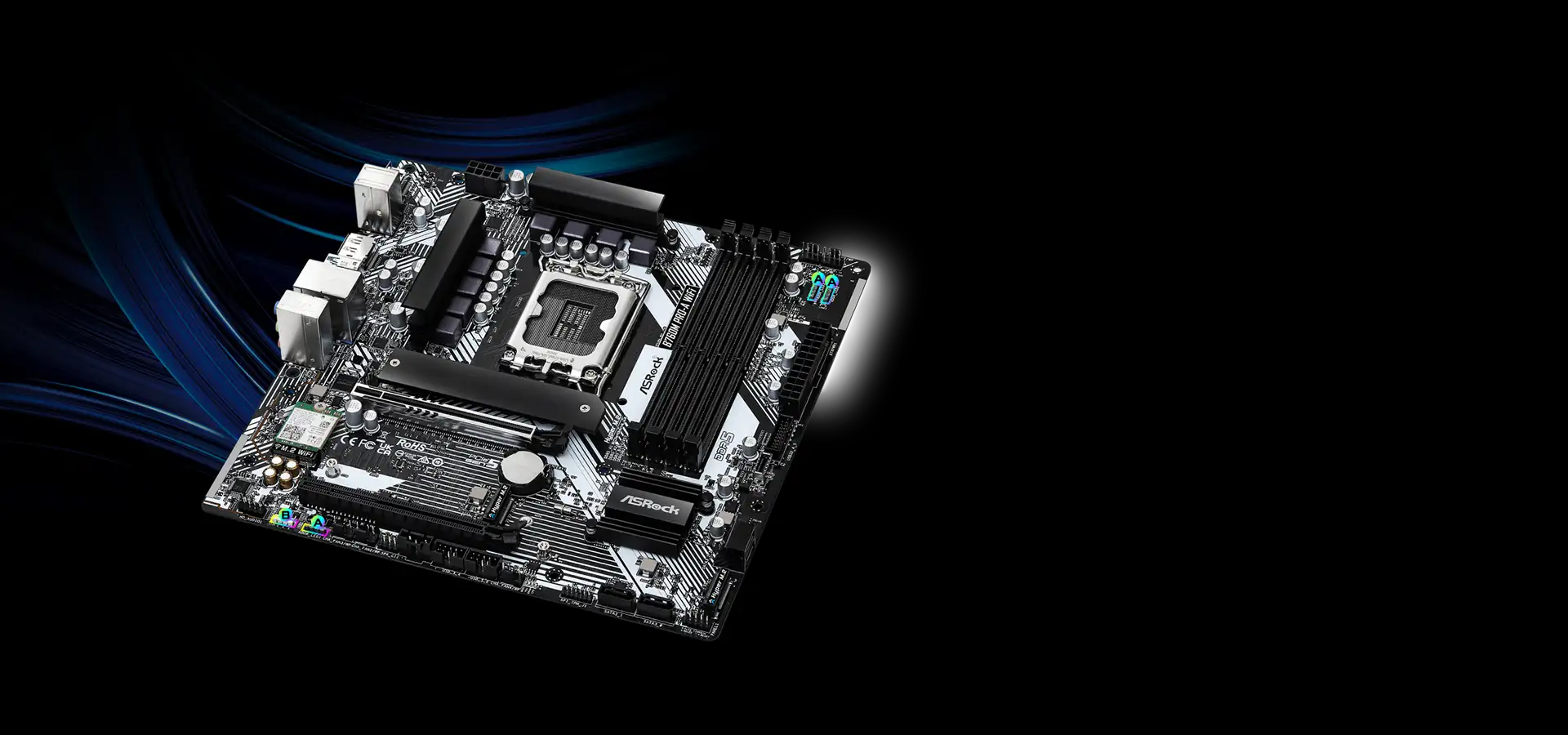

Micro-ATX
Bios Information
BIOS Type
128Mb
BIOS Model
AMI UEFI BIOS
Compatibility
Supported Operating System
Windows 10/ 11
Compatible Products
12th/ 13th/ 14th Gen Intel Core Processors in the LGA1700
Warranty
Warranty Details
3 year
Additional Info
Feature
Superb Productivity: PCIe Gen5 (Graphics), Dual Channel DDR5, Rock-Solid Durability: 7+1+1 Power Phase, Dr.MOS for VCore+GT, Ultrafast Connectivity: 2.5G LAN, Killer 802.11axe Wi-Fi 6E Module, EZ Update: ASRock Auto Driver Installer, EZ Troubleshooter, Supports Intel Hybrid Technology, Supports Intel Turbo Boost Max 3.0 Technology, Supports Intel Thermal Velocity Boost (TVB), Supports Intel Adaptive Boost Technology (ABT), Smart Auto Adjust Bandwidth Control, Visual User Friendly UI, Visual Network Usage Statistics, Optimized Default Setting for Game, Browser, and Streaming Modes, User Customized Priority Control, Supports IEEE 802.11a/b/g/n/ac/ax/axe, Supports Dual-Band 2x2 160MHz with extended 6GHz band, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.3 + High speed class II, Supports MU-MIMO, Supports Killer LAN Software, Software: ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, Killer Control Center, ASRock Polychrome SYNC, UEFI: ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Easy RAID Installer.
Others

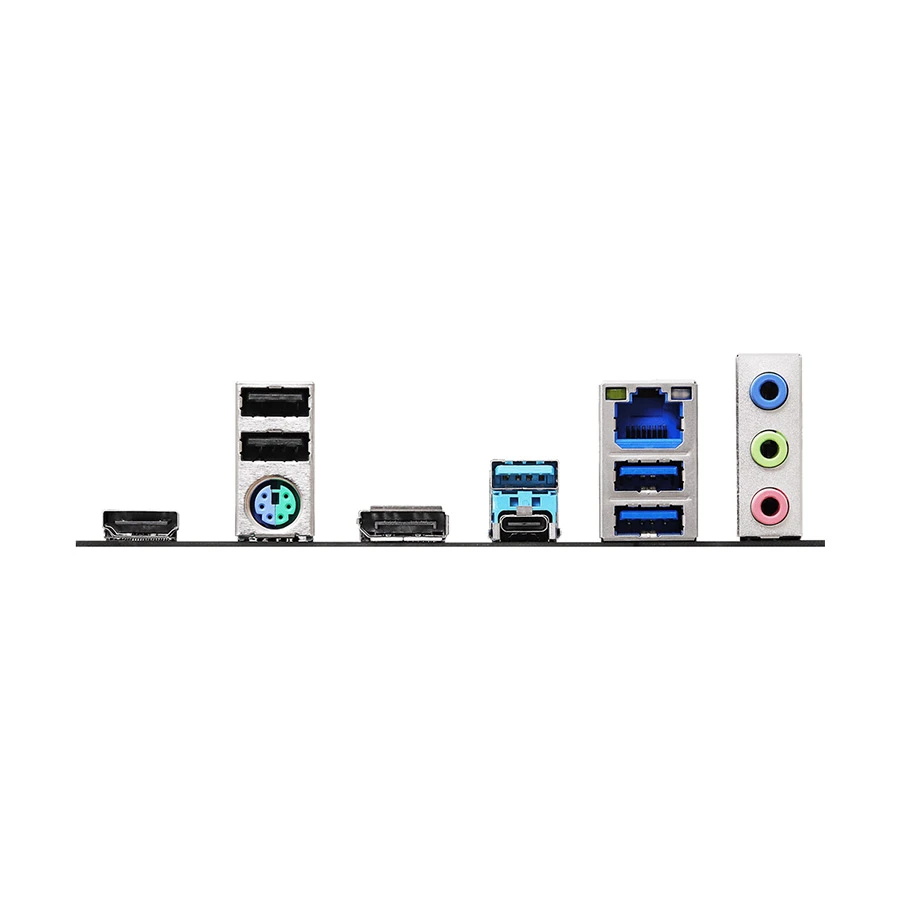

Supports DDR5 non-ECC, un-buffered memory, Rear Panel I/O: 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone, Connector: 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x Front Panel Audio Connector, 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card), 1 x Front Panel Type C USB 3.2 Gen1 Header, Certifications: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required).
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
