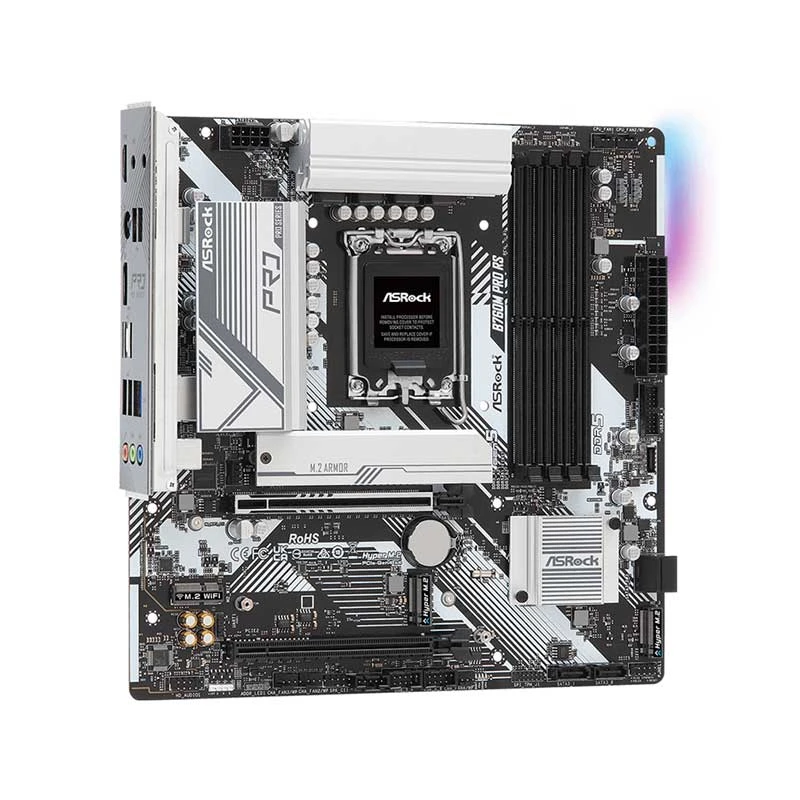

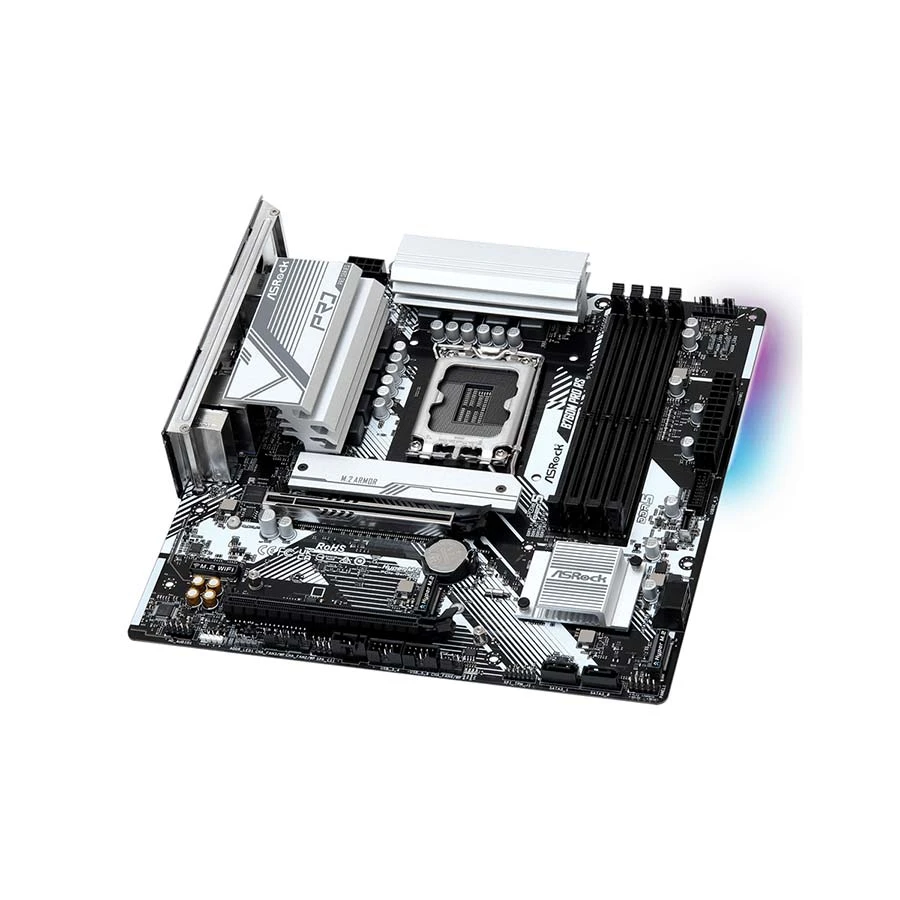

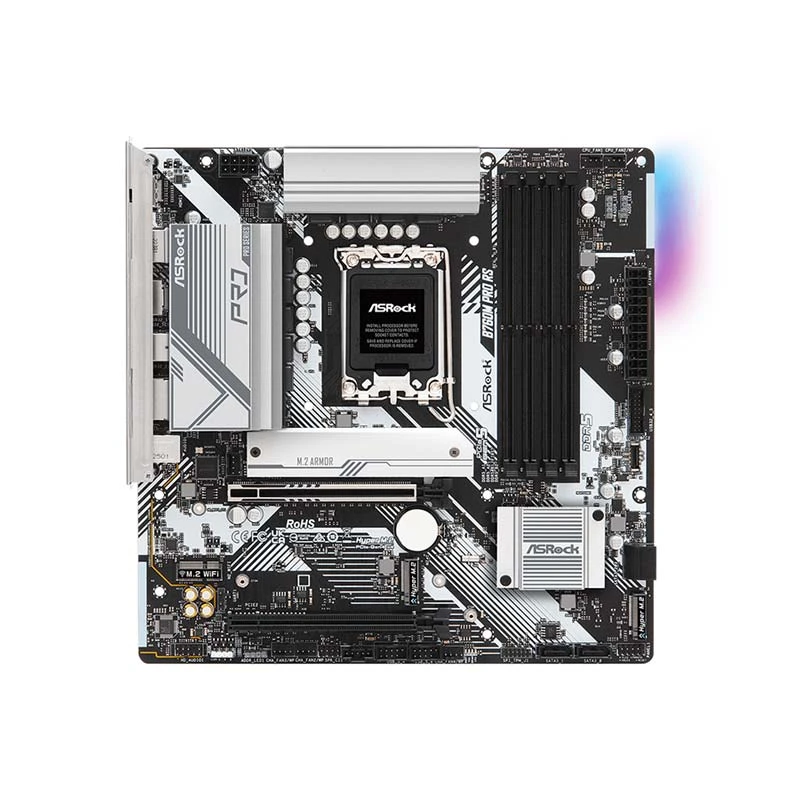

ASRock B760M Pro RS D5 DDR5 12th/13th/14th Gen Intel Motherboard

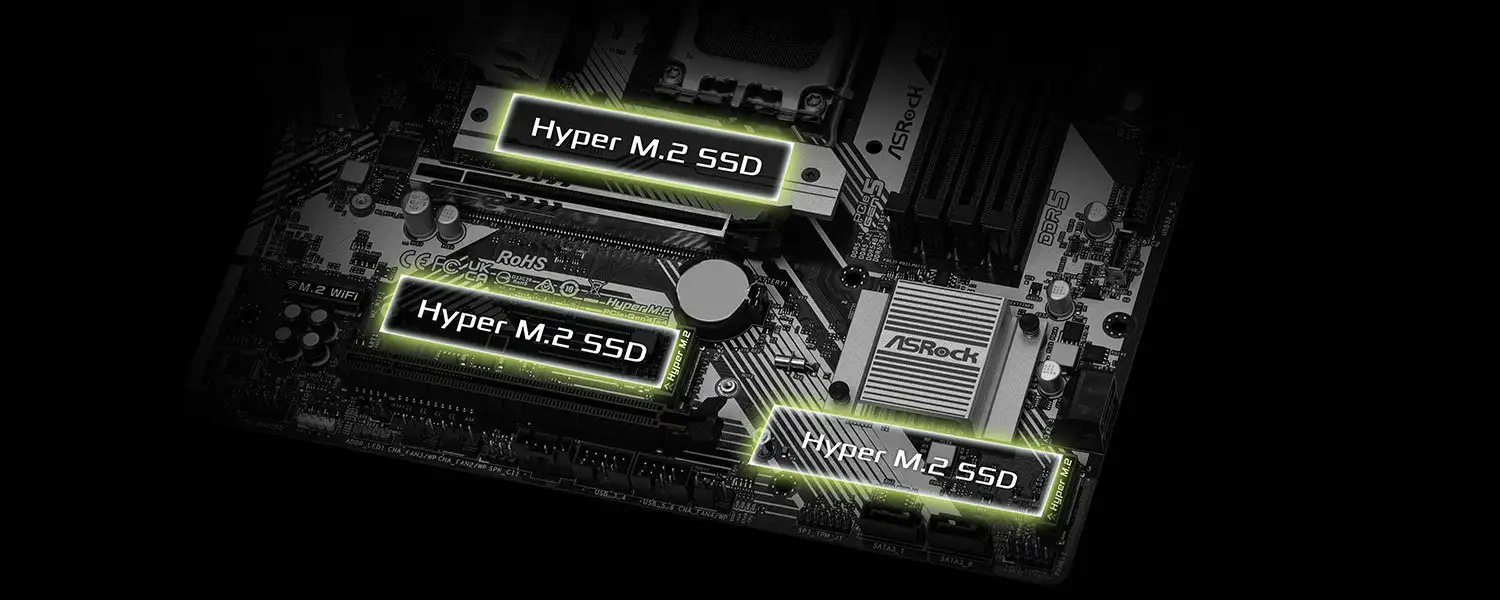

3 x M.2 (1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode)
Graphics
Graphics
Integrated
Graphics Chipset
Integrated with Processor
Multi-GPU Support
AMD CrossFire
PCI Express Slot
1 x PCIe 5.0 x 16 Slot (PCIE1), supports x 16 mode, 1 x PCIe 3.0 x16 Slot (PCIE2), supports x 4 mode
Audio & Video
Audio Chipset
Realtek ALC897
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Dragon RTL8125BG
LAN Speed (Mbps)
10/100/1000/2500 Mb/s
WiFi
No
Bluetooth
No
Ports
USB Port

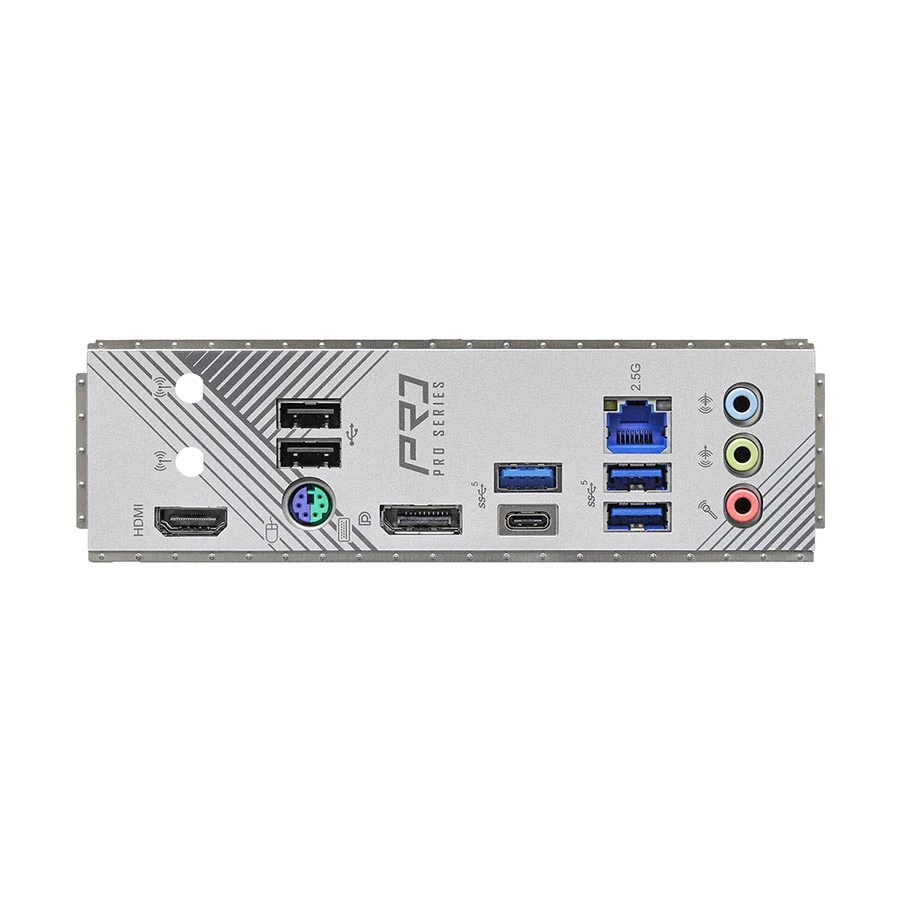

1 x USB 3.2 Gen 1 Type-C, 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
DirectX Support
No
Heatsink
Yes
FireWire
No
CrossFire Support
Yes
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
RGB Sync
RGB Aura Sync
RGB Connector
1 x RGB LED Header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
128Mb AMI UEFI Legal BIOS
BIOS Model
AMI UEFI Legal BIOS
Compatibility
Supported Operating System
Windows 10 / 11
Compatible Products
Compatible with LGA1700 Socket 12th, 13th & 14th Gen Intel Processor.
Warranty
Warranty Details
3 year
Additional Info
Feature
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade. Derived from the built for stable and reliable designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
